1. Centurion tank based vehicles

Nagmashot (1984)

01 Nagmashot.jpg


Heavy armor personnel carrier converted from Centurion tank. Since it lacked rear hatch it did not suit the infantry well and was transferred to engineer units. Armor protection was also not sufficient.

Nagmahon (1987)

02 nagmahon.jpg


Modified Nagmashot for engineer unit needs. Heavy armor skirts and anti-mine protection, armor shields on top. Can use mine rollers and other engineering equipment.

Nagmashot Kasman (late 1990-es)

03 Nagmahon kasman.jpg


Nagmahon with armored pillbox and ERA. Special anti-intifada vehicle.

Nakpadon (mid 1990-es)

04 Nakpadon.jpg


Super heavy armored Nagmahon built for patrolling most dangerous areas in Lebanon.

PUMA (1988)

05 puma.jpg


Specially built engineering vehicle on Centurion base. 900 hp engine (instead of 750) for improved mobility. These vehicles were built in relatively large numbers compare all vehicles above.

2. T-55 tank based vehicle

Achzarit (1988)

06 Achzarit.jpg


Specially built heavy armored personnel vehicle on basis of captured T-55. 850 hp engine located at left rear side. It allowed the installation of rear hatch for infantry. Was built in quite large numbers. 3 crew members + 7 passengers.

3. Merkava tank based vehicles

Namer (2008)

07 Namer.jpg


New heavy APC. Although it is based on Merkava it is not converted from old tanks but built from scratch. 1200 hp engine. 3 crew members + 8 passengers.

Ofek (2020)

08 Ofek.jpg


Armored command vehicle converted from old Merkava Mk3 tanks.


500

Contributor
Moderator
Think Tank Analyst
Israel Moderator
Messages
752
Solutions
1
Reactions
11 2,875
Nation of residence
Israel
Nation of origin
Israel
The Namer is one sexy piece of machine.

Does Israel have any SPAAG vehicles??
Not anymore. In the past we had M163 VADS and M48 Chaparrals.

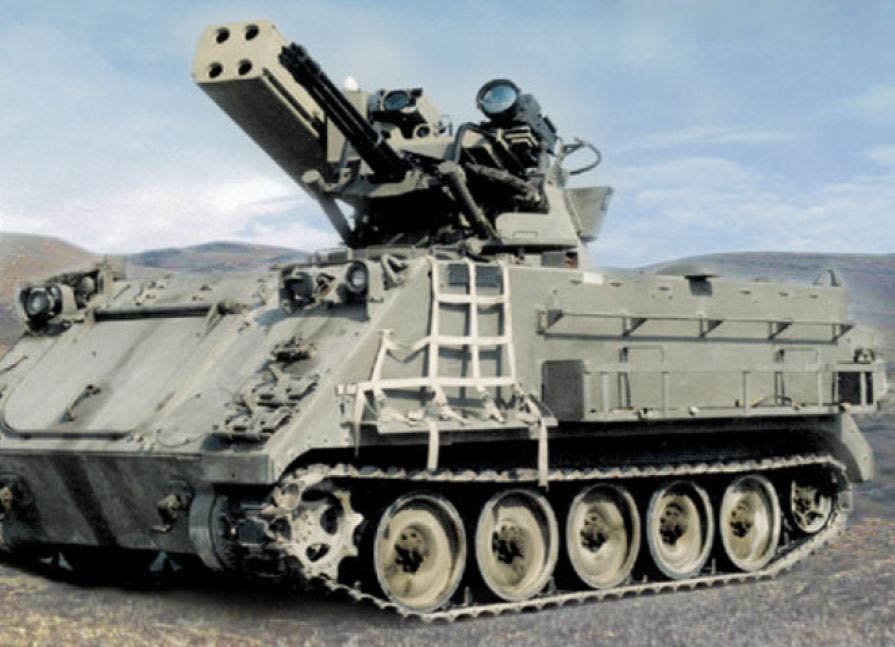

In mid of 1990-es M163 were upgraded with Stinger missiles. This thing was called Mahbet:



But later all phased out.

Currently all Israel's air defenses are static:

1) Iron Dome.
2) David's Sling.
3) Patriot.
4) Arrow 2/3.


Ryder

Experienced member
Messages
10,323
Reactions
5 17,823
Nation of residence
Australia
Nation of origin
Turkey
Not anymore. In the past we had M163 VADS and M48 Chaparrals.

In mid of 1990-es M163 were upgraded with Stinger missiles. This thing was called Mahbet:

View attachment 2683

But later all phased out.

Currently all Israel's air defenses are static:

1) Iron Dome.
2) David's Sling.
3) Patriot.
4) Arrow 2/3.

Okay thanks for the information.

The Namer is one sexy machine.


500

Contributor
Moderator
Think Tank Analyst
Israel Moderator
Messages
752
Solutions
1
Reactions
11 2,875
Nation of residence
Israel
Nation of origin
Israel
D9 bulldozer without armor:



With armor:
