Air-Force J-20 Stealth Fighter

Test7

Experienced member
Staff member
Administrator
Messages
4,421
Reactions
17,616
Nation of residence
United States of America
Nation of origin
Turkey

The Chengdu J-20 (Chinese: 歼-20; pinyin: Jiān-Èrlíng), also known as Mighty Dragon (Chinese: 威龙; pinyin: Wēilóng), is a single-seat, twinjet, all-weather, stealth, fifth-generation fighter aircraft developed by China's Chengdu Aerospace Corporation for the People's Liberation Army Air Force (PLAAF). The J-20 is designed as an air superiority fighter with precision strike capability; it descends from the J-XX program of the 1990s.

The J-20 made its maiden flight on 11 January 2011,and was officially revealed at the 2016 China International Aviation & Aerospace Exhibition.[15] The aircraft entered service in March 2017,[4] and began its combat training phase in September 2017.[16] The first J-20 combat unit was formed in February 2018.

The J-20 is the world's third operational fifth-generation stealth fighter aircraft after the F-22 and F-35.


Development​

The J-XX (Chengdu J-20) development program was started in the late 1990s. A proposal from Chengdu Aerospace Corporation, designated Project 718, won the PLAAF endorsement following a 2008 competition against a Shenyang proposal that was larger than the J-20.

In 2009, a senior PLAAF official revealed that the first flight was expected in 2010–11, with a service entry date by 2019.[18] On 22 December 2010, the first J-20 prototype underwent high speed taxiing tests outside the Chengdu Aircraft Design Institute. Three months later, the first J-20 prototype made its maiden flight in Chengdu.[1][2]

Several changes were made to J-20 prototypes, including new low-observable intake and stealth coating, as well as redesigned vertical stabilizers in 2014. Analysts noted new equipment and devices for multi-role operations such as integrated targeting pods for precision-guided munition, and six additional passive infrared sensors can also be spotted around the aircraft.[20] In December 2015, the low rate initial production (LRIP) version of J-20 had been spotted by a military observer.

Chinese state media reported in October 2017 that the designs of J-20 had been finalized, and is ready for mass production as well as combat-ready.

In January 2019, Chinese media reported that a twin-seat variant of the J-20 is rumored to be in development for use in tactical bombing, electronic warfare and carrier strike roles.

In November 2019, a J-20 painted in yellow primer coating was spotted during its flight testing by defense observers at the Chengdu Aerospace Corporation manufacturing facility. The aircraft is equipped with new variant of WS-10 Taihang engines with serrated afterburner nozzles to enhance stealth.Report indicated Chengdu Aerospace Corporation terminated the manufacturing of J-20 with Russian engines since mid-2019.

Chinese media reported that a new variant of the J-20, the J-20B, was unveiled on July 8, 2020 and entered mass production the same day. The only change mentioned was that the J-20B was to be equipped with thrust vectoring control. Conflicting reports emerged regarding the exact engine type. Analyst Andreas Rupprecht expressed skepticism regarding the use of Russian engine on J-20, as he believes that the J-20 is using a variant of the WS-10 which he called the WS-10C. This engine has improved thrust, stealthier serrated afterburner nozzles and higher reliability, but it is not designed for thrust vectoring unlike the WS-10 TVC demonstrated on a J-10 at the 2018 China International Aviation & Aerospace Exhibition. Analyst Jamie Hunter believed the new engine type is what he called WS-10B-3, a Chinese-made thrust vectoring engine demonstrated on the 2018 Zhuhai Airshow.

Radar​

Official information on the type of radar that J-20s use have not yet been released publicly. Some analysts believed that J-20s used Type 1475 (KLJ-5) active electronically scanned array (AESA) radar with 1856 transmit/receive modules,[38] but more recent information's revealed that this radar was designed for upgraded versions of J-11D.[39] Other analysts point out that, based on nose cross-section of J-20 and known data about a single transmit/receive module surface in the J-16's AESA radar-system, J-20s likely fit 2000–2200 transmit/receive modules.[40]

Cockpit, helmet and displays​

The aircraft features a glass cockpit, with one primary large color liquid crystal displays (LCD) touchscreen, three smaller auxiliary displays, and a wide-angle holographic head-up display (HUD).[44][45][46] The size of the primary LCD screen is 24 x 9 inches (25.63 by the diagonal) with two systems for redundant illumination.[47]

Armament​

Chengdu J-20 displaying weapon bays, missiles and avionics during Airshow China 2018.
The main weapon bay is capable of housing both short and long-range air-to-air missiles (AAM; PL-9, PL-12C/D & PL-15PL-21) while the two smaller lateral weapon bays behind the air inlets are intended for short-range AAMs (PL-10). These side bays allow closure of the bay doors prior to firing the missile, thus allowing the missile to be fired in the shortest time possible as well as enhancing stealth.[48][49] The J-20 is reported to lack an internal autocannon or rotary cannon, suggesting the aircraft is not intended to be used in short range dogfight engagements with other aircraft but engage them with from long standoff ranges with missiles such as the PL-15 and PL-21.[50][51]

While the fighter typically carries weapons internally, the wings include four hardpoints to extend ferrying range by carrying auxiliary fuel tanks.[52] However, much like the F-22, the J-20 is unlikely to carry fuel tanks on combat missions due to its vulnerability in such a configuration, thus this configuration remains valuable for peacetime operations, such as transiting between airbases.[53] The fighter is able to carry four medium/long range AAMs in main bay and short-range missile one in each lateral weapon bay of the aircraft.[54] A staggered arrangement with six PL-15s is possible depending on the rail launcher for missile mounted in the future.[55]

Engines​

The J-20 entered production powered by a Saturn AL-31 variant,[56] reportedly the AL-31FM2[57] with a "special power setting" thrust of 145 kN (32,600 lbf).[58]

The Shenyang WS-10 has also powered various aircraft. The WS-10B reportedly powered low rate initial production aircraft.[59] The WS-10 may have replaced the AL-31 in mid-2019.[56]

The intended powerplant is the Xian WS-15[56] with a thrust of 180 kN.[60] The J-20 requires the WS-15 to supercruise.[61] As of August 2019, the WS-15 was in development[56]

There are conflicting reports concerning the powerplant of the TVC-equipped J-20B.[27] The powerplant has been identified as the AL-31FM2, or a variant of the WS-10; "WS-10C" by Andreas Rupprecht,[62] or "WS-10B-3" by Jamie Hunter. The TVC-equipped WS-10B-3 was demonstrated at the 2018 China International Aviation & Aerospace Exhibition.[26]

The aircraft is equipped with a retractable refueling probe embedded on the right side of the cockpit, to help the fighter to maintain stealth while flying greater distances.[63]

Stealth​

Analysts noted that the J-20's nose and canopy use a similar stealth shaping design as the F-22, yielding similar signature performance in a mature design at the front, while the aircraft's side and axi-symmetric engine nozzles may expose the aircraft to radar.[64][29][65] One prototype has been powered by WS-10G engines equipped with different jagged-edge nozzles and tiles for greater stealth.[66]

Others have raised doubts about the use of canards on a low-observable design, stating that canards would guarantee radar detection and a compromise of stealth.[67][68] However, canards and low-observability are not mutually exclusive designs. Northrop Grumman's proposal for the U.S. Navy's Advanced Tactical Fighter (ATF) incorporated canards on a stealthy airframe.[69][70] Lockheed Martin employed canards on a stealth airframe for the Joint Advanced Strike Technology (JAST) program during early development before dropping them due to complications with aircraft carrier recovery.[71][72] McDonnell Douglas and NASA's X-36 featured canards and was considered to be extremely stealthy.[73] Radar cross-section can be further reduced by controlling canard deflection through flight control software, as is done on the Eurofighter.[74][75]

The diverterless supersonic inlet (DSI) enables an aircraft to reach Mach 2.0 with a simpler intake than traditionally required, and improves stealth performance by eliminating radar reflections between the diverter and the aircraft's skin. Analysts have noted that the J-20 DSI reduces the need for application of radar absorbent materials.[76][77]

In May 2018, Indian Air Chief Marshal B.S. Dhanoa claimed that its Su-30MKI fighters could detect J-20 from "several kilometers away" amid reports from the Indian media that the J-20 was undetectable.[78] Analyst Justin Bronk from Royal United Services Institute noted that Chinese are possibly flying the J-20 with radar reflectors during peacetime for safety and training purposes due to the potential for accidents and identification from other aircraft or ground installations.[79]

Flight testing​

On 11 January 2011, the J-20 made its first flight, lasting about 15 minutes, with a Chengdu J-10B serving as the chase aircraft.[1][2] After the successful flight, a ceremony was held, attended by the pilot, Li Gang, Chief Designer Yang Wei and General Li Andong, Deputy-Director of General Armaments.[80] On 17 April 2011, a second test flight of an hour and 20 minutes took place.[81] On 5 May 2011, a 55-minute test flight was held that included retraction of the landing gear.[82]

On 26 February 2012, a J-20 performed various low-altitude maneuvers.[83] On 10 May 2012, a second prototype underwent high speed taxiing tests, and flight testing that began later that month.[84][85] On 20 October 2012, photographs of a new prototype emerged, featuring a different radome, which was speculated to house an AESA radar. In March 2013, images of the side weapon bays appeared, including a missile launch rail.[86][87]

On 16 January 2014, a J-20 prototype was revealed, showing a new intake and stealth coating, as well as redesigned vertical stabilizers, and an Electro-Optical Targeting System.[66][88][89] This particular aircraft, numbered '2011', performed its maiden flight on 1 March 2014 and is said to represent the initial pre-serial standard. By the end of 2014, three more pre-serial prototypes were flown: number '2012' on 26 July 2014, number '2013' on 29 November 2014 and finally number '2015' on 19 December 2014.

On 13 September 2015, a new prototype, marked '2016', began testing. It had noticeable improvements, such as apparently changed DSI bumps on the intakes, which save weight, complexity and radar signature. The DSI changes suggested the possibility of more powerful engines being used than on its predecessors, likely to be an advanced 14-ton thrust derivative of the Russian AL-31 or Chinese Shenyang WS-10 turbofan engines, though, by 2020 the J-20 is planned to use the 18–19 ton WS-15 engine, enabling the jet to super-cruise without using afterburners. The trapezoidal flight booms around the engines were enlarged, possibly to accommodate rearwards facing radars or electronic jamming equipment. The fuselage extends almost entirely up to the engine's exhaust nozzles. Compared to its "2014" and "2015" predecessors, the J-20's fuselage contains more of engine's surface area inside the stealthy fuselage, providing greater rear-facing stealth against enemy radar.[90]

In November 2015, a new J-20 prototype, numbered '2017', took to the sky. The most significant change in the new prototype is the reshaped cockpit canopy, which provides the pilot with greater visibility. The lack of other design changes suggest that "2017" is very close to the final J-20 production configuration. Since '2017' is likely the last J-20 prototype, low rate initial production of the J-20 is likely to begin in 2016.[91] It has been reported that the design of J-20 is already mature and will not directly use the 117S engine.[92]

As of March 2017 there were still a series of technical problems that needed to be tackled, including the reliability of its WS-15 engines, the aircraft's flight control system, stealth coatings and hull materials, and infrared sensor.[93]

Production​

In late December 2015, a new J-20 numbered 2101 was spotted; it is believed to be the LRIP version of the aircraft.[21]

In October 2017, Chinese media reported that Chengdu Aerospace Corporation (CAC) initiated a series production for the J-20 and is on a path towards achieving full operational capability with the People's Liberation Army Air Force (PLAAF).[94][95] Initially, the lack of a suitable indigenously produced engine hindered the mass production of the J-20, however in September 2018, it was reported that issues with the development of the WS-15 engine, particularly the reliability of the turbine blades overheating at top speeds are fixed and after further minor refinements it should be ready for widespread installation by the end of 2018.[96]

In 2019, Chengdu Aerospace Corporation began to manufacture J-20 fitted with Chinese-made WS-10 Taihang engine.[24] J-20s manufactured after mid-2019 are no longer fitted with Russian AL-31F turbofan engines.[26]

Deployment​

At least six J-20s are in active service, with tail numbers 78271-78276 identified. Another six were believed ready to be delivered by end of Dec 2016.[97] On 9 March 2017, Chinese officials confirmed that the J-20 had entered service in the Chinese air force. It is anticipated that before 2020 China be equipped with the Chengdu J-20 low observable combat aircraft. The International Institute for Strategic Studies (IISS) has proposed that the USA could lose its lead on operational stealth aircraft.[98]

The J-20 officially entered service in September 2017[16] making China the second country in the world—after the United States—and the first in Asia to field an operational fifth-generation stealth aircraft.[17]

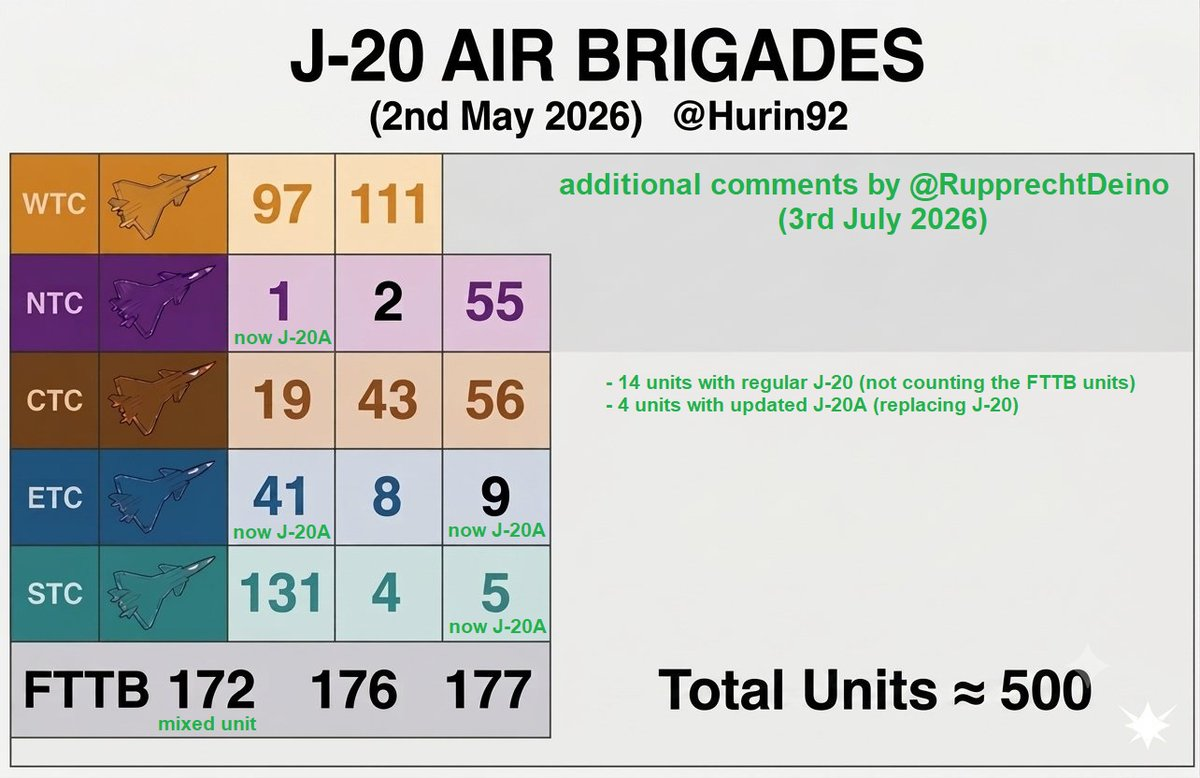

The PLAAF began inducting J-20s into combat units in February 2018. The aircraft entered service with the 9th Air Brigade based at Wuhu Air Base, Anhui province in late 2018 – March 2019, replacing Su-30MKK fighters previously deployed there.[4][99]

On 27 August 2019, the Central Military Commission of the People's Liberation Army have approved the J-20 as the PLAN's future primary fighter, beating out the FC-31. Arguments for the J-20 state that the plane is far more advanced, longer ranged and carries a heavier payload than the FC-31, while those supporting the FC-31 argued that it is cheaper, lighter and far more maneuverable than the J-20. It is likely that the J-20 would be commissioned upon the Type 002 aircraft carrier under construction, however, the length of the J-20 means that it has to be shortened to be considered operable on an aircraft carrier.[100]

Military​

Robert Gates downplayed the significance of the aircraft by questioning how stealthy the J-20 may be, but stated the J-20 would "put some of our capabilities at risk, and we have to pay attention to them, we have to respond appropriately with our own programs."[110] The U.S. Director of National Intelligence James R. Clapper testified that the United States knew about the program for a long time and that the test flight was not a surprise.[111]

In 2011, Loren B. Thompson, echoed by a 2015 RAND Corporation report, felt that J-20's combination of forward stealth and long range puts America's surface assets at risk, and that a long-range maritime strike capability may cause the United States more concern than a short range air-superiority fighter like the F-22.[112][113][114] In its 2011 Annual Report to Congress, the Pentagon described the J-20 as "a platform capable of long range, penetrating strikes into complex air defense environments."[115] A 2012 report by the U.S.‐China Economic and Security Review Commission suggests that the United States may have underestimated the speed of development of the J-20 and several other Chinese military development projects.[116]

Observers were not able to reach a consensus on J-20's primary role.[117][118][119] Based on initial photographs with focus on the aircraft's size, early speculations referred to the J-20 as an F-111 equivalent with little to no air-to-air ability. Others saw the J-20 as a potential air superiority fighter once appropriate engines become available.[29][105][120] More recent speculations refer to the J-20 as an air-to-air fighter with an emphasis on forward stealth, high-speed aerodynamics, range, and adequate agility. The J-20 with its long range missile armament could threaten vulnerable tankers and ISR/C2 platforms such as the Boeing KC-135 Stratotanker and Boeing E-3 Sentry AWACS, depriving Washington of radar coverage and strike range.[49] However one of these targets, the Northrop Grumman E-2D Advanced Hawkeye, is reported to be optimized for spotting fighter sized stealth aircraft such as the J-20.[121]

After the deployment announcement, several analysts noted that experience that the PLAAF will gain with the J-20 will give China a significant edge over India, Japan, and South Korea, which have struggled to design and produce their own fifth-generation fighters on schedule.[122] However, despite the failure of their indigenous projects, Japan and South Korea operate the imported F-35A, negating this potential technological disparity.[123][124] United States Marine Corps created a full-scale replica (FSR) of a Chengdu J-20 in December 2018. The replica was spotted parked outside the Air Dominance Center at Savannah Hilton Head Airport in Georgia. The United States Marine Corps later confirmed that the aircraft was built for training.[125]


Bogeyman

Experienced member
Professional
Messages
2,364
Reactions
1 10,536
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey


Twin-seat variation & domestic engine-equipped version of J-20 make official appearances

A twin-seat variation of China's J-20 stealth fighter jet and a J-20 version equipped with a domestically made engine have been spotted for the first time in official videos recently released by its developer and the People's Liberation Army (PLA) Air Force, only days before the 10th anniversary on Monday of the aircraft's maiden flight.

The twin-seat variation of the J-20 could be used for electronic warfare, command of wingman drones or bombing, and the domestic engine means the J-20 is no longer reliant on Russian engines, analysts said on Sunday.

Depicted by computer-generated imagery, four twin-seat J-20 variations were seen flying in formation in a video released by state-owned Aviation Industry Corp of China (AVIC), the developer of the aircraft, on Friday, in celebration of the 10th anniversary on Monday of the original aircraft's maiden flight.

This is the first time the twin-seat J-20 has been featured in an official promotional source, although media reports had speculated about its existence for years. It will also make the J-20 variation the world's first twin-seat stealth fighter jet, media reported.

By adding another seat to the cockpit, the aircraft could, in exchange for some level of stealth capability and maneuverability, carry a second pilot designated for more complicated tasks such as electronic warfare, command of wingman drones or tactical bombing, a Chinese military analyst told the Global Times on Sunday, requesting anonymity.

This means the twin-seat J-20 could spawn more variations that are equipped with devices corresponding to these tasks, the analyst predicted.

AVIC's video did not elaborate on the twin-seat J-20 or its designed functions.

In a separate video, released on Tuesday by the People's Liberation Army (PLA) Air Force for its pilot recruitment program, Chinese media outlets identified a J-20 that is equipped with domestically developed WS-10C engines instead of imported Russian engines.

This is also the first time the PLA Air Force has confirmed that a J-20 equipped with a domestically made engine has entered service, Passion News, a media outlet under k618.cn, a news portal run by the Communist Youth League of China Central Committee, reported on Friday.

Designed with stealth capability, the WS-10C engines provide more powerful thrust than the Russian engines previously used on the J-20, since the Chinese engines use full authority digital engine control technology and improved afterburners, the Passion News report said.

Domestic engines will not only let the J-20 become stronger, but also enable the mass production of the aircraft without the limitation of imported engines, analysts said, noting that the J-20 will eventually use the WS-15, an even more powerful domestically developed engine.


UkroTurk

Experienced member
Professional
Messages
2,033
Reactions
4,201
Nation of residence
Ukraine
Nation of origin
Turkey
İ've no idea whether the resource is reliable

China's J-20 fighter turns 10​

the aircraft recently celebrated its tenth birthday as a flying machine within the world's third-largest air force, though it remains one of the world's most enigmatic fighters.

At least 40 J-20s have been produced so far, but certainly no more than 60-70. It is alleged that CAC set up a fourth J-20 production line in 2019, each line able to produce one fighter per month. At this rate, the J-20 should approach total production numbers of the American F-22 by 2027.

Crazy photoshop however tempting
