TR Missile & Smart Munition Programs

[Combat-Master]

https://twitter.com/i/web/status/1374361245562834947

Stand-Off Ammunition SOM-J, compatible with 5th Generation Fighter Aircrafts, will strengthen our Air Force to be used against land and sea targets!

275km range no ship is safe



[Anmdt]

275km range no ship is safe

279.99
Always less than 280 km



[Cabatli_TR]



[Anmdt]

Booster is huge..it will definitely have a decent range.



[Combat-Master]

It's a shame they are speeding up his presentation, I'd rather listen to him for another hour than listening to Orko_8 cynical analysis..



[Combat-Master]

Booster is huge..it will definitely have a decent range.

What do you reckon, around 32 inches (0.8meters) in length?



[CAN_TR]

https://twitter.com/i/web/status/1375104226184069121



[Combat-Master]

https://twitter.com/i/web/status/1375104226184069121

Aksit said the missile was 3.2 meters long..



[Philip the Arab]

https://twitter.com/i/web/status/1375104226184069121

I like the concept of a small anti ship missile and hope UAE pursues similar developments. They have a 1kn engine developed by some South Africans that could probably power a missile of this size but little smaller.



[Test7]



[Anmdt]

What do you reckon, around 32 inches (0.8meters) in length?

Looks around such quarter of the missile itself..

Aksit said the missile was 3.2 meters long..

Probably without booster.



[Combat-Master]

Looks around such quarter of the missile itself..

Probably without booster.

It's reported as 3.2meter everywhere though

"Törende paylaşılan bilgiye göre yeni Orta Menzilli Gemisavar Güdümlü Mermi 3,2 metre boyunca ve 300kg ağırlığında. Tahminen 100-150km mertebesinde bir menzile ulaşması mümkün."

TJ-300 Motoru Orta Menzilli Gemisavar Güdümlü Mermisine Güç Verecek!

19 Haziran Cuma günü TEI tesislerinde Sanayi ve Teknoloji Bakanı Mustafa VARANK’ın katılımıyla, ilk ateşlemesini yapan, 30 kilogramdan daha az ağırlığa sahip, dar bir çapta, kendi itki sınıfında 1300 Newton itki üretebilen ve yaklaşık 400 beygir kapasiteli, dünyadaki ilk turbojet motoru olma...

www.defenceturkey.com

Don't know where @miguyan2000 got 3.7 m from

Eitherway, much more compact then the French equivalent MARTE ER at 3.60m



[Hexciter]

It's reported as 3.2meter everywhere though

"Törende paylaşılan bilgiye göre yeni Orta Menzilli Gemisavar Güdümlü Mermi 3,2 metre boyunca ve 300kg ağırlığında. Tahminen 100-150km mertebesinde bir menzile ulaşması mümkün."

TJ-300 Motoru Orta Menzilli Gemisavar Güdümlü Mermisine Güç Verecek!

19 Haziran Cuma günü TEI tesislerinde Sanayi ve Teknoloji Bakanı Mustafa VARANK’ın katılımıyla, ilk ateşlemesini yapan, 30 kilogramdan daha az ağırlığa sahip, dar bir çapta, kendi itki sınıfında 1300 Newton itki üretebilen ve yaklaşık 400 beygir kapasiteli, dünyadaki ilk turbojet motoru olma...

www.defenceturkey.com

Don't know where @miguyan2000 got 3.7 m from

Eitherway, much more compact then the French equivalent MARTE ER at 3.60m

I don’t think that is not an offical drawing but miguyan2000’s. I’m expecting a shorter and fattier guy.



[Yasar_TR]

This engine is great for MRAShM. But it could also be used on our KGK Mk84 range of gliding ammunitions, to give them extra range. US is already trying this with their JSOW and achieved ranges around 555km.

F-35A/C to receive JSOW-ER air-to-surface missile

The A and C variants of the Lockheed Martin F-35 Lightning II Joint Strike Fighter (JSF) are to receive a new extended-range air-to-surface missile under plans disclosed...

www.janes.com



[Philip the Arab]

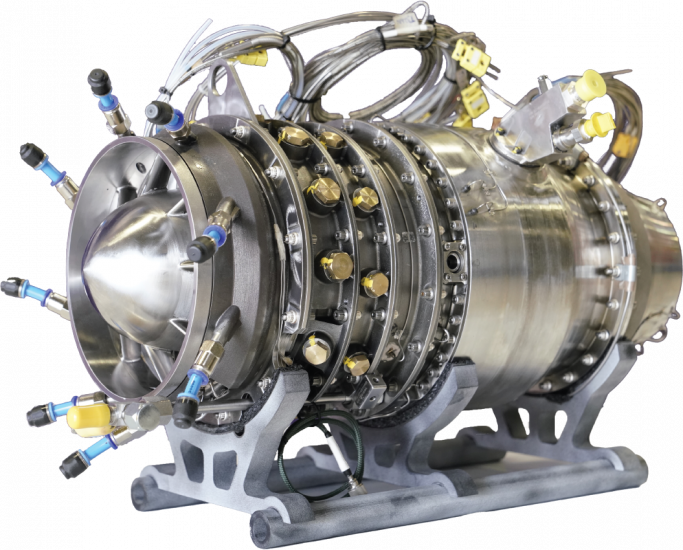

View attachment 16817
This engine is great for MRAShM. But it could also be used on our KGK Mk84 range of gliding ammunitions, to give them extra range. US is already trying this with their JSOW and achieved ranges around 555km.

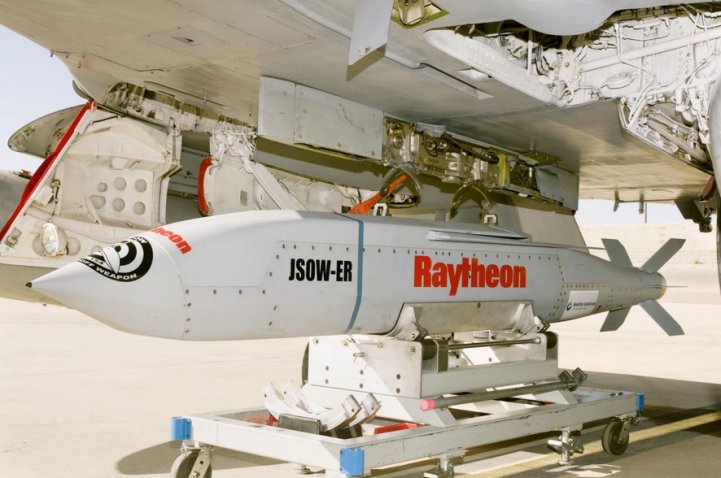

View attachment 16822

F-35A/C to receive JSOW-ER air-to-surface missile

The A and C variants of the Lockheed Martin F-35 Lightning II Joint Strike Fighter (JSF) are to receive a new extended-range air-to-surface missile under plans disclosed...

www.janes.com

Good idea, the JSOW ER engine only generates 667 netwons of thrust this engine is way more powerful.



[Combat-Master]

View attachment 16817
This engine is great for MRAShM. But it could also be used on our KGK Mk84 range of gliding ammunitions, to give them extra range. US is already trying this with their JSOW and achieved ranges around 555km.
View attachment 16822

F-35A/C to receive JSOW-ER air-to-surface missile

The A and C variants of the Lockheed Martin F-35 Lightning II Joint Strike Fighter (JSF) are to receive a new extended-range air-to-surface missile under plans disclosed...

www.janes.com

KGK-LR



[Anmdt]

Aksit said the missile was 3.2 meters long..

you are right booster included in 3.2 meters. the engine was told to be 450 mm by TEI, it fits to that.

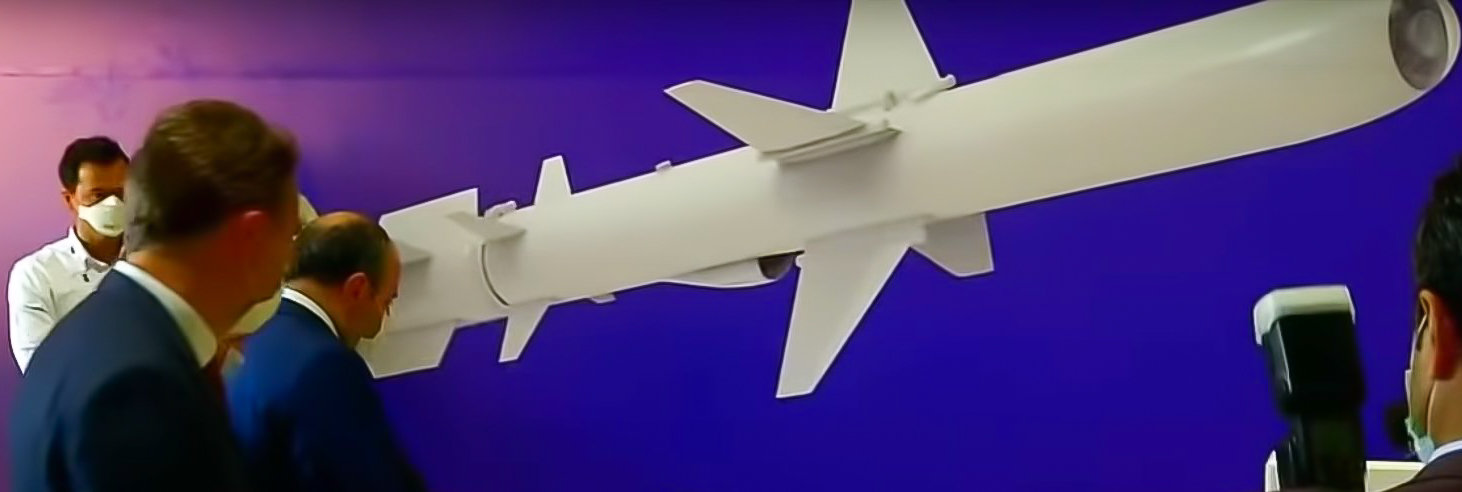

measured by pixels from approximate locations where engine starts and ends:
450*(371/52)= 3210 mm
Now i wonder the weight without the booster.



[Hexciter]

you are right booster included in 3.2 meters. the engine was told to be 450 mm by TEI, it fits to that.
measured by pixels from approximate locations where engine starts and ends:
450*(371/52)= 3210 mm
Now i wonder the weight without the booster.

Booster’s for such missiles weights around 25% of missile weight. But in Tomahawk, it’s 12.5%



[Combat-Master]

you are right booster included in 3.2 meters. the engine was told to be 450 mm by TEI, it fits to that.
measured by pixels from approximate locations where engine starts and ends:
450*(371/52)= 3210 mm
Now i wonder the weight without the booster.

It's going to be an interesting missile, hoping it will have dual-mode RF/IIR seeker to make it extra spicy.



[neosinan]

Atmaca's booster is using composite body

Roketsan's sounding rokets are using using 610 mm composite body / this engine is producing equivalent of 5 f16 engine of thrust
