View attachment 71579

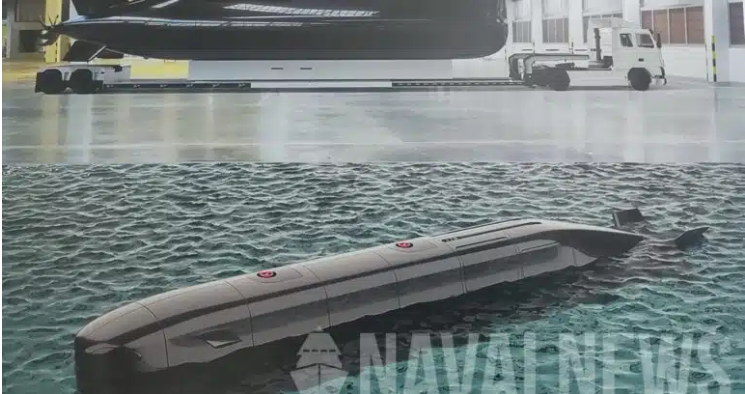

TRANÇA is designed with advanced mobility in mind, capable of being transported via low-bed trailers and launched into the water from cranes, eliminating the need for permanent bases or specialized crews in remote regions. Dr. Munir Cansin Ozden, founder of DATUM A.Ş., emphasized the deliberate choice of TRANÇA’s compact 20-meter, 80-ton dimensions, which allow for fast and efficient land transportation. “This submarine is not just designed for attack missions; it’s versatile enough to serve as a mobile testing platform for naval technologies,” Dr. Ozden explained.


In addition to its combat capabilities, TRANÇA’s design incorporates features that will allow it to serve as a testbed for the Turkish Navy‘s future submarine systems. Dr. Ozden highlighted the importance of testing new technologies on a smaller, more cost-effective platform.



Dr. Ozden also addressed a critical challenge that many navies face: the significant personnel requirements for operating traditional submarines. He highlighted how mini submarines like TRANÇA can offer a more efficient alternative, particularly in terms of crew needs.

Conventional submarines often demand a large and highly specialized crew, which can be difficult for many navies to sustain,” Dr. Ozden remarked. “In contrast, mini submarines like TRANÇA are designed to operate with a much smaller crew. For instance, a team of just eight operators can manage two TRANÇA attack submarines simultaneously. Once a mission is completed, these operators can be swiftly redeployed to another region to manage a different mission, offering unparalleled flexibility and efficiency.”


This streamlined approach not only reduces the operational burden on navies but also allows for rapid, strategic response across multiple theaters of operation, a distinct advantage over the personnel-intensive demands of larger, conventional submarines.

Enhanced Combat and Seabed Operations


View attachment 71580

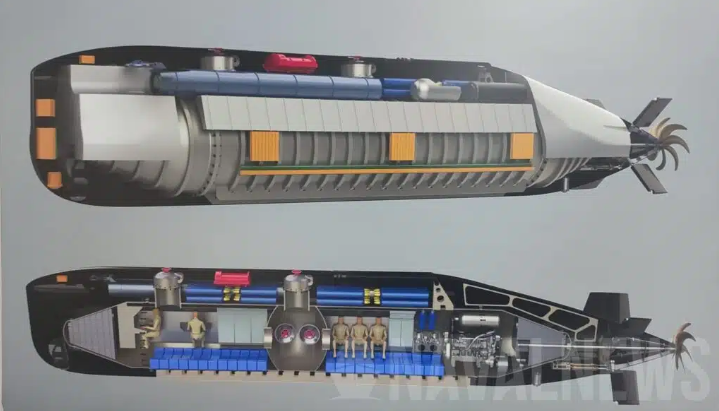

TRANÇA’s capabilities extend far beyond conventional attack missions. Equipped with the MÜREN combat management system, it can launch Roketsan’s AKYA torpedoes and deliver MALAMAN smart sea mines developed by MKE-Koç-SAGE. Its diver lockout chamber can transport combat swimmers and support swimmer delivery vehicles, enabling special operations up to 250 meters below the surface. With domestic sonar technology from PRS, FAS, CHA, and other local companies, TRANÇA is poised to enhance Turkey’s ability to detect and neutralize threats in both shallow and deep waters.


One of the most significant advantages of the TRANÇA design is its operational flexibility. Thanks to its small size, it can be rapidly transported and deployed in theaters where larger submarines would be impractical. This makes it an ideal solution for countries that lack extensive submarine fleets but need effective coastal defense. TRANÇA can also be delivered inside TCG Anadolu, Turkey’s flagship amphibious assault ship, further extending its reach.



General Specifications

  • Length (LOA): 20m
  • Beam: 2.8m
  • Height: 3.6m
  • Displacement: 60 tonnes
  • Diving depth: 250m
  • Operational speed: 4 kts
  • Snorkelling speed: 8 kts
  • Max Speed: 12 kts
  • Range: 400 NM (battery), 2000 NM (snorkel)
  • Crew: 4 operator + 6 combat swimmer
  • Communications: VHF, HF, SATCOM
  • Navigation: GNSS (Surface), INS+DVL (Underwater)
  • Propulsion: 50kW electric engine, 400 kW diesel engine, Lithium Titanate Oxide Batteries
  • Command, Control and Combat Management: TUBITAK MÜREN, HAVELSAN SEDA
  • Weapons: 2x533mm torpedo tubes for SUB-ATMACA AShM, AKYA Heavyweight torpedo, 2/4 units Stidd DPD Swimmer delivery vehicles or 2/4 units MALAMAN smart sea mines

Author’s comment

In modern naval warfare, surface and air surveillance sensors are evolving rapidly, but the underwater domain remains a complex area where one can more easily hide. Sonar, the primary sensor for underwater detection, is heavily affected by underwater environmental factors. In negative gradient water conditions, submarines enjoy a significant tactical advantage, as these conditions make them extremely difficult to detect. In contrast, under positive gradient conditions or other more favorable sonar environments, submarines often choose to stay beneath the layer depth—a natural barrier where sonar signals have great difficulty reaching—further enhancing their stealth and evading detection. This strategic use of depth in varying water conditions enables submarines to maintain a low profile and avoid enemy surveillance effectively.

Mini submarines like TRANÇA are even harder to detect due to their smaller size and lower noise output, compounding the already challenging nature of underwater surveillance. In coastal waters, where sound propagation is less predictable and ambient noise further complicates detection, identifying these compact submarines becomes valuable assets.


In such scenarios, mini submarines like TRANÇA have the potential to excel in demanding operations such as enemy detection, reconnaissance, and penetration. Armed with powerful weapons like heavy torpedoes or anti-ship missiles, these submarines can inflict significant damage on enemy forces. Despite the command and control complexities that may arise from deploying numerous mini submarines, their low operational cost and minimal crew requirements make them strategically advantageous. Equipped with deep-strike capabilities, they could carry out surprise attacks on high-value targets, maximizing their impact with the element of surprise.


The ability to deploy a fleet of these agile, stealthy submarines offers a potent new dimension to naval operations, with the potential to shift the balance in asymmetric warfare.

@ Tayfun Ozberk

Great news!!!

Need to share it in Turkish Navy section.



Anyway finally somebody copied Italian midget submarine DG -85.

Before @Anmdt mentioned about this.


What a pitty , i missed this company.

Fair was too large and the time was limited 😔


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,469
Solutions
2
Reactions
115 24,675
Nation of residence
Turkey
Nation of origin
Turkey
View attachment 71579

TRANÇA is designed with advanced mobility in mind, capable of being transported via low-bed trailers and launched into the water from cranes, eliminating the need for permanent bases or specialized crews in remote regions. Dr. Munir Cansin Ozden, founder of DATUM A.Ş., emphasized the deliberate choice of TRANÇA’s compact 20-meter, 80-ton dimensions, which allow for fast and efficient land transportation. “This submarine is not just designed for attack missions; it’s versatile enough to serve as a mobile testing platform for naval technologies,” Dr. Ozden explained.


In addition to its combat capabilities, TRANÇA’s design incorporates features that will allow it to serve as a testbed for the Turkish Navy‘s future submarine systems. Dr. Ozden highlighted the importance of testing new technologies on a smaller, more cost-effective platform.



Dr. Ozden also addressed a critical challenge that many navies face: the significant personnel requirements for operating traditional submarines. He highlighted how mini submarines like TRANÇA can offer a more efficient alternative, particularly in terms of crew needs.

Conventional submarines often demand a large and highly specialized crew, which can be difficult for many navies to sustain,” Dr. Ozden remarked. “In contrast, mini submarines like TRANÇA are designed to operate with a much smaller crew. For instance, a team of just eight operators can manage two TRANÇA attack submarines simultaneously. Once a mission is completed, these operators can be swiftly redeployed to another region to manage a different mission, offering unparalleled flexibility and efficiency.”


This streamlined approach not only reduces the operational burden on navies but also allows for rapid, strategic response across multiple theaters of operation, a distinct advantage over the personnel-intensive demands of larger, conventional submarines.

Enhanced Combat and Seabed Operations


View attachment 71580

TRANÇA’s capabilities extend far beyond conventional attack missions. Equipped with the MÜREN combat management system, it can launch Roketsan’s AKYA torpedoes and deliver MALAMAN smart sea mines developed by MKE-Koç-SAGE. Its diver lockout chamber can transport combat swimmers and support swimmer delivery vehicles, enabling special operations up to 250 meters below the surface. With domestic sonar technology from PRS, FAS, CHA, and other local companies, TRANÇA is poised to enhance Turkey’s ability to detect and neutralize threats in both shallow and deep waters.


One of the most significant advantages of the TRANÇA design is its operational flexibility. Thanks to its small size, it can be rapidly transported and deployed in theaters where larger submarines would be impractical. This makes it an ideal solution for countries that lack extensive submarine fleets but need effective coastal defense. TRANÇA can also be delivered inside TCG Anadolu, Turkey’s flagship amphibious assault ship, further extending its reach.



General Specifications

  • Length (LOA): 20m
  • Beam: 2.8m
  • Height: 3.6m
  • Displacement: 60 tonnes
  • Diving depth: 250m
  • Operational speed: 4 kts
  • Snorkelling speed: 8 kts
  • Max Speed: 12 kts
  • Range: 400 NM (battery), 2000 NM (snorkel)
  • Crew: 4 operator + 6 combat swimmer
  • Communications: VHF, HF, SATCOM
  • Navigation: GNSS (Surface), INS+DVL (Underwater)
  • Propulsion: 50kW electric engine, 400 kW diesel engine, Lithium Titanate Oxide Batteries
  • Command, Control and Combat Management: TUBITAK MÜREN, HAVELSAN SEDA
  • Weapons: 2x533mm torpedo tubes for SUB-ATMACA AShM, AKYA Heavyweight torpedo, 2/4 units Stidd DPD Swimmer delivery vehicles or 2/4 units MALAMAN smart sea mines

Author’s comment

In modern naval warfare, surface and air surveillance sensors are evolving rapidly, but the underwater domain remains a complex area where one can more easily hide. Sonar, the primary sensor for underwater detection, is heavily affected by underwater environmental factors. In negative gradient water conditions, submarines enjoy a significant tactical advantage, as these conditions make them extremely difficult to detect. In contrast, under positive gradient conditions or other more favorable sonar environments, submarines often choose to stay beneath the layer depth—a natural barrier where sonar signals have great difficulty reaching—further enhancing their stealth and evading detection. This strategic use of depth in varying water conditions enables submarines to maintain a low profile and avoid enemy surveillance effectively.

Mini submarines like TRANÇA are even harder to detect due to their smaller size and lower noise output, compounding the already challenging nature of underwater surveillance. In coastal waters, where sound propagation is less predictable and ambient noise further complicates detection, identifying these compact submarines becomes valuable assets.


In such scenarios, mini submarines like TRANÇA have the potential to excel in demanding operations such as enemy detection, reconnaissance, and penetration. Armed with powerful weapons like heavy torpedoes or anti-ship missiles, these submarines can inflict significant damage on enemy forces. Despite the command and control complexities that may arise from deploying numerous mini submarines, their low operational cost and minimal crew requirements make them strategically advantageous. Equipped with deep-strike capabilities, they could carry out surprise attacks on high-value targets, maximizing their impact with the element of surprise.


The ability to deploy a fleet of these agile, stealthy submarines offers a potent new dimension to naval operations, with the potential to shift the balance in asymmetric warfare.

@ Tayfun Ozberk

I am slightly unfaithful about the propulsion unit they are employing. It is not a permanent sync magnet motor but two small high speed electric motors, coupled to shaft through belts and in-plane reductors (fixed gearboxes), rather unpreferred in 21st century due to the noise it emits. But i would let the experts evaluate.

If a company offers a product for infiltration, unit insertion roles through deployment of SoF, i would expect an all silent propulsion unit. For example check Italian mini submarine designs with low rpm high torque engines, circumfentially connected to the pressure hull.


Strong AI

Contributor
Messages
1,003
Reactions
35 4,012
Nation of residence
Germany
Nation of origin
Turkey
I am slightly unfaithful about the propulsion unit they are employing. It is not a permanent sync magnet motor but two small high speed electric motors, coupled to shaft through belts and in-plane reductors (fixed gearboxes), rather unpreferred in 21st century due to the noise it emits. But i would let the experts evaluate.

If a company offers a product for infiltration, unit insertion roles through deployment of SoF, i would expect an all silent propulsion unit. For example check Italian mini submarine designs with low rpm high torque engines, circumfentially connected to the pressure hull.

This would be a good question to ask them at the next IDEF.
Actually before every big defence fair we should make a thread for good questions to be asked and the members who will attend there should ask them.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,469
Solutions
2
Reactions
115 24,675
Nation of residence
Turkey
Nation of origin
Turkey
This would be a good question to ask them at the next IDEF.
Actually before every big defence fair we should make a thread for good questions to be asked and the members who will attend there should ask them.
I am aware of the answers though but before all, DATUM has a long way to go, and TR has better alternatives to fund ( with the limited cash we have), such as DSRV, small to medium AUVs, UUVs and MPA - UAVs, if we had it all and only after DATUM proves the capability through physical means then let's make the Tranca;

They are following the path based on the experiences, working with local companies which has supplied the motors for CAMD, and in CAMD they also used motor / motors in similar arrangement with belt transmission, and in-plane reductors so it is a known and applied solution. Also it is a fraction of what a permasync at that size would cost. Definitely not a silent solution, but i roughly know how many people works within the company (less than a hand) and possibly none of those are experienced with acoustics (only Dr. Ozden seem to know hydroacoustics, not structure borne noise).

Also i was mistaken with the circumfential supports, similarly sized DRASS submarines were also designed with base support, only. Yet still a direct drive, ie. the motors torque and rpm directly matches to the propeller's. For whom who may wonder what this means, a bried intro to ship propulsion may be necessary.

It works well for CAMD since it is an experimental / test and training platform, whereas Tranca is not, it is an offensive platform.

To make it easier for all people to relate, imagine the difference between direct drive motor vs belt drive motors in washing machines.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,469
Solutions
2
Reactions
115 24,675
Nation of residence
Turkey
Nation of origin
Turkey
This would be a good question to ask them at the next IDEF.
Actually before every big defence fair we should make a thread for good questions to be asked and the members who will attend there should ask them.
+ If only fairs were made to give us answers. They are there for the higher-ups.
