All the things related to the LPC will be discussed here from now on. (PDF file of the tender added below)

Google Translation:-

The Turkish defense industry made a bid for the Heavy Missile Patrol Ship (LPC) Tender of the Bangladesh Navy with MİLGEM ADA Class Corvette and ATMACA Anti-Ship Missile.

Bangladesh launched a tender for the procurement of large-type patrol ships (LPC) equipped with 8 Anti-Ship Missiles (AShM) in response to the needs of the Bangladesh Naval Forces Command. According to the Bangladesh press; Held on 26-28 October 2020, the online date 6. Defense Port Turkey during the event, Turkey's ADA ATMACA Anti-ship cruise missile equipped with a tender was announced to offer with Class Corvettes.

According to the information obtained; The Bangladesh Navy has shortlisted the ADA Class Corvette and the ATMACA Anti-Ship Missile System. Bangladesh wants the ships to be built in domestic shipyards.

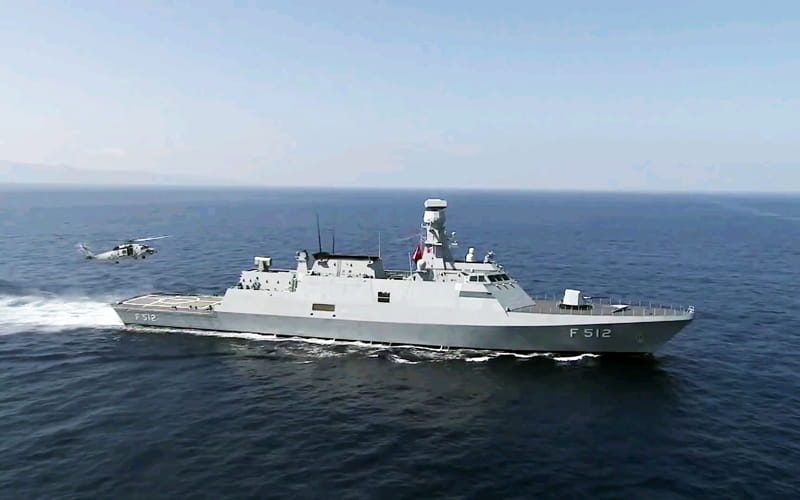

Four ADA Class Corvettes, which have been produced for the Turkish Naval Forces Command so far, draw attention especially for their submarine defense warfare (DSH) capabilities. The first three of the ADA Class Corvettes have the US production Harpoon Block II Anti-Ship Missile, while the last corvette, the TCG KINALIADA (F-514), has both the Harpoon Block II and the Roketsan ATMACA Anti-Ship Missile, developed with domestic facilities. Mass production ATMACA deliveries to the Turkish Naval Forces are planned to begin in 2021.

In addition, construction activities for Pakistan of four warships (Jannah Class Frigates) similar to the ADA Class Corvette design continue. Two of the four corvettes in Turkey and two in Karachi Shipyard / being produced in Pakistan.

On the other hand, the construction activities of TCG ISTANBUL (F-515), the first frigate within the scope of the MİLGEM I Class Fırakteyn project, which is a continuation of the MİLGEM ADA Class Corvette Project, continues.



Attachments

  • 3466.pdf
    1.5 MB · Views: 258
Last edited:

Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,396
Solutions
2
Reactions
108 24,215
Nation of residence
Turkey
Nation of origin
Turkey
@anmdt posted some Corvette designs in another thread that looked pretty awesome too for BDN.
Yes but probably Ada class will be offered as-is.
I wonder if gas turbines will be delivered too. It would be nicer to see actual requirements to make comment on it.

Especially Durjoy class is classified as LPC (65 meters 650~tons), It is a great opportunity to push for alternative and smaller designs of Milgem (of 78-85 meters length ~1200-1600 tons) to meet their needs in smaller sizes.

Last edited:

Isa Khan

Experienced member
Moderator
Messages
7,164
Reactions
44 10,259
Nation of residence
Bangladesh
Nation of origin
Bangladesh
@anmdt posted some Corvette designs in another thread that looked pretty awesome too for BDN.

Link plz. Also, is the translation accurate?

It would be nicer to see actual requirements to make comment on it.

Look updated to me so i am gonna share the original link:-


PDF link:-


Last edited:

Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,396
Solutions
2
Reactions
108 24,215
Nation of residence
Turkey
Nation of origin
Turkey
Link plz. Also, is the translation accurate?



Look updated to me so i am gonna share the original link:-


PDF link:-

General Descriptions.
a.Should be capable of operating in tropical conditions.
b.Should have an expected life of minimum 25 years.
c.Annual usage of approximately 3000 hours.
d.Normal refit interval 03(three) years.

103.Displacement at Full Load.
a.Full Load:Not less than 700 tons. (To be mentioned).
b.Normal Load : To be mentioned.

104.Dimensions.
a.Length (overall).Not less than 60 m (To be mentioned).
b.Breadth (max). Not less than 9 m (To be mentioned).
c.Maximum (full load) Draught. Not more than 04 meters (including all underwater projections like Propeller Projection, Skeg etc.).
Draught is to be mentioned as follows:
(1)Draught Fwd -Not more than 04 m (To be mentioned).
(2)Draught Aft -Not more than 04 m (To be mentioned).
(3)Draught Midship -Not more than 04 m (To be mentioned).

105.Speed.
a.Maximum speed .Not less than 27 Knots (At full load).
b.Maximum continuous speed.To be mentioned.
c.Economic speed.To be mentioned.
106.Endurance.Not less than 2500 NM at economic speed.

107.Propulsion and maneuvering.
The propulsion system should consist of the following:
a.Diesel Engines.Preferably two in number four stroke western origin and manufactured (UK/Germany/France/USA) marine diesel engines (driving two propellers) capable of developing sufficient power required to attain the maximum ship‟s speed mentioned in this specification.
b.Reduction Gearbox.Two in number of western origin and manufactured (Germany/France) gearboxes compatible with Diesel Engines (Two propeller shafts connected with One/Two engines through two independent reduction gearboxes). The gear box needs to be compatible with Diesel Engine (Details to be mentioned).
c.Number of Shafts.Two shafts (USA or EU Origin and manufactured) according to the number of main engines propulsion system should be CPP with reduction gear box (To be mentioned).
d.Steering System.Steering system including emergency provision (western origin and manufactured) are to be supplied.
e.Associated auxiliary machinery (western origin and manufactured) are to be supplied.
f.Maneuverability.The hull, propulsion and steering system of the LPC will be such that it can have very good maneuverability:


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,396
Solutions
2
Reactions
108 24,215
Nation of residence
Turkey
Nation of origin
Turkey
General Descriptions.
a.Should be capable of operating in tropical conditions.
b.Should have an expected life of minimum 25 years.
c.Annual usage of approximately 3000 hours.
d.Normal refit interval 03(three) years.

103.Displacement at Full Load.
a.Full Load:Not less than 700 tons. (To be mentioned).
b.Normal Load : To be mentioned.

104.Dimensions.
a.Length (overall).Not less than 60 m (To be mentioned).
b.Breadth (max). Not less than 9 m (To be mentioned).
c.Maximum (full load) Draught. Not more than 04 meters (including all underwater projections like Propeller Projection, Skeg etc.).
Draught is to be mentioned as follows:
(1)Draught Fwd -Not more than 04 m (To be mentioned).
(2)Draught Aft -Not more than 04 m (To be mentioned).
(3)Draught Midship -Not more than 04 m (To be mentioned).

105.Speed.
a.Maximum speed .Not less than 27 Knots (At full load).
b.Maximum continuous speed.To be mentioned.
c.Economic speed.To be mentioned.
106.Endurance.Not less than 2500 NM at economic speed.

107.Propulsion and maneuvering.
The propulsion system should consist of the following:
a.Diesel Engines.Preferably two in number four stroke western origin and manufactured (UK/Germany/France/USA) marine diesel engines (driving two propellers) capable of developing sufficient power required to attain the maximum ship‟s speed mentioned in this specification.
b.Reduction Gearbox.Two in number of western origin and manufactured (Germany/France) gearboxes compatible with Diesel Engines (Two propeller shafts connected with One/Two engines through two independent reduction gearboxes). The gear box needs to be compatible with Diesel Engine (Details to be mentioned).
c.Number of Shafts.Two shafts (USA or EU Origin and manufactured) according to the number of main engines propulsion system should be CPP with reduction gear box (To be mentioned).
d.Steering System.Steering system including emergency provision (western origin and manufactured) are to be supplied.
e.Associated auxiliary machinery (western origin and manufactured) are to be supplied.
f.Maneuverability.The hull, propulsion and steering system of the LPC will be such that it can have very good maneuverability:
700< tonnes,
60< meters in length,
27 Knots< max speed,
2500 NM < range at economic speed,
30mm Main gun,
Radar (Air+Surface, Surface minimum at horizon, Air minimum at 100km with anti-jamming capability)
8 AShM,
Diesel engines (2 or 4 with two propellers),
Self air-defense (CIWS - Short range SAM)
Forgot to add + mine laying capability. (Not a big deal to include)

The chart also includes reference and suggested design submission, thus as long as a reference design is built, it is assumed as base for the target.
C1200 (Corvette 78) fits perfectly to all requirements:
Main gun can be replaced with 30 MM stop, Gökdeniz CIWS might be added, there is space enough for all.

Length (OA)78.00 m
Length (WL)74.37 m
Beam12.00 m
Draught (design)3.00 m
Displacement1200 t
Max Speed+27 kn
Max Cont. Speed15 kn
Economical Speed15 kn
Endurance3000 nm @ 15 kn

Link plz. Also, is the translation accurate?



Look updated to me so i am gonna share the original link:-


PDF link:-

Only C 78 (1200 tonnes variant) is available at the website but so far it suits to all needs:

Last edited:

Saithan

Experienced member
Denmark Correspondent
Messages
8,540
Reactions
33 19,498
Nation of residence
Denmark
Nation of origin
Turkey
700< tonnes,
60< meters in length,
27 Knots< max speed,
2500 NM < range at economic speed,
30mm Main gun,
Radar (Air+Surface, Surface minimum at horizon, Air minimum at 100km with anti-jamming capability)
8 AShM,
Diesel engines (2 or 4 with two propellers),
Self air-defense (CIWS - Short range SAM)

The chart also includes reference and suggested design submission, thus as long as a reference design is built, it is assumed as base for the target.
C1200 (Corvette 78) fits perfectly to all requirements:
Main gun can be replaced with 30 MM stop, Gökdeniz CIWS might be added, there is space enough for all.

Length (OA)78.00 m
Length (WL)74.37 m
Beam12.00 m
Draught (design)3.00 m
Displacement1200 t
Max Speed+27 kn
Max Cont. Speed15 kn
Economical Speed15 kn
Endurance3000 nm @ 15 kn


Only C 78 (1200 tonnes variant) is available at the website but so far it suits to all needs:
Should we worry that there is reference to US/German/French/UK products ?

History has shown us that EU and US don't give export permit just to favorize their own close partners.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,396
Solutions
2
Reactions
108 24,215
Nation of residence
Turkey
Nation of origin
Turkey
Should we worry that there is reference to US/German/French/UK products ?
There are also examples of Turkish products like Smash (several other i have seen among the document), i assumed those are given as examples, generally equipment is restricted as "western origin".
History has shown us that EU and US don't give export permit just to favorize their own close partners.
Who knows but there wasn't any issues with LM2500, Smart-S and MTU engines + RENK gearbox sold to Pakistan.


Saithan

Experienced member
Denmark Correspondent
Messages
8,540
Reactions
33 19,498
Nation of residence
Denmark
Nation of origin
Turkey
There are also examples of Turkish products like Smash (several other i have seen among the document), i assumed those are given as examples, generally equipment is restricted as "western origin".

Who knows but there wasn't any issues with LM2500, Smart-S and MTU engines + RENK gearbox sold to Pakistan.
Yes, true.

But wasn't BD considered to be an important member of QUAD, and thus I would say there are grounds for mistrust. They'd favor their own "western" allies in a tender bidding. To establish more firm hold on BD in the power struggle.

If we're going to deliver the corvette with engine then our western allies may raise the price, or unfairly give a much bigger discount to competitive bidder (e.g. Italy).

Am I overthinking this ?


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,396
Solutions
2
Reactions
108 24,215
Nation of residence
Turkey
Nation of origin
Turkey
Yes, true.

But wasn't BD considered to be an important member of QUAD, and thus I would say there are grounds for mistrust. They'd favor their own "western" allies in a tender bidding. To establish more firm hold on BD in the power struggle.

If we're going to deliver the corvette with engine then our western allies may raise the price, or unfairly give a much bigger discount to competitive bidder (e.g. Italy).

Am I overthinking this ?
If it was going to be produced in home country, then we could worry about subsidizing, not directly but indirectly because they would save human resources compared to us, using personnel from shipyard but not the engine/part manufacturer.
In this case, for whichever foreign part bundled on Turkish solution,or their (competitors) own solution; the technicians and personnel would need to travel to Bangladesh.


Gary

Experienced member
Messages
8,361
Reactions
22 12,853
Nation of residence
Indonesia
Nation of origin
Indonesia
wow, Bangladesh have been through some sort of spending spree lately, how much does BD depends on defense and at what percent to GDP??


Oublious

Experienced member
The Netherlands Correspondent
Messages
2,129
Reactions
8 4,587
Nation of residence
Nethelands
Nation of origin
Turkey
8 Ashm for max 700 ton vessel with Cwis? Is it possible with that specifications they want?


Isa Khan

Experienced member
Moderator
Messages
7,164
Reactions
44 10,259
Nation of residence
Bangladesh
Nation of origin
Bangladesh
8 Ashm for max 700 ton vessel with Cwis? Is it possible with that specifications they want?

Not less than 700 tons. That's minimum requirement. No problem if the vessel has bigger displacement.


Could you link it brother

I think he did.



Saithan

Experienced member
Denmark Correspondent
Messages
8,540
Reactions
33 19,498
Nation of residence
Denmark
Nation of origin
Turkey
Not less than 700 tons. That's minimum requirement. No problem if the vessel has bigger displacement.




I think he did.

Thanks. I couldn't find it myself :LOL:

T

Turko

Guest
700< tonnes,
60< meters in length,
27 Knots< max speed,
2500 NM < range at economic speed,
30mm Main gun,
Radar (Air+Surface, Surface minimum at horizon, Air minimum at 100km with anti-jamming capability)
8 AShM,
Diesel engines (2 or 4 with two propellers),
Self air-defense (CIWS - Short range SAM)
Forgot to add + mine laying capability. (Not a big deal to include)

The chart also includes reference and suggested design submission, thus as long as a reference design is built, it is assumed as base for the target.
C1200 (Corvette 78) fits perfectly to all requirements:
Main gun can be replaced with 30 MM stop, Gökdeniz CIWS might be added, there is space enough for all.

Length (OA)78.00 m
Length (WL)74.37 m
Beam12.00 m
Draught (design)3.00 m
Displacement1200 t
Max Speed+27 kn
Max Cont. Speed15 kn
Economical Speed15 kn
Endurance3000 nm @ 15 kn


Only C 78 (1200 tonnes variant) is available at the website but so far it suits to all needs:
Another interesting request for a corvette is 30 mm main gun. What's wrong with 76mm?


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,396
Solutions
2
Reactions
108 24,215
Nation of residence
Turkey
Nation of origin
Turkey
Another interesting request for a corvette is 30 mm main gun. What's wrong with 76mm?
Not quite sure but probably because it is designed as an ASuW patrol craft to deploy AShM and smaller gun is considered enough?
There is also requirement of 2x 12.7 mm RWS , maybe these guns altogether intended for OPV role of the ship.
The secondary role of the LPCs will be to perform coastal patrol and constabulary duties within Exclusive Economic Zone (EEZ)


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,396
Solutions
2
Reactions
108 24,215
Nation of residence
Turkey
Nation of origin
Turkey
Ada-class looks like an overkill for given specs, probably this ASuW variant by TAIS has been tailored for Bangladesh along with newly introduced OPV class & LPC class: Also showcased in SAHA Expo without any names given
1x Smash
2x Stamp
Smart-S / Mar-D
AKR-D Block A1
1x RHIB
8x AShM
Tonnage is given as 660 for standard, in full load exceeds 700,
All but range and endurance fits to the requirements in RfP;
Range is given as 1500 NM at 19 Knots, in excess of 2000 NM at 14-15 Knots (not available on paper)
Endurance is given as 7, it may include additional personnel, so with core personnel may go up to 10.


I think ASFAT will be submitting their own design, not TAIS'.


Follow us on social media

Top Bottom
