LAMD Interception Capability Experiment Plan

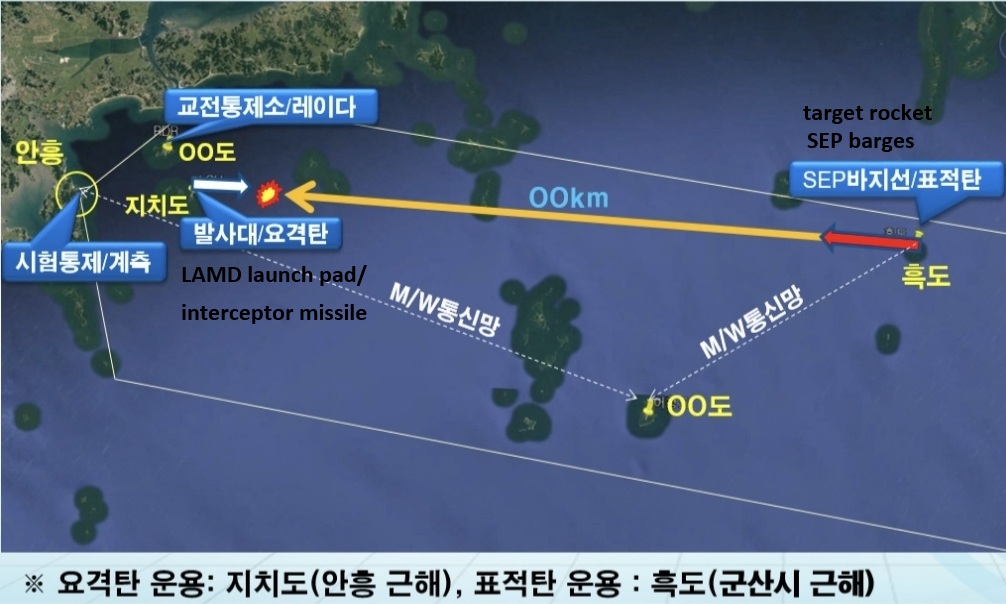

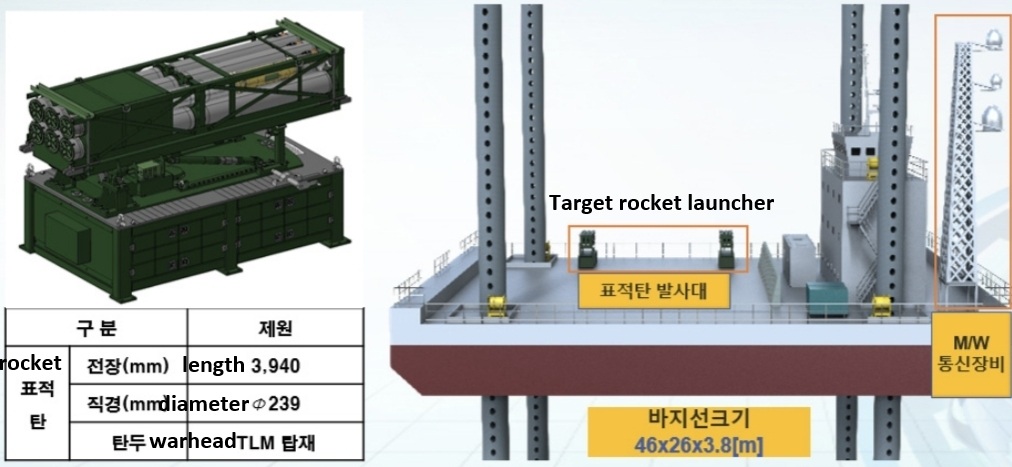

The 239mm rocket of K239 Chunmoo was modified for targeting purposes. Telemetry measurement equipment was installed in the warhead section to transmit information to the test headquarters in real time. The target rocket launch pad is placed on an SEP barge and positioned at sea to secure the test range.
For safety reasons, the test control center was set up outside the maximum range of the target rocket(The maximum range of the 239mm rocket is 80km.). This was done to prevent damage even if the target rocket was not intercepted normally. In addition, for maritime safety, the interceptor missile and target rocket are designed to self-destruct before hitting the sea surface.

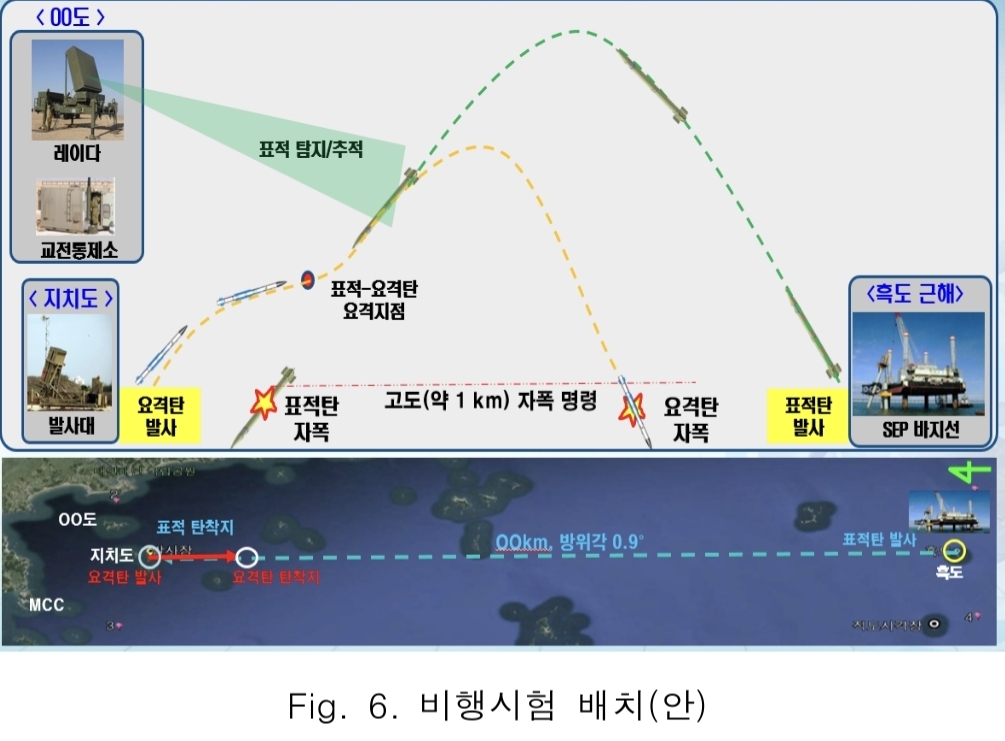

After the target is launched from the barge, an observation station is set up at a high altitude so that radar detection is possible immediately.
The 239mm rocket of K239 Chunmoo was modified for targeting purposes. Telemetry measurement equipment was installed in the warhead section to transmit information to the test headquarters in real time. The target rocket launch pad is placed on an SEP barge and positioned at sea to secure the test range.
For safety reasons, the test control center was set up outside the maximum range of the target rocket(The maximum range of the 239mm rocket is 80km.). This was done to prevent damage even if the target rocket was not intercepted normally. In addition, for maritime safety, the interceptor missile and target rocket are designed to self-destruct before hitting the sea surface.
After the target is launched from the barge, an observation station is set up at a high altitude so that radar detection is possible immediately.
