Last-minute preparations under way for Nuri's launch​


12:00 May 07, 2023
by Kim Boram

GOHEUNG, South Korea, May 7 (Yonhap) -- Officials and researchers from South Korea's state-run space institutions, universities and companies have begun last-minute preparations for a mission to put practical satellites into orbit for the first time.

South Korea's homegrown space rocket Nuri is ready to be loaded with eight payloads and its lower stages have been completed for its scheduled launch on May 24 at the Naro Space Center in the country's southern coastal village of Goheung.

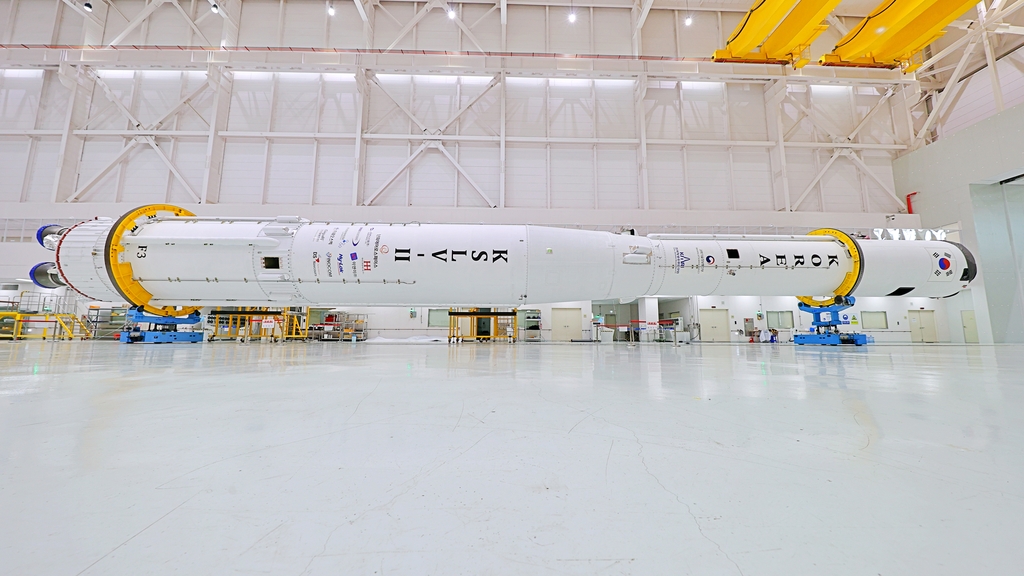

This undated photo provided by the Korea Aerospace Research Institute (KARI) shows the lower stages of South Korea's first homegrown rocket Nuri at the Naro Space Center in Goheung, South Jeolla Province. (PHOTO NOT FOR SALE) (Yonhap)

This undated photo provided by the Korea Aerospace Research Institute (KARI) shows the lower stages of South Korea's first homegrown rocket Nuri at the Naro Space Center in Goheung, South Jeolla Province. (PHOTO NOT FOR SALE) (Yonhap)


Nuri, also known as KSLV-II, is the core part of South Korea's 1.9 trillion-won (US$1.44 billion) project to launch 1.5-ton satellites into a low Earth orbit by its own space rocket between 2010-2023.

In 2021, Nuri successfully flew to its target altitude of 700 kilometers but failed to put a dummy satellite into orbit, as its third-stage engine burned out earlier than expected.

On its second attempt in 2022, Nuri successfully completed its flight sequence and deployed dummy satellites at the target altitude of 700 kilometers as planned.

The Korea Aerospace Research Institute (KARI), which has led South Korea's state-run space projects, including Nuri, said unlike the previous two test launches, the upcoming take-off is given a different mission to launch practical satellites into orbit.

"This time, Nuri will carry eight payloads. It will make its debut as a rocket to put those satellites into orbit," said Ko Jeong-hwan, who heads the Nuri project at KARI. "It is the first time that Nuri is tasked with handling separate multiple satellites in one flight."

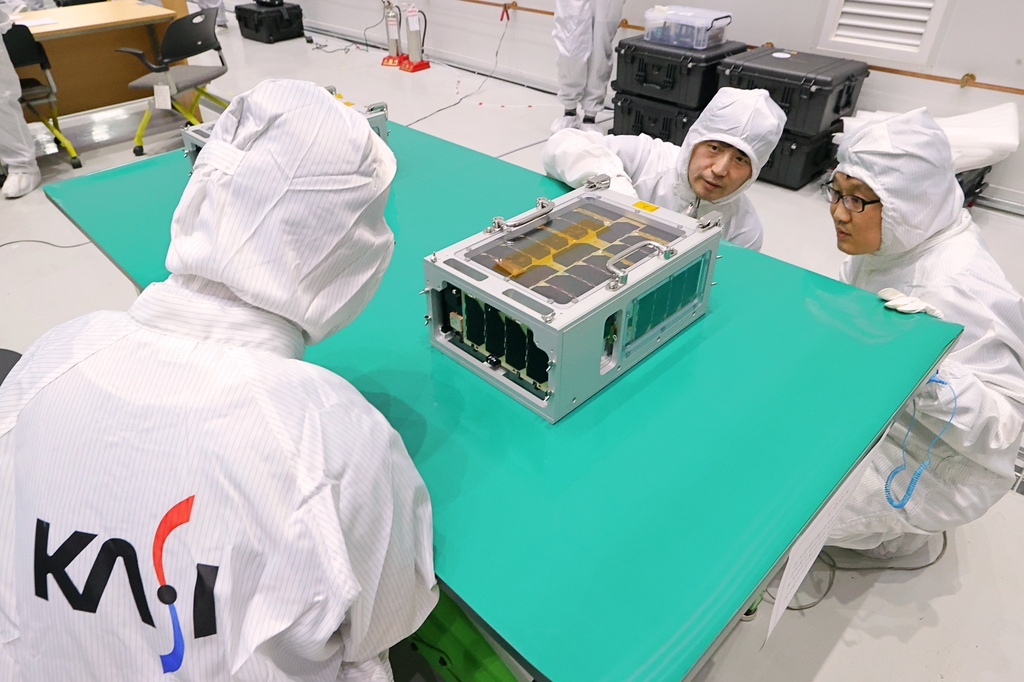

This undated photo provided by the Korea Aerospace Research Institute (KARI) shows officials inspecting a microsatellite developed by the Korea Astronomy and Space Science Institute, codenamed SNIPE, at the Naro Space Center in Goheung, South Jeolla Province. (PHOTO NOT FOR SALE) (Yonhap)

This undated photo provided by the Korea Aerospace Research Institute (KARI) shows officials inspecting a microsatellite developed by the Korea Astronomy and Space Science Institute, codenamed SNIPE, at the Naro Space Center in Goheung, South Jeolla Province. (PHOTO NOT FOR SALE) (Yonhap)

The country's second next-generation small satellite, the NEXTSAT-2, is the main payload on Nuri and will be loaded at the very top of the rocket's head.

Designed and developed by the Korea Advanced Institute of Science and Technology (KAIST), the 180-kilogram NEXTSAT-2 will demonstrate X-band radar technology and measure space radiation on a dawn-dusk orbit for the next two years.

Four microsatellites developed by the Korea Astronomy and Space Science Institute, codenamed SNIPE, and located beneath the NEXTSAT-2, will identify temporal and spatial variations of small scale plasma structures in the ionosphere and magnetosphere. Data from SNIPE will be shared with the U.S. National Aeronautics and Space Administration (NASA).

The four SNIPE units were originally scheduled to be launched on a Russian rocket last year, but the plan was scrapped due to the ongoing Russia-Ukraine war.

The three others are the JAC by Korean engineering company Justek Inc., the LUMIR-T1 by local space firm Lumir Inc. and the KSAT3U by startup Kairospace Co.

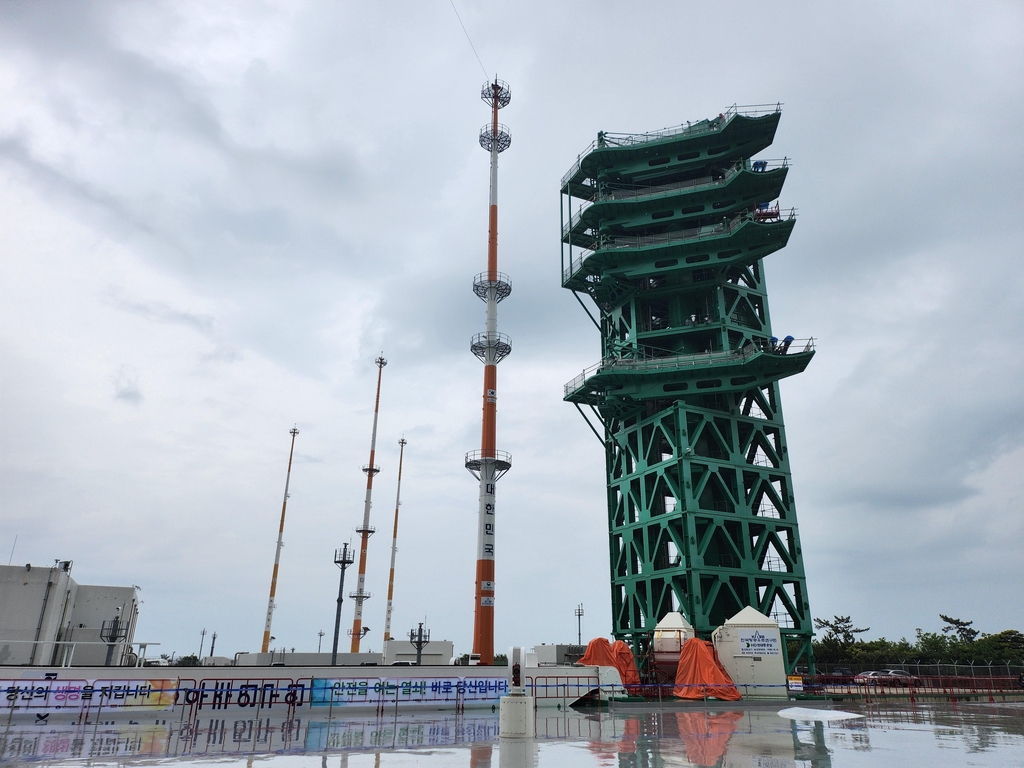

The launch pad at the Naro Space Center in Goheung, South Jeolla Province, is seen here on May 3, 2023. (Yonhap)

The launch pad at the Naro Space Center in Goheung, South Jeolla Province, is seen here on May 3, 2023. (Yonhap)

As all eight payloads already arrived at the Naro Space Center last week and are being stored in a cleanroom, they have been rechecked to assure that they have not been damaged or affected in transit before mating with their rocket transport.

If the review is completed without problems, the craft will be attached to the final propulsive stage of the rocket within the payload fairing. The payload fairing is the cone-shaped piece of equipment used to protect spacecraft payloads against dynamic pressure and heating during launch through the atmosphere. When the rocket moves outside the atmosphere, the fairing is jettisoned to expose the payloads to outer space so they can be discharged.

The NEXTSAT-2, which will be released first from Nuri, will be located at the top position, and the seven microsatellites will be placed on either side of the main satellites underneath.

The upper stage then will be transported to a finally assembly building to be integrated with the lower stages that mainly house rocket engines and propellant.

"When Nuri takes off at 6:24 p.m., the lowest stage is separated after 125 seconds, and the fairing and the second stage are detached next one by one," said Ko from KARI. "The NEXTSAT-2 will be freed from the rocket 783 seconds after the launch, and the JAC comes next followed by the LUMIR-T1, the KSAT3U and the four SNIPE satellites at 20-second intervals."

Once in place, many of the tests and verifications are repeated to assure workers that the payloads and its rocket interfaces are working together until the third week of May.

On the eve of the launch, the rocket is transported and erected on the launchpad and will go through verifications for electricity, fuel supply connection and other mechanical functions.

When all of these steps have been completed, a complete dress rehearsal of the final days of the countdown will be held and the liftoff will take place at 6:24 p.m. on May 24, while checks of the weather along the vehicle's flight path are also conducted.

"As Nuri carries eight payload satellites, we are about to launch our rocket with our customers on board," said KARI President Lee Sang-ryool. "For the past decades, we've participated in space projects as a customer, but from now on, we will become a host of space launches."

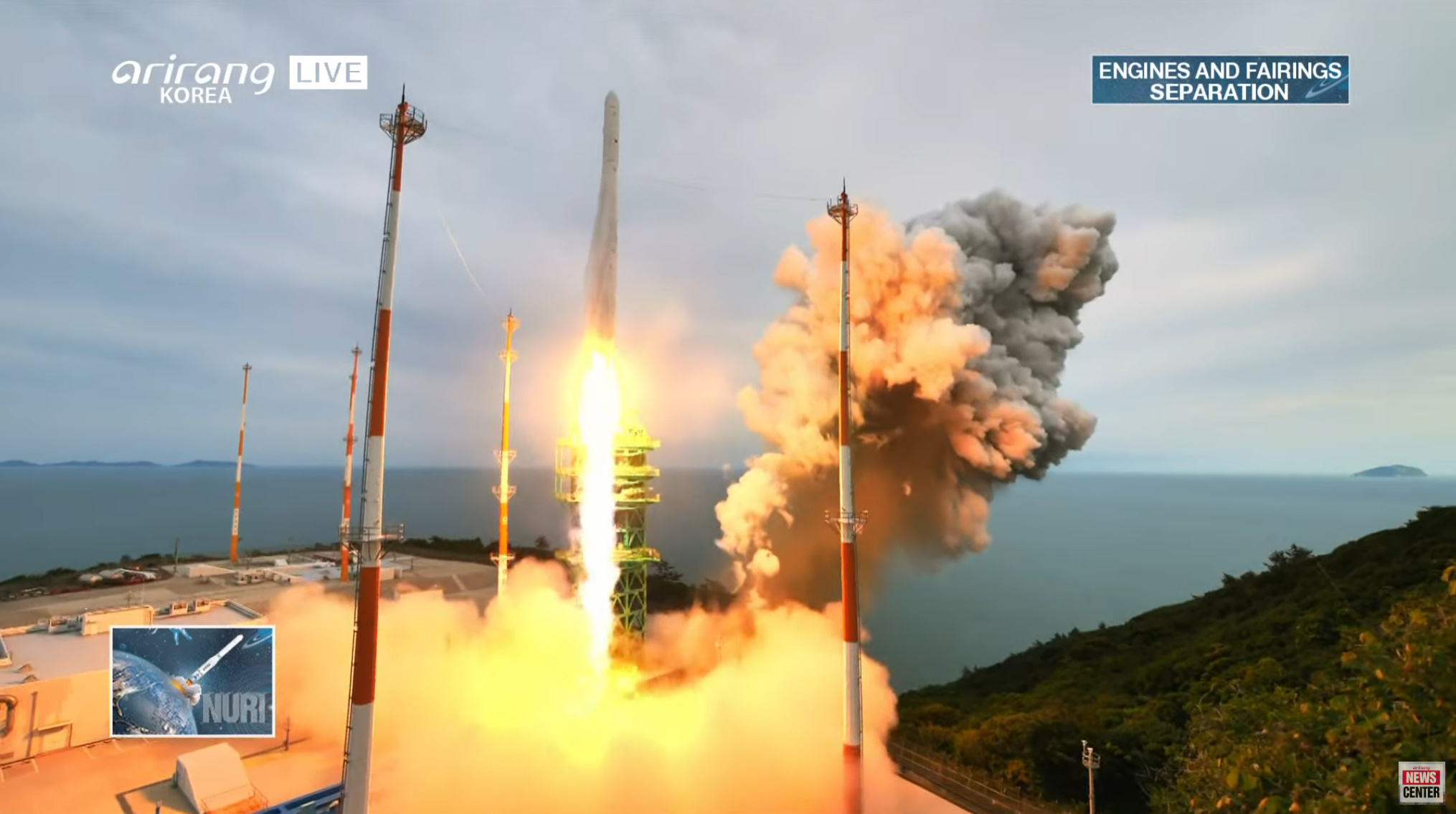

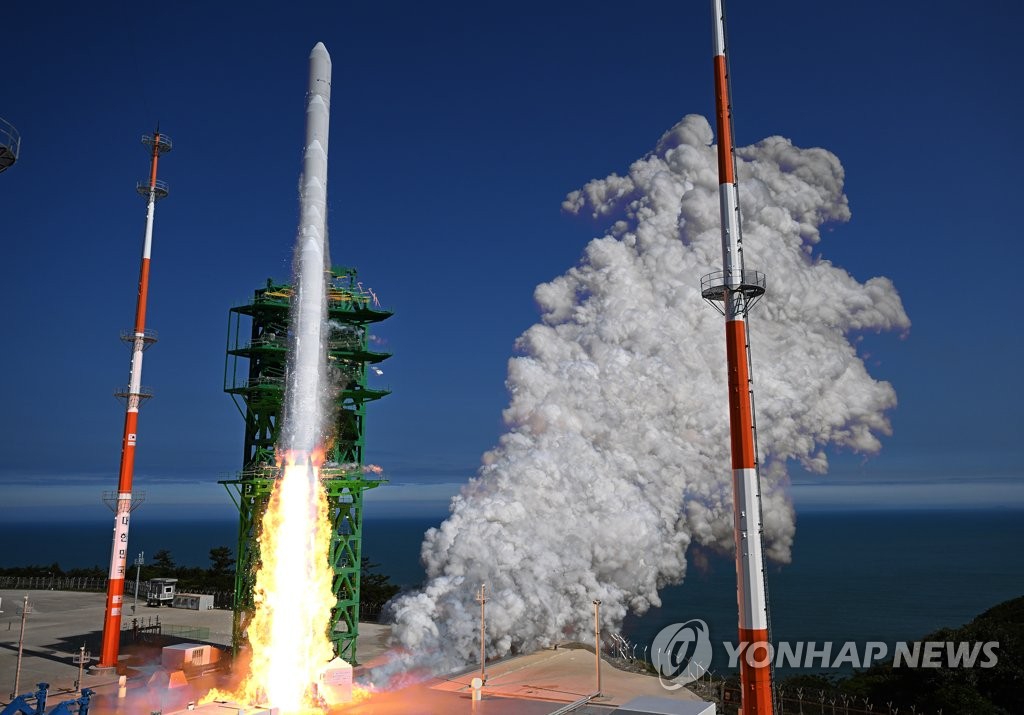

South Korea's homegrown space rocket Nuri lifts off from Naro Space Center in Goheung, South Jeolla Province, in this file photo taken June 21, 2022, as the country makes a second attempt to put satellites into orbit. (Pool photo) (Yonhap)

South Korea's homegrown space rocket Nuri lifts off from Naro Space Center in Goheung, South Jeolla Province, in this file photo taken June 21, 2022, as the country makes a second attempt to put satellites into orbit. (Pool photo) (Yonhap)



Chocopie

Contributor
South Korea Correspondent
Messages
634
Reactions
36 2,278
Nation of residence
Germany
Nation of origin
South Korea
D-1 Nuri (KSLV-II) set up for 3rd launch

Nuri will launch this time 8 satellites (240 kg payload) at 550 km LEO on May 24th at 6:24 pm local time (11:24 am CET) from Naro Space Center, a southern island in Goheung, South Jeolla Province.

KSLV-II can send up to 1.9 tons of payload to a 700-kilometer low Earth orbit.

total weight: 200.4 t
max. thrust: 2,942 kN
total launch time: 18 min. 58 sec.



Nuri rocket already erected on
LC-2 launch pad at Naro Space Center:





YT-Channel of KARI (Korea Aerospace Research Institute):




Hopefully a successful flight tomorrow, space launches are hard challenges!

Last edited:

Chocopie

Contributor
South Korea Correspondent
Messages
634
Reactions
36 2,278
Nation of residence
Germany
Nation of origin
South Korea

Nuri rocket’s 3rd launch postponed​

Software problem with ground control found 3 hours before blastoff


GOHEUNG, South Jeolla Province -- South Korea postponed the third launch of the homegrown Nuri rocket due to a software error during the preparation process, the Ministry of Science and ICT said Wednesday.

“During the checkup on the low-temperature helium valve control, a problem occurred in the communication between computers that control the launch operation and the launch pad’s equipment. The valve itself did not have any issues as it could be operated manually. But once the valve control system goes into automatic operation, it could shut down the launch process altogether,” said Oh Tae-seog, first vice minister of science and ICT, in a press briefing.

The decision came after the launch control committee held an emergency meeting at 3:30 p.m. after the problem was found earlier. The Nuri rocket, also known as the Korea Satellite Launch Vehicle-II, was originally scheduled to blast off from the Naro Space Center in Goheung, South Jeolla Province, at 6:24 p.m.

The ministry and Korea Aerospace Research Institute said they will try to find the cause of the problem and come up with a solution through Wednesday morning, indicating that a second launch could take place on Thursday. However, officials did not provide a timeline for when the final call would be made.

“If the problem can be fixed by tomorrow morning, the launch time is likely to be set for 6:24 p.m. the same planned time as today. The most important thing is that we need to figure out the problem and resolve it first,” said Ko Jeong-hwan, the head of KARI’s KSLV-II project during the briefing.

Ko explained that the problem did not have anything to do with the Nuri rocket’s hardware, saying that the issue was related to the valve of the umbilical cables that were in charge of injecting pressure into the rocket and releasing it.

“We went through numerous rehearsals as we prepared for this launch, but this problem was never found. We always kept in mind that anything could go wrong with so many parts making up the rocket. We have researchers in charge of this area and company officials ready in case of such an incident,” he said.

The official added that the problem-searching and solution-finding process can take place with the Nuri rocket still in the erected position at the launch pad because the issue was found with the ground control’s software.

According to Ko, this was the first time such a problem occurred as the first and second launches of the Nuri rocket were delayed due to different reasons such as bad weather conditions and sensor malfunction in the oxidizer tank.

[...]


As I said: Space rocket science is hard!


Chocopie

Contributor
South Korea Correspondent
Messages
634
Reactions
36 2,278
Nation of residence
Germany
Nation of origin
South Korea
Officially confirmed now:

Korea successfully launched Nuri KSLV-II, all 8 satellites released into orbit as planned


What a great achievement for a small country like the Republic of Korea! 🇰🇷

Congratulations and thanks to all involved scientists, engineers, technicians and project managers who worked endless hours for this national milestone. 🚀🛰️📡

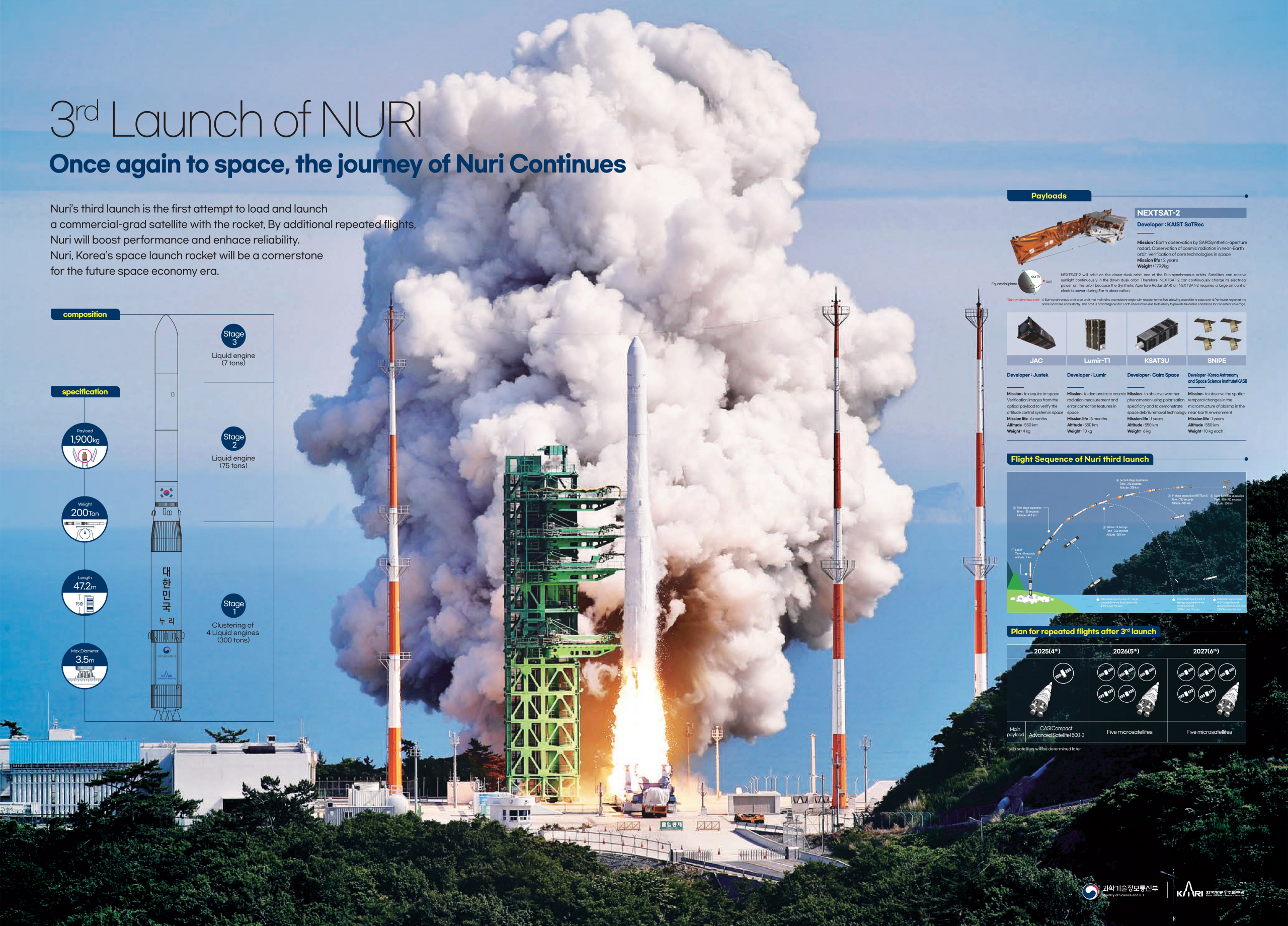

Click pic to enlarge:


More detailed space launch and flight infos:

Last edited:

Rodeo

Contributor
Moderator
DefenceHub Diplomat
Messages
1,330
Reactions
31 5,067
Nation of residence
Turkey
Nation of origin
Turkey
Officially confirmed now:

Korea successfully launched Nuri KSLV-II, all 8 satellites released into orbit as planned


What a great achievement for a small country like the Republic of Korea! 🇰🇷

Congratulations and thanks to all involved scientists, engineers, technicians and project managers who worked endless hours for this national milestone. 🚀🛰️📡


View attachment 57678

More detailed space launch and flight infos:
Congratulations. Very Impressive!

- How much does a single launch cost?
- Are there any production or launch number goals per year?
- Does Korea have any plans to develop a reusable first stage?


Chocopie

Contributor
South Korea Correspondent
Messages
634
Reactions
36 2,278
Nation of residence
Germany
Nation of origin
South Korea
According to Hanwha Aerospace (rocket engine maker and main system integrator of Nuri) one launch costs around $80 million, their goal is to halve the price by 2032.

3 more launches with further enhanced and improved KSLV-II versions (3 stages, 4 clustered 75 ton thrust engines in main stage) are planned from 2025-2027.

Development of new KSLV-III rocket by 2030-2032:
- 2 stages next generation space launch vehicle
- 5 clustered 100 ton thrust multi-stage combustion cycle engines in main stage
- 2 clustered 10 ton thrust multi-stage combustion cycle engines in upper stage
- Payload capacities: 10 ton to LEO, 7 ton to SSO, 3.7 ton to GEO

Reusability has become a topic (would complicate the development process):

Oversight of Korean space program plans:

Last edited:

Nilgiri

Experienced member
Moderator
Aviation Specialist
Messages
9,792
Reactions
120 19,864
Nation of residence
Canada
Nation of origin
India
Officially confirmed now:

Korea successfully launched Nuri KSLV-II, all 8 satellites released into orbit as planned


What a great achievement for a small country like the Republic of Korea! 🇰🇷

Congratulations and thanks to all involved scientists, engineers, technicians and project managers who worked endless hours for this national milestone. 🚀🛰️📡


Click pic to enlarge:
View attachment 57678

More detailed space launch and flight infos:

Nice! Congrats to Korea! Ohh pilseung Korea :D


urban mine

Committed member
Messages
217
Reactions
20 557
Nation of residence
South Korea
Nation of origin
South Korea

S. Korea successfully conducts third test flight of solid-fuel space rocket​


(ATTN: UPDATES with latest details in 3rd para; CHANGES photo)
By Kim Eun-jung

SEOUL, Dec. 4 (Yonhap) -- South Korea successfully conducted a third test flight of a solid-fuel space rocket Monday, the defense ministry said, as part of efforts to build its independent space-based surveillance system against North Korea.

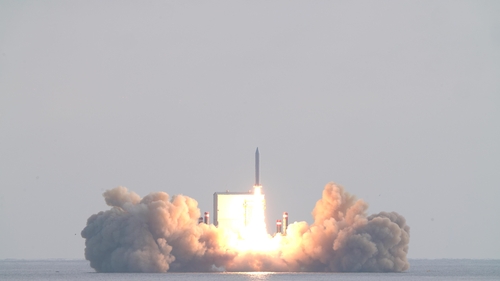

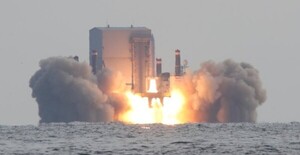

The space launch vehicle was launched from a barge floating in waters about 4 kilometers south of Jeju Island at 2 p.m. and placed a small Earth observation satellite into orbit at an altitude of about 650 km, the ministry said.

The 100-kilogram synthetic aperture radar satellite, made by Hanwha Systems, succeeded in sending signals to a ground station at 3:45 p.m., which means it is operating normally, the company said.

The state-run Agency for Defense Development conducts the third flight test of a solid-fuel rocket carrying Hanwha Systems' Earth observation satellite on a barge floating about 4 kilometers south of Jeju Island on Dec. 4, 2023, in this photo provided by Hanwha Systems. (PHOTO NOT FOR SALE) (Yonhap)

The rocket is designed to put a small satellite into a low Earth orbit for surveillance operations. Compared with liquid-fuel space vehicles, solid-fuel ones are known to be usually simpler and more cost-effective to launch.

The space vehicle under development by the state-run Agency for Defense Development uses solid fuel for the first three rockets, while it employs liquid fuel for the fourth stage as it is considered easier to precisely adjust the separation of the payload.

The first two flights in March and December 2022, respectively, tested the performance of three engines except the first-stage booster.

The ministry said it plans to conduct a full-fledged launch when the development is complete to bolster the military's satellite-based surveillance system, without specifying the schedule.

"Once the development of the solid-fuel space launch vehicle is complete, the South Korean military will be capable of launching small satellites designed for surveillance and reconnaissance in accordance with its security demands and in contingencies," the ministry said in a release.

In the future, it vowed to develop a space delivery system capable of launching heavier satellites weighing 500-700 kg in low Earth orbit.

The space vehicle's test flight comes just days after South Korea successfully launched its first spy satellite into orbit on a SpaceX Falcon 9 rocket from Vandenberg Space Force Base in California on Friday.

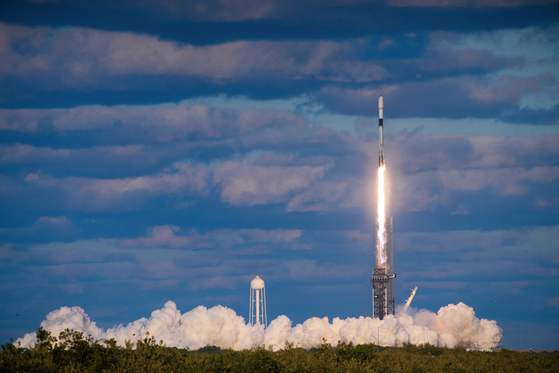

A SpaceX Falcon 9 rocket carrying South Korea's first homegrown spy satellite lifts off from the U.S. Vandenberg Space Force Base in California on Dec. 1, 2023 (local time), in this photo provided by SpaceX. (PHOTO NOT FOR SALE) (Yonhap)

The launch is part of Seoul's plan to send five reconnaissance satellites into space by 2025 to better monitor North Korea amid its rising nuclear and missile threats.

On Nov. 21, North Korea placed its first spy satellite into orbit following two failed attempts earlier this year and vowed to launch more in a short span of time.

It also test-fired a Hwasong-18 solid-fuel intercontinental ballistic missile in April and another in July, which are hard to detect due to shorter preparation time compared with liquid-fuel missiles.


Last edited:

urban mine

Committed member
Messages
217
Reactions
20 557
Nation of residence
South Korea
Nation of origin
South Korea

Hanwha's SAR satellite mounted on the launch is the product of the Small SAR Technology Experimental Project (S-STEP).

The project was carried out by the state, and Hanwha's role was to develop only EQM for ground testing, but the launch was equipped with the same model with its own budget. The 100-kg satellite, measuring 2m x 1m, will carry out its mission in an orbit of 650km. The data from the SAR satellites will be received by Hanwha Systems ground stations, and the company plans to validate the performance with the military in the future.



Last edited:

urban mine

Committed member
Messages
217
Reactions
20 557
Nation of residence
South Korea
Nation of origin
South Korea

https://en.yna.co.kr/view/AEN20240418003500320

Hanwha Systems' SAR satellite conducts Earth observation mission​


SEOUL, April 18 (Yonhap) -- Hanwha Systems Co., a South Korean defense solutions company, said Thursday its small synthetic aperture radar (SAR) satellite has successfully conducted a mission for Earth observation by capturing images of landmarks in major cities, including New York and Dubai.

The images were taken by Hanwha Systems' small SAR satellite that has been orbiting the Earth 15 times a day since its launch in December, according to the company.

An SAR satellite can create images of photographic maps by emitting electromagnetic waves from space to the ground and synthesizing the waves.

Hanwha Systems said its satellite, with a resolution of 1 meter, took images of various landmarks on Earth, such as Yankee Stadium and the Central Park in New York and Palm Jumeirah, the world's largest artificial archipelago, in Dubai, demonstrating its ability to identify and observe major bridges, rivers and airports.



This image provided by Hanwha Systems Co. on April 18, 2024, and captured by its small synthetic aperture radar satellite shows an artificial offshore island in Dubai. (PHOTO NOT FOR SALE) (Yonhap)

This image provided by Hanwha Systems Co. on April 18, 2024, and captured by its small synthetic aperture radar satellite shows Central Park in Manhattan, New York. (PHOTO NOT FOR SALE) (Yonhap)

This image provided by Hanwha Systems Co. on April 18, 2024, and captured by its small synthetic aperture radar satellite shows Yankee Stadium in New York. (PHOTO NOT FOR SALE) (Yonhap)


Knowledgeseeker

Experienced member
Moderator
Arab Moderator
Morocco Moderator
Messages
1,828
Reactions
20 4,661
Nation of residence
Norway
Nation of origin
Moroco

https://en.yna.co.kr/view/AEN20240418003500320

Hanwha Systems' SAR satellite conducts Earth observation mission​


SEOUL, April 18 (Yonhap) -- Hanwha Systems Co., a South Korean defense solutions company, said Thursday its small synthetic aperture radar (SAR) satellite has successfully conducted a mission for Earth observation by capturing images of landmarks in major cities, including New York and Dubai.

The images were taken by Hanwha Systems' small SAR satellite that has been orbiting the Earth 15 times a day since its launch in December, according to the company.

An SAR satellite can create images of photographic maps by emitting electromagnetic waves from space to the ground and synthesizing the waves.

Hanwha Systems said its satellite, with a resolution of 1 meter, took images of various landmarks on Earth, such as Yankee Stadium and the Central Park in New York and Palm Jumeirah, the world's largest artificial archipelago, in Dubai, demonstrating its ability to identify and observe major bridges, rivers and airports.
View attachment 67395

View attachment 67396
This image provided by Hanwha Systems Co. on April 18, 2024, and captured by its small synthetic aperture radar satellite shows an artificial offshore island in Dubai. (PHOTO NOT FOR SALE) (Yonhap)
View attachment 67397
This image provided by Hanwha Systems Co. on April 18, 2024, and captured by its small synthetic aperture radar satellite shows Central Park in Manhattan, New York. (PHOTO NOT FOR SALE) (Yonhap)
View attachment 67398
This image provided by Hanwha Systems Co. on April 18, 2024, and captured by its small synthetic aperture radar satellite shows Yankee Stadium in New York. (PHOTO NOT FOR SALE) (Yonhap)

I guess the satellite is the NEONSAT-1 Satellite right? It's a very impressive program that involves the production of 11 microsatellites which weigh less than 100 kg, and have a resolution of 1 meter! Do we have more information in regards to the cost of the satellite bus, as well as the name of the SAR camera used?


Chocopie

Contributor
South Korea Correspondent
Messages
634
Reactions
36 2,278
Nation of residence
Germany
Nation of origin
South Korea
I guess the satellite is the NEONSAT-1 Satellite right? It's a very impressive program that involves the production of 11 microsatellites which weigh less than 100 kg, and have a resolution of 1 meter! Do we have more information in regards to the cost of the satellite bus, as well as the name of the SAR camera used?
No, these images are from “Doory-Sat“ (두리샛) a micro SAR (초소형SAR) satellite developed by Hanwha Systems (한화시스템).

Launched Dec. 2023 from a sea platform with our domestic solid-fuel rocket near Jeju island. Specific technical specs and parts like cameras aren‘t disclosed.

Doory-Sat SAR:
197 cm length
106 cm width
20 cm height
~100 kg mass



„The satellite encompasses several operational modes, including ScanSAR, VideoSAR, and stripmap modes, each of which offers different resolutions and capabilities, depending on mission requirements. The ScanSAR and VideoSAR modes provide resolutions of 1 m and 4 m, respectively, enabling the tracking of various conditions or interesting targets.

The high-resolution stripmap mode offers a 1 m resolution and enables wide-area surveillance.
Images and videos obtained through the SAR antenna are stored in the bus platform and transmitted to the ground at a speed of 1 Gbps through the X-band antenna. Furthermore, the inter-satellite link (ISL) in the S-band improves the communication capabilities of the satellite constellation and enhances mission capabilities at the system level.“


Known data here:

News article about launch:

Rocket launch and Sat separation clips:


Press release from Hanwha Systems:

🇰🇷🚀🛰️

Last edited:

Chocopie

Contributor
South Korea Correspondent
Messages
634
Reactions
36 2,278
Nation of residence
Germany
Nation of origin
South Korea
NeonSat-1 (네온샛-1) is the first of in total 11 ultra-small cluster satellites which will observe mainly the areas around the Korean peninsula for civilian use.

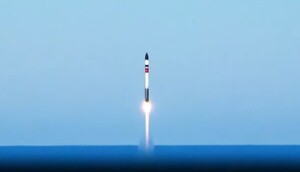

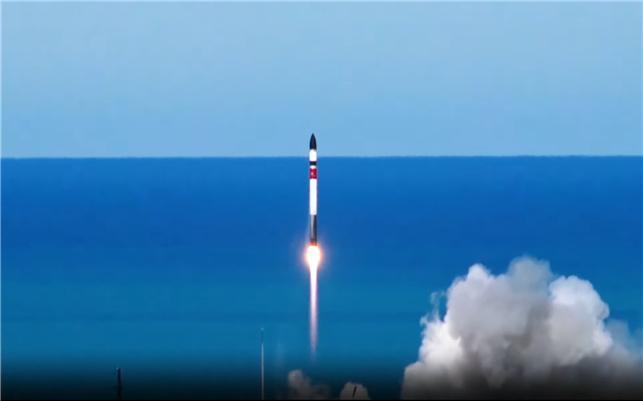

Launched in April 2024 on the Electron space rocket by U.S. company Rocket Lab from a spaceport in Mahia, New Zealand.

Developed by Korea Advanced Institute of Science and Technology (KAIST), with the participation of Satrec Initiative, a subsidiary of Hanwha Aerospace, and the Korea Aerospace Research Institute (KARI).

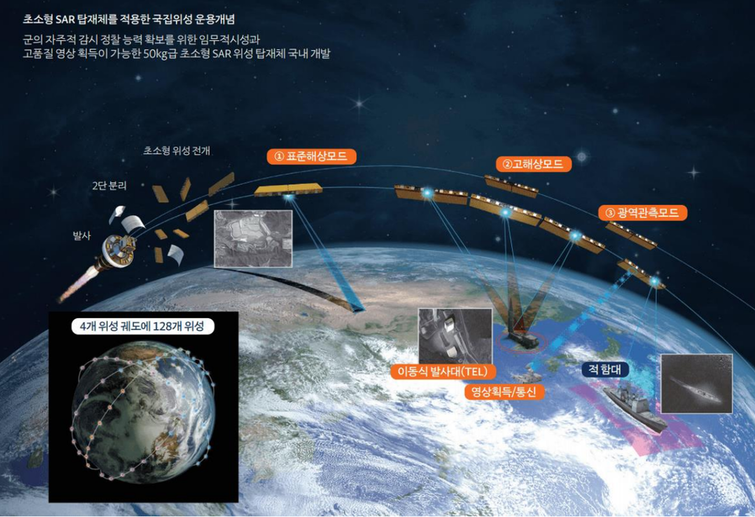

Machine-translated graphic:
„The satellites have a launch mass of less than 100 kg and orbits in a low-Earth orbit at an altitude of 400 to 500 km. It has a ground resolution of up to 1 m above ground in black and white, and images up to 4 m in color.“

Known data here:

Very easy understandable Korean clip:

News article:

Good space article in Korean:

Last edited:

urban mine

Committed member
Messages
217
Reactions
20 557
Nation of residence
South Korea
Nation of origin
South Korea
I guess the satellite is the NEONSAT-1 Satellite right? It's a very impressive program that involves the production of 11 microsatellites which weigh less than 100 kg, and have a resolution of 1 meter! Do we have more information in regards to the cost of the satellite bus, as well as the name of the SAR camera used?
As @Chocopie told us, this is a SAR satellite called Doory-Sat. It's not officially operated by the government, but it's Hanwha's own EQM, and the official project will be a SAR satellite based on this model. It's called the “H-model”, and we're going to launch a validation satellite in '26, probably next year or so, competing with another competitor, KAI's “K-model”.



urban mine

Committed member
Messages
217
Reactions
20 557
Nation of residence
South Korea
Nation of origin
South Korea

The Korea AeroSpace Administration and the National Intelligence Service held a commemorative event to commemorate the launch of the mission of the ultra-small cluster satellite 1, which was launched on April 24, and to encourage the hard work of researchers who have participated in research and development and operation.

Ultra-small cluster satellites (a total of 11 plans) are the first practical earth observation satellite in Korea that the KAIST SaTReC has been developing as a cluster system project for ultra-small satellites since 2020 with the support of the Korea AeroSpace Administration and the National Intelligence Service to closely monitor the Korean Peninsula and surrounding waters at high frequency and respond quickly to national crises and disasters.

The ultra-small cluster satellite No. 1 has stably completed its initial operation, including image calibration for six months after launch, and will contribute to national security and disaster response by producing high-definition images of areas of interest at home and abroad during the mission period of about three years. In particular, the video released on this day showed the world's best image quality as a 100-kg ultra-small satellite, with cars and urban buildings in operation clearly photographed.
미국 라스베이거스.png

Las Vegas, U.S
보스턴 로건 국제공항.png

Boston Logan International Airport
메카 마스지드 알하람.png

Mecca, Masjid al-Haram, Saudi Arabia.
파리 양궁경기장.png

Paris, Les Invalides.

Yoon Oh-joon, the third deputy director of the National Intelligence Service, said, "We will establish an 11th cluster satellite operation system with the successful launch of follow-up satellites in the future to actively respond to national security and disasters and secure public safety, including the protection of overseas citizens."


Follow us on social media

Top Bottom
