https://twitter.com/i/web/status/1423981686035976199

Imagine aksungur flying with two tei pd 180 st engines , it will give it a great boost in performance .
Aksungur will be the tb2 of heavy unmanned vehicles of turkish airforce , it is a work horse indeed .
Also we should keep in mind that the new gen anka will be a killer with the new capabilities and more payload , and we already saw that it started to be required by other countries



[azaher77]

New Akıncı TİHA images​



[Zafer]

New Akıncı TİHA images​

Legs, I don't see the legs!



[Abdelaziz]

Legs, I don't see the legs!

Folded



[Zafer]

Folded

You must have a poor hand now that you folded

I think this is the first time I see its legs retracted.



[Siper>MMU]

New Akıncı TİHA images​

Flir is bigger than the last time. Probably its a MX-20



[LegionnairE]

Why are the leading edges black?

Are we seeing slats? No this plane is too small to require such control surfaces and even the tail has black painted leading edges.

I am guessing that this is meant for testing. To see something better.

Did Selçuk Bayraktar just steal Wernher von Braun's idea? lol



[Nutuk]

Those black areas are probably anti icing rubbers

Pneumatic deicing boots that can deflate to break the ice off or passive (icephobic coating)

​



[Zafer]

Those black areas are probably anti icing rubbers

Pneumatic deicing boots that can deflate to break the ice off or passive (icephobic coating)

​

Deicing is probably integral to the skin rather than externally applied, but there may be several variations.



[LegionnairE]

Those black areas are probably anti icing rubbers

Pneumatic deicing boots that can deflate to break the ice off or passive (icephobic coating)

I guess part of the wing between the fuselage and the engines don't need de-icing?



[Yasar_TR]

I guess part of the wing between the fuselage and the engines don't need de-icing?

These pictures have been subjected to heavy photoshopping. The Satcom bulb on the top body has been masked. The blacked out areas may have contained something that they want away from prying eyes, at this stage.
Check out the right wing. Blacked out area is not as solid as the one in right wing.



[Hexciter]

Bayraktar TB-3



[Hexciter]

An unmanned helicopter sent to Çanakkale a few days ago to detect forest fires crashed near the village of Civler.

https://twitter.com/i/web/status/1425189872600555525



[Oublious]

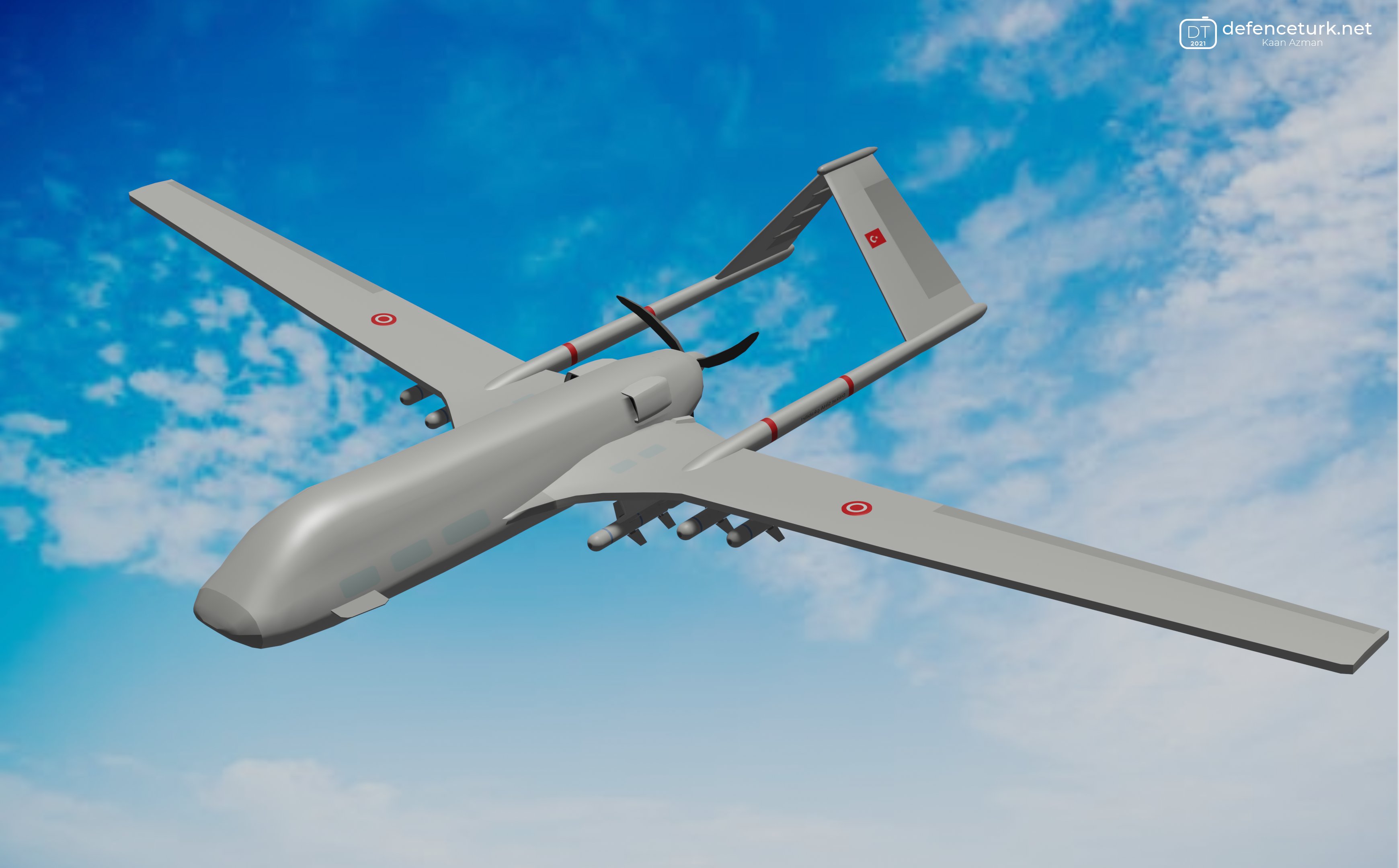

View attachment 27627

tb3?



[Hexciter]

tb3?

Yep.



[Kaan Azman]

View attachment 27627
Bayraktar TB-3

Still waiting for Mr. Selçuk or Baykar Makina to release more details regarding payload types so that I can render it with different payload configs like with Akıncı



[Yasar_TR]

View attachment 27627
Bayraktar TB-3

Is it me imagining or is that body shape looking like stealthier than TB2?



[Nutuk]

Is it me imagining or is that body shape looking like stealthier than TB2?

It is you imagining it!

Stealth you can only measure by radar backscatter measurement in an anechoic chamber. Stealty looking shape says nothing



[Era_shield]

Is it me imagining or is that body shape looking like stealthier than TB2?

Considering the wing aerofoil shape is square (would never happen IRL), this is a very low fidelity 3d model, so I wouldn't make any conclusions from it about stealthiness.



[Yasar_TR]

It is you imagining it!

Stealth you can only measure by radar backscatter measurement in an anechoic chamber. Stealty looking shape says nothing

First part I can agree with you. We all have imaginations!
Second part is a pedantic response.
Designers of aircrafts have found that certain surface shapes will not send back signals back to the radar sending them. So what makes a shape, free from radar signals being returned?
This is where we get into the Top Secret stuff. In short, only government engineers and a privileged few know the exact answer to this question. All we know is that the “stealth shape” is made to minimize right angles so when RF signals strike the aircraft surface, they are not reflected back.
