This is a Rolls-Royce design ?
RMK completed most designs on their own.
Some designs (Corvette) had Fincantieri input / consultation, mainly carried out by the RMK's design team, this was possibly one of them.
The LPD-LHD design was made via consultancy received from BAE / BMT, but in overall the requirements and main concept was made by the RMK design team.


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,473
Nation of residence
United Kingdom
Nation of origin
Turkey
STM Coast Guard Vessel based on Istanbul Class Frigate


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey

Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey


STM's yet another unpublished design. An OPV with 80 to 90 meters in length with VLS capability.


UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,641
Reactions
52 4,712
Nation of residence
Turkey
Nation of origin
Turkey
Would you like to create an econom class Naval Strike Force ?





We have GPS/ Laser guided artillery rockets why don't we just put them on some warships?

images (1).jpeg



Instead of Expensive cruise missiles and aircraft carrier, they would be great solution. Look at Ukranian-Russian war, currently they just throw each other artillery rockets .


Yeah i know fire hazard is very important but we have great platforms for this role .



Roketsan could design some artillery rockets for MARK 13 missile launcher.



Perry class frigates can be stored 40 SM1 missiles, instead of them we could load 300mm GPS guided artillery rockets.



UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,641
Reactions
52 4,712
Nation of residence
Turkey
Nation of origin
Turkey
Last edited:

UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,641
Reactions
52 4,712
Nation of residence
Turkey
Nation of origin
Turkey
İ have just created Turkish SRBM submarine!

First add two pressurized cold launch tubes on any old Turkish Submarines!






Then fit BORA missiles for cold launch capsule.Then you would have a submarine with 2 SRBM that's it.





Here is the first NAZIs examples:

With thoughts of hitting targets in the United States and in the United Kingdom, a 32 m (100 ft)-long container of 500-tons displacement was to be towed behind a submerged U-boat.












Soviet submarine, s 229 converted according to project 613-D4 into an experimental ship for underwater ballistic missiles launch



@Anmdt


Would "adding two launchers onto old submarines and launch from under water" be technically possible with new cold launch technologies?

Preveze class could be used as testbed.

Last edited:

UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,641
Reactions
52 4,712
Nation of residence
Turkey
Nation of origin
Turkey
Is there any chance making vertical weapon tube extensions in the old submarines?
İf North Korea did it TurNavy 100%could reconstruct old subs for 3 SRBM.












We have old German /US submarines that could be used as testbeds.

Last edited:

Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey
Has anyone noticed this one? The submarine used in cover-image of STM500, is not quite the STM500 itself. It is something smaller like about the size of Yono-Class. Also the propellers rotate in counter directions. The sensors and masts indicate this might be a submarine larger than Yono-Class, however, it is for sure not large as STM500.

Could also be Type 209 - 1200 model reused from free CAD sources, given the complexity of mast and propeller rotation direction.

Update:

Yeah, they reused a Type 209 - 1200 CAD model in the cover, but why?



This is the unknown submarine in cover image:




This is the STM500


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey
Yet another FAC design from TAIS, looks like they introduced a new kind of design line, keeping it on this smaller version too.


Runs on three diesels, three waterjets. One diesel engine possibly larger, and one WJ acts as a booster. STM's MPAC can be configured this way, however it is larger.



Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey

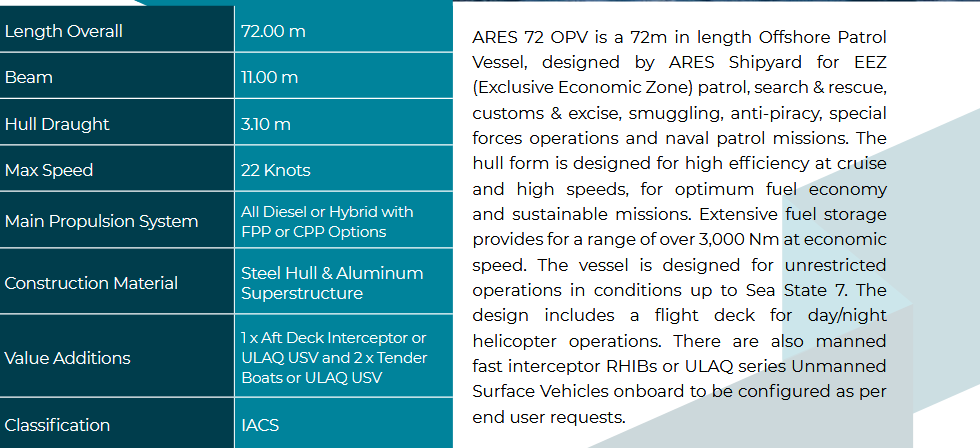

Yet anoter OPV design by ARES, likely offering or bidding for a country.







dBSPL

Experienced member
Think Tank Analyst
DefenceHub Ambassador
Messages
2,258
Reactions
91 11,643
Nation of residence
Turkey
Nation of origin
Turkey

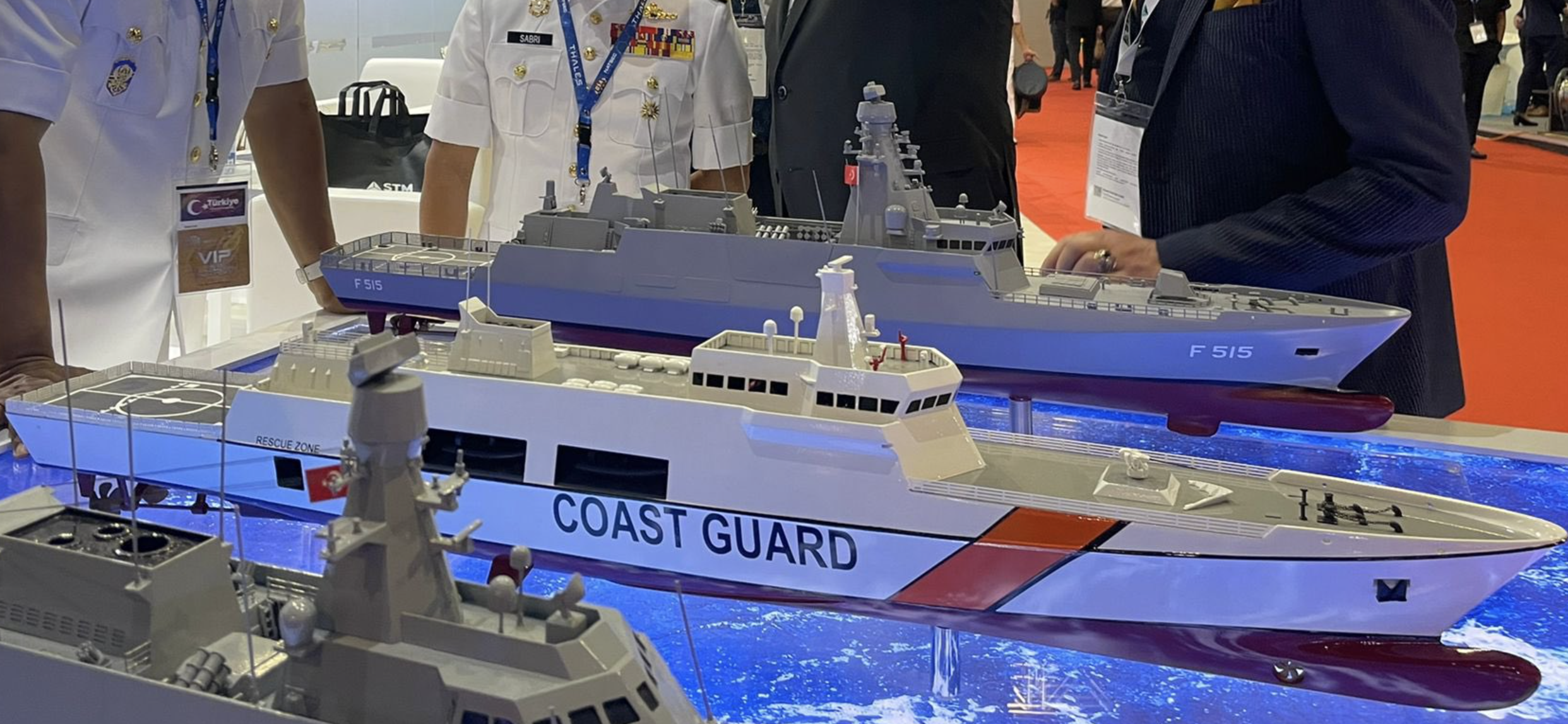

STM Coast Guard Vessel based on Istanbul Class Frigate
View attachment 41694
STM is showcasing its Coast Guard Ship design at SAHA Expo. The vessel has increased off-shore mission capability. 113.2 metres long ship's displacement is 3,100 tons. The platform, which can reach 25 knots top speed, has 8,000 nautical miles operational range with 14 knots speed. The ship's propulsion consists of two or four diesel engine sets coupled to two shafts. Design is expected to conduct a wide range of coast guard tasks thanks to its RHIB bay, container space, 10-ton helicopter suitable flight deck, 10-ton capacity telescopic crane and water cannons.




Aqerdf

Active member
Messages
106
Reactions
5 256
Nation of residence
Turkey
Nation of origin
Turkey
New Milgem/ADKG variations ?

These images are new to me.





via @TyrannosurusRex

EDIT: Hah ! @Enderun beat me to it, lol.

--------------------------------------------

Earlier TF-2000 variations and/or Aselsan's ÇAFRAD radar architecture designs showcase (?) If it was shared before, apoligies.

images (3).jpeg

images (1).jpeg

images (2).jpeg
