TR Navy Conceptual & Technology-Demonstration Designs

[Anmdt]

Two little bonuses by Dearsan;



[Combat-Master]

The Italians aren't going to be happy, Turks creeping into mini-sub business .



[Anmdt]

Details of F141 (now 142) has been revealed, Gökdeniz CIWS seems to be replaced with Millenium Gun.



[Anmdt]



[Anmdt]

View attachment 35589

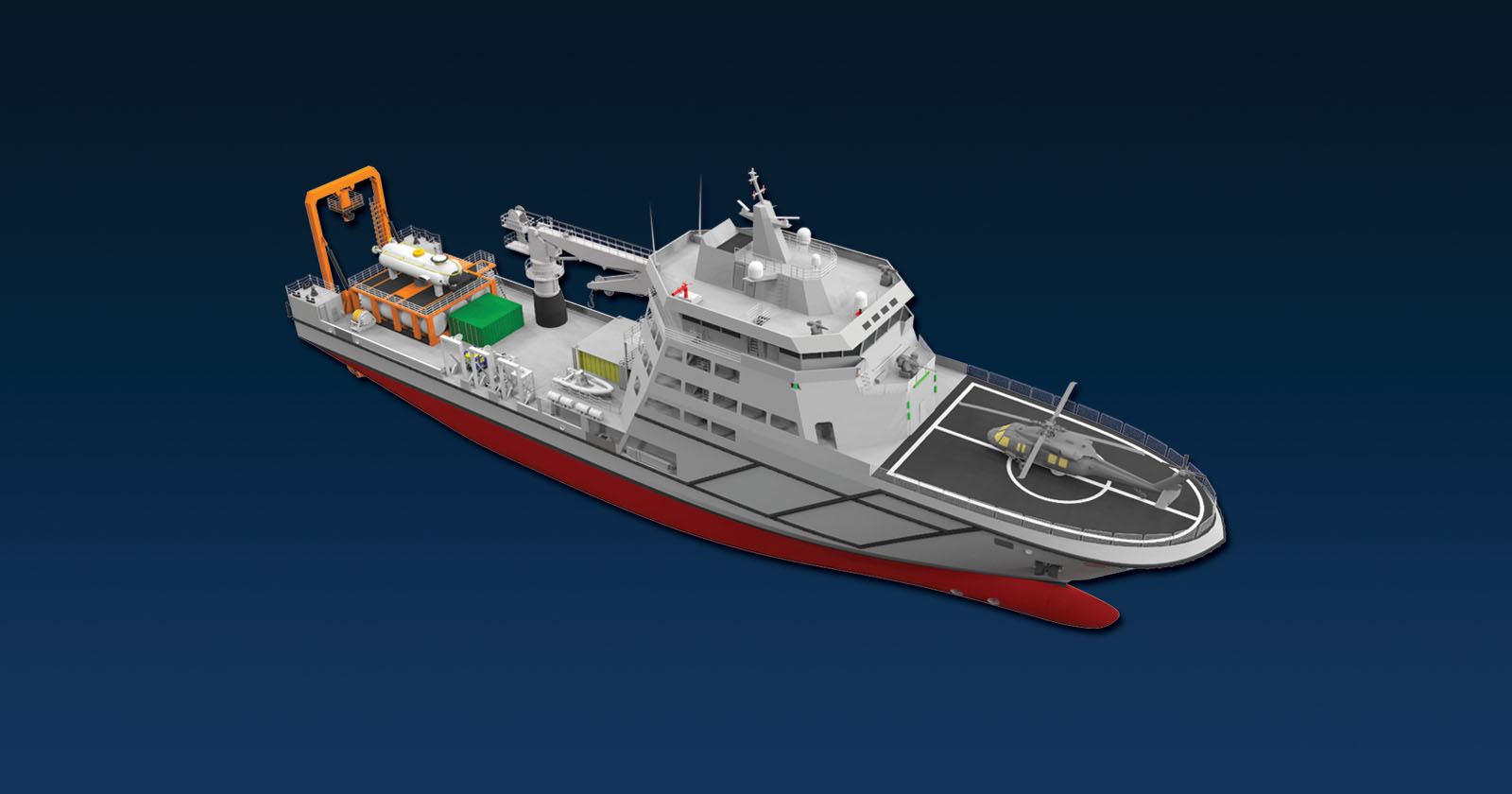

Multi purpose rescue vessel design by TAIS, 95 meters 4400 tons.
360 degrees bridge
SAR operations up to the sea state 6
1x 30 mm + 2 x 12.7, mm RCWS weapon layout
400 m2 deck area for multi purpose, ER Disaster relief or scientific operations
35 tons capable A frame compatible to DSRV
35 tons telescopic boom crane
2 RHIBS
Hangar for multiple UAVs with maintenance facility
Helopad up to 10 tons+
18 knots max speed
Dynamic positioning + Semi autonomous piloting
Azimuth propeller + 2 x bow thruster.

Dearsan responds to TAIS, they are likely in the same tender.



[Anmdt]

Hydrographic Survey Vessel by Dearsan.



[Anmdt]

View attachment 36213



[Anmdt]

Hi-Res images and additional data on Kuasar Marin's C80 Corvette.



[Anmdt]

Something interesting by Kuasar Marin;



[Turko]

Something interesting by Kuasar Marin;

View attachment 36582

View attachment 36583

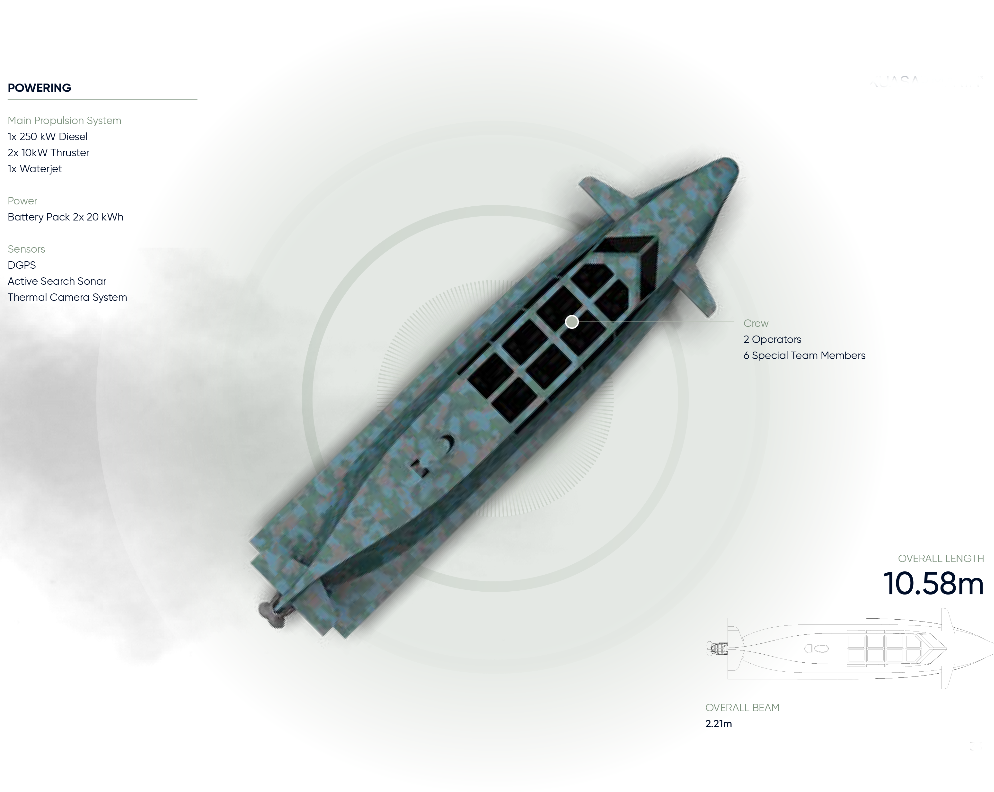

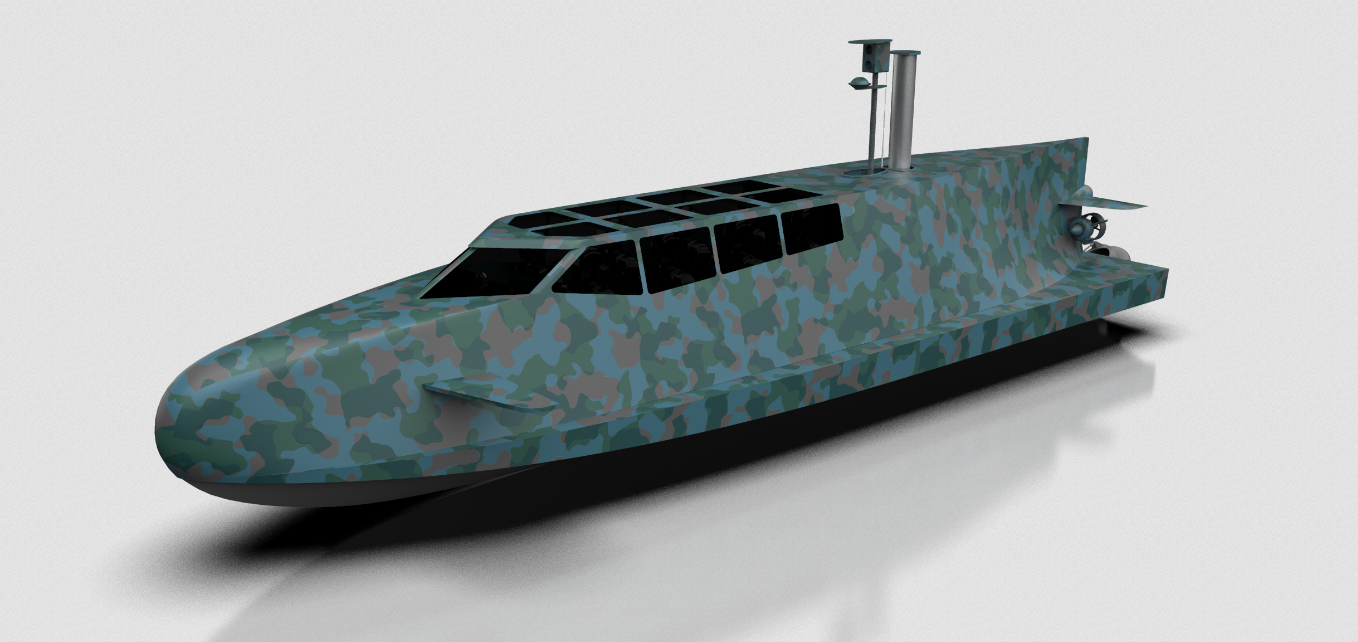

Is it Semi-submersible boat?



[Gary]

View attachment 31443
View attachment 31445
STM has shown a submarine (more looking like an LUUV-XLUUV) design in somewhere, yet nothing has been told about it.
Looking at the second sketch, it could be an unmanned semi-submersible or convertible design with combined Vertical-X rudder configuration.

it looks (sorry) exactly a Virginia class SSN copycat. even the rudder design.



[Anmdt]

it looks (sorry) exactly a Virginia class SSN copycat. even the rudder design.

It could be just the virginia class itself, i have interpreted the image assuming it is one of their UUV designs, but looking again after seeing the virginia class, it really could be the plain virginia, used as a place holder.



[Gary]

It could be just the virginia class itself, i have interpreted the image assuming it is one of their UUV designs, but looking again after seeing the virginia class, it really could be the plain virginia, used as a place holder.

the sail and the rudder pretty much screams Virginia SSN



[Anmdt]

the sail and the rudder pretty much screams Virginia SSN

Just saw virginia class from that angle and surely it is. Even the exact angle is available in 3D model sources.



[Anastasius]

Is it Semi-submersible boat?

Looks like it.



[Turko]

When our ADA class corvettes get rid of old gen Smart MK2s and to be upgraded with new AESA radars?

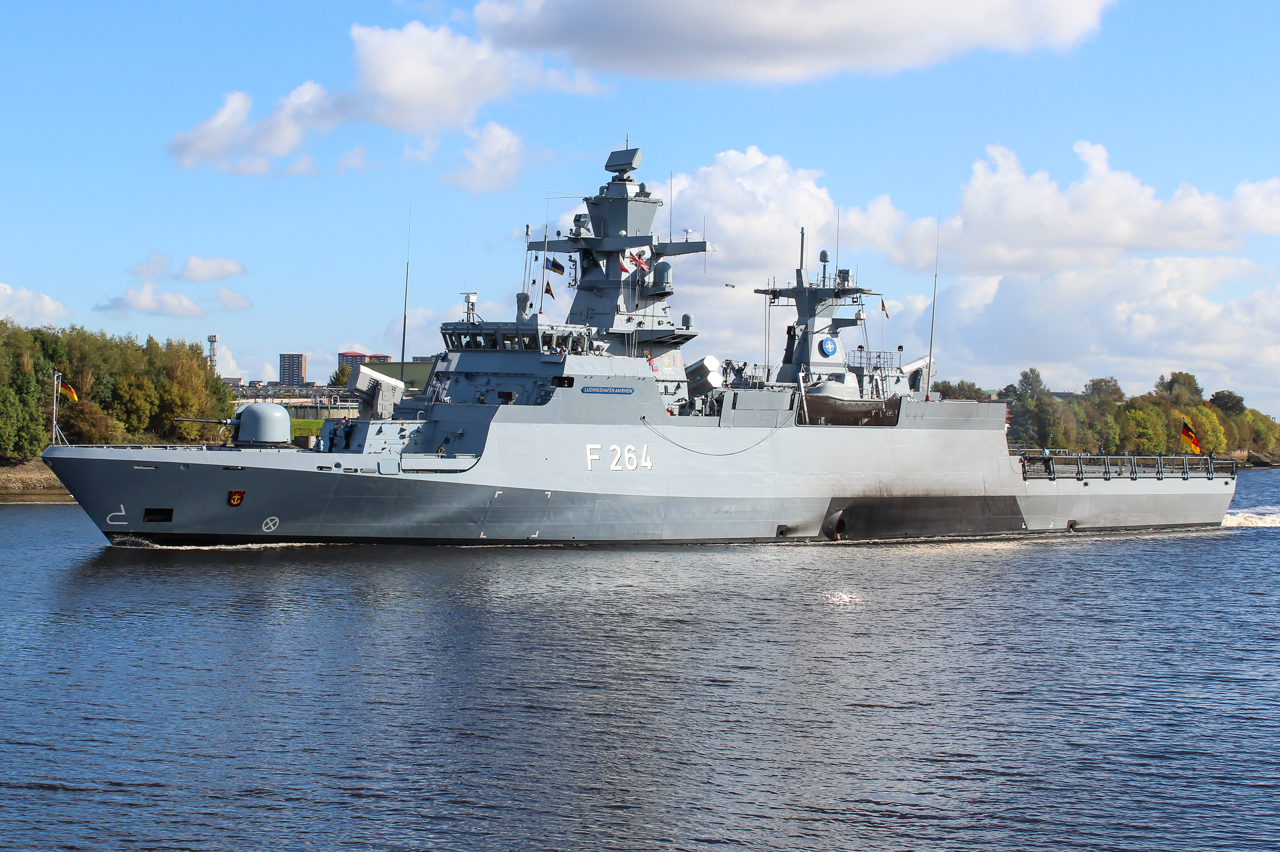

Hensoldt will equip the second batch of the German Navy’s K130 corvettes with its TRS-4D Rotator naval radar

The US Navy (USN) has taken delivery of the first Freedom-variant Littoral Combat Ship (LCS) equipped with the Hensoldt TRS-4D G-band rotating active electronically...

TRS-4D AESA radar accepted by US Navy

The US Navy (USN) has taken delivery of the first Freedom-variant Littoral Combat Ship (LCS) equipped with the Hensoldt TRS-4D G-band rotating active electronically...

www.janes.com

IAI installs ALPHA radar system on Israeli Navy's Saar 4.5 missile ship

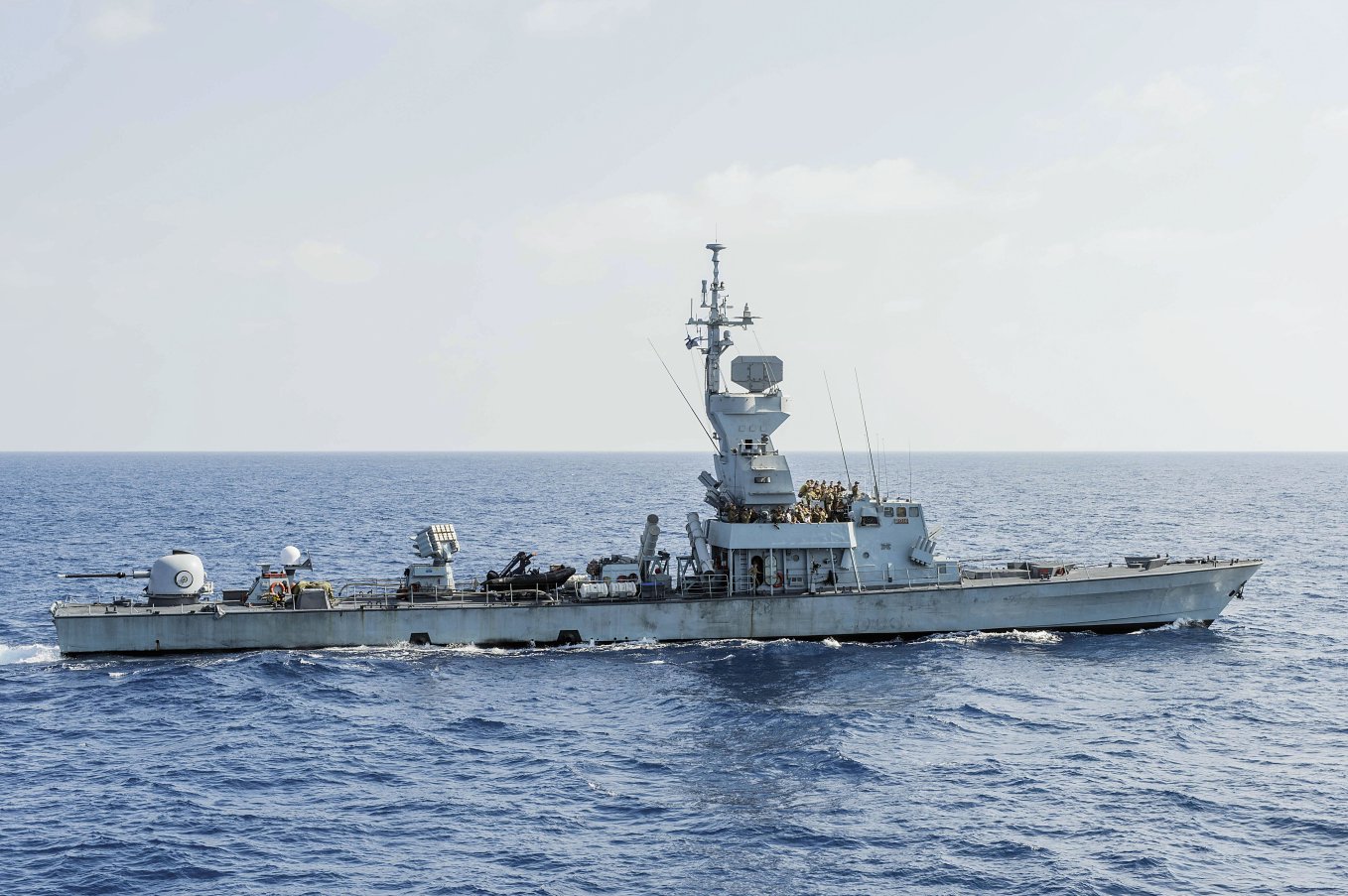

Israel Aerospace Industries (IAI) has successfully completed the deployment of its Advanced Lightweight Phased Array (ALPHA) ELM-2258 radar system on the Israeli Navy's Saar 4.5 missile ship.

www.naval-technology.com

Israeli corvette upgraded with ALPHA radar

At least one of the Israeli Navy’s three Saar-5 corvettes now has the new IAI-Elta ELM-2258 Advanced Lightweight Phased Array (ALPHA) radar, images emerging from the...

www.janes.com

https://www.iai.co.il/p/elm-2258-alpha

@Anmdt Dear i can't help dreaming ADA Class with additional frontal RAM and AESA CENK radar.

Also my new obsession İ class with 2 RAM/Gökdeniz ER ( frontal and rear) + 2 Phalanx/Gökdeniz 35mm ( right and left) and 32 double packed G60. Obviously with AESA radar.



[Anmdt]

When our ADA class corvettes get rid of old gen Smart MK2s and to be upgraded with new AESA radars?




Hensoldt will equip the second batch of the German Navy’s K130 corvettes with its TRS-4D Rotator naval radar

View attachment 37750
View attachment 37754

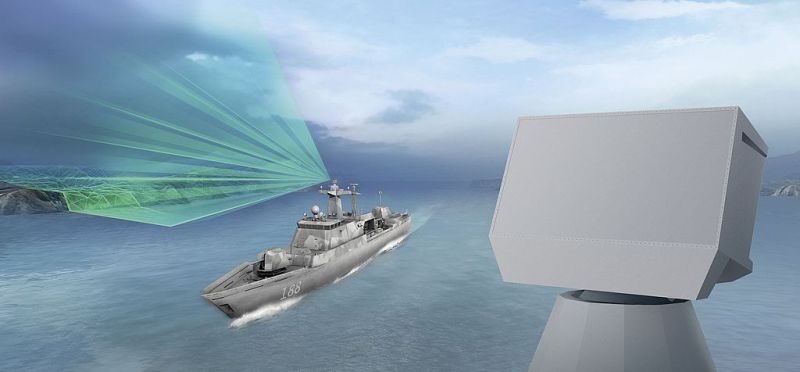

The US Navy (USN) has taken delivery of the first Freedom-variant Littoral Combat Ship (LCS) equipped with the Hensoldt TRS-4D G-band rotating active electronically...
View attachment 37749

TRS-4D AESA radar accepted by US Navy

The US Navy (USN) has taken delivery of the first Freedom-variant Littoral Combat Ship (LCS) equipped with the Hensoldt TRS-4D G-band rotating active electronically...

www.janes.com

IAI installs ALPHA radar system on Israeli Navy's Saar 4.5 missile ship

Israel Aerospace Industries (IAI) has successfully completed the deployment of its Advanced Lightweight Phased Array (ALPHA) ELM-2258 radar system on the Israeli Navy's Saar 4.5 missile ship.

www.naval-technology.com

Israeli corvette upgraded with ALPHA radar

At least one of the Israeli Navy’s three Saar-5 corvettes now has the new IAI-Elta ELM-2258 Advanced Lightweight Phased Array (ALPHA) radar, images emerging from the...

www.janes.com

View attachment 37752
View attachment 37753

https://www.iai.co.il/p/elm-2258-alpha

@Anmdt Dear i can't help dreaming ADA Class with additional frontal RAM and AESA HAZAR radar.

View attachment 37751

Also my new obsession İ class with 2 RAM/Gökdeniz ER ( frontal and rear) + 2 Phalanx/Gökdeniz 35mm ( right and left) and 32 double packed G60. Obviously with AESA radar.


View attachment 37755
View attachment 37756


View attachment 37757

I-Class already has Cenk-S an AESA radar with the promoted "4D" capabilities of european radars.
I am not sure if they can install Gokdeniz ER between VLS and main gun on I-Class too. But since it is compact they might find a place for that. They will install Nazar-L too so it definiteoy needs some place.

But Ada class will receive an upgrade sooner or later. At least we can expect it will receive a radar, sonar and torpedo upgrade, ram will be replaced with domestic one, nazar-L will be added and they will probably add a gun based ciws too. It is easier for Ada Class.



[Agha Sher]

Has this been shared before?



[BTT34]

Has this been shared before?

I've seen this before



[Turko]

Purchase RALANX , be RELAX


RALANX: Gökdeniz ER plus MKE 20 mm CİWS with fixed panel AESA radars.

RALANX : RAM and PHALANX combination

Do you need full coverage point defence and you don't want your modern warships miss any threat!

Do you want totally autonomous Point Defence System independent from your main radar?

Do you need a modular defence system which you transfer to other warships?

You don't want to invest in old frigates?

Do you want secure a commercial ship?

Durun vurmayın hemen

İ would have put missile launcher horizontally if had found proper image of Gökdeniz ER.

İ always wonder why there is no RAM and PHALANX combination.

@Yasar Abi you should check it out.
