Indonesia Indonesian Strategic Industries

[Mandala]

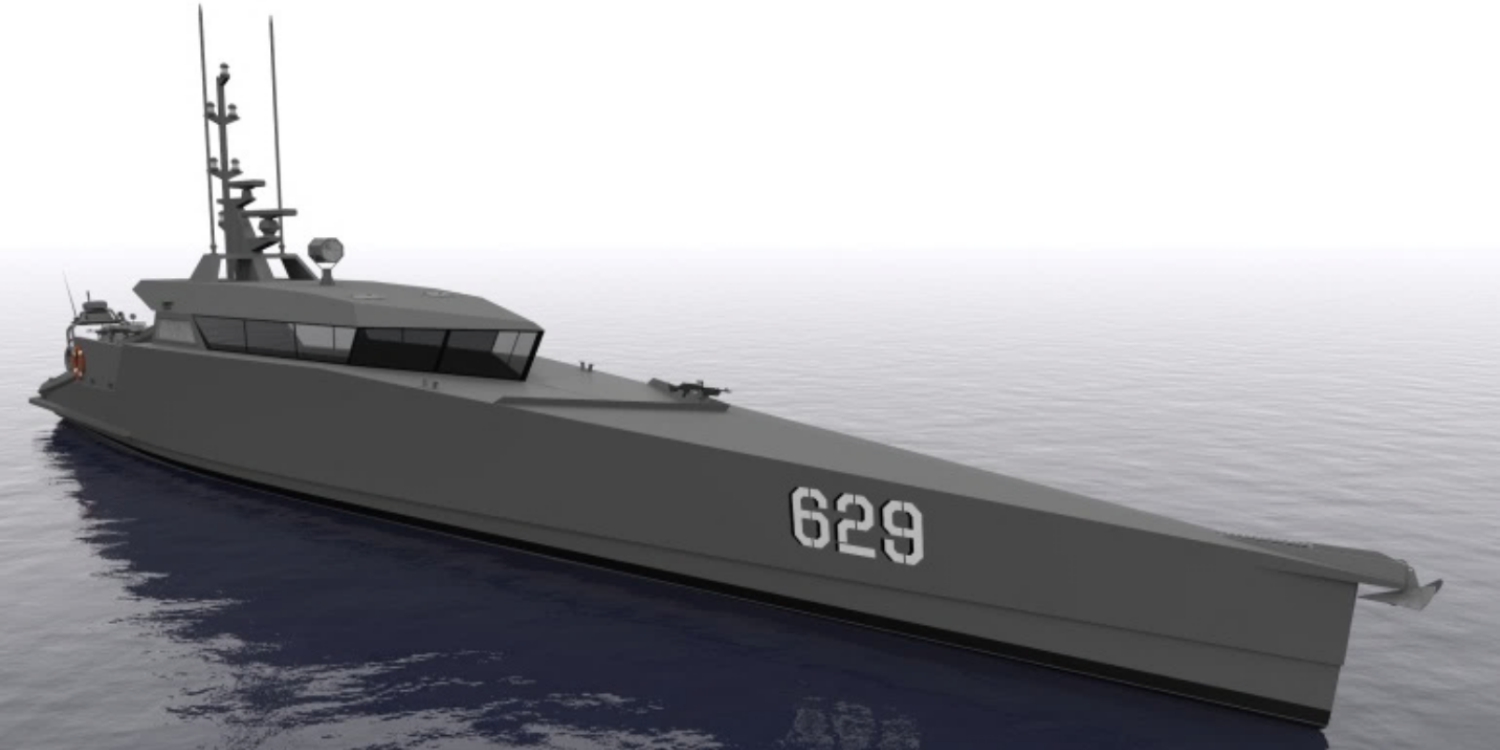

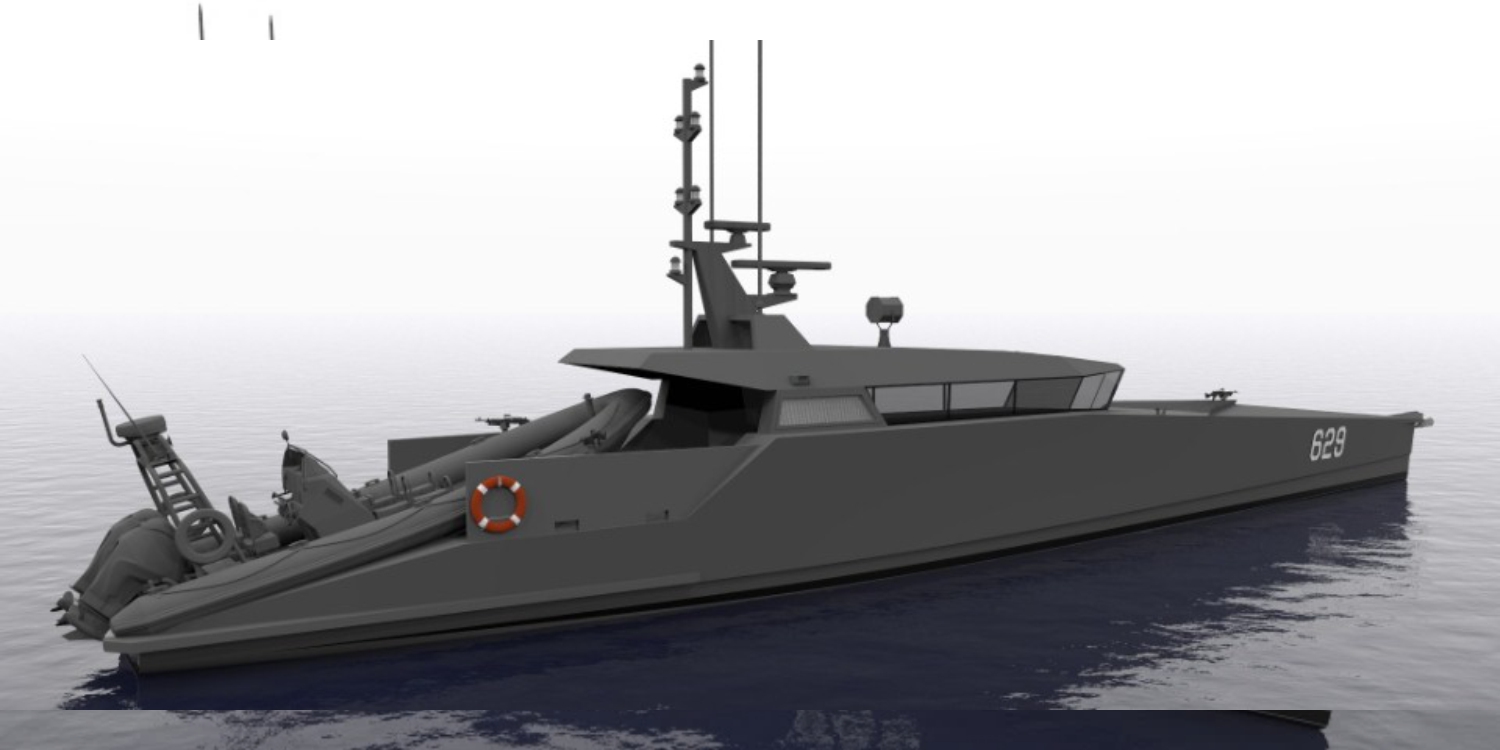

PT Lundin X3200 Long Range Patrol Boat.

Description​

The new 32 meter North Sea Boats X3200 design can be adapted to suit various roles where speed, sea-keeping and extended range are essential.

State of the art hull design and modern active stabilization combine to offer extremely low fuel consumption and reduced environmental impact.

For boarding and inspection operations an 8.5m 40 knot RIB can be launched from an aft deck slipway carrying up to 8 crew.

The X3200 is built for extreme conditions and ocean crossing and is therefore self-righting and equipped with the latest safety and navigation equipment.

Spesification​

General​

Basic Functions: Actively Stabilized, Self Righting Ultra Slender Mono-hull
Hull Material: Infused Vinylester, E-glass foam sandwich

Dimensions​

Length Over All: 31.40 m
Length Water Line: 30.50 m
Beam Over All: 4.80 m
Draught: ~ 1.10 m

Propulsion​

Main Engines: 2 x VOLVO D6 435 HP or 2 x SCANIA DI 09 400 HP

Performance​

Speed: 20 knots +
Range: 5000 Nautical Miles at 12 knot (including generator fuel burn)

Accomodation​

Complement: Captain, 2 Officers, 8 Ratings

Armament​

Gun: 3 x 7.62 mm GPMG

Ship's Boats​

8.5m RIB

X3200 LONG RANGE PATROL BOAT

www.ptlundin.com



[BBOn]

why they not just make it bigger like the Australia did. At least more bigger than KCR. Coast Guard will gladly consider to buy it.



[Anmdt]

PT Lundin X3200 Long Range Patrol Boat.

Description​

The new 32 meter North Sea Boats X3200 design can be adapted to suit various roles where speed, sea-keeping and extended range are essential.

State of the art hull design and modern active stabilization combine to offer extremely low fuel consumption and reduced environmental impact.

For boarding and inspection operations an 8.5m 40 knot RIB can be launched from an aft deck slipway carrying up to 8 crew.

The X3200 is built for extreme conditions and ocean crossing and is therefore self-righting and equipped with the latest safety and navigation equipment.

Spesification​

General​

Basic Functions: Actively Stabilized, Self Righting Ultra Slender Mono-hull
Hull Material: Infused Vinylester, E-glass foam sandwich

Dimensions​

Length Over All: 31.40 m
Length Water Line: 30.50 m
Beam Over All: 4.80 m
Draught: ~ 1.10 m

Propulsion​

Main Engines: 2 x VOLVO D6 435 HP or 2 x SCANIA DI 09 400 HP

Performance​

Speed: 20 knots +
Range: 5000 Nautical Miles at 12 knot (including generator fuel burn)

Accomodation​

Complement: Captain, 2 Officers, 8 Ratings

Armament​

Gun: 3 x 7.62 mm GPMG

Ship's Boats​

8.5m RIB

X3200 LONG RANGE PATROL BOAT

www.ptlundin.com

Doesn't look like a good idea at all,
I know they are experienced with an axe bow and slender hulls, but this one will have a terrible sea-keeping, frequent slamming, water overboard, a worse stability than other counterparts.
How the hell they thought the front gun will be operated; there is no hatch, even if there is a hatch just make it RCWS and locate on top of the bridge.
To be honest they have pretty cool monohull designs or could make this one a trimaran as well yet i wonder why did they come up with something like this.



[FPXAllen]

PT Lundin X3200 Long Range Patrol Boat.

Description​

The new 32 meter North Sea Boats X3200 design can be adapted to suit various roles where speed, sea-keeping and extended range are essential.

State of the art hull design and modern active stabilization combine to offer extremely low fuel consumption and reduced environmental impact.

For boarding and inspection operations an 8.5m 40 knot RIB can be launched from an aft deck slipway carrying up to 8 crew.

The X3200 is built for extreme conditions and ocean crossing and is therefore self-righting and equipped with the latest safety and navigation equipment.

Spesification​

General​

Basic Functions: Actively Stabilized, Self Righting Ultra Slender Mono-hull
Hull Material: Infused Vinylester, E-glass foam sandwich

Dimensions​

Length Over All: 31.40 m
Length Water Line: 30.50 m
Beam Over All: 4.80 m
Draught: ~ 1.10 m

Propulsion​

Main Engines: 2 x VOLVO D6 435 HP or 2 x SCANIA DI 09 400 HP

Performance​

Speed: 20 knots +
Range: 5000 Nautical Miles at 12 knot (including generator fuel burn)

Accomodation​

Complement: Captain, 2 Officers, 8 Ratings

Armament​

Gun: 3 x 7.62 mm GPMG

Ship's Boats​

8.5m RIB

X3200 LONG RANGE PATROL BOAT

www.ptlundin.com

Is this new concept from them?

I admit I haven't followed their progress as close as I should so I may have missed a lot.



[trishna_amrta]

The X3200 is built for extreme conditions and ocean crossing

That remain to be seen. Ocean passage is no joke
I have my doubt looking from the design. Moreover, no mention as to what material the hull will be made of



[Anmdt]

That remain to be seen. Ocean passage is no joke
I have my doubt looking from the design. Moreover, no mention as to what material the hull will be made of

Oh i entirely missed the "ocean passage" part..
definitely as a semi-submersible, why not?



[Mandala]

That remain to be seen. Ocean passage is no joke
I have my doubt looking from the design. Moreover, no mention as to what material the hull will be made of

Actually the hull material is in the general specification: Infused Vinylester, E-glass foam sandwich.



[Mandala]

Is this new concept from them?

I admit I haven't followed their progress as close as I should so I may have missed a lot.

It seems they are still using the wave-piercing concept but with a mono-hull design instead of a trimaran.

Wave-piercing mono-hull boat in extreme condition:

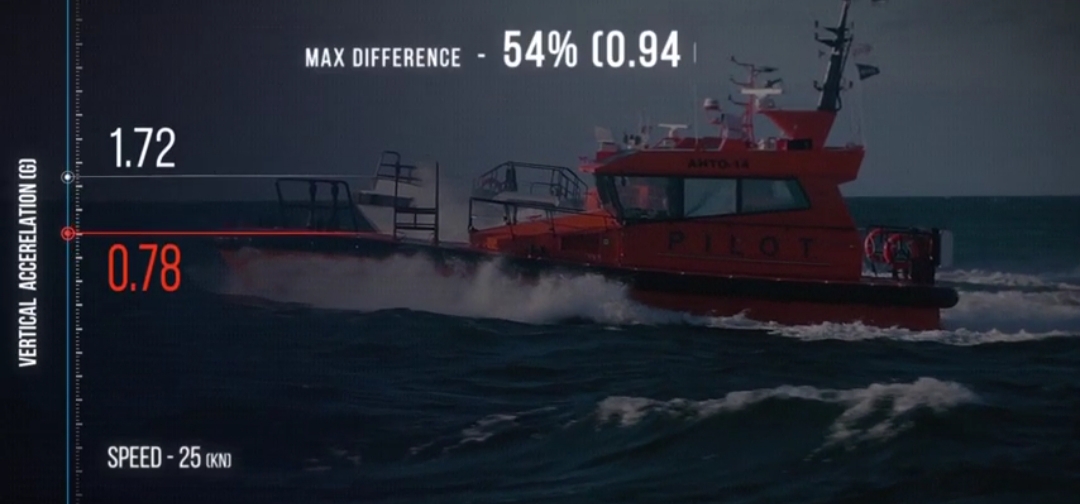

^^ Beginning at minute 2:16 there is a side by side comparision between a standard mono-hull boat and a wave-piercing mono-hull boat in rough seas.

Screenshot:



[Mandala]

Nice pic of X18 Antasena.

Ary Kusyanto on Instagram: "Disini aja dulu #myjobmyadventure #moalbejabeja #keundieukukami #garasi517 #pindad"

16 likes, 0 comments - aryakuy on April 29, 2021: "Disini aja dulu #myjobmyadventure #moalbejabeja #keundieukukami #garasi517 #pindad"

www.instagram.com



[Anmdt]

It seems they are still using the wave-piercing concept but with a mono-hull design instead of a trimaran.

Wave-piercing mono-hull boat in extreme condition:

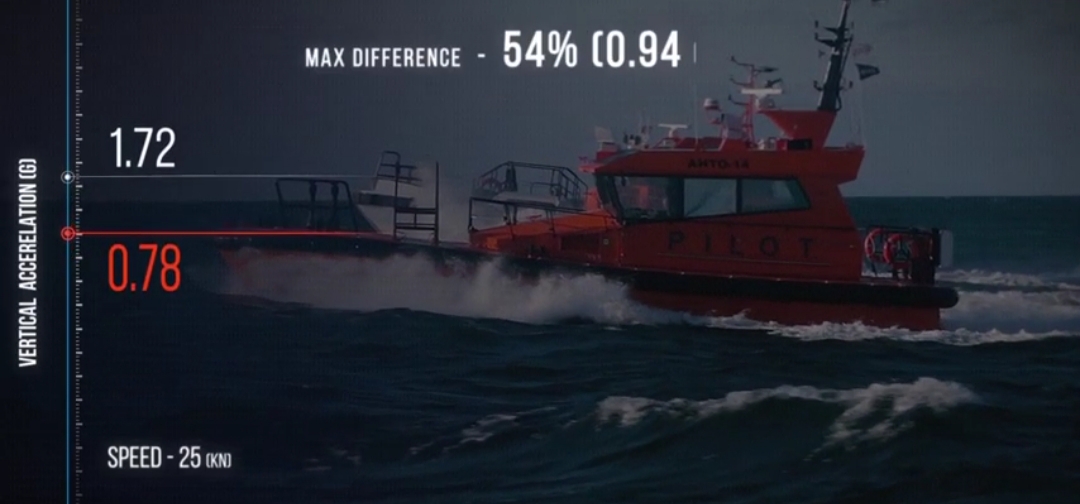

^^ Beginning at minute 2:16 there is a side by side comparision between a standard mono-hull boat and a wave-piercing mono-hull boat in rough seas.

Screenshot:

View attachment 20238

A better video showing differences, cons-pros from technical point of view apart from "cool" slamming videos.
The examples you have shown has a flare and special kind application of wave piercing bow form.



[trishna_amrta]

Actually the hull material is in the general specification: Infused Vinylester, E-glass foam sandwich.

So in other words, it's a plastic boat Best to keep it away from the oceanic environment then.



[Panca]

Pindad Rampung Garap 25 Ribu Senjata untuk Latihan Komcad

Sebanyak 25 ribu pucuk senjata SS2-V5 A1 buatan Pindad telah rampung dibuat untuk kebutuhan pelatihan peserta komponen cadangan di Kementerian Pertahanan.

www.cnnindonesia.com



[deadlast]

Some loose percentages of local content/component on PT. Pindad product catalog.

Tingkat Komponen Dalam Negeri (TKDN) = Domestic Component Level (DCL)

Spoiler: Gun

Spoiler: Pistol

Spoiler: Komodo 4x4

Spoiler: Anoa 6x6

For more details of other Pindad product,
http://tkdn.kemenperin.go.id/pindad



[Mandala]

X18 Antasena Tank Boat front view.

Patrick Ledig on Instagram: "She is a beauty and a beast..."

132 likes, 5 comments - patacaisse63 on May 2, 2021: "She is a beauty and a beast..."

www.instagram.com



[Mandala]

Full video of N250 Gatotkoco first flight.



[Gary]

H I Sutton - Covert Shores

https://twitter.com/i/web/status/1390925984178786304



[Var Dracon]

Not Indonesian but American. This thing is 6x6, no large windows, and amphibious



[Indos]

H I Sutton - Covert Shores

https://twitter.com/i/web/status/1390925984178786304

The new PAL Director has also design unmanned submarine, it will be likely our next program after we inshaAllah completely build entire Changbogo (if second contract is going to be effective soon)



[Gary]

@Indos I read somewhere that we're on our way to reverse engineer rolls royce spey engine, by (if I'm not mistaken) NTP..

Do you know more about this?



[Mandala]

The X18 Antasena is now called a Combat Boat.


The X18 Combat Boat in the water in Indonesia. JCD picture.

Indonesia’s New X18 Combat Boat Begins On-Water Tests​

Indonesia's X18 Combat Boat program is moving towards first delivery, John Cockerill Defence (JCD), which is supplying the armament, told Naval News. A protoype has been put in the waters on April 28 in Banyuwangi Waters.​

Nathan Gain 07 May 2021

Formerly known as the "Tank Boat", the Combat Boat was developed for the Indonesian Army (TNI AD) and will be known locally as "Antanesa".

« The boat will undergo builder trials to check all of its functions on the water. The boat is expected to support TNI operation in swamp, river, coastal and sea as well as coast guard duties », PT Pindad said on its Facebook page.

The X18 Combat Boat is a program launched by the Indonesian Ministry of Defense. Formerly known as « Tank Boat », it is executed by a consortium in which PT Pindad is the lead integration in collaboration with PT Lundin (North Sea Boats), PT Len Industri (Persero), and PT Hariff. These boats are intended for the Indonesian Army (TNI AD) and will be known locally as “Antanesa”.

This « APC » variant of the Combat Boat is primarily designed for troop transport tasks. It will be capable of carrying up to 60 troops, 5 tons of cargo, drones and will be manned by a 5 strong crew.

« Equipped with 30mm RCWS and two 12,7mm machine guns, the boat is prepared to protect Indonesia’s sovereignty and territorial waters, » PT Pindad adds.

The X18 Combat Boat has been launched on April 28 in Banyuwangi Waters (PT Pindad picture)

The vessel integrates John Cockerill Defense’s (JCD) Cockerill 3030 unmanned turret. The Belgian company also made engineering and construction improvements in regards to the marine environment and the specificity of the catamaran composite material.

The Combat Boat will deploy quadcopter drones for ISR taks.

The APC variant will have further enhancement, such as missile firing capabilities, JCD added. Drones integration, for example, is currently being tested. Provided by NORTHSEADRONES, a cooperation between Norway and Indonesia, the drone will be linked with the boat and turret and will be used for surveillance and reconnaissance tasks.

Sea trials will last until the end of May. The Factory Acceptance test (FAT) step, as well as the site acceptance test (SAT) and harbor acceptance test (HAT), will all happen in May 2021. At sea live firing tests will begin next month. The delivery to the TNI-AD has not been decided yet, but could occur likely around September 2021.

Indonesia's New X18 Combat Boat begins on-water tests - Naval News

Indonesia's X18 Combat Boat program is moving towards first delivery, John Cockerill Defence (JCD), which is supplying the armament, told Naval News. A protoype has been put in the waters on April 28 in Banyuwangi Waters.

www.navalnews.com
