TR Sensors and Detector Programs

[Bogeyman]

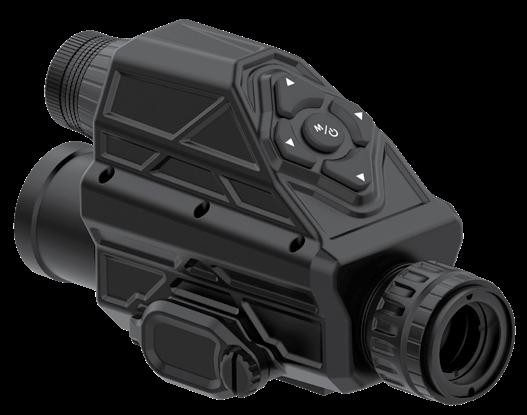

Aselsan VANCAT
View attachment 30201

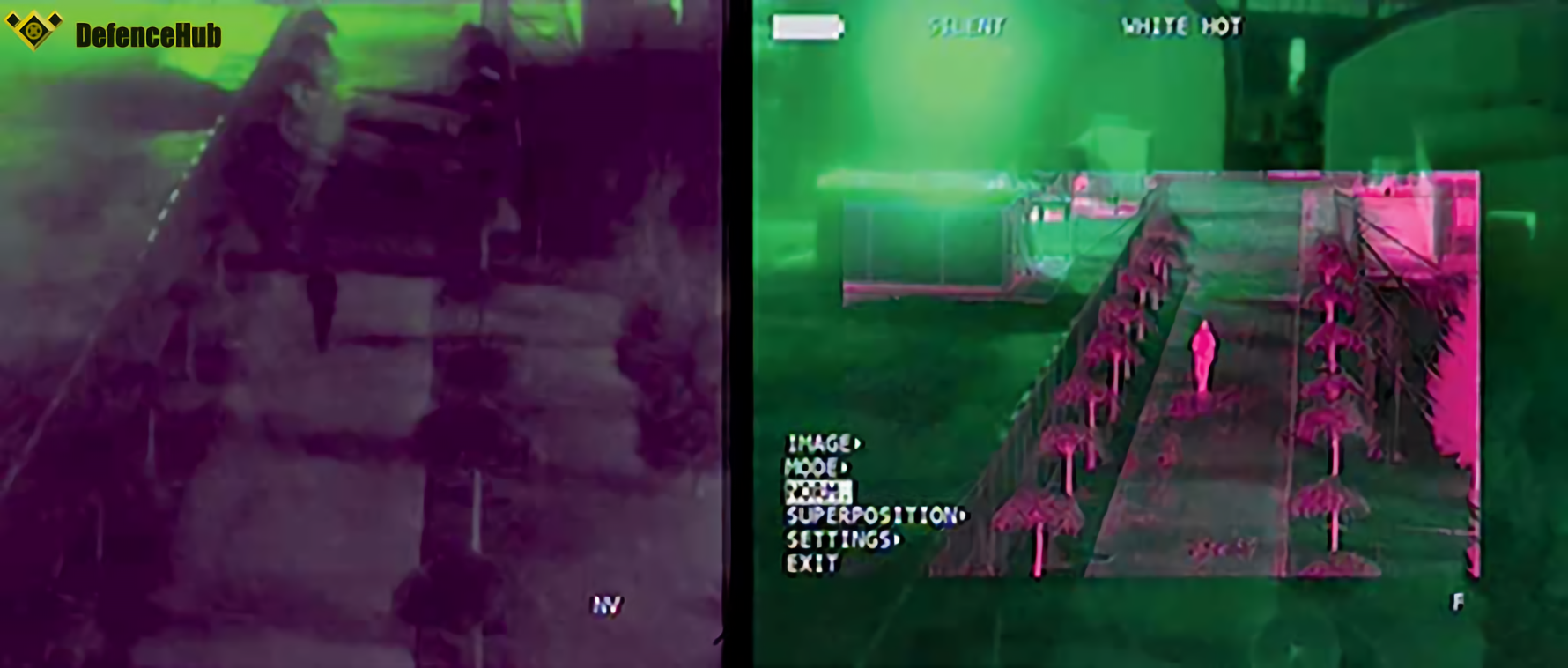

Night vision camera image taken from the VAN CAT System and image fusion result
View attachment 30199



[Combat-Master]

ASELSAN - GLIS Enhanced Laser Warning System | Barbaros MLU and I-Class



[Huelague]

Still in development

Like CATS?



[Abdelaziz]

Like CATS?

Cats is a system composed of many systems ..one of them is the ir sensor ..the sensor is formed of many subsystem such as ROIC,cooling,fpa ..the most critical part is the FPA ... Its a very advanced tech owned only by few of world giants .. there is many types of the FPAs .. aselsan works intensively since years to gain this tech



[Combat-Master]

Aselsan MGEO - LWIR MCT detector development started in mid 2017
Year 2018 | First Fabricated LWIR MCT - 320x256/30μm FPA

Year 2019 | Improved Fabrication - LWIR MCT 320x256/30μm FPA

ASEL64015 LWIR ROIC



[Combat-Master]

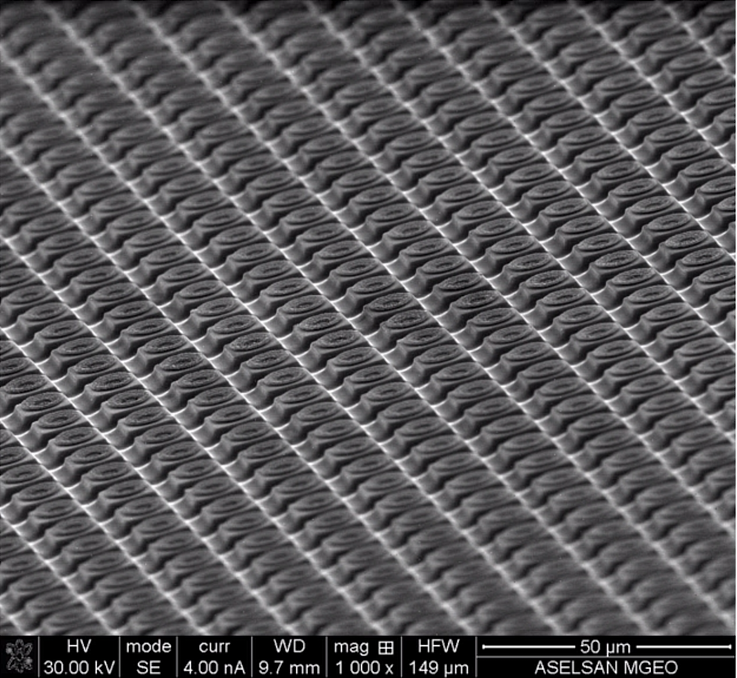

Aselsan MGEO MESA Type Pixel Structure for MCT detector



[Combat-Master]

ASELPOD improved E/O turret.

Older E/O turret



[Combat-Master]

TUBITAK SAGE
KÖGAB
IMAGING INFRARED SEEKER

Imaging Infrared Seeker (KOGAB) is an electro-optical system that includes a long detection range, high-resolution infrared imaging system, a high field-of-regard gimbal and state-of-the-art detection and tracking algorithms. KOGAB can be integrated into highly manoeuvring missiles to provide precise terminal phase guidance as well as support to navigation systems with an integrated IMU.

KÖGAB has been developed by TÜBİTAK SAGE and has been used within SOM Missile Family

KÖGAB​

Seeker Type	Imaging Infrared
Wavelength	Midwave (3.6-4.9 μm)
Resolution	640 x 512
Gimbal Type	Pitch - Yaw
Weight	18.5 kg



[Combat-Master]

Bozdoğan (Merlin) Within Visual Range Air to Air Missile IIR Seeker Head



[TheInsider]

Aselsan MGEO MESA Type Pixel Structure for MC

Aselsan MGEO MESA Type Pixel Structure for MCT detector
View attachment 30284

If my elven eyes see accurately this thing has a 10 micrometer pitch length. It might also be 12 micrometer.



[Balamir]

Cats is a system composed of many systems ..one of them is the ir sensor ..the sensor is formed of many subsystem such as ROIC,cooling,fpa ..the most critical part is the FPA ... Its a very advanced tech owned only by few of world giants .. there is many types of the FPAs .. aselsan works intensively since years to gain this tech

FPA in Turkey was produced in 640x512 resolution both in METU and ASELSAN. The next step is to increase the resolution. The work of Mikro Tasarım informs us about this.

After that, detectors with 640x512 resolution can be used in ATGMs such as OMTAS UMTAS KARAOK. It uses a 640x512 detector in Israel's Spike ATGM family, whose image quality is acclaimed.

https://www.aselsan.com.tr/QWIP_64020_7447.pdf

https://www.aselsan.com.tr/High_Speed_QWIP_640_6223.pdf

https://www.aselsan.com.tr/QWIP_640_3846.pdf

https://www.aselsan.com.tr/Dual_Band_QWIP_640_7163.pdf



[Abdelaziz]

FPA in Turkey was produced in 640x512 resolution both in METU and ASELSAN. The next step is to increase the resolution. The work of Mikro Tasarım informs us about this.

After that, detectors with 640x512 resolution can be used in ATGMs such as OMTAS UMTAS KARAOK. It uses a 640x512 detector in Israel's Spike ATGM family, whose image quality is acclaimed.

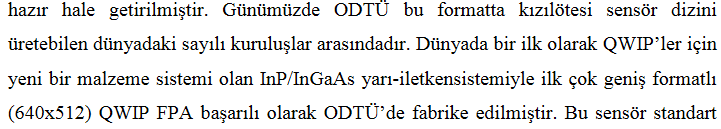

View attachment 30340

https://www.aselsan.com.tr/QWIP_64020_7447.pdf

https://www.aselsan.com.tr/High_Speed_QWIP_640_6223.pdf

https://www.aselsan.com.tr/QWIP_640_3846.pdf

https://www.aselsan.com.tr/Dual_Band_QWIP_640_7163.pdf

Do u know if they reached mass production ? And when exactly were they produced ?



[Abdelaziz]

FPA in Turkey was produced in 640x512 resolution both in METU and ASELSAN. The next step is to increase the resolution. The work of Mikro Tasarım informs us about this.

After that, detectors with 640x512 resolution can be used in ATGMs such as OMTAS UMTAS KARAOK. It uses a 640x512 detector in Israel's Spike ATGM family, whose image quality is acclaimed.


View attachment 30340

https://www.aselsan.com.tr/QWIP_64020_7447.pdf

https://www.aselsan.com.tr/High_Speed_QWIP_640_6223.pdf

https://www.aselsan.com.tr/QWIP_640_3846.pdf

https://www.aselsan.com.tr/Dual_Band_QWIP_640_7163.pdf

So aselsan already produces cooled FPA with QWIP GaAs technology ..but they still work for MCT "which allows for higher quality " ... did i get it right ?



[Balamir]

Do u know if they reached mass production ? And when exactly were they produced ?

page 117

https://www.aselsan.com.tr/2020_ASELSAN_Annual_Report_2227.pdf



[Abdelaziz]

page 117

https://www.aselsan.com.tr/2020_ASELSAN_Annual_Report_2227.pdf

I read it before .. but they talked about microbolometer and mct studies ..there was no refer to qwip studies



[Abdelaziz]

I read it before .. but they talked about microbolometer and mct studies ..there was no refer to qwip studies

I found this from 2015 ..so i think qwip is already mass produced and used in some applications like hisar missiles ... And 312 microbolometer also were in mass production ..i think they uses them with omtas/umtas ..that is why its photos quality is not good



[Era_shield]

If my elven eyes see accurately this thing has a 10 micrometer pitch length. It might also be 12 micrometer.

I measure 13um +/- 0.2um at focal plane.



[Balamir]

I read it before .. but they talked about microbolometer and mct studies ..there was no refer to qwip studies

From 2014 Annual Report



[TheInsider]

Aselsan produces QWIP sensor since Aselflir-300(1440x576px,2008-2009 or 2010 if i remember correctly) times. MCT production started recently. 640x512 MCT FPAs are already in production. Aselflir-400 is offered with 1024x768 so it is either in production or close to it. Aselsan will introduce Aselflir-F500C with an HD MCT seeker in late 2022.



[Combat-Master]

YITAL milestones

HISAR Laser Proximity Sensor detectors compared to German's detector that they won't sell

BTW laser proximity sensor for HISAR is co-developed with Thales UK - Belfast
