TR Sensors and Detector Programs

[what]

The purpose of a forum is to share and discuss information. Maybe go a little easier on new members.



[Huelague]

metehan, why are you asking so many questions, what is your purpose?You can learn them yourself, just go and search.

"CIA" would not ask, it would makes a research on its own.



[Huelague]

He asked many from PM to me. Is he thinks that here’s a school?

"Me too"...hashtag



[Anastasius]

"CIA" would not ask, it would makes a research on its own.

Don't be so sure, it's kind of a semi-well-known fact that intelligence agencies worldwide use fake profiles and sometimes even pay people to spy or shill for them online. It's not their secret weapon or anything but it is something that they have in their arsenal.

Not that I am accusing anyone here. This is a forum for information after all.



[Hexciter]

The purpose of a forum is to share and discuss information. Maybe go a little easier on new members.

Style is weird. You may ask one or two. But never a long long list.



[kenny]

When we look at the questions he asks, he seems like a knowledgeable person, but he asks so many questions that we do not know what to say



[Bogeyman]

When we look at the questions he asks, he seems like a knowledgeable person, but he asks so many questions that we do not know what to say

The point is that he's asking for information that should be a state secret?
It doesn't matter if he asks questions. Why does he ask such detailed questions?



[Combat-Master]

3eeos​

​

Multi-Sensor Cooled Thermal Device​

TUFAN​

Featured with the intelligent fusion-imaging algorithm, TUFAN multi-sensor cooled thermal device combines numerous properties essential for surveillance, target acquisition, and distance determination in one single body, providing impressive solutions to mission needs with its ergonomic, compact structure, and lightweight. In addition to the high technology cooled thermal camera, TUFAN has unique performance with its low light sensitive digital camera, eye-safe laser range finder, laser pointer, and integrated GPS and digital magnetic compass. TUFAN is designed to carry the user\’s experience one-step further and give them superiority with its unrivaled display quality, user-friendly interface, and long battery life. TUFAN provides superior awareness in ever-changing duty and environmental conditions by processing thermal and daytime images with advanced algorithms.

PHANTOM Multi-Sensor Cooled Thermal Surveillance Camera​

PHANTOM​

PHANTOM Multi-Sensor Cooled Thermal Surveillance Camera offers clear and high contrast images during day and night in the most demanding environmental conditions with its rugged IP67 design. PHANTOM is equipped with a high-grade MWIR cooled high sensitivity thermal imaging detector camera allowing the user to detect long-range targets even in total darkness. Along with its laser pointer capability, the cutting-edge design and technology of PHANTOM provide unmatched laser range finding performance. It can be easily integrated into a range of platforms with Ethernet and can be used remotely with its HD-SDI video output capability. The integrated software allows easy-to-use applications while meeting the exact specifications and requirements of different users.

Binocular Laser Range Finder​

BLRF​

BLRF Binocular Laser Range Finder is designed to be compact and powerful to fulfill any requirement for military and law enforcement units. Equipped with eye-safe 905 nm Class 1 Laser, BLRF provides bright and crisp images at any distance. Its distance measurement range reaches up to 3000 m in the field. Reinforced and rubberized housing provides solid protection from water, dust, and physical impacts during its operation.

BLRF model provides Kestrel® communication via Bluetooth to allow accurate ballistic calculations necessary for shooting.



[Kartal1]

Guys there was info about a fusion NVGs developed by Transvaro being showed at IDEF. Anyone have information regarding that?

Example of fusion NVGs:



[Combat-Master]

Thanks to @Stimpy75 , a clear image of Aselsan's KALKAN-II Mobile Medium Altitude 3D Air Defense Radar

KALKAN-II is a mobile X band phased array 3D search and track radar for point and area defence of critical military and civilian assets. KALKAN-II offers an instrumented range of 120 km and can track multiple targets accurately, adding classification and identification information to each target track.

KALKAN-II is a phased array radar with multi-beam architecture optimized for search and track functions. The system employs advanced electronic protection measures; it uses digital pulse compression for high range resolution, low transmission power and pulse coding.

KALKAN-II is a compact and easy-to-use standalone radar system with sensor on a trailer towed by a tactical truck. The system includes a built-in IFF, north finding sensor, two power generators, radio and GPS. KALKAN-II can send target and jammer reports to Command Control Systems over its radio and can receive commands from the C2 system. KALKAN-II is currently the main radar of the Turkish Armed Forces’ mobile Air Defense Early Warning and Command Control System (SKYWATCHER) and Medium Altitude Air Defense Missile System (HISAR-O).

Applications
• Point and area air defence of critical assets
• Integration to Air Defense Missile Systems & Command Control Systems or a radar sensor in self-operating mode

Features
• 3D Detection and Tracking Fighters, Helicopters, Hovering Helicopters, Unmanned Air Vehicles (UAVs), Cruise Missiles
• Multiple target tracking
• Classification of targets
• Identification of targets with integrated Mode 5 IFF
• Jammer direction finding
• Remote operation with Command Control System
• Transportable with its own tactical truck having power and communication subsystems

Technical Specifications
• Operating Frequency : X-Band
• Instrumented Range : >120 km
• Target Track Capacity : >60
• Azimuth Coverage : 360°
• Elevation Coverage : -10° / +55°



[Combat-Master]

ASELSAN

CATS

ASELPOD

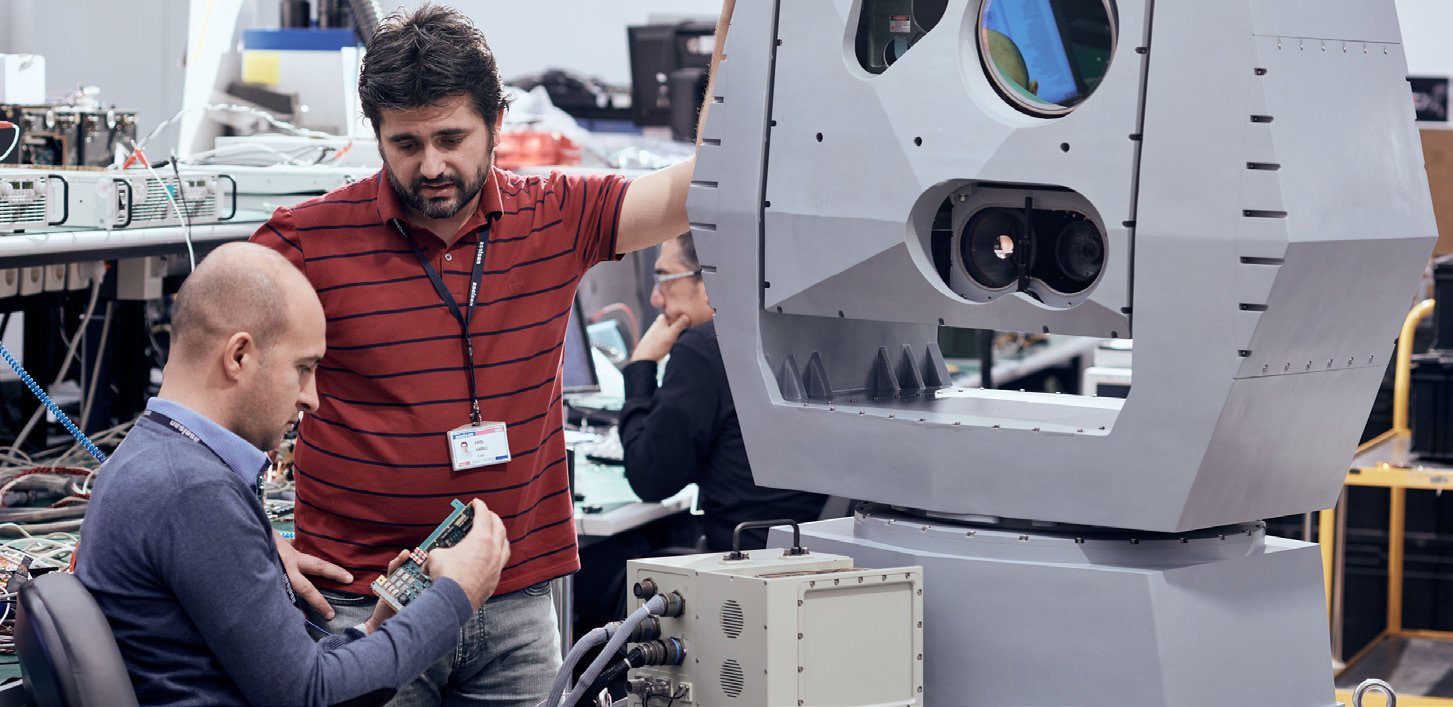

SeaEye AHTAPOT

UNCOOLED MICROBOLOMETER 640x480 array format 17μm pitch size



[Siper>MMU]

ASELSAN

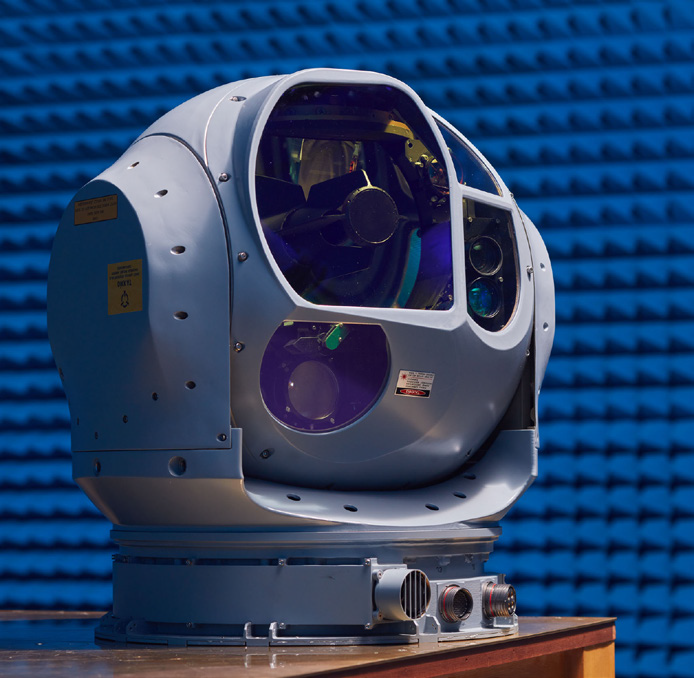

CATS
View attachment 30080

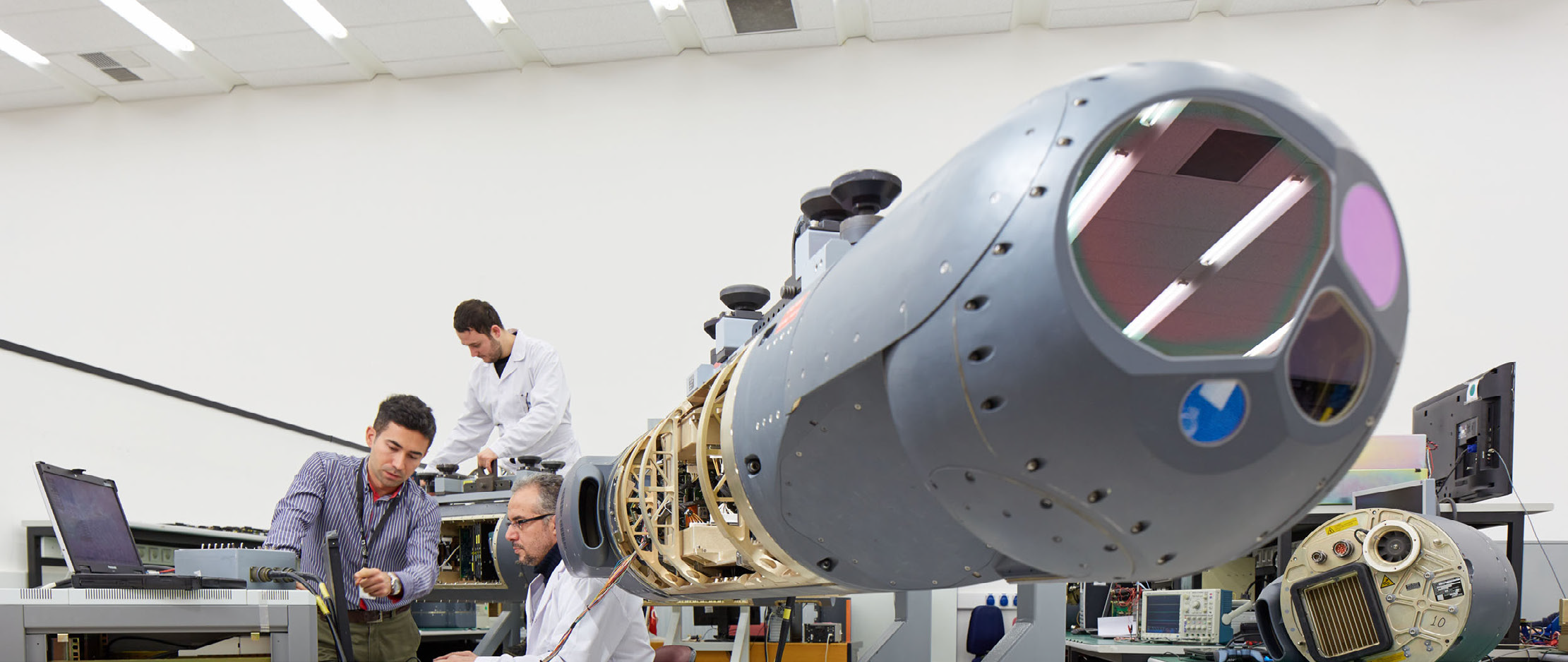

ASELPOD
View attachment 30081

SeaEye AHTAPOT
View attachment 30082

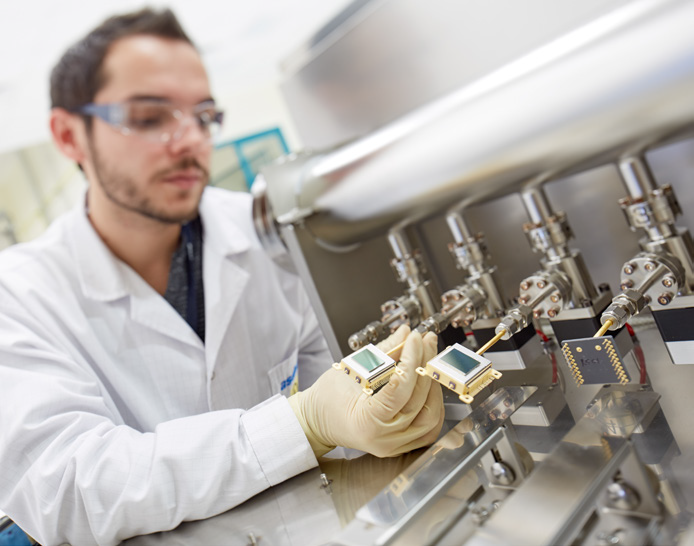

UNCOOLED MICROBOLOMETER 640x480 array format 17μm pitch size
View attachment 30083

Bad pixel width. Hope they can lower that



[Abdelaziz]

Bad pixel width. Hope they can lower that

Uncooled Microbolometers are usually less quality than cooled mct sensors ... So they are cheaper and used in items that require no high quality fotos ..like atgms seekers



[Balamir]

Bad pixel width. Hope they can lower that

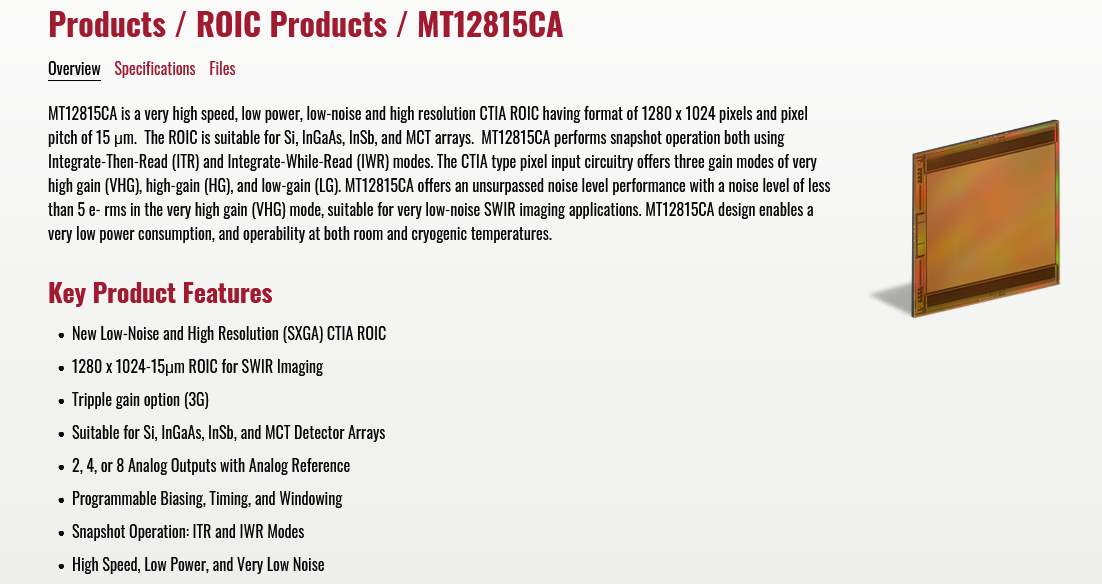

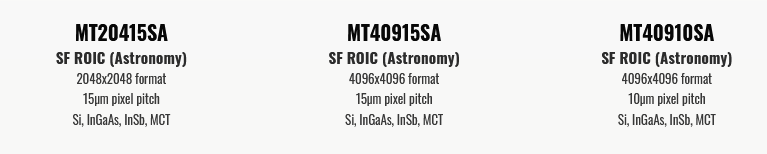

Mikro Tasarım company, which is a subcontractor in Aselsan's NAR project, has high resolution NIR VNIR SWIR MWIR LWIR detector studies. The company participated in IDEF 2021, but apparently no one from the forum visited. In addition, with Aselsan's high-resolution NAR project, where the first products will be unveiled this year, Turkey may enter the world league in infrared detectors.

For detailed information:

http://www.mikro-tasarim.com.tr/Mikro-Tasarim_Brochure.pdf

Tübitak Sage GM Gürcan Okumuş also said in an interview he gave in the past months that there are still ongoing problems in IIR sensor development, as a result of the studies carried out, this problem will be solved within 1-2 years.

Physicist Bilge Demirköz from METU visited the company and tested HD SWIR products.



[Abdelaziz]

Mikro Tasarım company, which is a subcontractor in Aselsan's NAR project, has high resolution NIR VNIR SWIR MWIR LWIR detector studies. The company participated in IDEF 2021, but apparently no one from the forum visited. In addition, with Aselsan's high-resolution NAR project, where the first products will be unveiled this year, Turkey may enter the world league in infrared detectors.
View attachment 30174

View attachment 30175
For detailed information:

http://www.mikro-tasarim.com.tr/Mikro-Tasarim_Brochure.pdf

Tübitak Sage GM Gürcan Okumuş also said in an interview he gave in the past months that there are still ongoing problems in IIR sensor development, as a result of the studies carried out, this problem will be solved within 1-2 years.

Physicist Bilge Demirköz from METU visited the company and tested HD SWIR products.
View attachment 30171

View attachment 30172

They produce ROICs not FPAs ...they are different subsystems of the the sensor .. aselsan is working on FPAs ..they already reached the mass production with uncooled microbolometer but still not with the cooled mct detector



[Balamir]

Mikro Tasarım company, which is a subcontractor in Aselsan's NAR project, has high resolution NIR VNIR SWIR MWIR LWIR detector studies. The company participated in IDEF 2021, but apparently no one from the forum visited. In addition, with Aselsan's high-resolution NAR project, where the first products will be unveiled this year, Turkey may enter the world league in infrared detectors.
View attachment 30174

View attachment 30175
For detailed information:

http://www.mikro-tasarim.com.tr/Mikro-Tasarim_Brochure.pdf

Tübitak Sage GM Gürcan Okumuş also said in an interview he gave in the past months that there are still ongoing problems in IIR sensor development, as a result of the studies carried out, this problem will be solved within 1-2 years.

Physicist Bilge Demirköz from METU visited the company and tested HD SWIR products.
View attachment 30171

View attachment 30172

For those who are curious, there is more detailed information here.

http://www.mikro-tasarim.com.tr/files/papers/jD09R3Ee1gwDillB7qmbnE2UzpJO4Q74.pdf



[Combat-Master]

ASELSAN - LWIR SAFIR-640 Vanadium Oxide Uncooled Microbolometer

ASELSAN - MWIR MCT Cooled Infrared Detector Prototypes



[Siper>MMU]

What's the status of HD MWIR 10 micrometer dedectors?



[Combat-Master]

Aselsan VANCAT

Night vision camera image taken from the VAN CAT System and image fusion result



[Abdelaziz]

What's the status of HD MWIR 10 micrometer dedectors?

Still in development
