TR TF-X KAAN Fighter Jet

CAN_TR

Contributor
Messages
1,474
Reactions
17 5,211
Nation of residence
Austria
Nation of origin
Turkey

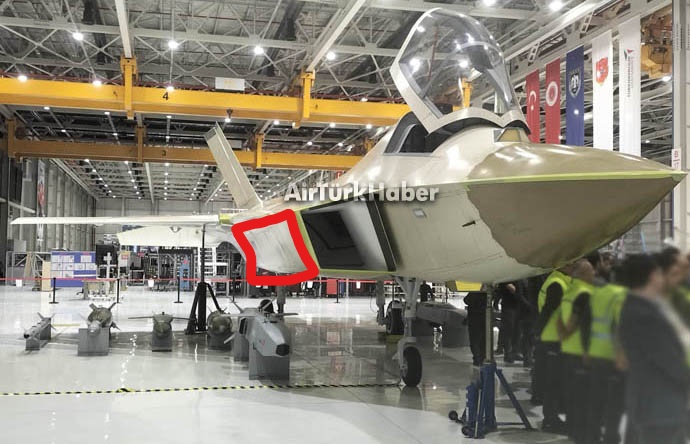

I dont like the space between intake and fuselage. Doesnt look smooth.
The "space" between fuselage and air intakes is called "Boundary Layer Diverter" as above mentioned it makes sure you get clean non turbulent airflow into the intakes.



Tsenal

Committed member
Messages
276
Reactions
1 714
Nation of residence
Turkey
Nation of origin
Turkey
Actually, i expected somebody to mention it but seems like nobody gave attention, Turkiye already has the ram type of material, but contrary to the US, Turkiye wants to add this into the composite material, other than as paint, so nobody could find what is in it.. thats why, Turkish 5th generation jets are made of composite as a whole but US and others are made of metal.
i believe US specially developed it as a coating to make everybody depend on itself, as countries change side every time. Actually, Turkiye also wants to do the same, but in reality, they will not need it for themselves but for export
F-35 uses carbon fiber reinforced polymer composites for most of its skin which has radar absorbing qualities. It uses very little metal materials.


Khagan1923

Contributor
Messages
981
Reactions
14 4,180
Nation of residence
Germany
Nation of origin
Turkey
I don't have extensive knowledge about this but does DSI not severly limit the topspeed of the plane?

As such is it not a "oh why did we go with an inferior option" and more a "We choose the option which fits the requirements set by the Air Force". ?


Radonsider

Contributor
Messages
1,467
Reactions
14 2,802
Nation of residence
Turkey
Nation of origin
Bosnia & Herzegovina
I don't have extensive knowledge about this but does DSI not severly limit the topspeed of the plane?

As such is it not a "oh why did we go with an inferior option" and more a "We choose the option which fits the requirements set by the Air Force". ?
You are right


Boz

Committed member
DH Visual Specialist
Messages
275
Reactions
20 2,558
Nation of residence
Turkey
Nation of origin
Turkey
The problem is that it makes the TF-X's stealth serrations look like they were cut in a garage
1. The original picture is low resolution and the quality is garbage.
And now the media will pick up this misleading picture (I've already seen it used on a defence news site) and think it's a real photo and talk shit about the TF-X's "poor" construction quality.

Upscales are misleading and should be banned from this forum.
2. You are conveniently ignoring that I literally showed you the exact same angle from the 'original' picture, to make it crystal clear to you that there is nothing wrong with the upscale, and that what you are trying to point out about the upscale is outright false.
What is the problem??

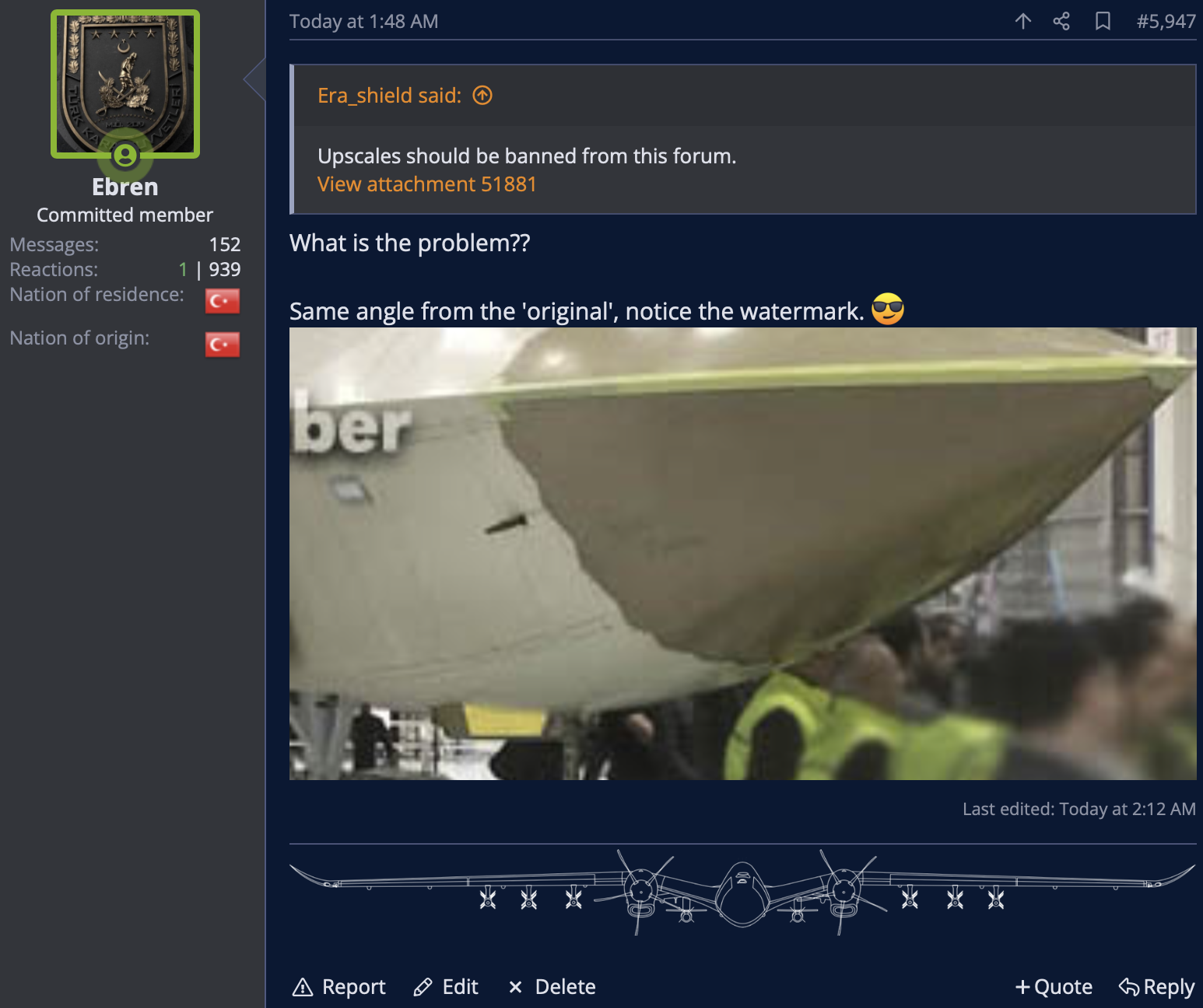

Same angle from the 'original', notice the watermark. 😎
View attachment 51883
3. Click on my previous reply to see the picture of the 'comparison'.


Last edited:

Ripley

Contributor
USA Correspondent
Messages
649
Reactions
15 1,850
Nation of residence
United States of America
Nation of origin
Turkey
The problem is that it makes the TF-X's stealth serrations look like they were cut in a garage in Iran. And now the media will pick up this misleading picture (I've already seen it used on a defence news site) and think it's a real photo and talk shit about the TF-X's "poor" construction quality.

Upscales are misleading and should be banned from this forum.
well, every Turkish defense project according to national media, either is poor quality or the Turks are the only and first ones did the damn thing in whole wide world. I don’t care as they are a bunch ignoramus who don’t know jack.
And similarly for foreign mainstream media, together with social media pundits, those projects either reverse engineered or simply rip off or horribly poor quality watered down imitation. And most of the time they do it intentionally unlike our national media.
So, in any cases they’re either crap or out of this world magnificent.

In both cases, however, I learned to find satisfaction based on the fact that these projects are very very real and we are doing an extra ordinary job. Our win, their loss. The rest, for me, is blah blah.

Remember the saying and relax bro.
“İt ürür kervan yürür“ (the caravan keeps moving on while dogs bark at behind its back) ;)


Radonsider

Contributor
Messages
1,467
Reactions
14 2,802
Nation of residence
Turkey
Nation of origin
Bosnia & Herzegovina

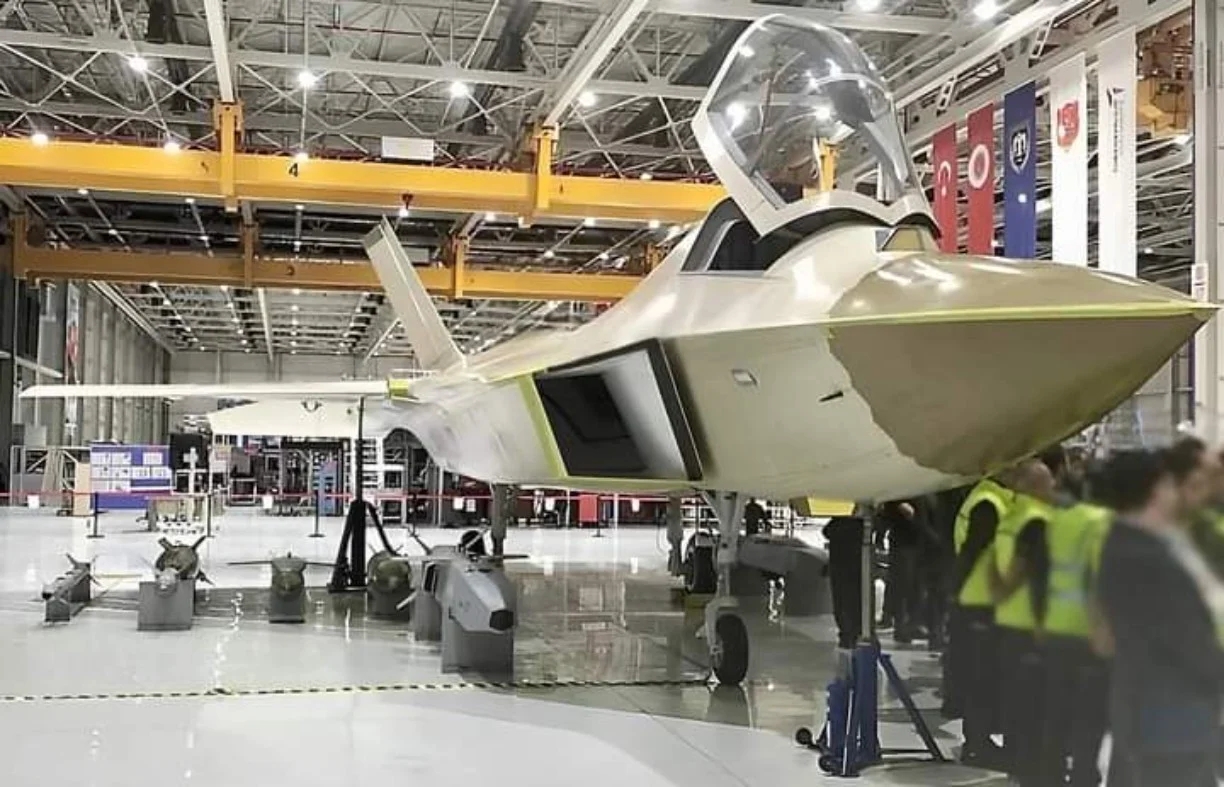

I made a joke here but apparently some foreign media outlets are describing this as another mock-up likely prepared to convince a potential foreign investor, hence, the ammunition on the ground and the whole presentation around the bird.

Therefore it's not a 'leak' from the original prototype, in fact, they deliberately released this pic.

All this extra trouble has been made for the visiting delegation including this new and 'more convincing mock-up'.

It does make sense a little and it could explain the confusion about the engine being tested.

Also, I've read that the differences between this bird and the original mockup are too obvious.

Don't hate on me, I'm just asking. Is this a BS claim?
Well, I am yet to see a mockup that uses real BMI/Graphene composites, real radome, and yeah real everything 😅

No, it is just them coping, prototype is in a phase where we can just show it to potential customers, ammunition on ground is simply to demonstrate


Kedikesenfare

Well-known member
Messages
330
Reactions
1 797
Nation of residence
Germany
Nation of origin
Turkey
guys, check this out:


In a nutshell for those who don't want to waste their mobile-net on Grek shit:
-Hey look, it should be a dummy aircraft
-Aircraft is actually supported on tripods so these landing gears are fake! As you see this in 900 pixel photo(I am an expert and I see for you, don't worry) no relation to the robustness and complexity of normal aircraft.
-Look at these tiny air ducts and small-span, assuming they each have to feed a 10-ton thrust engine thats impossible. (I've already analyzed it with my dad's home supercomputer)
-This was not the prototype shown in November. So this is not realistic, I assure you.
-I'm not crying, just got dust in my eyes. But yeah, I have already managed to upscale this photo with the optical effect created by the tears, and evaluated within my great and unmatched wisdom, please don't question my degree, I have 4k hours in-game time in DCS.
So, it's safe to say that this is indeed the prototype we saw a few weeks back?

E

Era_shield

Guest
2. You are conveniently ignoring that I literally showed you the exact same angle from the 'original' picture, to make it crystal clear to you that there is nothing wrong with the upscale, and that what you are trying to point out about the upscale is outright false.

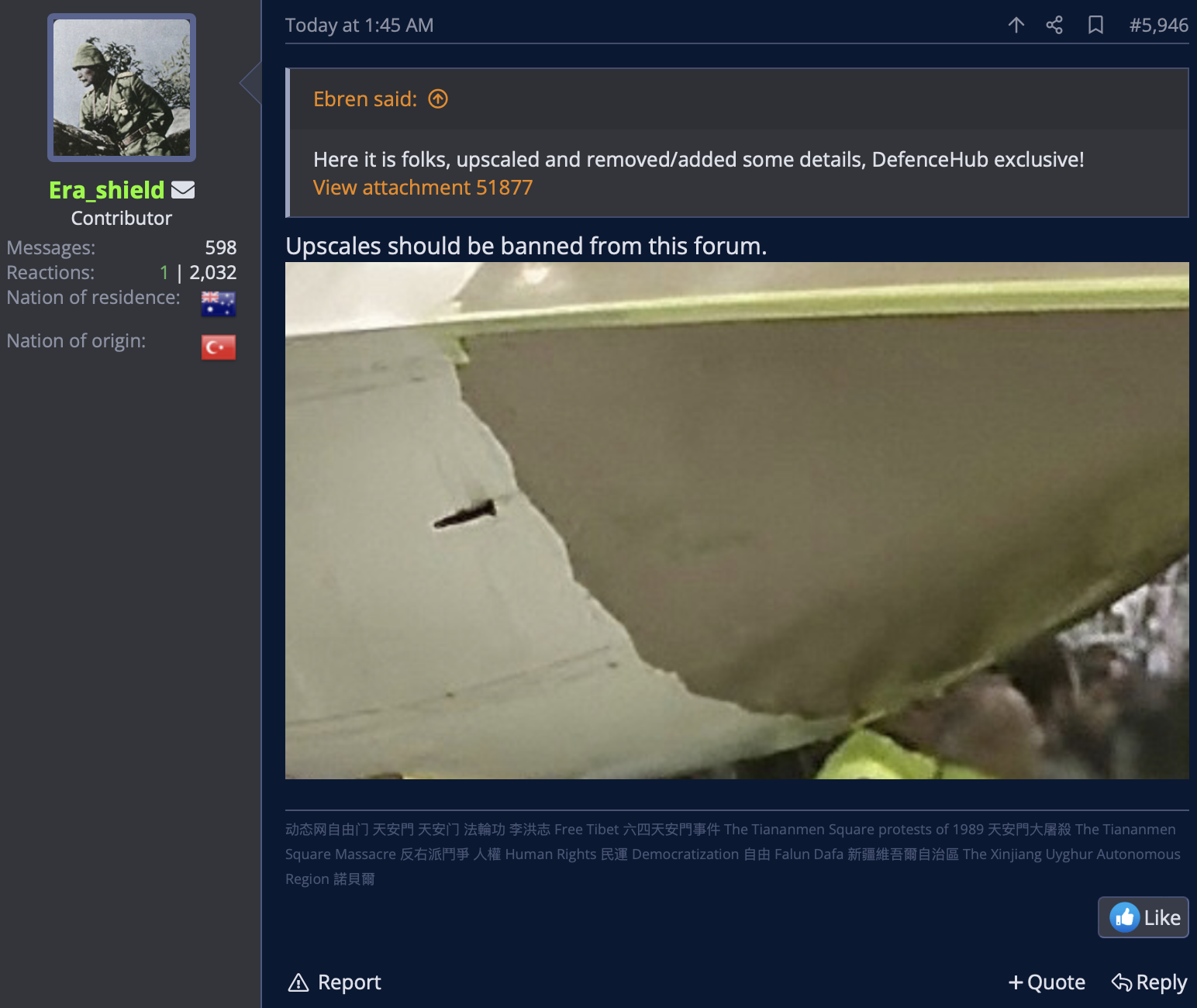

I already pointed out that in your upscale, and only in your upscale, the serrated joins look like sh*t.

The extra detail added by AI upscaled images is false. AI upscaled images can't be used to see a military prototype clearer or with more detail.

Last edited by a moderator:

Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey
1. The original picture is low resolution and the quality is garbage.

2. You are conveniently ignoring that I literally showed you the exact same angle from the 'original' picture, to make it crystal clear to you that there is nothing wrong with the upscale, and that what you are trying to point out about the upscale is outright false.

3. Click on my previous reply to see the picture of the 'comparison'.
View attachment 51912
View attachment 51913

Thank you for the effort and time it took to produce an upscaled and cleaner version of that image.


GoatsMilk

Experienced member
Messages
3,449
Reactions
13 9,103
Nation of residence
United Kingdom
Its also worth keeping in mind whoever you are in this world that Turkey succeeding in this project will also benefit you. Why? Because with a Turkish option out on the market it makes the alternatives cheaper and easier to obtain and if they won't sell you it well the Turkish option is also there. Turkish drones pretty much democratised drone warfare for the rest of the world, china also played a smaller role in this to a degree to.

The entire world benefits from this project really. Its a bit like when Turkey got kicked out of F35, if there was another few options out there it wouldn't be an issue. But i suspect with real options out there the americans wouldn't have kicked Turkey out.


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey


BNA, a defense and aviation company operating as a partnership between Nurol Holding and British BAE Systems, will change its partnership structure. With the transfer of 49% of BAE Systems' shares to Nurol Holding, the company will continue as Nurol Control and Avionics Systems with 100% Turkish capital. Eray Gökalp, CEO of Nurol Control and Avionics Systems, spoke about the advantages of the company's new structure and ongoing and planned projects. Gökalp emphasized that the capacity needs of both Turkey's rapidly developing new generation aviation technologies and foreign new generation aviation programs initiated with high value-added by BAE Systems have made it necessary for both partners to revisit their focus in order to be more effective in the sector.

"We are currently in the process of delivering the first products to TUSAŞ as part of the development of avionic control panels for the Hürjet program. In the scope of the National Combat Aircraft Program, we have provided fuel systems engineering support to TUSAŞ and our expert engineering support for avionic systems is ongoing. We are aiming to participate in the localization projects for fuel system units. We have various offers. We hope to see the results of our increasing efforts to participate in and add value to aviation programs in our country in the near future."
