A thing not to forget, this simulation doesn't include the newer (and latest) model or any RAM/Leading/Trailing edge covers, real RCS will be much much lowerIt all depends on how much of TFX stealth know how has been shared with Baykar. Delta wing and overall stealthy appearance and flat looking surfaces shout that this is a stealthy plane.
I Sunnetci, who has good access to many a secretive information, has stated that “KE should have better RCS values than TB2”.

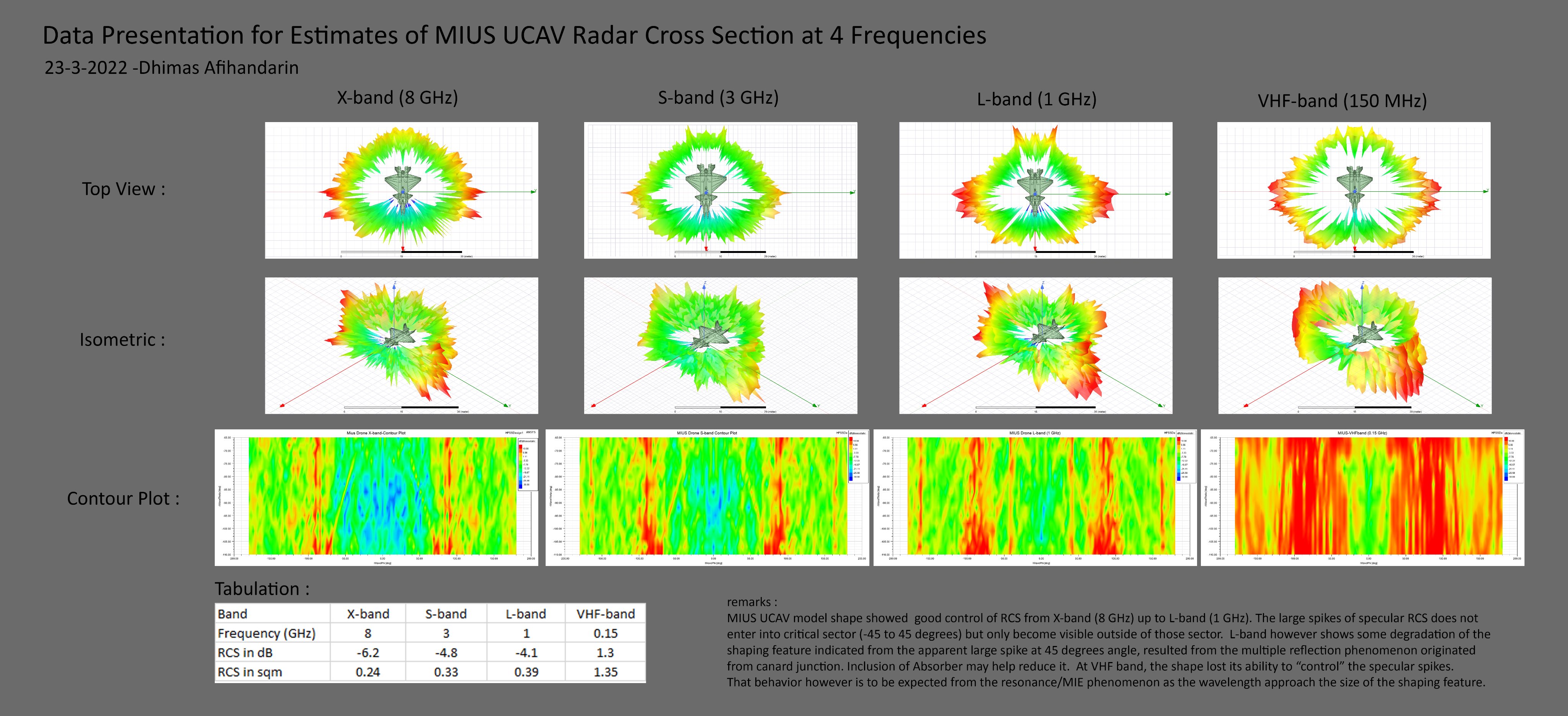

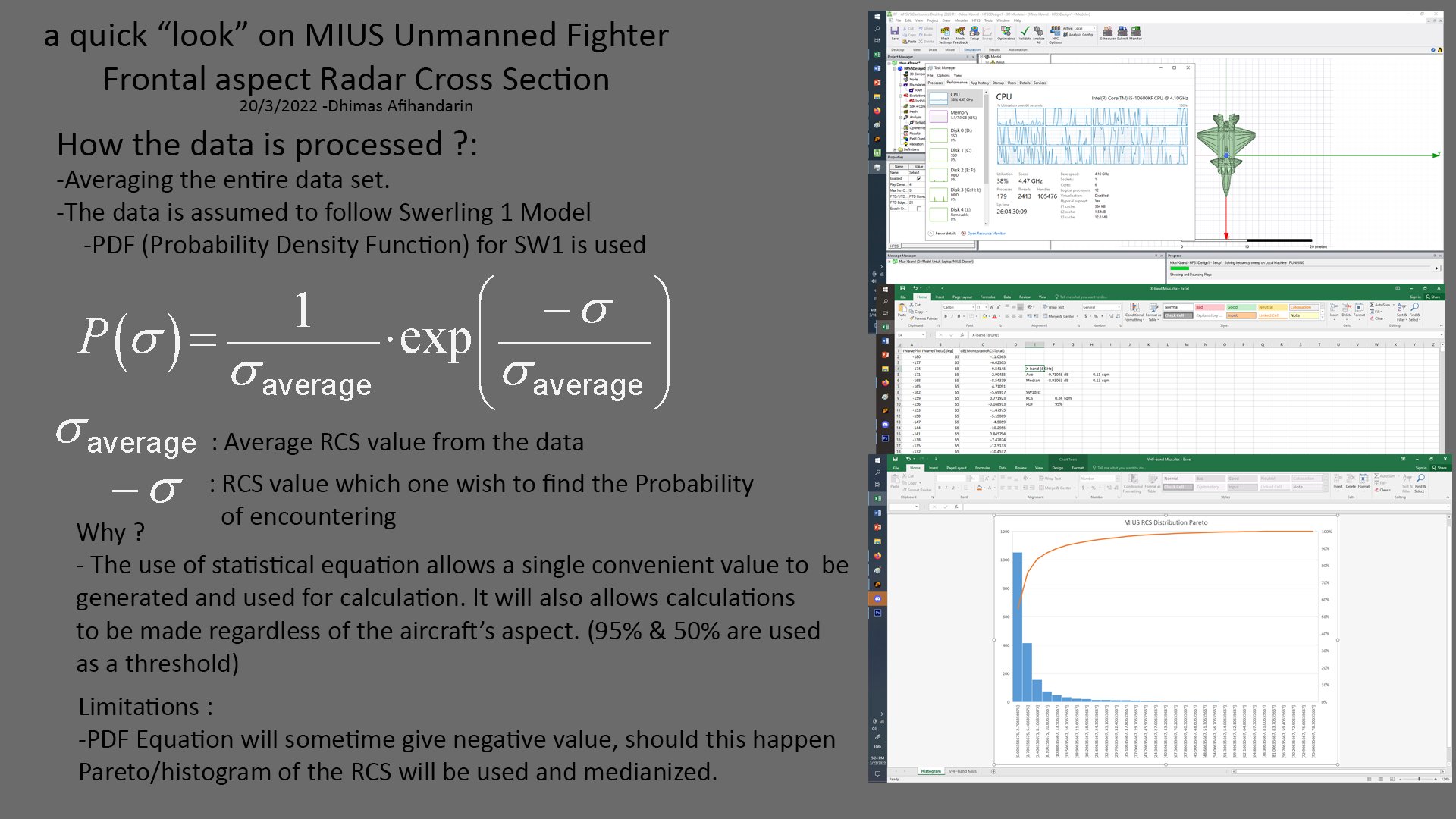

But unless a definite information is released from Baykar, we can only speculate. Below Infograph shows a study someone has done with respect to KE’s overall appearance and shape, and come up with a somehow fairly respectable 0.24m2 value on X band . This plane is going to have RAM paint on it as well. So it is not as cut and dry as some may make it out to be. It is definitely smaller in size than any manned stealth plane. So it starts with a definite advantage. But is it going to be stealthier than a 80millon dollar F35 (that took nearly half a trillion dollar to develop), or 200million dollar F22? That is anybody’s guess.
But as it won’t carry a life onboard and will be comparatively a great deal cheaper than it’s manned counterparts, is it justifiable to spend huge amounts of money to squeeze out every ounce of stealth from this plane? An optimum stealthiness that will allow it to carry out deep strikes and register a kill without getting killed from stand off distances should suffice.
View attachment 48937
View attachment 48938
