Lol, do you think nobody thought of something like that before? Or did they revealed the formula?
It has certain limitations to he practical though, we are speaking of a coating to be applied on aircrafts or small drones.

It has to have a low density - ✓
It has to be usable for thin-film applications NA
It has to demonstrate those capabilities below a certain thickness NA
It has to provide an insulation and not conduct the contained heat to the inner fuselage NA

I am excluding mechanical properties so far.


Sanchez

Experienced member
Moderator
Think Tank Analyst
DefenceHub Diplomat
Messages
1,796
Reactions
63 8,059
Nation of residence
Turkey
Nation of origin
Turkey
To add, the team that created the thing says they haven’t tested it against lasers yet and in everything they published, using it on drones is not mentioned. It’s a third party twitter channel claiming it could be used as a coating against lasers on drones. This might or might not be, but a highly heat resistant, cheap to build in bulk and light material have much bigger use cases in multiple fields. Drone self defence is not even at top ten. Hope more info comes out.


YeşilVatan

Contributor
Messages
578
Reactions
10 1,446
Nation of residence
Turkey
Nation of origin
Turkey
To add, the team that created the thing says they haven’t tested it against lasers yet and in everything they published, using it on drones is not mentioned. It’s a third party twitter channel claiming it could be used as a coating against lasers on drones. This might or might not be, but a highly heat resistant, cheap to build in bulk and light material have much bigger use cases in multiple fields. Drone self defence is not even at top ten. Hope more info comes out.
Completely agreed, but the media approach shows how Turkish mind works: "Can we put it on a drone?"

:ROFLMAO: :ROFLMAO: :ROFLMAO:


IC3M@N FX

Committed member
Messages
157
Reactions
4 284
Nation of residence
Germany
Nation of origin
Turkey

Apart from X and Facebook, we have no other sources.
If I didn't know better.... this is a Fake, the Mods should maybe block the X and Facebook Message in general if it doesn't come from an official source e.g. from the University of Malaya in X or Facebook Account.

Otherwise, the source is like a lukewarm fart on a hot summer night.

But I don't want to deny the poster of this message his seriousness, because he did it in good will.

Last edited:

uçuyorum

Contributor
Messages
824
Reactions
11 1,349
Nation of residence
Turkey
Nation of origin
Turkey
Apart from X and Facebook, we have no other sources.
If I didn't know better.... this is a Fake, the Mods should maybe block the X and Facebook Message in general if it doesn't come from an official source e.g. from the University of Malaya in X or Facebook Account.

Otherwise, the source is like a lukewarm fart on a hot summer night.

But I don't want to deny the poster of this message his seriousness, because he did it in good will.
https://www.iha.com.tr/malatya-habe...oruyacak-kompozit-madde-gelistirildi-94011405 some slightly more credible source


Kaan Azman

Well-known member
DH Visual Specialist
Messages
338
Reactions
22 1,330
Age
21
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey
One of my concerns is resistance to shear stress as skin is the primary component holding it. They state that the brittleness isn't awful like aerogel (Watch a few on YouTube if you don't know) which is similarly lightweight and highly insulating. I'm sure their next stop will be processability for complex shapes and structural tests with an application.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,250
Solutions
2
Reactions
101 23,500
Nation of residence
Turkey
Nation of origin
Turkey

(About alternative uses and structual concerns)
They are material engineers or chemists, when it comes to mechanics there are more concerns than brittleness and density of the material. This likely might have a better use in reentry vehicles than aerospace structures. See how unechoic tiles on submarines keep falling off after a simple voyage with no deep water visits.

But it is a good developmeny nonetheless, there are many other sectors which may benefit from this before the aerospace industry. Falls irrelevant to this thread imo.


Boykaz

Active member
Messages
55
Reactions
1 160
Nation of residence
Turkey
Nation of origin
Turkey
Kuveyt Dışişleri Bakanlığı için Ivechenko İlerleme Sunumu

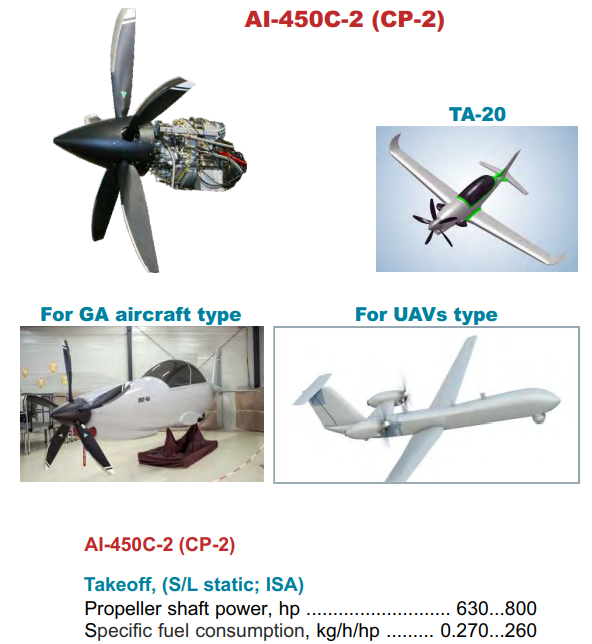

Motor AI450-C2 (AKINCI için AI450 tabanlı ancak daha güçlü) bu forumda çok ünlü olan Uçak ile ilişkilendirilerek adlandırılmıştır.

View attachment 37649

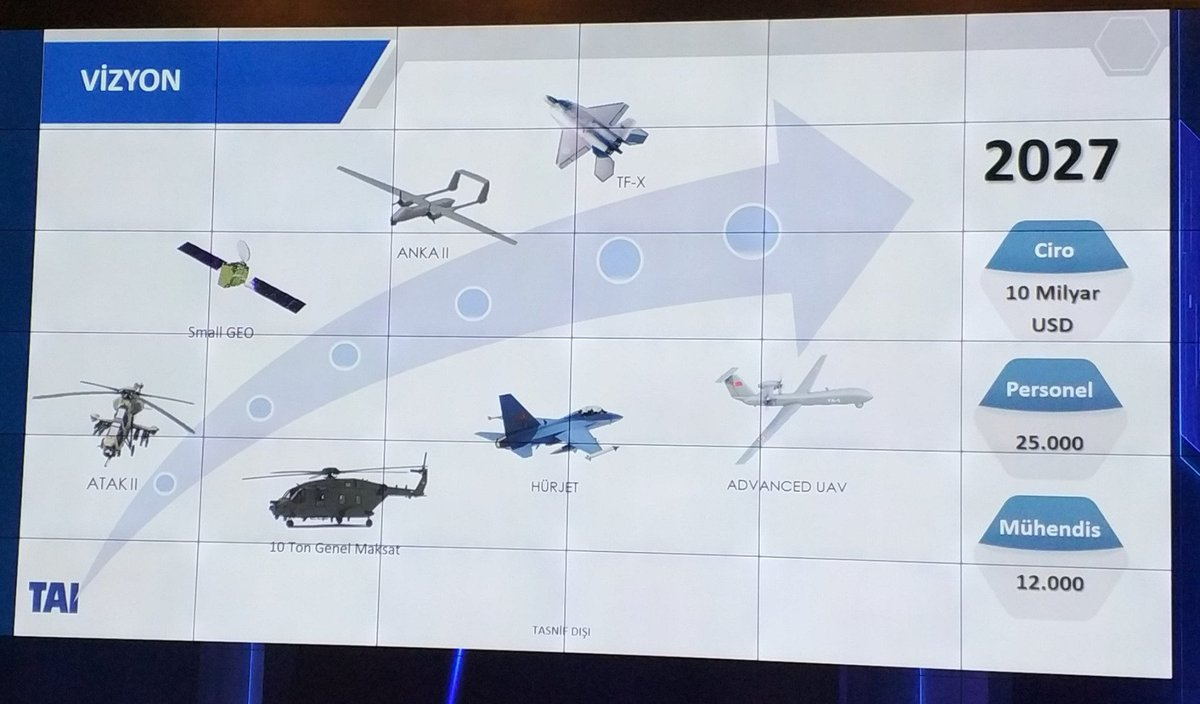

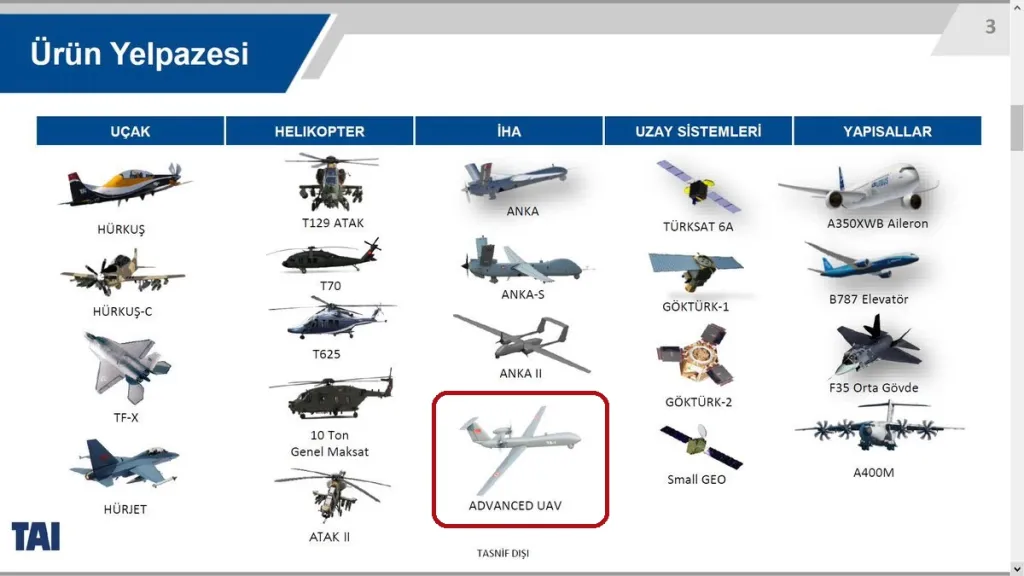

TAI Gelişmiş İHA.

View attachment 37650 View attachment 37652

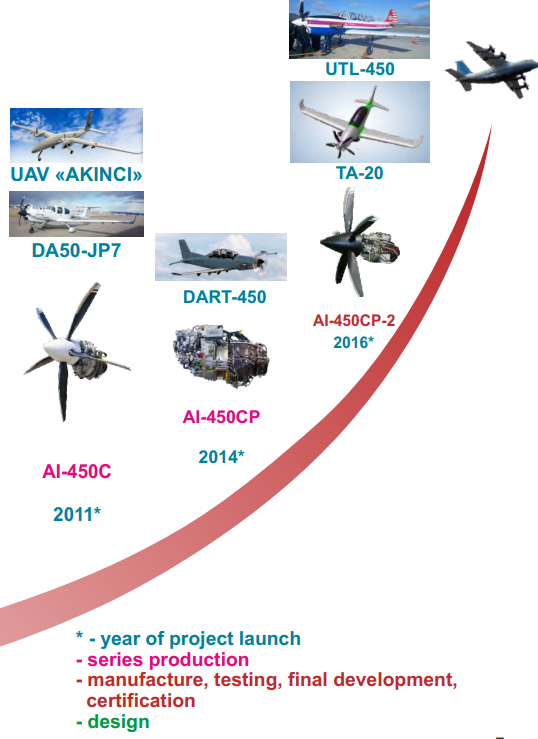

Motor hala test aşamasında ancak büyük ihtimalle AKINCI'ya ulaşacak.

View attachment 37653

16.08.2021


AI-450CP-2 turboprop motorunun uzun vadeli ömür testleri

- “Ivchenko-Progress Test Kompleksi” sahasında, AI-450CP-2 turboprop motorunun planlanan bir sonraki uzun vadeli testi başarıyla tamamlandı.
- Haziran-Ağustos 2021 tarihleri arasında motor, 750 beygir gücündeki minimum gücün korunduğu 1.600 test çevriminden geçti.
- Elde edilen test sonuçları, motor için ilk bakım periyodunun 600 saat olarak belirlenmesinin mümkün olduğunu doğruladı.
- “Ivchenko-Progress” SE ekibi, AI-450CP-2 motoru için Uçuş Hazırlık Sertifikası'nın hazırlanması ve onaylanması ile uçuş testlerine başlama işlemlerini yürütecek.

Henüz Uçuş Testleri bile yapılmadı.

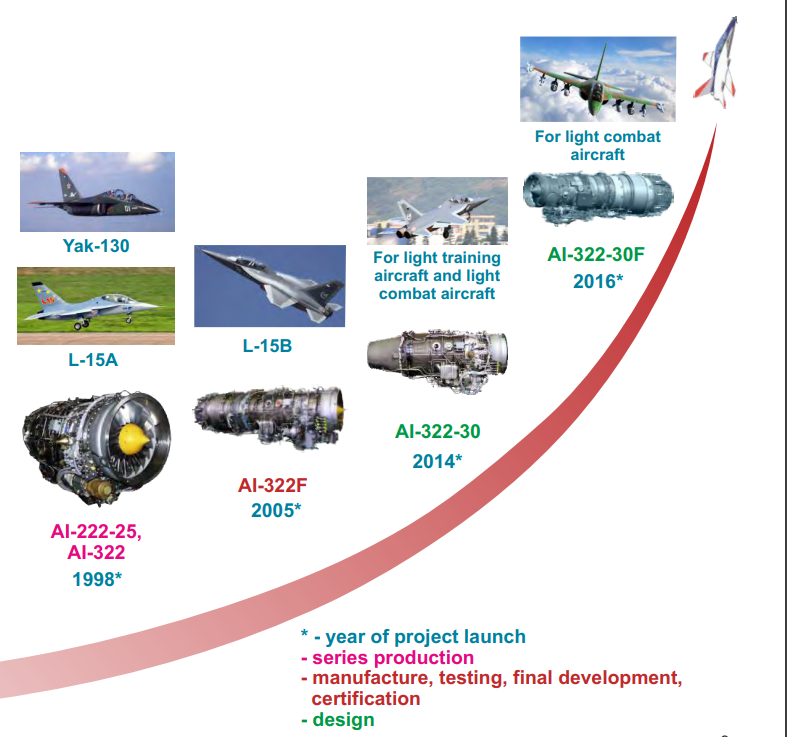

MIUS için ilginç

View attachment 37654 View attachment 37655

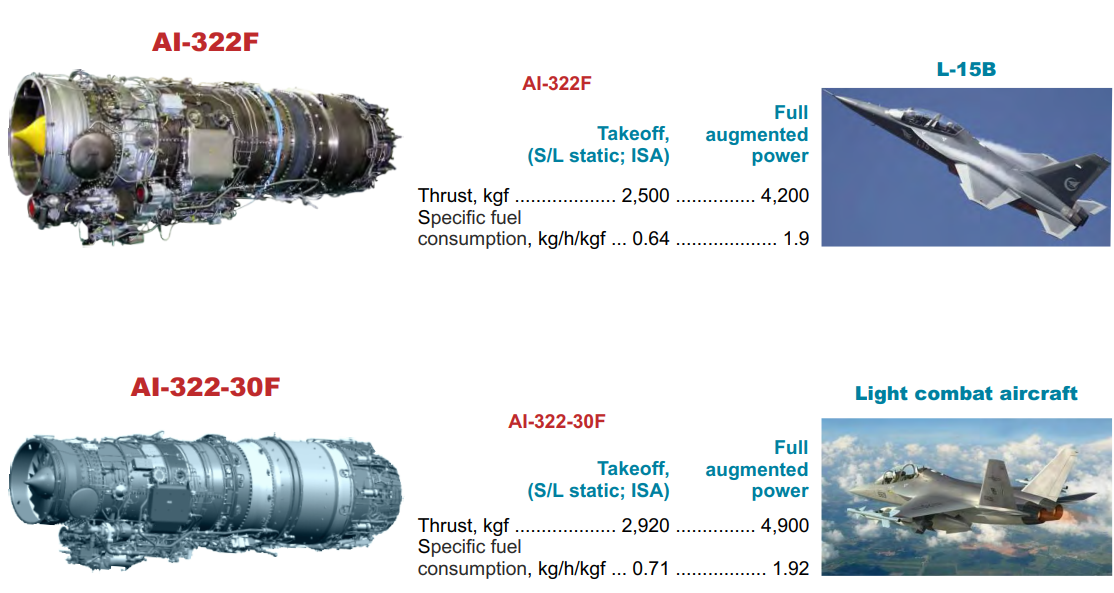

AI-322F kullanılacak ama tasarım aşamasında bir varyant daha var.

MIUS Supersonic için AI-322F, 4200kgf (41 kN) maksimum itme gücüne sahiptir.

AI-322-30F'nin maksimum itme gücü 4900kgf (48 kN)'dir.

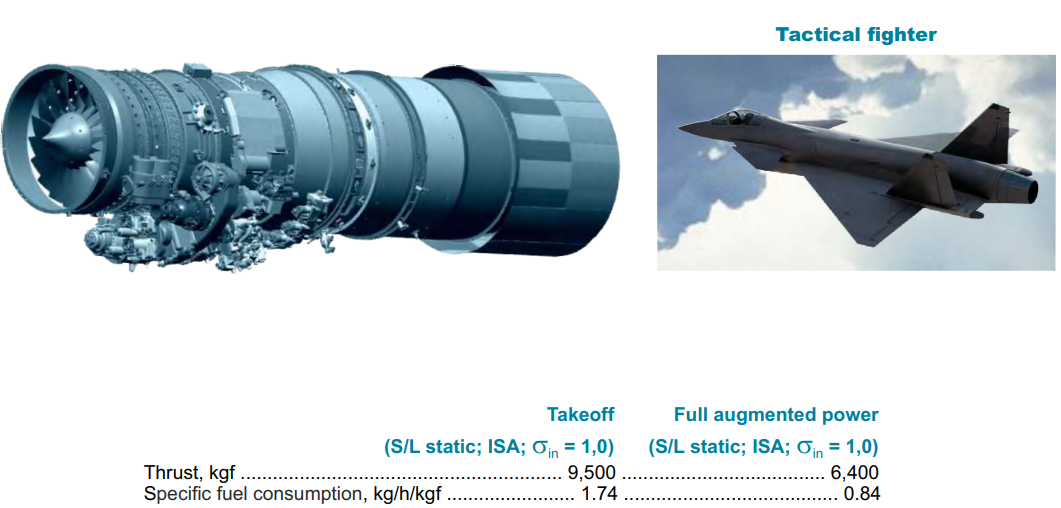

Ve daha önce bahsedilen bir Konsept. AI-9500F.

View attachment 37656

Motorun 62 kN -> 93 kN arasında itme gücü sağlaması bekleniyor.

Gelecekteki Endeavors için potansiyel taşıyabilir.
Kızılelma New engine Al 322-30F 10800 ibf


Attachments

  • 20240722_222358.jpg
    158.5 KB · Views: 125
Last edited:

IC3M@N FX

Committed member
Messages
157
Reactions
4 284
Nation of residence
Germany
Nation of origin
Turkey
I know this is only the second version of the prototype, but why is the rear end so messy?
The rear engine area looks like a tube, why did they fit it so messily?
They could have done better, maybe lower the engine a bit from the height of the position.


Boykaz

Active member
Messages
55
Reactions
1 160
Nation of residence
Turkey
Nation of origin
Turkey
Bunun prototipin sadece ikinci versiyonu olduğunu biliyorum, ancak arka kısmı neden bu kadar dağınık?
Arka motor bölümü tüp gibi görünüyor, neden bu kadar kötü yerleştirmişler?
Daha iyisini yapabilirlerdi, belki motoru pozisyon yüksekliğinden biraz daha aşağıya indirebilirlerdi.
Dude it's more of a prototype
will be more perfect in mass production


bruhman

Member
Messages
12
Reactions
14
Nation of residence
Turkey
Nation of origin
Turkey
I know this is only the second version of the prototype, but why is the rear end so messy?
The rear engine area looks like a tube, why did they fit it so messily?
They could have done better, maybe lower the engine a bit from the height of the position.

The rear part looks made for a bigger engine. Baykar said that the first iteration of KE would be made subsonic, but I doubt they will actually mass produce it (but why would they already give it a name like Kızılelma-A if they weren't going to? Seriously this KE cannot be serialized..). Even the current prototype seems like it was made for a bigger engine fit on later on.

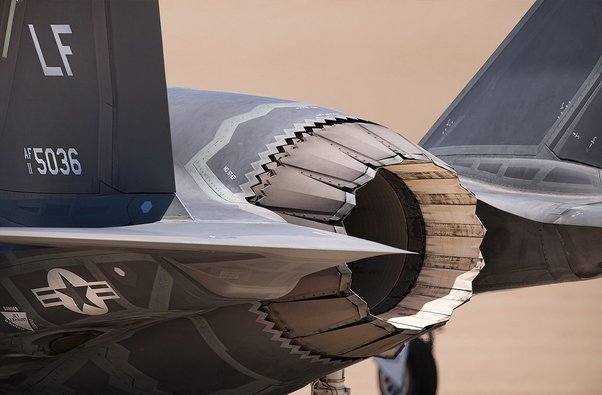

You mean like this?
main-qimg-6938ea17b0759978216326a162a98cd5-lq
Not the same thing. We can see the sawtooth part of the fuselage being almost flush with the engine nozzle. KE's rear fuselage sawtooth ends have a massive gap with the tiny ass engine within. It's most certainly not gonna be that way on Baykar's idealized version of KE.


Samba

Active member
Messages
72
Reactions
2 137
Nation of residence
Turkey
Nation of origin
Turkey
I think they wanna leave room for other engine candidates. Besides this is a unmanned aircraft. We do not have to follow the manned craft rules strictly.


uçuyorum

Contributor
Messages
824
Reactions
11 1,349
Nation of residence
Turkey
Nation of origin
Turkey
I think they wanna leave room for other engine candidates. Besides this is a unmanned aircraft. We do not have to follow the manned craft rules strictly.
Yeah there's TF6000 but also the engine Baykar is developing as some derivative of the current one


Radonsider

Contributor
Messages
1,387
Reactions
13 2,613
Nation of residence
Turkey
Nation of origin
Bosnia & Herzegovina
I guess it is done to have serrated edge covering the nozzle, as AI-322-30F doesnt have any serrated shroud, they just put it in a serrated placement on Kızılelma
