TR Air Defence Programs

[Oublious]

View attachment 60495
View attachment 60496
I don't think maximum range of Radar is 60km!
I think the radius shows the max range of missiles!
Max Range should be 60km.

Kalkan 2 radar has 120km range.



[Afif]

Missile's effective engagement range is probably represented by black portion. (30km)

While radar's effective detection and tracking range is represented by the whole circle. (60km)

Kalkan has an instrumented range of 100km. However, according to the diagram below, it can detect fighter size targets from 50-60km. (Hence 60km effective range in the footage above make sense.)

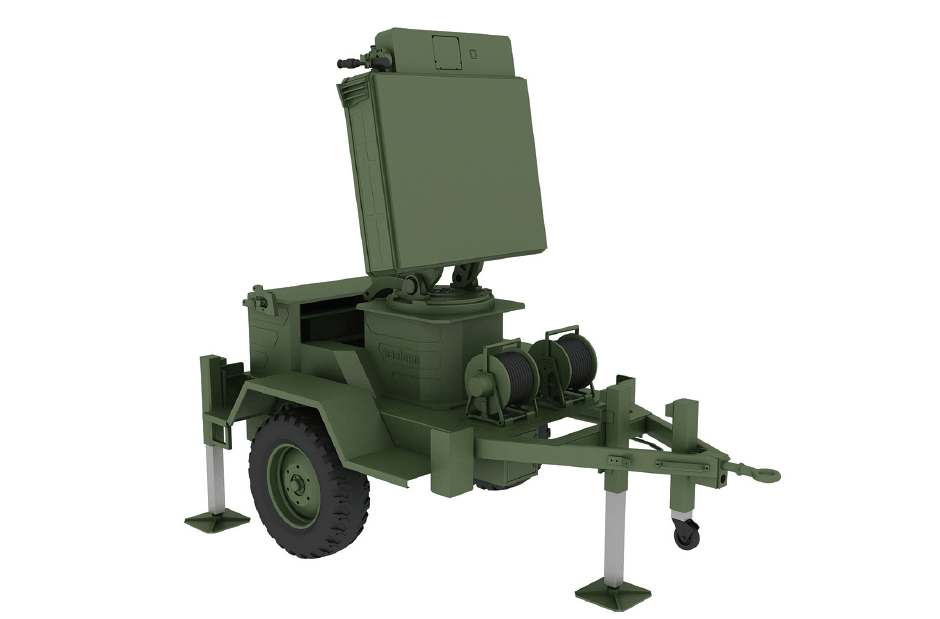

KALKAN-II Mobile Medium Altitude 3D Air Defense Radar

KALKAN-II is a mobile X band phased array 3D search and track radar for point and area defense of critical

en.defenceturk.net



[UkroTurk]

Kalkan 2 radar have 120km range.

So radar screen should have shown 120km radius as instrumented range but it didn't.



[zio]

Kalkan radar can detect a fighter at max 60km



[Sanchez]

This project has evolved into a very different place from the very beginning.The concept when it first came out looks very different from its current concept. Is the project still for the needs of the Land Forces? I have so many question marks in my mind.

We know that HvKK is very much interested to replace Nikes.



[Siper>MMU]

I hope they replace old PESA Kalkan I/II with a new gen AESA like Sentinel A4.



[Bürküt]

We know that HvKK is very much interested to replace Nikes.

That's why I thought the Gökdemir system using Gökdoğan YH was being developed.



[Brave Janissary]

ı think radar range shows fire control radar range not kalkan



[Afif]

I hope they replace old PESA Kalkan I/II with a new gen AESA like Sentinel A4.

@TheInsider previously suggested that Kalkan ii is AESA.



[UkroTurk]

I hope they replace old PESA Kalkan I/II with a new gen AESA like Sentinel A4.

Even Hisar A's radar is AESA. It is impossible Turkish defense industry produce PESA radars. Everything is AESA.



[UkroTurk]

ı think radar range shows fire control radar range not kalkan

There is no FCS in Hisar O System.



[Cabatli_TR]

Siper Ürün-2

https://twitter.com/i/web/status/1695395299248730316



[Cabatli_TR]



[Bürküt]

Finally, we have seen the version without booster produced by Sage.



[Osman]

Very energetic. Any assumption on range?



[UkroTurk]

Finally, we have seen the version without booster produced by Sage.

Looks like SM-2 cute. Or slimmer. Double pack?



[Bürküt]

Looks like SM-2 cute. Or slimmer. Double pack?

God knows. And the engineers working on the project .



[uçuyorum]

Now try with MIDLAS



[Bogeyman]

https://twitter.com/i/web/status/1695399398899937656

SİPER- Block1

RF- seeker head (developed over HİSAR-O+ RF head)
100+ km effective range
Booster-Dual Pulse impulse

SİPER-Block2
RF- seeker head (designed from scratch)
140+ km effective range
Long range with single stage rocket engine
30+ km intercept altitude



[uçuyorum]

https://twitter.com/i/web/status/1695399398899937656

SİPER- Block1

RF- seeker head (developed over HİSAR-O+ RF head)
100+ km effective range
Booster-Dual Pulse impulse

SİPER-Block2
RF- seeker head (designed from scratch)
140+ km effective range
Long range with single stage rocket engine
30+ km intercept altitude

That looks like a much bigger seeker so that's nice. Curious about lack of dual stage, wonder if Blok 1 would perform better at 70-100km range
