TR Air Defence Programs

[Pokemonte13]

https://twitter.com/i/web/status/2096926935645364658

Gürz will also have a 6x6 variant (truck or apc)



[Sanchez]

https://twitter.com/i/web/status/2096926935645364658

Gürz will also have a 6x6 variant (truck or apc)

Photos are very interesting. This might be the 5th Gürz variant we saw over the years. Not different variants or models but placement of the systems. They change continuously. It still doesn't look like a final product. All that workload of multiple sensors and weapons systems being offloaded onto 1-2 men is probably too much work.

New AF-400 and the 12,7mm gun are what i see this time. This is an elephant, should be no less than 30 tons. No way an 6x6 variant is this loaded.



[Pokemonte13]

Photos are very interesting. This might be the 5th Gürz variant we saw over the years. Not different variants or models but placement of the systems. They change continuously. It still doesn't look like a final product. All that workload of multiple sensors and weapons systems being offloaded onto 1-2 men is probably too much work.

New AF-400 and the 12,7mm gun are what i see this time. This is an elephant, should be no less than 30 tons. No way an 6x6 variant is this loaded.

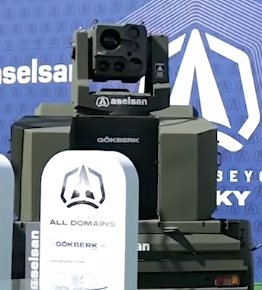

Gürz with extra jammers and Gökberk laser
View attachment 78966
Standard Gürz with different radar placement and sungur
View attachment 78967
Standard Gürz
View attachment 78968
Gürz with different radar placement as well as eo gimbal and new (FCR)?
View attachment 78969



[Sanchez]

Yup. And on these last photos, radar placement at the back is different than all that was shown so far. We have like 7 different radar placements on Gürz over the years. Most probably they have issues with coverage and interference from other sensors, trying to come up with the least bad solution.



[Pokemonte13]

Yup. And on these last photos, radar placement at the back is different than all that was shown so far. We have like 7 different radar placements on Gürz over the years. Most probably they have issues with coverage and interference from other sensors, trying to come up with the least bad solution.

not to mention the new Atom caliber and different Korkut variants



[boredaf]

If we put this anywhere close to front line it would be blown to pieces before the end of its first week, by a drone.

Just look at the cannon, the truck and the sensors on it block its view completely. It is ridiculously susceptible to anything flying low, hell, not even that low! If it can fire on the move, I can see it as a good option to accompany armoured columns, or defending backline command posts but that's it.



[Sanchez]

If we put this anywhere close to front line it would be blown to pieces before the end of its first week, by a drone.

Just look at the cannon, the truck and the sensors on it block its view completely. It is ridiculously susceptible to anything flying low, hell, not even that low! If it can fire on the move, I can see it as a good option to accompany armoured columns, or defending backline command posts but that's it.

This is a easily relocatable point defense system, it's not designed to move around when fighting like Korkut or Hisar-A. Gürz will be mainly for installation defence. Think bases on the periphery, Syria, Somalia, Libya.



[Ahlatshah]

Just look at the cannon, the truck and the sensors on it block its view completely

That is what I didn't understand from the beginning. Why the placement of gun buried that way, and why they dont the raise the position of the gun above the sensors. It shouldnt be that hard, just look at Pantsir



[Sanchez]

That is what I didn't understand from the beginning. Why the placement of gun buried that way, and why they dont the raise the position of the gun above the sensors. It shouldnt be that hard, just look at Pantsir
View attachment 82960

We should remember that Pantsir is a shit ass weapons platform and Gürz was built as a better Pantsir in every way imaginable, literally from a captured Pantsir. First ever released Gürz image was basically a Pantsir with 35mm gun.



[boredaf]

This is a easily relocatable point defense system, it's not designed to move around when fighting like Korkut or Hisar-A. Gürz will be mainly for installation defence. Think bases on the periphery, Syria, Somalia, Libya.

I bloody hope so mate.



[Pokemonte13]

there are also variants which are more mobile but lack the sensors and short range missiles Like gürz 150



[Ahlatshah]

We should remember that Pantsir is a shit ass weapons platform and Gürz was built as a better Pantsir in every way imaginable, literally from a captured Pantsir.

I know that, but that does not mean their gun placement looks worse than us. There is no point to bury the gun and reduce effectiveness against low flying uavs like lets say 10 or 20 percent. I am not an expert but it is a common sense, the gun should be raised above the sensor.

However, if the benefit of this current placement outweighs the costs, i really like to know these benefits



[UkroTurk]

Look here is new 35 mm Polish CIWS.

The gun has also limited vision however it is called counter drone AD

The system does not have any missiles!!! Just direct fire!

Poland introduces SA-35MM counter-drone air defense system using programmable ammunition

Poland introduces SA-35MM counter-drone air defense system using programmable ammunition

www.armyrecognition.com



[Tornadoss]

Wonder how much it cost with all the sensors etc.



[UkroTurk]

Wonder how much it cost with all the sensors etc.

Pantsir which is equal to wheeled Korkut costs app 20million USD.
Most of costs are radar and missiles.

Saudi Arabia Spends US$2.3 Bln to Acquire 39 Russian Pantsir-S1M Air Defense Systems in Secret Deal - Defence Security Asia

Saudi Arabia has reportedly acquired 39 Russian-made Pantsir-S1M air defense systems in a “quiet” deal worth an estimated $2.3 billion (RM10.1 billion).

defencesecurityasia.com

İf the deal is finished, What a pitty for KSA as well as for Türkiye.

We could have supplied Korkut.



[Sanchez]

Pantsir which is equal to wheeled Korkut costs app 20million USD.
Most of costs are radar and missiles.

Saudi Arabia Spends US$2.3 Bln to Acquire 39 Russian Pantsir-S1M Air Defense Systems in Secret Deal - Defence Security Asia

Saudi Arabia has reportedly acquired 39 Russian-made Pantsir-S1M air defense systems in a “quiet” deal worth an estimated $2.3 billion (RM10.1 billion).

defencesecurityasia.com

İf the deal is finished, What a pitty for KSA as well as for Türkiye.

We could have supplied Korkut.

Akbaba claimed few months ago that Saudi ordered and even took delivery of Korkut.



[Mis_TR_Like]

If we put this anywhere close to front line it would be blown to pieces before the end of its first week, by a drone.

Just look at the cannon, the truck and the sensors on it block its view completely. It is ridiculously susceptible to anything flying low, hell, not even that low! If it can fire on the move, I can see it as a good option to accompany armoured columns, or defending backline command posts but that's it.

This is a easily relocatable point defense system, it's not designed to move around when fighting like Korkut or Hisar-A. Gürz will be mainly for installation defence. Think bases on the periphery, Syria, Somalia, Libya.

Sanchez is right.

Let's not forget about Burç ^



[Sanchez]

I think it's high time Atılgans are replaced with Burç. Remaining Atılgans can be modernized and employed on installation defense.



[Bogeyman]

SUNGUR launch from BURÇ

https://twitter.com/i/web/status/2099393100279927208

I counted 8 launchers.



[boredaf]

I counted 8 launchers.

Well, it has 2 Sungur pods and one pod has 4 missiles. Burç can have 20 or 30 mm cannon, according to Roketsan's website. I can't remember, have they showed ATOM munition for either of the calibres? I'm curious to see which cannon they'll choose for serial production.
