Do you guys think we will have something similar to S400 in future?


"High altitude Long Range" ongoing missile defence system are being developed by Turkish engineers at present but this system will be more like an Arrow or Thaad missile defence system and won't be in same class with S400.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,225
Reactions
138 16,109
Nation of residence
United Kingdom
Nation of origin
Turkey
This makes Mr. Demir a big time liar, but anyways. Thinking that they are thinking in a range of ranges they shouldn't have left any unfilled range in the system which make people think that they have should have not left a gap there. I do thrust them that they will do a good job.
I don’t think he is lying. He is giving what he has been told to give. When it comes to national matters, keeping some truths close to your chest can not be construed as lying.


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
I don’t think he is lying. He is giving what he has been told to give. When it comes to national matters, keeping some truths close to your chest can not be construed as lying.
I don't mean to say he is actually lying but something is off.
If they wanted everything to be crystall clear to the audience they would prepare infographics showing all details. We are being informed well enough.


akrepon

Active member
Messages
111
Reactions
198
Nation of residence
Belgium
"High altitude Long Range" ongoing missile defence system are being developed by Turkish engineers at present but this system will be more like an Arrow or Thaad missile defence system and won't be in same class with S400.
Is this the EuroSAM system for which we take part.


TheInsider

Experienced member
Professional
Messages
4,052
Solutions
1
Reactions
34 14,433
Nation of residence
Turkey
Nation of origin
Turkey
EuroSAM is frozen. It is blocked by the white flag country. We are moving on without them.

There is a limit how compact Gökdeniz can get. It is dual 35mm cannons so there are hard limits.


akrepon

Active member
Messages
111
Reactions
198
Nation of residence
Belgium
"High altitude Long Range" ongoing missile defence system are being developed by Turkish engineers at present but this system will be more like an Arrow or Thaad missile defence system and won't be in same class with S400.
I still think having systems like S400 are quite useful especially for area of denial operations. This way you can protect a very large area cost effectively. What do you think about this?


Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,454
Nation of residence
Turkey
Nation of origin
Turkey
I still think having systems like S400 are quite useful especially for area of denial operations. This way you can protect a very large area cost effectively. What do you think about this?

Radar detection and network centric warfare capabilities are playing the most important role in longer ranges. If we take likely threat list into consideration, we can predict the required range figures for a SAM system. S400 radars can detect an F35 from a range around 40-50km (? Open sources). The size and shape of Cruise missiles and their flight profiles make them more deadly threats than a stealth aircraft. Ground shape, mountains, terrain have also its own limitation when we want to emit radar electromagnetic signals to longer ranges. Assume that a 4th generation aircraft having 1m2 RCS(Rafale-F18) are detected inside a radius of 80-100km. Firing a huge missile having a range of 400km won't give much advantages to the countries as long as you won't be able to see the target in these ranges so Land based SAM systems have their own standards. S400 is a good SAM If you want to detect and strike in AEWC, jammer aircrafts or big bombers but They must be protected heavily by all other SAM systems.


Kartal1

Experienced member
Lead Moderator
Messages
5,174
Reactions
105 19,194
Nation of residence
Bulgaria
Nation of origin
Turkey
İsmail Demir: A triple defense system on a land platform, one of which is a laser, is being developed to prevent UAV attacks .
We would probably see a laser, jammer and 40mm ATOM on one platform with integrated radar and E/O system. Such a mobile system will be extremely useful for FOBs. In the last week we saw many such attacks by drones. Sometimes jamming is not effective because of them having an autopilot and preconfigured route. With such triple system there will be no running for drones, model planes and small loitering munitions.

T

Turko

Guest
We would probably see a laser, jammer and 40mm ATOM on one platform with integrated radar and E/O system. Such a mobile system will be extremely useful for FOBs. In the last week we saw many such attacks by drones. Sometimes jamming is not effective because of them having an autopilot and preconfigured route. With such triple system there will be no running for drones, model planes and small loitering munitions.
Why 40mm bro? , we've already got 35 mm gun with smart ammunitions.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,458
Solutions
2
Reactions
114 24,635
Nation of residence
Turkey
Nation of origin
Turkey
Why 40mm bro? , we've already got 35 mm gun with smart ammunitions.
35 mm uses oerlikon gdf or any other 35 barreled gun, it is more of a munition.
40 mm uses automatic - simple granede launcher, more of a granede. It is also smart.
The latter doesn't focus on rate of fire and has a limited range compared to the 35mm. Effective against soft targets.


Kartal1

Experienced member
Lead Moderator
Messages
5,174
Reactions
105 19,194
Nation of residence
Bulgaria
Nation of origin
Turkey
Why 40mm bro? , we've already got 35 mm gun with smart ammunitions.
35mm would be an overkill for such a system. As far as I can understand they want to develop it against mini/micro surveillance drones, mini/micro loitering munitions in the type of for example Kargu or Alpagu and such that are dropping grenade launcher or mortar rounds over FOBs. 40mm ATOM will do a great job for such targets. It is programmable normal 40mm grenade launcher ammunition. The way I see it is they will most probably integrate 40mm ATOM, laser weapon and Aselsan IHTAR like system on a moving platform. That would be a great capability.

Aselsan IHTAR (Integrated Aselsan ACAR, Aselsan Gergedan and E/O)


40mm ATOM integrated and test fired with Aselsan IHTAR

Aselsan LSS Laser Defence System integrated into BMC Amazon


dustdevil

Committed member
Think Tank Analyst
Messages
271
Reactions
669
Nation of residence
Turkey
Nation of origin
Turkey

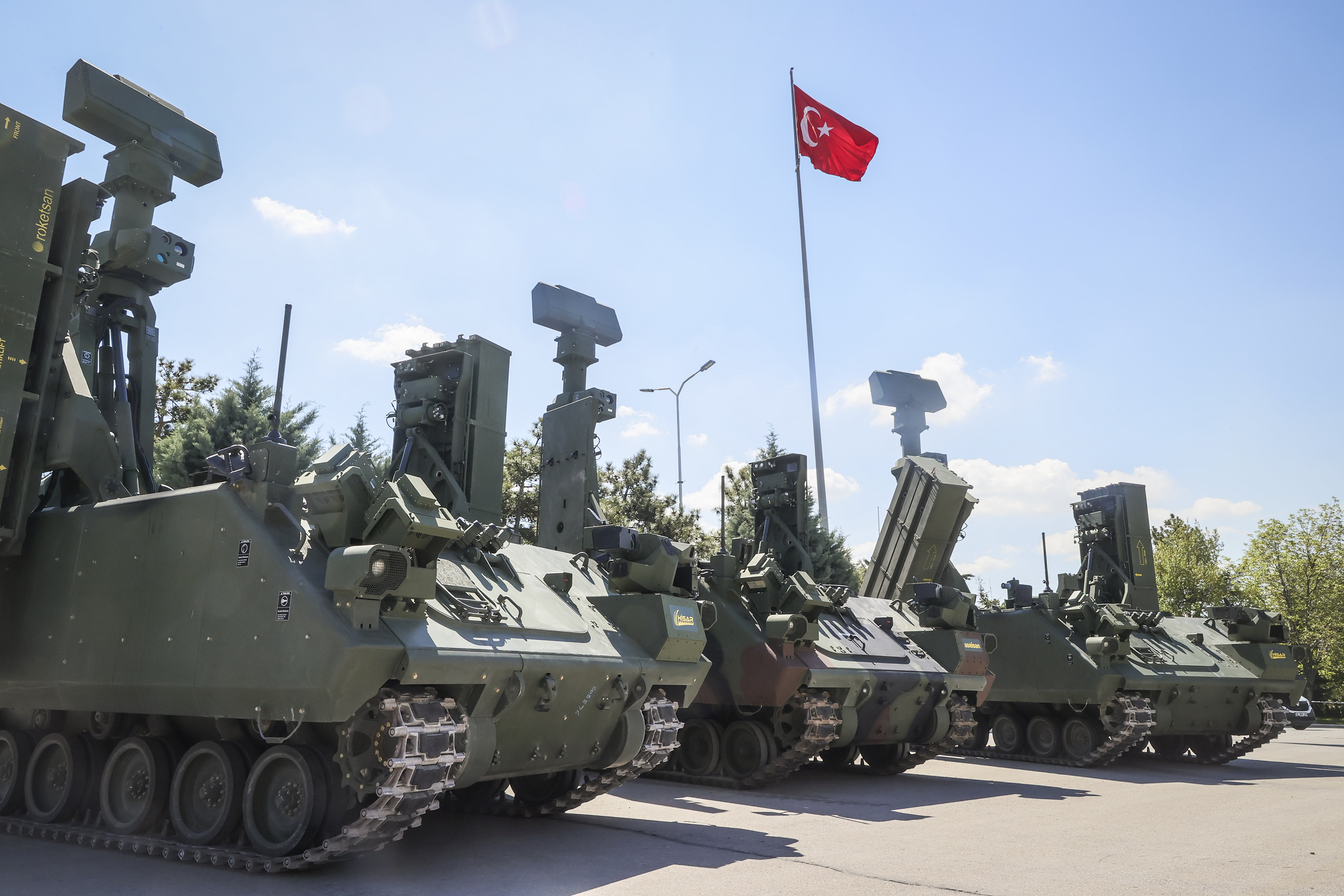

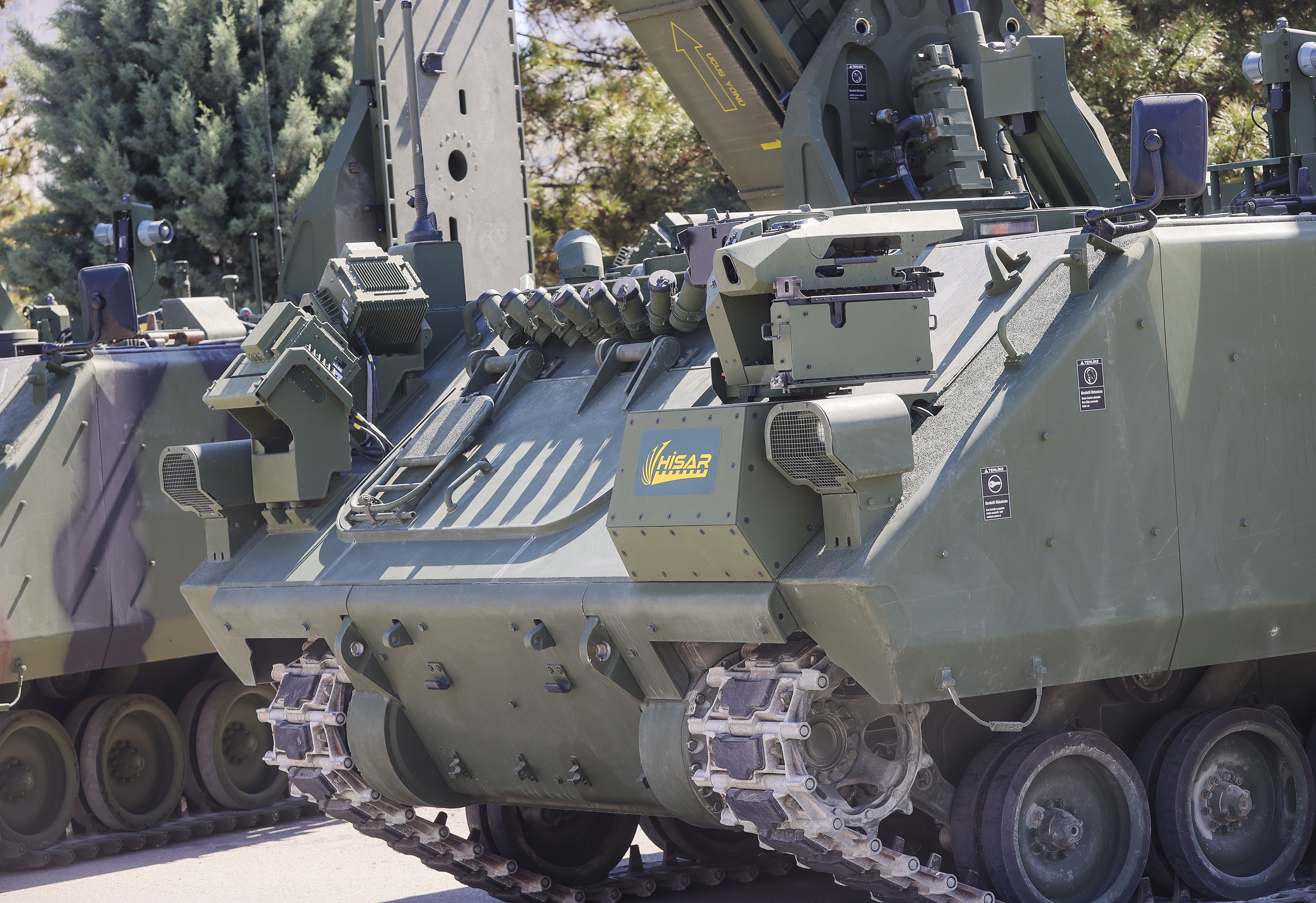

BTW in Hisar-A+s latest test, the missile intercepted the target above 30k feet (~10km). So the range-altitude numbers i was told seem on spot.
I tried to calculate this using the footage... it looks like 32000ft where it shows the drone, +3000 ft for the elevation... so 35000ft is possible. (effective altitude of the target for Hisar is still 32.000ft, the performance will be better than a sea level to 32000ft launch due to less density)

The error margin was very high though, because I used many public photos and drawings of the various Banshee drones and estimated angles, but this crude info supports that Banshee 80 was at high altitude approaching to the test site, i.e. around 20kms range at 35000 ft altitude....

It looks like drone is in a descent too, nose is below horizon, but I don't know what pitch angle is required for this drone for level flight, descent rate could be high or low depending on aerodynamics.

The point is, if someone has a Banshee 80 drone, he can estimate the altitude with much better precision.


Edit: Sorry, the proportion is ok but the distance calculation gave different results (half of those figures) in a second try, probably I made an error yesterday, I'll recalculate it later.
Edit: this part of footage is probably from another test flight. I’ll explain in another message.

Last edited:

Bogeyman

Experienced member
Professional
Messages
9,192
Reactions
67 31,253
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey
35mm would be an overkill for such a system. As far as I can understand they want to develop it against mini/micro surveillance drones, mini/micro loitering munitions in the type of for example Kargu or Alpagu and such that are dropping grenade launcher or mortar rounds over FOBs. 40mm ATOM will do a great job for such targets. It is programmable normal 40mm grenade launcher ammunition. The way I see it is they will most probably integrate 40mm ATOM, laser weapon and Aselsan IHTAR like system on a moving platform. That would be a great capability.

Aselsan IHTAR (Integrated Aselsan ACAR, Aselsan Gergedan and E/O)


40mm ATOM integrated and test fired with Aselsan IHTAR

Aselsan LSS Laser Defence System integrated into BMC Amazon
You can't use particulate ammunition in cities. It hurts civilians.


chngr

Active member
Messages
52
Reactions
1 151
Nation of residence
Turkey
Nation of origin
Turkey
Radar detection and network centric warfare capabilities are playing the most important role in longer ranges. If we take likely threat list into consideration, we can predict the required range figures for a SAM system. S400 radars can detect an F35 from a range around 40-50km (? Open sources). The size and shape of Cruise missiles and their flight profiles make them more deadly threats than a stealth aircraft. Ground shape, mountains, terrain have also its own limitation when we want to emit radar electromagnetic signals to longer ranges. Assume that a 4th generation aircraft having 1m2 RCS(Rafale-F18) are detected inside a radius of 80-100km. Firing a huge missile having a range of 400km won't give much advantages to the countries as long as you won't be able to see the target in these ranges so Land based SAM systems have their own standards. S400 is a good SAM If you want to detect and strike in AEWC, jammer aircrafts or big bombers but They must be protected heavily by all other SAM systems.
Yeah we would have network centric warfare capability to operate 400km range missile...

We need like SM-6...Long range anti-air, anti-ship..vb missile

Siper most likely similar SM-2 Block 3C...We need Siper family like Standard family

Siper + Booster = Siper-ER = SM-6
Sİper + Booster + Kinetic Kill Vehicle = GUMS = SM-3
