TR Army Artillery Systems & Projects

[Combat-Master]

MULTIPLE BARREL ROCKET FIRE MANAGEMENT SYSTEM



[Yasar_TR]

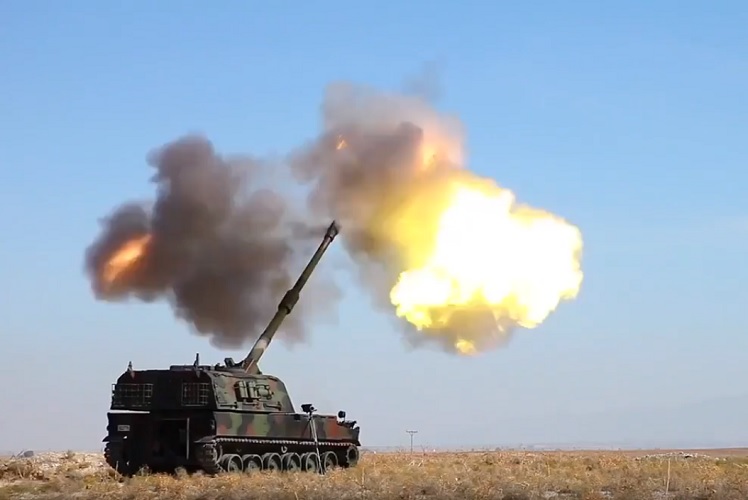

MKEK'ten Hibrit FIRTINA Obüsü hamlesi | Savunma Sanayi

MKEK, Kara Kuvvetleri tarafından uzun yıllardır kullanılan ve en etkili ateş destek vasıtası olan FIRTINA Obüsü'nün hibrit konfigürasyonu için proje başlattı.

www.savunmasanayist.com

Fırtına is to have a hybrid drive train. A 1300 HP electric diesel power plant that can be fast charged in 4 hours and an acceleration of 0 to 30km/hr in 6 seconds will be available. MKEK is the company that has started the project.
NEXT STOP ALTAY??

Hybrid Solution in Engine and MKEK - C4 Defence

Hybrid Solution in Engine and MKEK

www.c4defence.com



[Combat-Master]

122mm Mizrak Rocket (TRG-122) Guided Rocket



[Combat-Master]

MKE R&D Hybrid E-Firtina SPH

Specifications	Conventional Firtina (source)	Hybrid Firtina
Weight	47 tons	49 tons
Power	1,000hp	1,300hp
Torque	3,030 Nm	10,000 Nm
0-30 km/h speed	N/A	6 Seconds
Battery Capacity	N/A	351 kwh
Range	400km	500km
Charge Time	N/A	4 Hours

From what I can make out from this image



[Ryder]

E Firtina its a hybrid I think.



[Cabatli_TR]

MKE R&D Hybrid E-Firtina SPH

Specifications	Conventional Firtina (source)	Hybrid Firtina
Weight	47 tons	49 tons
Power	1,000hp	1,300hp
Torque	3,030 Nm	10,000 Nm
0-30 km/h speed	N/A	6 Seconds
Battery Capacity	N/A	351 kwh
Range	400km	500km
Charge Time	N/A	4 Hours

From what I can make out from this image
View attachment 16367

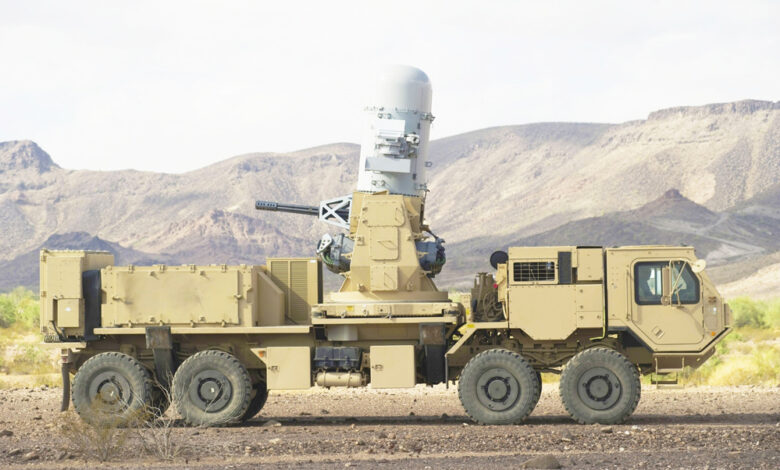

MKE used Phalanx CRAM/CIWS image in their "Yakın Hava Savunma Sistemi" brochure. Most likely, MKE is directly copying Phalanx.



[Combat-Master]

MKE used Phalanx CRAM/CIWS image in their "Yakın Hava Savunma Sistemi" brochure. Most likely, MKE is directly copying Phalanx.

The cannon is no doubt copy of the M61 Vulcan that Phalanx utilises. I'm looking forward to see what Aselsan does with the MKE Cannon



[Philip the Arab]

The cannon is no doubt copy of the M61 Vulcan that Phalanx utilises. I'm looking forward to see what Aselsan does with the MKE Cannon

I thought Phalanx is considered inferior to RIM-116 by USN?

Gun based systems dont have enough range for CRAM imo.



[Hexciter]

MKE used Phalanx CRAM/CIWS image in their "Yakın Hava Savunma Sistemi" brochure. Most likely, MKE is directly copying Phalanx.

What’s wrong with 35mm system which is already present. Only they should do is putting on to a truck



[Anmdt]

What’s wrong with 35mm system which is already present. Only they should do is putting on to a truck

It is already avaliable on tracked chasis: Korkut SPAAG

Gatling gun based CIWS ,assuming it is a 20mm compared to 35mm with AHEAD rounds,
pros:
-smaller dumb rounds, easy to store.
-responsive thanks to the vertical architecture
-effective against hard-shell targets (artillery etc)
-rounds can be self-detonating thus safer in C-RAM usage in cities
-high rate of fire achieved easily

cons:
-more rounds spent on per target, thus engagement is limited by few.
-longer engagement time per target
-dispersion due to the rotation makes it less effective in longer ranges (1-2 km is effective)
-dispersion is the sole and most important matter to be resolved, accuracy is everything because it is a hit to kill system.

MKE used Phalanx CRAM/CIWS image in their "Yakın Hava Savunma Sistemi" brochure. Most likely, MKE is directly copying Phalanx.

Could expect something like sea zenith as well. It was configured to engage at high elevations ,so suits better for CRAM



[yusuf]

If boran 105mm goes to serial production we should make base bleeding 105mm ammo so range will be 21km instead of 17km



[ATG]

start 10:00 min

domestic excalibur development project



[Combat-Master]

start 10:00 min

domestic excalibur development project

Yep @Cabatli_53 posted about this a while ago



[what]

While checking out Excalibur on wikipedia, I saw that there are also kits for dumb shells available. Could be also an interesting product to develop, we must have thousands of these dumb shells.



[Combat-Master]

155mm Panter Howitzer Modernisation



[Combat-Master]

FIRTINA II SPH



[Combat-Master]

Aselsan ALKAR 81mm Mortar

The mortar system has an overall footprint of 1.85×0.85×1.02 m and can be installed on armoured and soft-skinned platforms. It was integrated onto the rear of an unarmoured long-wheelbase 4×4 Land Rover Defender for trials, although comparable platforms such as the 4×4 Toyota Land Cruiser could also be used.

The system comprises the automatic barrel laying system (ABLS), recoil mechanism, and computerised fire-control system (FCS). It is fitted with an 81 mm smoothbore mortar barrel with a length of 1.6 m, with a minimum range of 100 m and a maximum range of 6,400 m depending on the projectile/charge combination.

The turntable-mounted 81 mm mortar features an electrically powered traverse of 180° in azimuth with elevation limits from 45° to 85°. It can be traversed manually if power fails.

According to Aselsan, the system can come into action and fire its first 81 mm mortar bomb within one minute and can come out of action within 10 seconds to escape counter-battery fire.



[yusuf]

is boran 105mm using base bleedng ammo,other picture belong to roketsan 155mm ammo with base bleeding unit



[Combat-Master]

Aselsan 60MM MORTAR DIRECT FIRE CONTROL SYSTEM



[yusuf]

is this base bleeding 105mm ammo imported or made by mkek?
