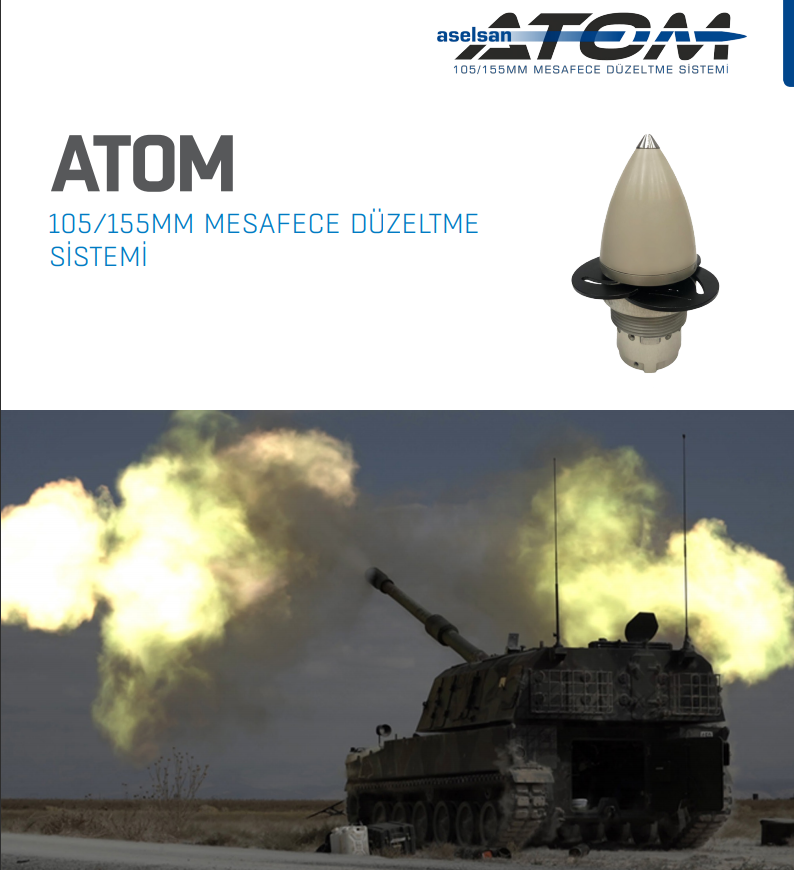

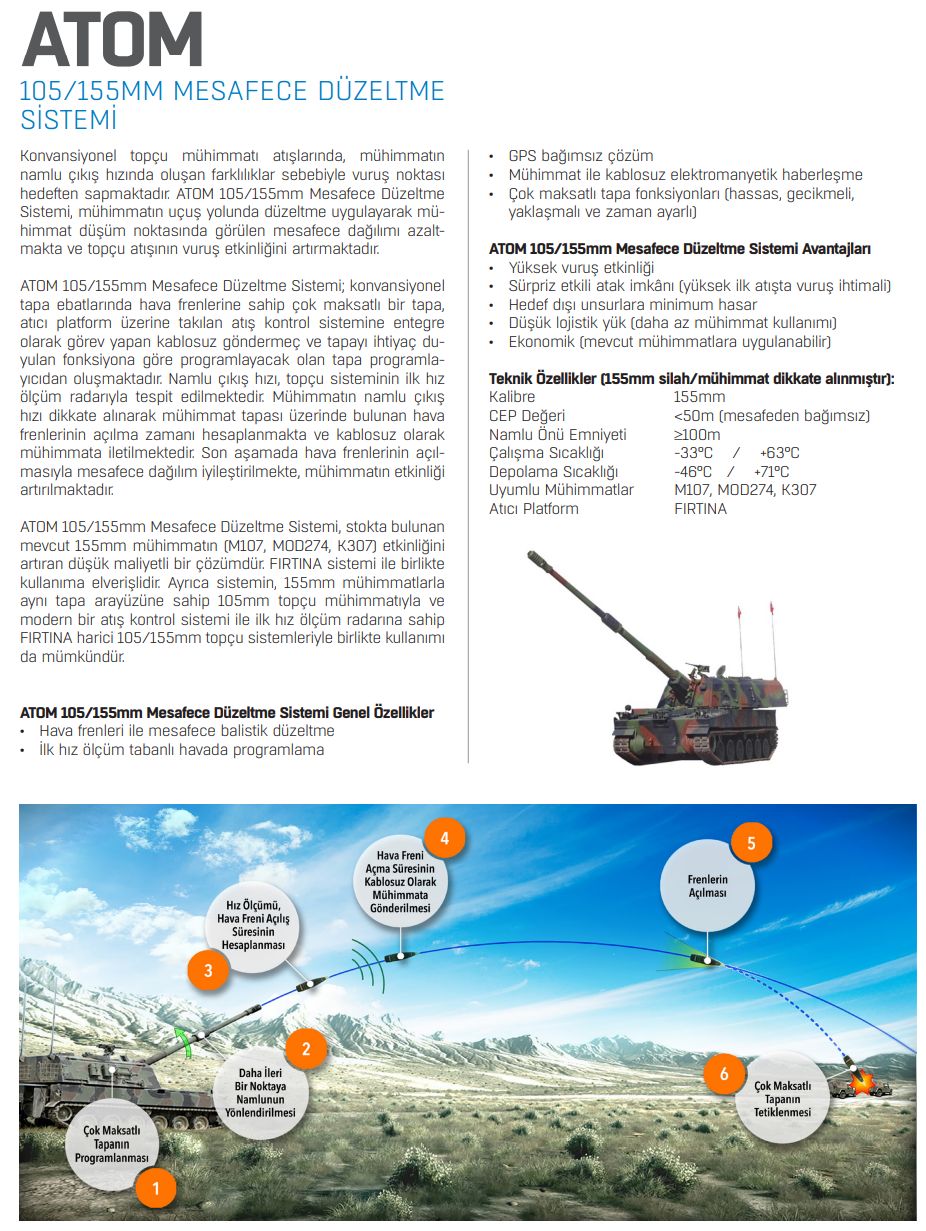

ATOM 105/155mm | Aselsan Course Correction Fuze for 105 and 155mm Shells


ATOM 155mm
Technical Specifications
CEP<50m (regardless of distance)
Arming Range≥100m
Operating Temperatures-33°C / +63°C
Storage Temperatures-46°C / +71°C
Compatible ShellsM107 - MKE MOD274 - Poongsan K307
PlatformT-155 Firtina




Last edited:

Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,266
Nation of residence
United Kingdom
Nation of origin
Turkey
ATOM 105/155mm | Aselsan Course Correction Fuze for 105 and 155mm Shells
View attachment 17534
View attachment 17535
View attachment 17536
This is great News! Poor man’s Excalibur! Probably just as good and effective. Due to braking system I wonder if overall range suffers?
Excalibur actually increases effective range.
This is going to be a big plus for our artillery’s effectiveness. Also cheaper in the long run as no unnecessary rounds will be fired, extending barrel life and not wasting ammunition. Much more accurate targeting and less collateral damage. High probability of first time hit. No GPS but electromagnetic communication with the ammo. Various fuse possibilities like delayed action, timed or with proximity sensor.
My only gripe will be the name!
Why ATOM? Already Aselsan has Atom 35mm rounds. Isn’t this going to be confusing?


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey
This is great News! Poor man’s Excalibur! Probably just as good and effective. Due to braking system I wonder if overall range suffers?
Excalibur actually increases effective range.
This is going to be a big plus for our artillery’s effectiveness. Also cheaper in the long run as no unnecessary rounds will be fired, extending barrel life and not wasting ammunition. Much more accurate targeting and less collateral damage. High probability of first time hit. No GPS but electromagnetic communication with the ammo. Various fuse possibilities like delayed action, timed or with proximity sensor.
My only gripe will be the name!
Why ATOM? Already Aselsan has Atom 35mm rounds. Isn’t this going to be confusing?

Wouldn't put it in the same category as Excalibur. Excalibur is an all up new round, while ATOM 105/155mm is an course correction fuse which can be fitted onto existing 105/155mm shells. Very different.

We will likely see an Exclibur type round developed by Tubitak/MKE with range extensions.

As for the naming, ATOM is naming being used on all smart fuzed developments.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,266
Nation of residence
United Kingdom
Nation of origin
Turkey
Wouldn't put it in the same category as Excalibur. Excalibur is an all up new round, while ATOM 105/155mm is an course correction fuse which can be fitted onto existing 105/155mm shells. Very different.

We will likely see an Exclibur type round developed by Tubitak/MKE with range extensions.

As for the naming, ATOM is naming being used on all smart fuzed developments.
İ know it is not Excalibur. That is why I said “poor man’’s”.
Isaeli’s have a similar kit that they use for their artillery shells that they fit in battleground called “top gun”. Theirs is a GPS based system and gives a CEP of 20m across the board. It is much cheaper than Excalibur. But still not the same.


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey
İ know it is not Excalibur. That is why I said “poor man’’s”.
Isaeli’s have a similar kit that they use for their artillery shells that they fit in battleground called “top gun”. Theirs is a GPS based system and gives a CEP of 20m across the board. It is much cheaper than Excalibur. But still not the same.

You wrote "poor man's" Excalibur then proceeded to compare the two, hence why I addressed it.

Yes, there are many course corrected fuzes SPACIDO has one that is very similar to how ATOM 105/155mm works.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,266
Nation of residence
United Kingdom
Nation of origin
Turkey
You wrote "poor man's" Excalibur then proceeded to compare the two, hence why I addressed it.

Yes, there are many course corrected fuzes SPACIDO has one that is very similar to how ATOM 105/155mm works.
Excalibur is expensive too. For ground artillery cheaper solutions are better. If we are going to go for an all new system, one like a “vulcano“ round that BAE Systems and Leonardo developed would fit the bill. With 76/127/155 mm versions we can make all our artillery rounds pinpoint accurate. They could be used against air threats as well!



Hexciter

Experienced member
Messages
2,575
Reactions
4 11,451
Nation of residence
Turkey
Nation of origin
Turkey
ATOM 105/155mm | Aselsan Course Correction Fuze for 105 and 155mm Shells


ATOM 155mm
Technical Specifications
CEP<50m (regardless of distance)
Arming Range≥100m
Operating Temperatures-33°C / +63°C
Storage Temperatures-46°C / +71°C
Compatible ShellsM107 - MKE MOD274 - Poongsan K307
PlatformT-155 Firtina

View attachment 17534
View attachment 17535
View attachment 17536
The frenchmen also introduced similar adjusting brake system. But I don’t know who is the 1st? @Vergennes do you have further info? Thx


dustdevil

Committed member
Think Tank Analyst
Messages
271
Reactions
669
Nation of residence
Turkey
Nation of origin
Turkey
Looks a lot like those:

A similar patent: https://patents.google.com/patent/US6345785B1/en
And some scientific paper: https://www.hindawi.com/journals/tswj/2014/273450/


I worked in reverse order to find similar stuff....

Last edited:

Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
Firtina-II Self-Propelled Howitzer
  • Prime contractor BMC Defence.
  • 140 pieces will be produced.
  • The first 3 of them were delivered in January 2021.
  • 3 more will be delivered in the first half of 2021.
  • The remaining ones will be delivered between 2022-2027.
Times is changing so fast, we want hybrids now.
What's all that growling about, to scare the enemies?


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,266
Nation of residence
United Kingdom
Nation of origin
Turkey
Times is changing so fast, we want hybrids now.
What's all that growling about, to scare the enemies?
“3 more to be delivered in first part of 2021.“
Then there is a gap for deliveries Until 2022!!
This could be the gap to develop the Hybrid drive train before applying it to the artillery unit.
Or it could simply be the time needed for UTKU engine to be accepted and integrated to Firtina 2.


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
“3 more to be delivered in first part of 2021.“
Then there is a gap for deliveries Until 2022!!
This could be the gap to develop the Hybrid drive train before applying it to the artillery unit.
Or it could simply be the time needed for UTKU engine to be accepted and integrated to Firtina 2.
Electrification of lesser vehicles is going pretty fast; yes we want a fire breathing monster of a tank for Altay but electrification should hit Altay too at some point. In which case a smaller engine can be just fine. Anyway we need the realization of a 1500 to show the world that we can.


Stuka

Contributor
Think Tank Analyst
Messages
713
Reactions
5 4,540
Nation of residence
United Kingdom
Nation of origin
Turkey

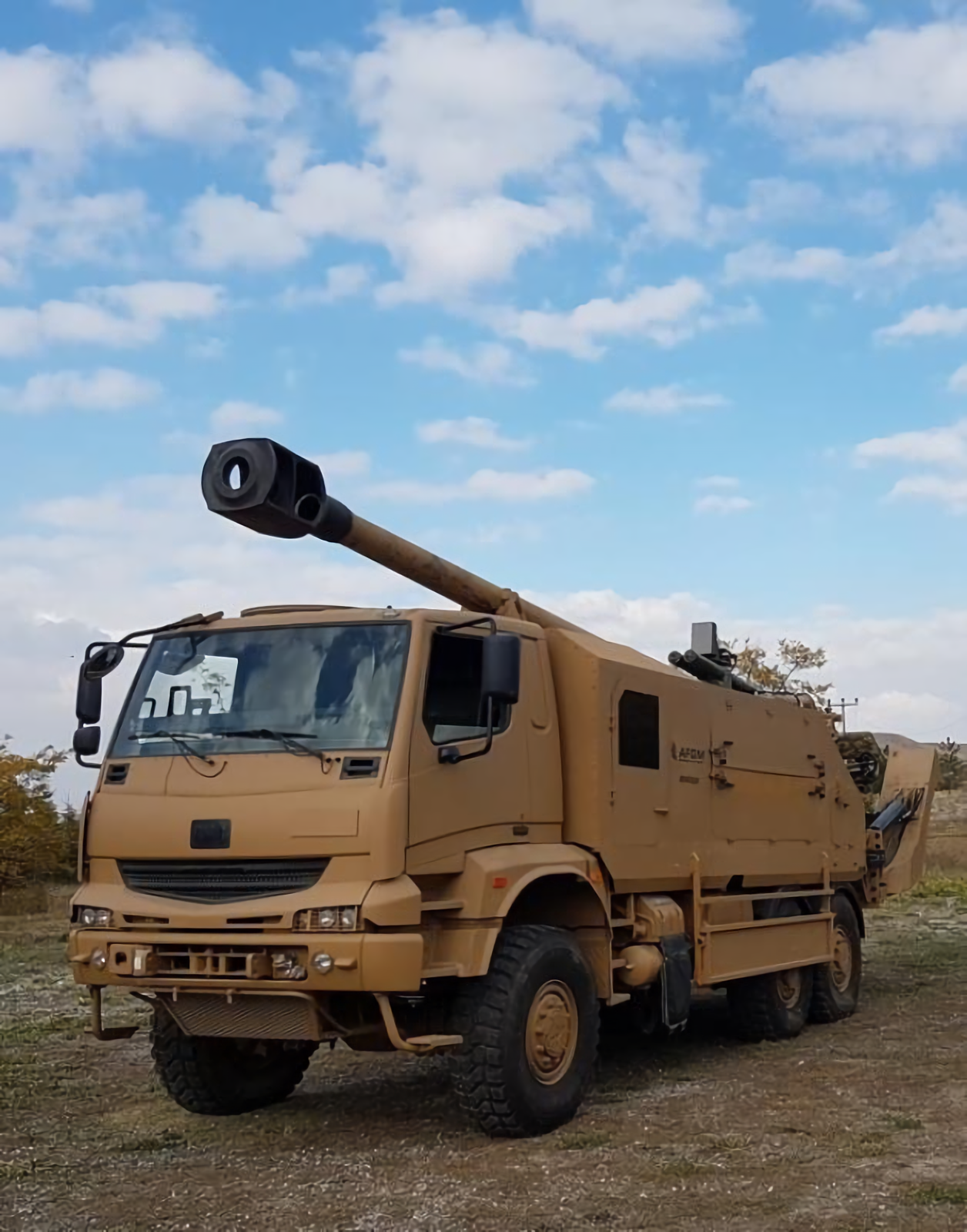

KMO Aselsan | 155mm 52 caliber 6x6 View attachment 17693

According to YUSUF AKBABA there are 2 wheeled Howitzer Projects being developed


ASELSAN ASYA
(based on BMC 6x6 military truck chassis)



---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

MKE YAVUZ
(based on an German-made MAN 6x6 military truck chassis. The howitzer system can
also be integrated into vehicles such as VOLVO, SCANIA, RENAULT, MERCEDES, BMC, ASTRA, KAMAZ, and VOLAT)

- MKEK launched the “YAVUZ” project in April 2016



> Both of these Wheeled Howitzers would be a great addition until Firtina 2 NG goes into Full Rate Production.
> Maintenance is cheap and it can travel on roads.
> Especially if you consider that the Engine needed could be solved with an indigenous one, particularly the 400HP VURAN Engine.
> Land Forces Command uses artillery almost daily in Syria.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,266
Nation of residence
United Kingdom
Nation of origin
Turkey
According to YUSUF AKBABA there are 2 wheeled Howitzer Projects being developed


ASELSAN ASYA
(based on BMC 6x6 military truck chassis)

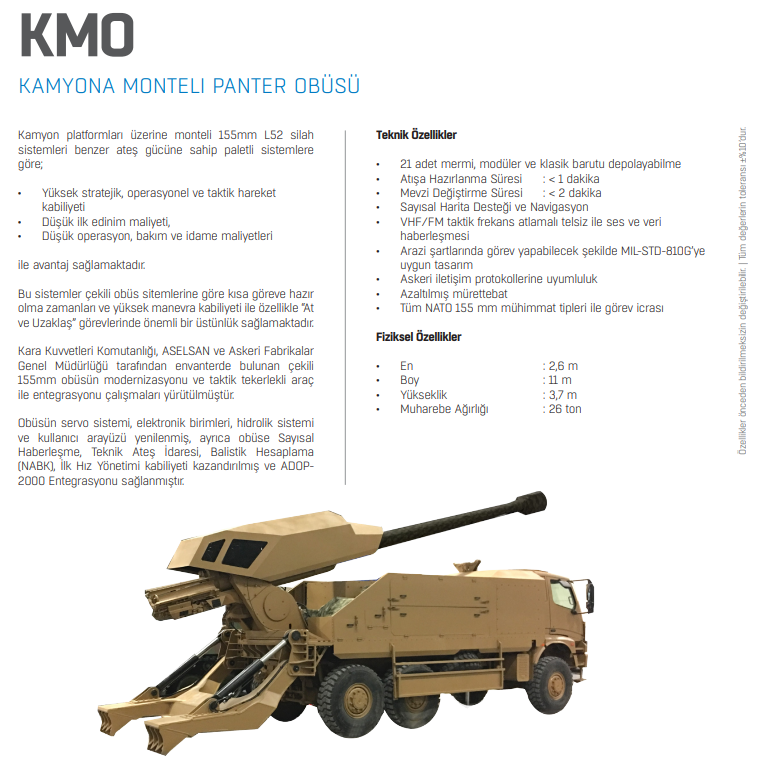

View attachment 17694

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

MKE YAVUZ
(based on an German-made MAN 6x6 military truck chassis. The howitzer system can
also be integrated into vehicles such as VOLVO, SCANIA, RENAULT, MERCEDES, BMC, ASTRA, KAMAZ, and VOLAT)

- MKEK launched the “YAVUZ” project in April 2016

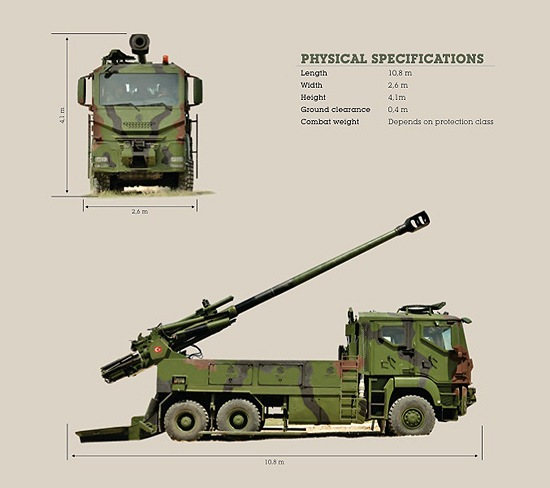

View attachment 17695

> Both of these Wheeled Howitzers would be a great addition until Firtina 2 NG goes into Full Rate Production.
> Maintenance is cheap and it can travel on roads.
> Especially if you consider that the Engine needed could be solved with an indigenous one, particularly the 400HP VURAN Engine.
> Land Forces Command uses artillery almost daily in Syria.
Especially if they will be able to use Aselsan’s Atom (mesafece duzeltme sistemi) air brake kit for more accurate targeting.


TheInsider

Experienced member
Professional
Messages
4,066
Solutions
1
Reactions
34 14,482
Nation of residence
Turkey
Nation of origin
Turkey
ATOM smart ammo family consists of
35mm ATOM air defense (optimized for air breathing targets)
35mm ATOM C-RAM (optimized for small caliber rockets, mortars, and artillery shells.)
35mm ATOM ZMA (IFV. Optimized for ground targets)
105mm ATOM (shell fuse for existing 105mm artillery shells. It is made mainly for Boran lightweight air-transportable howitzer)
155mm ATOM (shell fuse for existing 155mm artillery, it can be utilized by all existing 155mm SPH platforms)
120mm ATOM ( 120mm mortar shell fuse as part of mortar modernization effort)
81mm ATOM (81mm mortar shell fuse as part of mortar modernization effort)

All of them are produced in the same fuse production line. They are cheap, they can be produced in tens of thousands of units. They can be applied to existing shells that are currently in the stockpile and can be used with minimal modifications on platforms that can fire mentioned ammos.

Last edited:

Hexciter

Experienced member
Messages
2,575
Reactions
4 11,451
Nation of residence
Turkey
Nation of origin
Turkey
ATOM smart ammo family consists of
35mm ATOM air defense (optimized for air breathing targets)
35mm ATOM C-RAM (optimized for small caliber rockets, mortars, and artillery shells.)
35mm ATOM ZMA (IFV. Optimized for ground targets)
105mm ATOM (shell fuse for existing 105mm artillery shells. It is made mainly for Boran lightweight air-transportable howitzer)
155mm ATOM (shell fuse for existing 155mm artillery, it can be utilized by all existing 155mm SPAAG howitzer platforms)
120mm ATOM ( 120mm mortar shell fuse as part of mortar modernization effort)
81mm ATOM (81mm mortar shell fuse as part of mortar modernization effort)

All of them are produced in the same fuse production line. They are cheap, they can be produced in tens of thousands of units. They can be applied to existing shells that are currently in the stockpile and can be used with minimal modifications on platforms that can fire mentioned ammos.
Can you explain the 155 mm SPAAG aka Self-Propelled Anti-Air Gun?
