I remember when Cirit was first introduced years ago and how proud I felt that Turkish brains have produced such a formidable weapon able to compete with the big shots with decades of experience and manufacturing advantages.
Now, when I look at the types of different munition our companies producing for a wide range of purposes, I have nothing but awe and admiration.


Balamir

Well-known member
Messages
351
Reactions
1,370
Nation of residence
Turkey
Nation of origin
Turkey
Guys i don't want to ruin the topic but in my humble opinion we also need less than SOM more than UMTAS missiles like SPEAR 3. The spear 3 is crazy cruise missile while it has little turbo jet engine which gives 100km range. Mini cruise missile with 100km range. Turkish Navy , TurAF would like and use it immensely.
We get SPEAR 3 when we integrate Aselsan Miniature Bomb with a engine with a performance of TJ300 but only half weight. For now, however, the priority will be the surface to surface version of the Miniature Bomb.

Last edited:

chngr

Active member
Messages
60
Reactions
1 160
Nation of residence
Turkey
Nation of origin
Turkey
KGK-er will have rocket engine however it is bounded an aircraft to reach long range.

I've no clue about Kuzgun. Does it have jet engine like cruise missiles?
KGK-er most likely have small turbojet engine.Just like JSOW-ER

Kuzgun have so many variants...One of them turbojet

D6TMMudWsAAkJQL


Nutuk

Contributor
Think Tank Analyst
Messages
1,017
Reactions
8 3,638
Nation of residence
Nethelands
Nation of origin
Turkey
Maybe it has been done before, I could not find it. I have gathered some specs from open sources and compared the Spear 3 to Tubitak Kuzgun

Spear 3 vs Kuzgun (they have great similarities)

Mass: 100kg; 100kg
length: 1.8m; 1.8m
diam. : 180mm; ?
range: 120-140km; 110km
Propulsion: Turbojet; glide (turbojet version in development)
Guidance: Inertial, GPS, Millimetric Wave and SAL; INS,GPS, SAL and IIR

The Spear 3 has more range due to a micro turbo jet, seen the picture above of the Kuzgun with side air inlet Tubitak must be developing a version with Turbo jet too. So both missiles are analogue almost the same.


Also here the free fall / glide version is probably more intended for drones like Aksungur and Akinci.

Will become a great valuable missile in our inventory and may even surpass the fame of MAM-L

A

adenl

Guest
The Spear 3 has more range due to a micro turbo jet, seen the picture above of the Kuzgun with side air inlet Tubitak must be developing a version with Turbo jet too. So both missiles are analogue almost the same.
Either TJ90 or TJ35 could fit in 180mm diameter body.


Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
Spear 3 vs Kuzgun (they have great similarities)

Mass: 100kg; 100kg
length: 1.8m; 1.8m
diam. : 180mm; ?
range: 120-140km; 110km
Propulsion: Turbojet; glide (turbojet version in development)
Guidance: Inertial, GPS, Millimetric Wave and SAL; INS,GPS, SAL and IIR

The Spear 3 has more range due to a micro turbo jet, seen the picture above of the Kuzgun with side air inlet Tubitak must be developing a version with Turbo jet too. So both missiles are analogue almost the same.


Also here the free fall / glide version is probably more intended for drones like Aksungur and Akinci.

Will become a great valuable missile in our inventory and may even surpass the fame of MAM-L

Bro, I searched this missile and found an engine called Tj-150 which is powering this missile. Tj-150 has a diameter of 272mm and 1500N (too much for a missile having 100kg weight) thrust. In specifications of Spears-3, diameter of missile are written as 180mm. Something is wrong here.


chngr

Active member
Messages
60
Reactions
1 160
Nation of residence
Turkey
Nation of origin
Turkey
Bro, I searched this missile and found an engine called Tj-150 which is powering this missile. Tj-150 has a diameter of 272mm and 1500N (too much for a missile having 100kg weight) thrust. In specifications of Spears-3, diameter of missile are written as 180mm. Something is wrong here.Pratt & Whitney

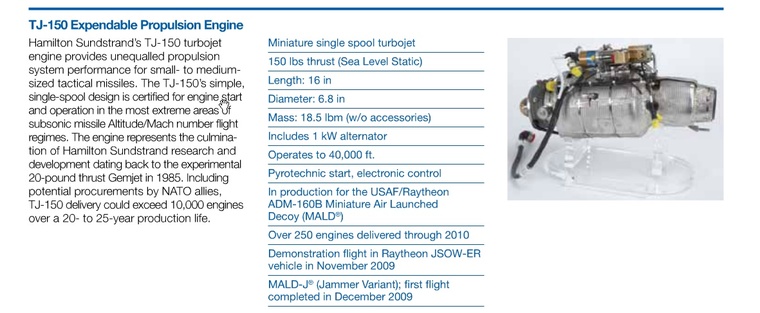

Pratt Whitney TJ-150.....Not PBS TJ150

150lbs (650N)

6.8 in



AzeriTank

Contributor
Messages
711
Reactions
3 1,795
Nation of residence
Azerbaijan
Nation of origin
Azerbaijan
off topic just by coincidence I run into SPEAR-EW which loiters while carrying out its jamming mission with miniaturised EW payload
I would rather put it on som type of missiles... or if i send 15 missiles, one of them could be equipped with EW head


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,268
Nation of residence
United Kingdom
Nation of origin
Turkey
Maybe it has been done before, I could not find it. I have gathered some specs from open sources and compared the Spear 3 to Tubitak Kuzgun

Spear 3 vs Kuzgun (they have great similarities)

Mass: 100kg; 100kg
length: 1.8m; 1.8m
diam. : 180mm; ?
range: 120-140km; 110km
Propulsion: Turbojet; glide (turbojet version in development)
Guidance: Inertial, GPS, Millimetric Wave and SAL; INS,GPS, SAL and IIR

The Spear 3 has more range due to a micro turbo jet, seen the picture above of the Kuzgun with side air inlet Tubitak must be developing a version with Turbo jet too. So both missiles are analogue almost the same.


Also here the free fall / glide version is probably more intended for drones like Aksungur and Akinci.

Will become a great valuable missile in our inventory and may even surpass the fame of MAM-L
Please also note that Kuzgun is not just a jet or rocket propelled missile.
It is a modular construction missile. It can be used in many forms ;
1. Air to ground : solid fuelled rocket, jet engined rocket, gliding bomb (as jdam), winged gliding bomb (as HGK)
2. From Sea or surface , to surface : either from a submarine or from a ship with a solid fuelled rocket or jet engine to another ship or to a ground target.
3. from ground to , ground or sea targets with a rocket or jet engine.

Therefore it is a missile which will have various seeker heads for precision strikes.
Most importantly , though, it is a cheap missile to use.


AzeriTank

Contributor
Messages
711
Reactions
3 1,795
Nation of residence
Azerbaijan
Nation of origin
Azerbaijan
Please also note that Kuzgun is not just a jet or rocket propelled missile.
It is a modular construction missile. It can be used in many forms ;
1. Air to ground : solid fuelled rocket, jet engined rocket, gliding bomb (as jdam), winged gliding bomb (as HGK)
2. From Sea or surface , to surface : either from a submarine or from a ship with a solid fuelled rocket or jet engine to another ship or to a ground target.
3. from ground to , ground or sea targets with a rocket or jet engine.

Therefore it is a missile which will have various seeker heads for precision strikes.
Most importantly , though, it is a cheap missile to use.
i think it will have one engine, only the heads will change...
you cannot just switch to difference propulsion system as you wish with the same size..


BordoEnes

Committed member
Messages
293
Reactions
2 871
Nation of residence
Nethelands
Nation of origin
Turkey
I was watching this video about the YF-23 Stealth fighter(absolutely love the design) and was surprized to see our "air-to-air missile" made it into the video at 11:15 xD



Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,268
Nation of residence
United Kingdom
Nation of origin
Turkey

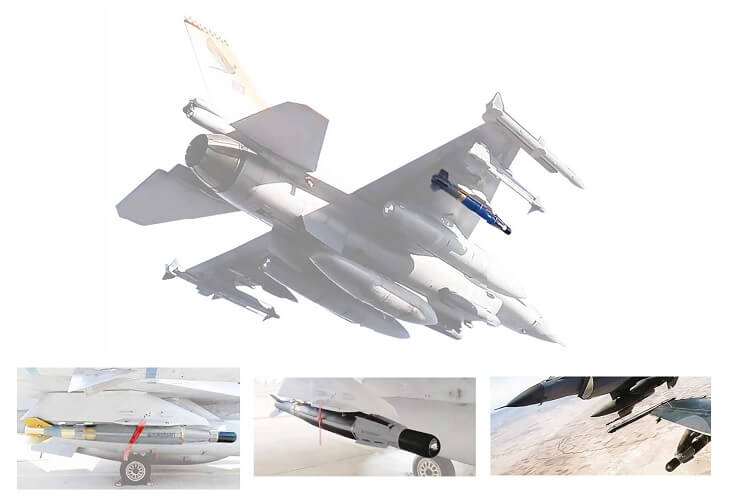

The new “Lacin” missile ; effectively a Teber missile with new seeker head when later fitted with wing-kit , will increase range from 28km to 100km. This new missile has a newly developed IIR/TV guidance seeker that is superior to the ones used before and can target and hit slow moving objects as well. This makes it a strategic weapon.


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey
The new “Lacin” missile ; effectively a Teber missile with new seeker head when later fitted with wing-kit , will increase range from 28km to 100km. This new missile has a newly developed IIR/TV guidance seeker that is superior to the ones used before and can target and hit slow moving objects as well. This makes it a strategic weapon.

Good, it will be good replacement for Popeye missile.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,268
Nation of residence
United Kingdom
Nation of origin
Turkey
Good, it will be good replacement for Popeye missile.
I don’t quite get how it will be a replacement of Popeye missile!
This is is a free fall glide bomb in essence. It has no propulsion. If dropped from ~40000 ft, as is, it has a gliding range of around 28km. However as it can also have a wing-kit, it’s range would exceed 100km in free fall.
Popeye missile has jet engine propulsion with a range of 70-80km with a 340kg warhead. Lacin missile at the moment has 87kg explosives. But with a MK83 bomb I guess you could use this, and have 202kg of explosive weight.
Lacin missile can be used for the same purpose as a Popeye I guess , with a wing-kit and we would have a missile that has better guidance, longer range, less RCS and is much cheaper than Popeye; yet achieving a similar result. But not really a replacement!
I would think of SOM as a better replacement of Popeye!


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey
I don’t quite get how it will be a replacement of Popeye missile!
This is is a free fall glide bomb in essence. It has no propulsion. If dropped from ~40000 ft, as is, it has a gliding range of around 28km. However as it can also have a wing-kit, it’s range would exceed 100km in free fall.
Popeye missile has jet engine propulsion with a range of 70-80km with a 340kg warhead. Lacin missile at the moment has 87kg explosives. But with a MK83 bomb I guess you could use this, and have 202kg of explosive weight.
Lacin missile can be used for the same purpose as a Popeye I guess , with a wing-kit and we would have a missile that has better guidance, longer range, less RCS and is much cheaper than Popeye; yet achieving a similar result. But not really a replacement!
I would think of SOM as a better replacement of Popeye!

Seems like you just argued the reason as to why it will be a good replacement to popeye :)


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,268
Nation of residence
United Kingdom
Nation of origin
Turkey
SOM was already integrated in f-4E phantom 2020 and the last time Popeye was used was in 2018 in op olive branch
View attachment 11894
Yes! SOM was integrated to f4-2000‘s as Popeye replacement. But Popeyes were used in olive branch because they were probably way past their shelf life and needed to be expended.
