Well true to some extent. Do you remember the simulations of the S-400 radar? Lİke if we put the radar there, there are blindspots here etc. Similar situation with Koral. If the geography allows it can jam a ground radar 300km away maybe even more. That is why I wrote "up to" 300km. Because most of the time it is hard to jam radars over 200km because of geographic obstructions.

What about jamming of air platforms?


TheInsider

Experienced member
Professional
Messages
4,066
Solutions
1
Reactions
34 14,482
Nation of residence
Turkey
Nation of origin
Turkey
It can jam everything in its GHz range. It doesn't matter if it is land, sea, or air-based.

T

Turko

Guest
What about jamming of air platforms?
Range for targets at 5000m;)


That's why I would prefer 3 s350 Vityaz rather than 1 S400.
( There is one advantage of S400 over s350 , capabilities against Ballistic Missiles however we bought export version which is limited by producer. 40n6e missiles are limited with 30km altitude which isn't different from 9m96e / s350's missiles.)


S400 would be great for naval applications.

Last edited by a moderator:

Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey

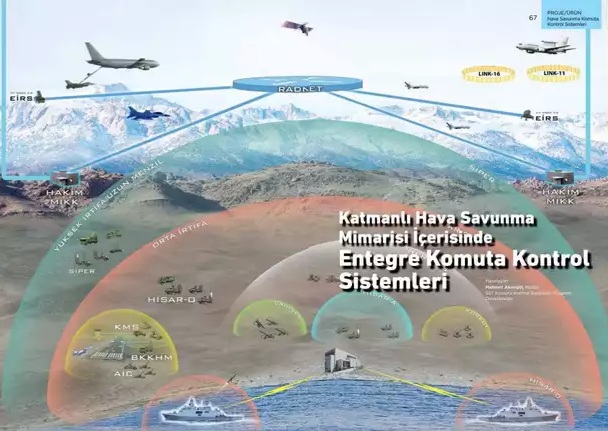

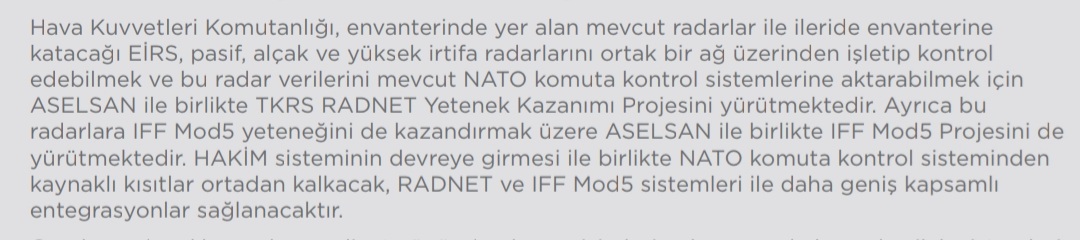

Aselsan radar projects that are going to be integrated to HAKIM command control system.
  • EIRS
  • AIR(Low Altitude)
  • Passive radar
  • YIR (High Altitude)

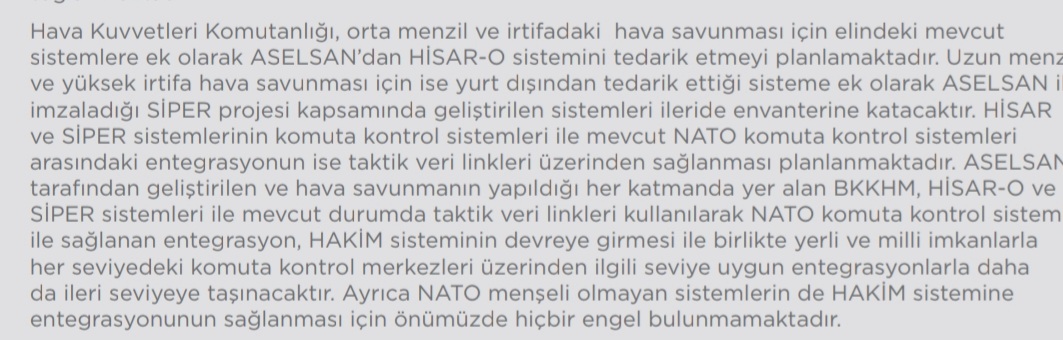

Non-NATO systems can be integrated to new generation HAKIM command control system.



Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
KAFES, all information from multiple types and numbers of sensors is combined to maximize situational awareness in the operational environment, enabling multi-target tracking even in intensely chaotic environments. In the operational environment, it is possible to operate independently of the type and number of sensors connected to the system or to be connected when necessary.



Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey

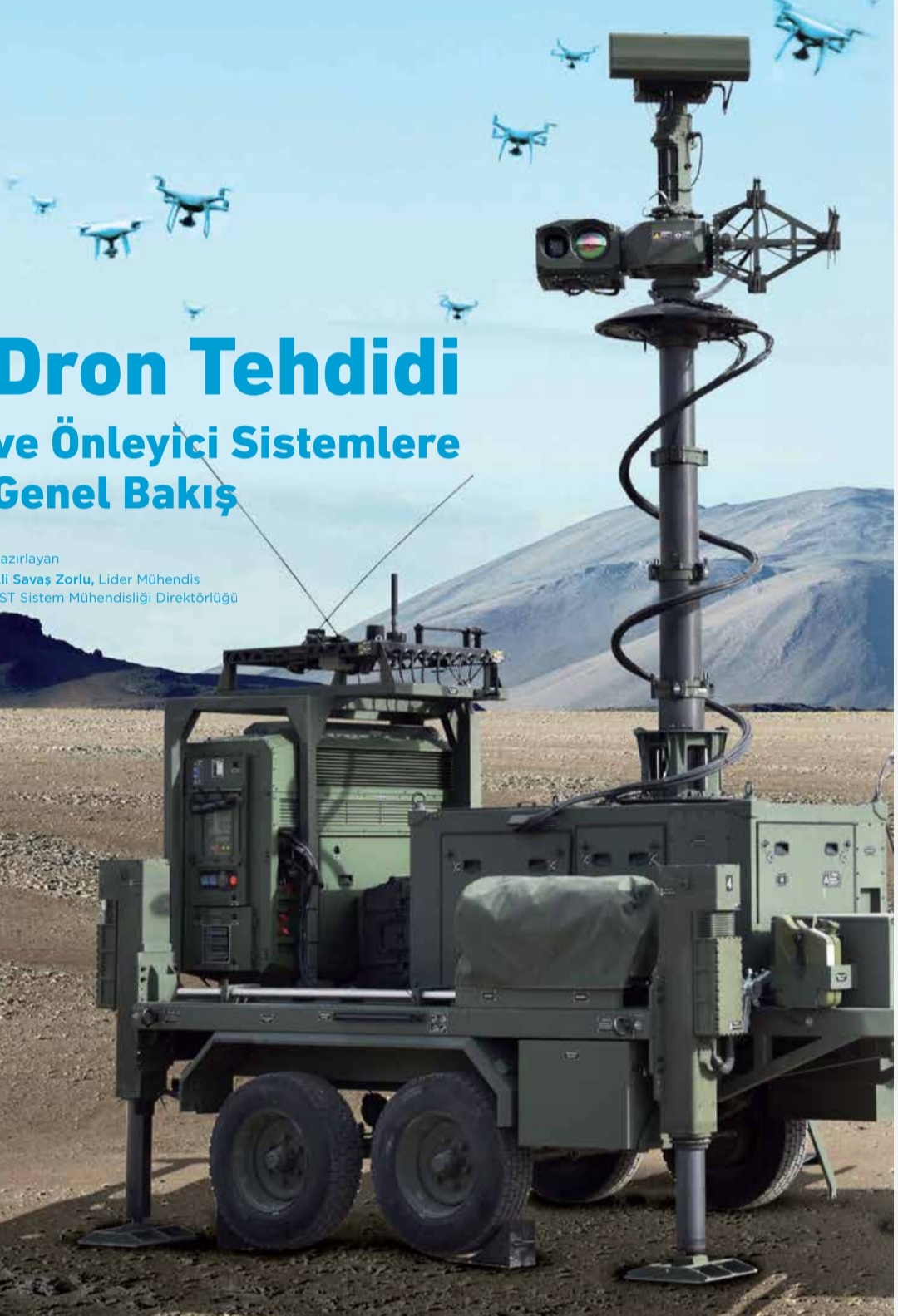

YARASA, the target's type information (Airplane, Helicopter, UAV, Missile, etc.) is predicted as probabilistic on the combined picture. With the use of multiple sensors and the processing of all information from the sensors, specific type classification of targets is also done. For example, with this capability, drone-class aircraft can be distinguished from other objects (birds, etc.), while predictions are made regarding the sub-class information of drone-type aircraft (DJI-Mavic, Parrot-Disco, etc.).

With this capability, which is based on artificial intelligence, the target type information of aircraft that may pose a threat to both long-range systems that make zone defense and short-range systems that make point/facility defense can be detected in a short time, thus enabling the system to operate an effective response process. The target classification system works whenever the main system is active and corrects itself continuously and automatically.



Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
Aselsan POTA, target identification (friendly, foe, neutral, suspicious) on the combined image etc.) information is predicted as probabilistic. Although STANAG 4162 compatible architecture is used, this system, which can work in integration with NATO command and control systems, also works with target classification systems. All useful information in the system or transferred to the system is used for diagnostic purposes. Intelligence and visual diagnostic data are processed by the system to strengthen the prediction of the given diagnosis. The diagnostic prediction is updated by using the enemy and suspicious event detection information to be obtained through the integrated system. The diagnostic system is capable of learning.
With this ability, both the region
Diagnostic information of aircraft that may pose a threat to long-range systems that make defense and mid-range systems that make point / facility defense can be detected in a short time, thus helping the system to operate an effective response process


Last edited:

Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey

With TDST, it is ensured that the threat situations of the targets in the operational environment are evaluated and the weapons to be engaged in order to eliminate the related threat are determined optimally, taking into account the entire operational environment. Threat-weapon matching is performed by scoring the air targets with the heuristic optimization algorithm specially developed for the auction.



Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
ASIST, data with increased accuracy and frequency is directed to weapons in order to prevent targets that pose a threat in the operational environment. Absolute interception efficiency is sustained by predicting the maneuvers or countermeasures to be implemented by the target to be avoided, thus creating uninterrupted, highly accurate and consistent guidance data. Forecasts are made in accordance with the types of targets. In this context, this ability works integrated with other abilities (YARASA, TDST, etc.). In current situations, even if there is a change in the target-weapon matching, the process of creating guidance data for the new target continues with the ability to adapt quickly.



Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
All these automation and decision support systems are developed for Turkish surface to air network centric air/missile/point defence systems. When these SAM projects are completed, the operational capabilities of TAF will be reached to high levels.


Kartal1

Experienced member
Lead Moderator
Messages
5,220
Reactions
106 19,415
Nation of residence
Bulgaria
Nation of origin
Turkey
All these automation and decision support systems are developed for Turkish surface to air network centric air/missile/point defence systems. When these SAM projects are completed, the operational capabilities of TAF will be reached to high levels.
Automation and decision support systems integrated into the command & control structures are the future of warfare. Fire support, CAS, air defence systems, reconnaissance and EW platforms integrated with AI automation and decision support systems that are working with the intelligence provided within the network and effective communication means helping into classifying, analyzing threats and providing advices on when and how to engage. This will help a lot the commanding staff in their time with taking decisions and will improve a lot the clarity of the picture of the whole war theatre. This command & control structure combined also with offensive means will be something that will bring our armed forces levels ahead of the armed forces of many developed countries. I really love the network centric warfare concept of the SSB and the Turkish Armed Forces.


Spook

Contributor
Messages
607
Reactions
2,106
Nation of residence
Albania
Nation of origin
Turkey






Aselsan YENER Ground-Penetrating Radar will enter service starting 2022. It can detect metal, nonmetal mines and IEDs. Radar has an modular design which allows it to be integrated to various different platforms like UGVs. Radar uses MIMO architecture. Can create high definition 2D and 3D imagery. Can work integrated with RF countermeasure systems. Can auto-calibrate itself to different terrain. Radar can also use SAR techniques for detection.
