Hey guys! I am picking up a possible contact!

(....no transponder response.... aselsan's advance algorithms at work....one second later.....it positively identify the object as dassault rafale )

Oh Damm...that is a bandit!
Did you guys picking up anything?

don't break radio silence by the way!
Use defencehub.live chat through secure data link!😂😂😂


TheInsider

Experienced member
Professional
Messages
4,055
Solutions
1
Reactions
34 14,443
Nation of residence
Turkey
Nation of origin
Turkey
The nose size is the last hole of the zurna, you can reduce the aesa according to the nose size, I'm talking about other systems. Anyway, maybe they'll tell the public how they did it.
Power delivery, space allocated, cooling holes for air intake for the cooling system everything is designed with specs provided by Aselsan. You will see Akıncı flying with AESA very soon after Aselsan delivered AESA radar to Baykar and many people will be surprised by the speed of integration.

Turkish airborne radar roadmap changed a lot since it is first introduced. The early roadmap included a mechanical radar a small AESA radar and a big AESA radar. Later mechanically steered radar is canceled. The rumors about the last update include a single AESA radar for all the platforms. We will see.

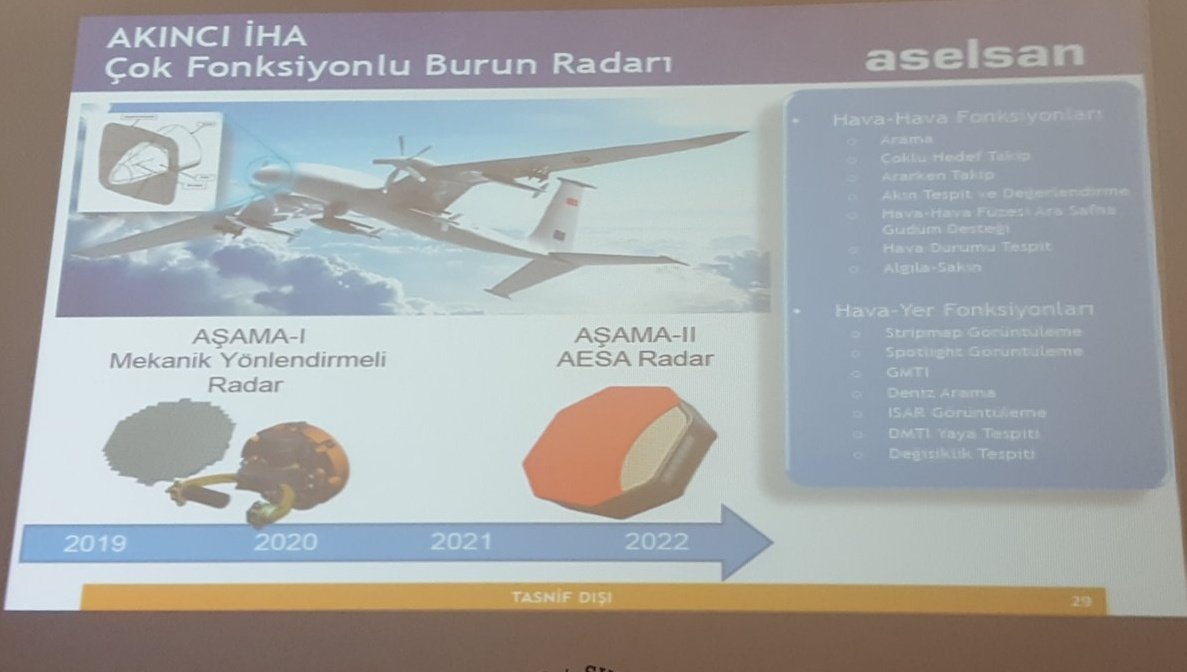

Early roadmap.

DokhE5bX0AApwaO.jpg:large


Updated roadmap



The latest Roadmap rumors include a single AESA for all platforms. SavunmaSanayist also made a piece of news indirectly confirming that.



"F-16 ÖZGÜR’de de Kullanılacak! Milli AESA Radar Tanıtıldı"​

It will be used for F-16 Özgür too. National AESA radar is presented

"Proje çerçevesinde üretilen radar, sadece F-16 modernizasyonunda değil, aynı zamanda İnsansız Hava Araçları’nda (İHA) da kullanılacak. Radarın ilk uygulaması ise AKINCI İHA’da gerçekleştirilecek."

The radar that is produced in the scope of the project will not only be used for F-16 modernization but will also be used for the UAVs too. The first application of radar will be realized on Akıncı UAV.

Note that the news doesn't say "proje çerçevesinde üretilecek radarlar" ( The radarS that will be produced in the scope of the project or mention any scaled-up/down version of the radar. It should have mentioned that because this is a bloody presentation of the radar itself.

I did not confirm this whatsoever but it was a rumor I heard a few months ago.

Last edited:

TheInsider

Experienced member
Professional
Messages
4,055
Solutions
1
Reactions
34 14,443
Nation of residence
Turkey
Nation of origin
Turkey
You can also see even at the very early stage of the radar project Baykar is involved and radar integration is taken into account for Akıncı and most of the calculations are done accordingly (Top left at the early roadmap).


AzeriTank

Contributor
Messages
711
Reactions
3 1,795
Nation of residence
Azerbaijan
Nation of origin
Azerbaijan
unlike MWIR, LWIR can detect trough cloud much better up to 50km. new EOTS has a LWIR.
another issue is even though you see the aircraft with thermal imagining, you cannot say its distance from you, its speed using thermal cameras, they normally do it using lazer tracking like tb2 does, but those also doesnt work well at sandy, rainy weather.


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,713
Reactions
91 8,984
Nation of residence
Bangladesh
Nation of origin
Bangladesh
another issue is even though you see the aircraft with thermal imagining, you cannot say its distance from you, its speed using thermal cameras, they normally do it using lazer tracking like tb2 does, but those also doesnt work well at sandy, rainy weather.
yes, but if you have ramjet BVR on board with a very very long range, you may wanna take the chance to engage it without proper firing solution.

but again, because of limitations of the passive/active detection capability dog fight will always exist between two peer even when you have sixth gen fighter flying around.

Last edited:

Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,713
Reactions
91 8,984
Nation of residence
Bangladesh
Nation of origin
Bangladesh
I am now wondering how Akıncı is going to supply 20kW and 30kW power, F-16 for example produces around 60kW energy overall, F-35 produces 160kW (and iirc F-22 is 120kW)
F22 has 260 kw power output.
One f119 creates 130kW.


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
I am now wondering how Akıncı is going to supply 20kW and 30kW power, F-16 for example produces around 60kW energy overall, F-35 produces 160kW (and iirc F-22 is 120kW)
They should prepare the TS1400 for Akıncı deployment for plenty of propulsion and avionics power.


Brokengineer

Committed member
Messages
239
Reactions
1 480
Nation of residence
Turkey
Nation of origin
Turkey
I am now wondering how Akıncı is going to supply 20kW and 30kW power, F-16 for example produces around 60kW energy overall, F-35 produces 160kW (and iirc F-22 is 120kW)
What should be the difficulty supplying 30kw or 42hp to a radar while least powerful version is 900hp combined.


AzeriTank

Contributor
Messages
711
Reactions
3 1,795
Nation of residence
Azerbaijan
Nation of origin
Azerbaijan
yes, but if you have ramjet BVR on board with a very very long range, you may wanna take the chance to engage it without proper firing solution.

but again, because of limitations of the passive/active detection capability dog fight will always exist between two peer even when you have sixth gen fighter flying around.
are you sure that you wanted to reply me? what i wrote an what you wrote are totally different


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,713
Reactions
91 8,984
Nation of residence
Bangladesh
Nation of origin
Bangladesh
are you sure that you wanted to reply me? what i wrote an what you wrote are totally different
it is more like my comment on sensors and their limitations in general rather than a specific reply to your post.

Last edited:

Bogeyman

Experienced member
Professional
Messages
9,192
Reactions
67 31,253
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey
I doubt Kızılelma will have a large AESA. F-16 AESA can be used on Kızılelma to lower the costs. This looks more like BURFIS
The functions of Bürfis have not been finalized yet. However, ASELSAN jointly designed the security architectures of the Özgür project and Kızılelma's AESA radar.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,466
Solutions
2
Reactions
115 24,655
Nation of residence
Turkey
Nation of origin
Turkey
The functions of Bürfis have not been finalized yet. However, ASELSAN jointly designed the security architectures of the Özgür project and Kızılelma's AESA radar.
BURFIS is for MMU, isn't it?
