EF radar locks at wide angle , could send A2A missiles from wide angle. More advantages in dogfight. İmagine F16 with stationary AESA versus EF with repositioned AESA antenna? İ would prefer EF .
ECRS radar that Typhoon has, comes in three different versions:

Ultimately, differing requirements and timelines led to Captor-E being subdivided into the ECRS Mk 0 (Kuwait and Qatar), Mk 1 (the definitive standard for Germany and Spain), and Mk 2 for the United Kingdom. Each of these radars introduces an additional level of capability, with ECRS Mk 2 being the most advanced.

The Leonardo Uk developed Mk 2 Radar that took over 10 years to be ready, has GaN/GaAs hybrid T/R modules. This radar has a lot more power and a far greater angle of swing than previous versions. It is claimed that the new technologies adapted in MK 2 will virtually make it impossible for enemy forces to escape detection be it air to air or air to ground.

One important claimed capability of the mk2 version is that, Eurofighter Typhoon will be able to locate and deny use of an adversary’s radar with a powerful electronic jamming attack, whilst staying beyond the reach of threats.

Saudi Airforce is requesting from the British this MK 2 version on the new EF2000s they are going to buy.



As Tranche 2 and Tranche 3 EF Typhoons can be retrofitted with this new Aesa Radar, Royal airforce is set to have them on all their TR2 & 3 planes.
I hope if we do have Typhoons as well, it must be with the MK 2 Radar fitted.

Last edited:

Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,409
Reactions
69 8,191
Nation of residence
Bangladesh
Nation of origin
Bangladesh
Here ground target was in front of F-35 so the radar could worked simultaneously in two mode.
F-35 is stealthy ( low observation from enemyradars) so it has different engagement procedures and maneuvers. There is no dogfight.


EF radar locks at wide angle , could send A2A missiles from wide angle. More advantages in dogfight. İmagine F16 with stationary AESA versus EF with repositioned AESA antenna? İ would prefer EF .

You don't need radar in WVR engagement. Specially after helmet mounted display. Pilot just have to look and its good enough for targeting.

(See the dogfight part.)


Bogeyman

Experienced member
Professional
Messages
8,978
Reactions
64 30,782
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey
MİHAL Project was successfully completed on time. The MİHAL laser approach sensor reading circuit, designed and produced at TÜBİTAK YİTAL, was tested by SAGE and achieved success beyond expectations.

When comparing the YITAL reading circuit with the existing reading circuit made with discrete elements, 7 times less noise level is achieved with the YITAL reading circuit. This enabled the missiles to lock on to the target from further away.


Zafer

Experienced member
Messages
4,590
Reactions
7 7,257
Nation of residence
Turkey
Nation of origin
Turkey
🎬 HIT1 ⃣
Moving unmanned target 🎯 ;
On #Bayraktar #TB2 , #ASELFLIR-500 marked,
#MAM -L hit.

🎬 HIT2 ⃣
Fixed target 🎯 ;
on #Bayraktar #TB2 , #ASELFLIR-500 marked from the air,
#KMC + #CİRİT hit from land.

✅ Fixed and moving land targets #destroyed with precision strike. 💥🎯

@aselsan 🤝 @BaykarTech 🤝 @roketsan

This can probably be used to target lower flying slower planes too using drop bombs. Toruk Maktu preying on Ikrans.

Last edited:

Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,249
Solutions
2
Reactions
101 23,493
Nation of residence
Turkey
Nation of origin
Turkey

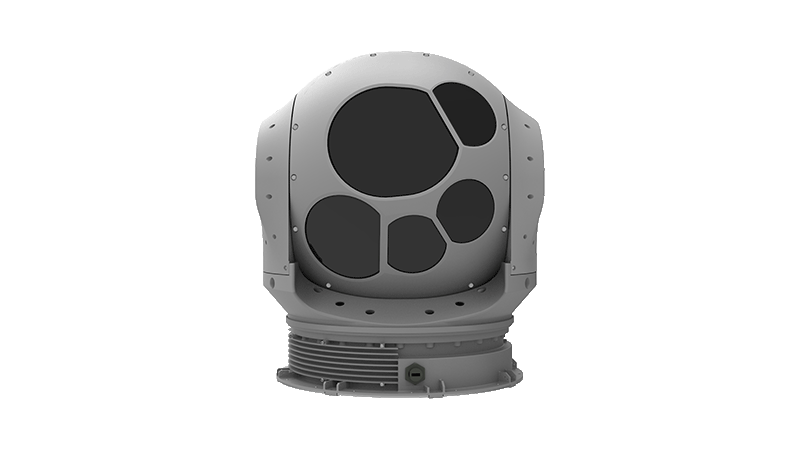

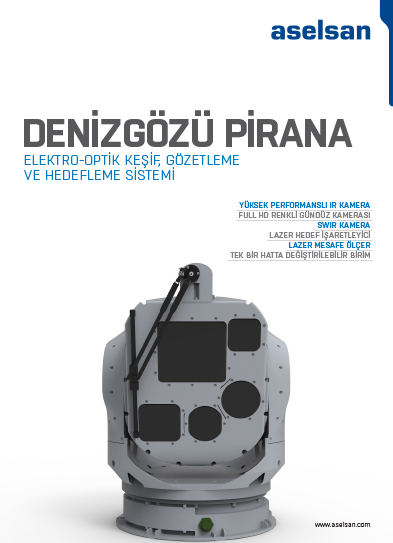

Denizgözü Piranha (AF400-D) has been updated with a flat front face:
Before:

After:

Last edited:

Turkic

Member
Messages
12
Reactions
44
Nation of residence
Turkey
Nation of origin
Turkey
Talking about AESA radars, does more T/R modules and higher power output mean longer range and higher resolution ? Or is there any other factors ? (Except of GaN-GaAs difference)


TheInsider

Experienced member
Professional
Messages
3,910
Solutions
1
Reactions
27 13,973
Nation of residence
Turkey
Nation of origin
Turkey
Talking about AESA radars, does more T/R modules and higher power output mean longer range and higher resolution ? Or is there any other factors ? (Except of GaN-GaAs difference)
More T/R modules do not necessarily mean longer range but it means higher resolution. Higher power output means longer range. Lower operational frequency means a higher range but lower resolution. Higher pulse repetition frequency means more range. A higher pulse width means more range.


DBdev

Committed member
Messages
298
Reactions
8 524
Nation of residence
Turkey
Nation of origin
Turkey
@TheInsider F-22 radar can see radar signals of all the F-35s flying below it through R modules while in passive mode without transmitting anything even when F-35 AESA (most modern hard to detect) are targeting other planes. Similar to Sentinel satellites seeing Sx00 radar signals from all the way from space but better since this is AESA.

This method is similar to submarines rarely sending a sonar ping and running sonar silent for days while constantly listening for enemy pings.
Will BURFIS receiver modules be able to scan the sky for enemy AESA radar signals and channel hopping encrypted communications even when they are not directed at KAAN?

Submarines can send a single pulse instead of max power continuous waves to detect other silent running submarines. Can KAAN do that single ping tactic against a silent F22?

A visual aid


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,409
Reactions
69 8,191
Nation of residence
Bangladesh
Nation of origin
Bangladesh
@TheInsider F-22 radar can see radar signals of all the F-35s flying below it through R modules while in passive mode without transmitting anything even when F-35 AESA (most modern hard to detect) are targeting other planes. Similar to Sentinel satellites seeing Sx00 radar signals from all the way from space but better since this is AESA.

This method is similar to submarines rarely sending a sonar ping and running sonar silent for days while constantly listening for enemy pings.
Will BURFIS receiver modules be able to scan the sky for enemy AESA radar signals and channel hopping encrypted communications even when they are not directed at KAAN?

Submarines can send a single pulse instead of max power continuous waves to detect other silent running submarines. Can KAAN do that single ping tactic against a silent F22?

A visual aid

The premise is wrong. Unless AESA beam is directed to you, no one is detecting anything.


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,409
Reactions
69 8,191
Nation of residence
Bangladesh
Nation of origin
Bangladesh
Microwave frequency strongly interacts with water molecules so residual reflections may be detectable.

Ah no, a better argument would be saying sidelobes, but still largely no.

Last edited:

DBdev

Committed member
Messages
298
Reactions
8 524
Nation of residence
Turkey
Nation of origin
Turkey
The premise is wrong. Unless AESA beam is directed to you, no one is detecting anything.
AESA isn't undetectable. It has lower probability since it is like a laser not a light bulb with side reflectors like older radars.

An actual F-22 pilot said these things about F22 in Quora. Couldn't find the exact post. But AESA is a narrow, focused wave like a laser is.

Yes you will surely notice when someone puts that laser right in to your eye but that doesn't mean modern cameras can't see the entire laser beam even when they are targeting something else or even when they are in a spectrum human eye can't see.


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,409
Reactions
69 8,191
Nation of residence
Bangladesh
Nation of origin
Bangladesh
AESA isn't undetectable. It has lower probability since it is like a laser not a light bulb with side reflectors like older radars.

An actual F-22 pilot said these things about F22 in Quora. Couldn't find the exact post. But AESA is a narrow, focused wave like a laser is.

Yes you will surely notice when someone puts that laser right in to your eye but that doesn't mean modern cameras can't see the entire laser beam even when they are targeting something else or even when they are in a spectrum human eye can't see.

RWR doesn't work like human eye or camera.


DBdev

Committed member
Messages
298
Reactions
8 524
Nation of residence
Turkey
Nation of origin
Turkey
RWR doesn't work like human eye or camera.
If you say so: This is what google says though.

"The receiver periodically scans across the frequency band and determines various parameters of the received signals, like frequency, signal shape, direction of arrival, pulse repetition frequency, etc."

Not different from a camera or an eye. Camera and eye can detect frequency (color) intensity and direction with sensitive cells. Radar is just a different frequency of the light, after all, that human eye is not sensitive to.

If a SAR satellite can see a narrowly focused but scattered radar waves from space, so can a receiver on an AESA radar.


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,409
Reactions
69 8,191
Nation of residence
Bangladesh
Nation of origin
Bangladesh
If you say so: This is what google says though.

"The receiver periodically scans across the frequency band and determines various parameters of the received signals, like frequency, signal shape, direction of arrival, pulse repetition frequency, etc."

Not different from a camera or an eye. Camera and eye can detect frequency (color) intensity and direction with sensitive cells. Radar is just a different frequency of the light, after all, that human eye is not sensitive to.

If a SAR satellite can see a narrowly focused but scattered radar waves from space, so can a receiver on an AESA radar.

You seems to have a misunderstanding of how radar emission and RWR work.
