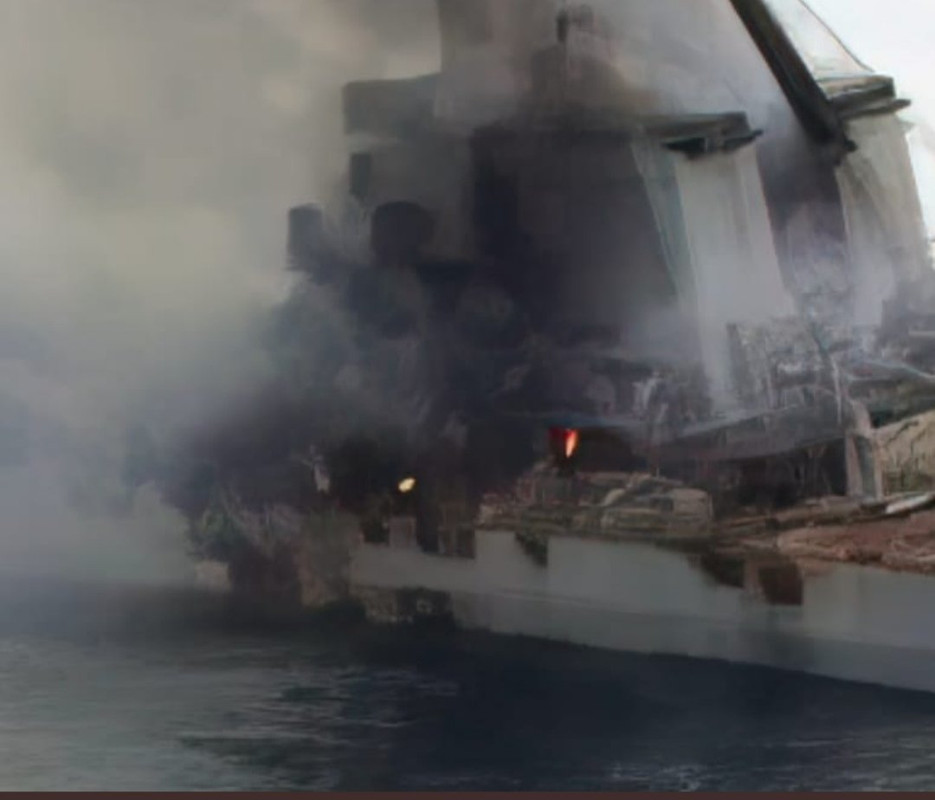

Something way nastier seems to have happened in that area, if these kind of pictures bear out @Anmdt



Nilgiri

Experienced member
Moderator
Aviation Specialist
Messages
9,494
Reactions
111 19,247
Nation of residence
Canada
Nation of origin
India
Credit to "Aylont1" on twitter

"An assessment of the leaked photo, provided of course that it has been hit by AShM"

FQoZNlAWQAcWrUp


UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,451
Reactions
30 4,295
Nation of residence
Turkey
Nation of origin
Turkey
Autonomous CIWS which is not bound to main radar and management systems seems vital for big warships.

Moreover old gen rotated PESA radars have appeared to be desperate against low flying cruise missiles.

Americans know their shit. They use 4 AESA plates for situational awareness. Also They use autonomous Phalanx CIWS.

IMHO Turkish frigates must have additional 4 compact AESA plates apart from main radar.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,249
Solutions
2
Reactions
101 23,487
Nation of residence
Turkey
Nation of origin
Turkey
So the Russian Navy has deployed 110 years old salvage ship Kommuna to recover 'some equipment' from the wreck of the Moskva;

She is equipped with British DSRV and possible other western rescue and salve equipments that enable this operation.

I am unsure about the depth of the location but it should be in shallow seas, also they will need to get their hand quick otherwise the rivers will dump aluvion in the spring time as the snow melts in the northern section, and the wreckage will be covered in mud in no time.

However, the rescue and salvage ship is not capable of lifting Moskva, it is there either to retrieve sensitive equipment (missiles, radar systems, crypto comms or whatever left out of these), recover bodies of the crew (some critical officers were known to be trapped) or so called 'nuclear warheads'. The ship is now, according to the law, is a legitimate target for operating in declared Ukranian EEZ without a permission and operates with no protection.

Yes the ship is exactly 110 years old since she had been laid out and have carried out dozens of succesfull salvage, tender, replenishing and rescue operations since she was deployed. She was bombed in WWII modernized and repaired several times that we can safely claim her reborn in 1960s thus technically being 50+ years old.


Not mentioned of these features but she is capable of, in addition to well known rescue operations;

- carrying out underwater welding - cutting (via alternative types of cut and weld) with robotic arms on tethered and remotely operated underwater vessels.

- conducting precise and sensitive lift operations by using set of ROVs to tighten the objects and safely lift.

Last edited:

UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,451
Reactions
30 4,295
Nation of residence
Turkey
Nation of origin
Turkey

Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,249
Solutions
2
Reactions
101 23,487
Nation of residence
Turkey
Nation of origin
Turkey
I don't know if these two Tweets have been posted already but two very interesting analyses from pepole with knowledge in this matter:


The first source skips a fact, naval ships usually have redundant main engine and power control rooms. Especially a ship large as Moskva has a longtidunal bulkhead which divides the ship along the length, has two main engine room and two independent power - generation room, two independent damage control rooms etc.

Altough i am not sure if Russians are keen on survivability as much as NATO members.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,249
Solutions
2
Reactions
101 23,487
Nation of residence
Turkey
Nation of origin
Turkey
Depth map of the Black Sea, note whereabouts of the Moskva wreckage is marked between 50 to 100 meters. Nothing but a baby's toy for the deployed salvage vessel. They are conducting sensitive recovery operation thus the critical asset is deployed.

We can safely assume when Russians have attempt to tow the Moskva they didn't intent to save here but to move her wreckage into deeper waters where they hold the authority or the control.



Nilgiri

Experienced member
Moderator
Aviation Specialist
Messages
9,494
Reactions
111 19,247
Nation of residence
Canada
Nation of origin
India
Got talking with a (retired) navy bud about how the target acquisition stuff works w.r.t aim point shift (regarding the sea state, chaff issues for example brought up in the CMO video posted above)

i.e where you choose a mode to input into missile to first shift its target from the center point etc.

But he told me from what he's seen it generally doesn't work so well @Anmdt @Exorcist @Joe Shearer @Baljak @AlphaMike et al.

Snippet:

The aim point changes with normal seekers is to handle chaff in distraction mode. That normally creates a very long and high target, that moves the center of the strongest return away from the actual ship. The aim point shift is to move the missile target back over the ship.

It doesn’t work very well. Too many variables you have to predict before firing and aren’t under your control.


Nilgiri

Experienced member
Moderator
Aviation Specialist
Messages
9,494
Reactions
111 19,247
Nation of residence
Canada
Nation of origin
India

The crew of RTS Moskva (121) was blind to and not ready for the Ukrainian missile attack that sank Russia’s Black Sea flagship, according to a new analysis of the April 13 strike reviewed by USNI News.

The review of images following the strike of the two Neptune anti-ship missiles from open-source naval analyst and retired Navy Capt. Chris Carlson told USNI News that the guided-missile cruiser did not have its fire control radars activated and could not see the threat from the two sea skimming weapons.

In the photo of Moskva after the strike, the radars “are in their normal stowed position,” Carlson told USNI News on Monday.

“If you look at the pictures of Moskva, when she’s just dancing around going from place to place, or she’s anchored as a showboat, those directors are all facing aft every time,” he said.

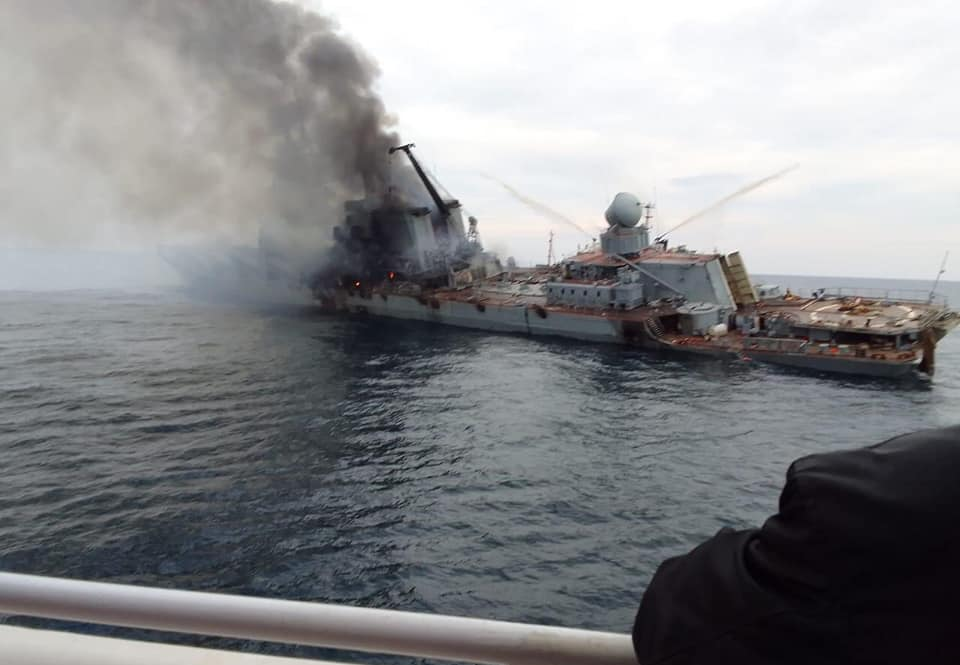

The analysis is based on images of the Slava-class guided-missile cruiser that emerged just after the attack off the coast of Ukraine from what the Ukrainians claim were two Neptune-class anti-ship missiles.


Analysis from Chris Carlson shows how the radars on the ship were in their stowed position in photos following the missile strike. Images used with permission
While the Russian warship had older point-defense systems, they would have been capable of countering the Neptune missiles based on a 40-year-old Soviet design, which was in turn based on the U.S. Navy’s Harpoon anti-ship missile, he said.

“This is like Harpoon. It’s a small missile. Its warhead is about 145 kilograms, travels less than 10 meters off the deck [and has] radar homing,” Carlson said. “This is not, shall we say, a stressing threat for air defense systems. It’s not supersonic.”

In particular, the radar system that would have directed Moskva’s OSA-M surface to air missiles to counter the Ukrainian missiles appears to not have been active with its emitters stowed, based on the photograph.

“If you’re not running it, your point defense [surface to air missiles] are not going to be playing,” Carlson said.

In addition, on Moskva, “you’ve got old stuff, which means it’s temperamental. It’s hard to maintain, and at-sea maintenance has not been a Russian strength.”

While it’s unclear from the photos published from the Russian MoD, the cruiser’s role as part of the air defense mission in the Black Sea would likely mean its two main air search radars were operating, Carlson told USNI News following an earlier version of the post. However, the MR-710M Fregat-M Flag MR-800 Flag air search radars would have had a hard time to detect the wavetop skimming Neptunes. Even if they had detected the missiles, the crew did not react time to employ defensive weapons as the fire control radar were still stowed according to the photo, Carlson said.

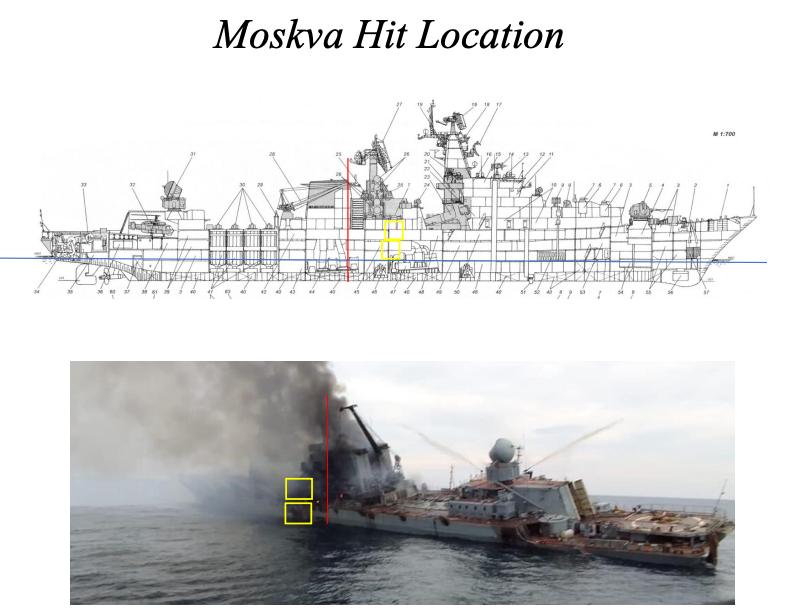

Location of where Moskva was hit. Images used with permission
Based on the photographs that circulated following the strike, the two Neptunes hit the warship near its most vulnerable point: the ship’s main propulsion spaces, dead center of the ship, just above the waterline.

“A missile hit in the forward engine room would very likely cause significant damage to the cruise gas turbines and steam turbines and could potentially distort the main shaft sufficiently to cause damage to the reduction gears of the boost turbines,” Carlson wrote. “Heavy damage in the post of energy and survivability compartment could cause a loss of all electrical power, as well as potentially disabling the ship’s automated damage control capability.”

Combined with the Russian Navy’s uneven training for sailors in damage control, Carlson said the photographs lend credence to Ukraine’s explanation that they were able to target, fire missiles and hit the target with their own resources.

Following the initial strike, a Telegram channel with ties to the Russian mercenary Wagner Group said the crew observed Ukrainian Bayraktar TB2s near the ship. The Ukrainian Navy began acquiring the combat drones starting in the last year and they are equipped with an electro-optical system that’s capable of providing the Neptune command system enough information via datalink to target the missiles.

“All they have to do is laze once or twice and then they have a feasible targeting solution,” Carlson told USNI News.

Shortly after the sinking, reports emerged that a U.S. Navy P-8A Poseidon was in the area before the attack, suggesting that the U.S. may have provided detailed targeting information to the Ukrainians to target the ship.

Carlson said while the U.S. could give Ukrainian forces a general idea of where the ship was, it could not provide necessary tracking information to the Neptunes because P-8s datalinks were incompatible.

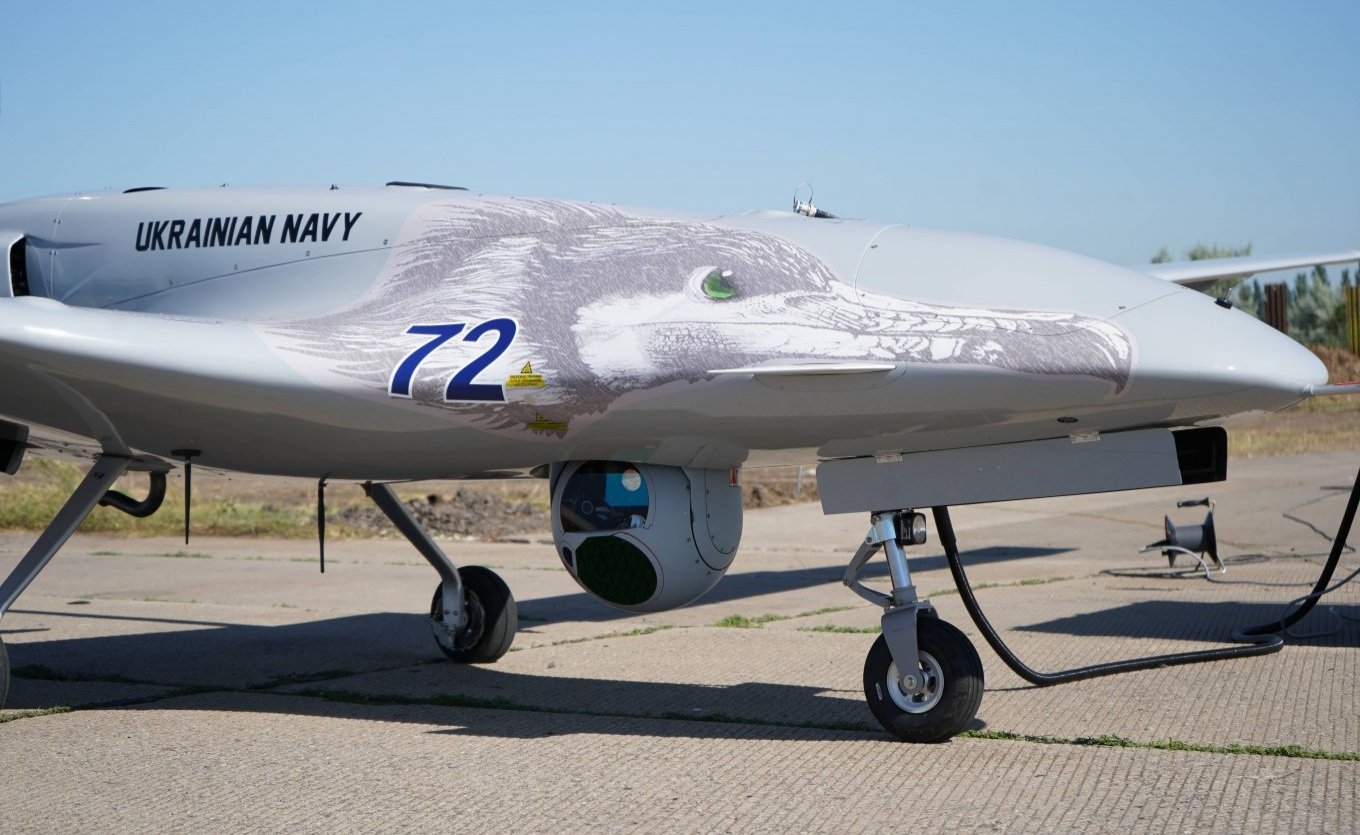

Ukrainian Navy TB2
“There’s no way the P8 has the ability to send direct data via data link right to the Ukrainians,” he said. “You can’t do it by voice. It’s got to be done through a data link.”

On Thursday, following a Wednesday story from The New York Times on the targeting of Russian general officers, Pentagon spokesman John Kirby said the U.S. intelligence sharing with the Ukrainians has limits.

“We do not… participate in the targeting decisions of the Ukrainian military. Ukrainians have quite frankly, a lot more information than we do. This is their country, their territory, and they have capable intelligence collection abilities of their own,” he said. “Ukraine combines information that we and other partners provide with the intelligence that they themselves are gathering on the battlefield and then they make their own decisions, and they take their own actions.”
