Most importantly according to Gürcan Okumuş, It will be able to house SOM-J inside the internal weapons bays.


Zapper

Experienced member
India Correspondent
Messages
1,716
Reactions
10 936
Nation of residence
United States of America
Nation of origin
India
Probably 8 missiles internal and 6 external hardpoints.
8 internal is pretty big number. Even the J-20 being one of the largest 5th gen fighter can only accommodate 4 AAMs (PL series) in it's internal weapons bay with another 4 external hardpoints



The length and wingspan of J-20 & TFX are identical though TFX is taller while J-20 has more wing area. Do you think TFX will have double racked missiles to fit 8x given it's height? but if that's the case, the bulkier body might possible compromise stealth to some extent


Nilgiri

Experienced member
Moderator
Aviation Specialist
Messages
9,738
Reactions
118 19,732
Nation of residence
Canada
Nation of origin
India
8 internal is pretty big number. Even the J-20 being one of the largest 5th gen fighter can only accommodate 4 AAMs (PL series) in it's internal weapons bay with another 4 external hardpoints

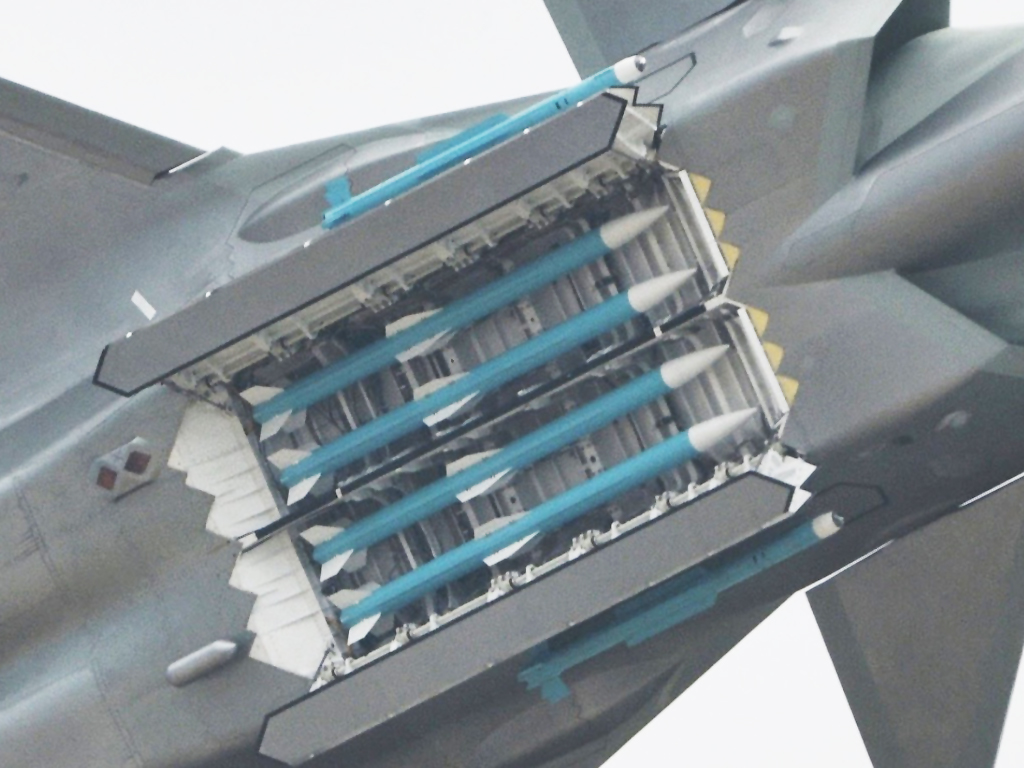

View attachment 38730

The length and wingspan of J-20 & TFX are identical though TFX is taller while J-20 has more wing area. Do you think TFX will have double racked missiles to fit 8x given it's height? but if that's the case, the bulkier body might possible compromise stealth to some extent

J-20 has 4 (main bay) + another 2 (one on each side in the rotation dolley thing they have there in that side volume) = 6 "internal"

The extra 2 in side are IIRC shorter range AAM.

But there is talk that J-20 can stagger 6 in the main bay if they incorporate another mechanism for it. so 6 + 2, similar to F-22.

TF-X will definitely want to have 8 (similar 6 + 2) at its current volumetric concept.


TR_123456

Experienced member
Staff member
Administrator
Messages
5,063
Reactions
12,585
Nation of residence
Nethelands
Nation of origin
Turkey
8 internal is pretty big number. Even the J-20 being one of the largest 5th gen fighter can only accommodate 4 AAMs (PL series) in it's internal weapons bay with another 4 external hardpoints

View attachment 38730

The length and wingspan of J-20 & TFX are identical though TFX is taller while J-20 has more wing area. Do you think TFX will have double racked missiles to fit 8x given it's height? but if that's the case, the bulkier body might possible compromise stealth to some extent
Has to be double racked but the body doesnt look bulky enough.
We need to wait for 2023 to see what it will be.


Zapper

Experienced member
India Correspondent
Messages
1,716
Reactions
10 936
Nation of residence
United States of America
Nation of origin
India
J-20 has 4 (main bay) + another 2 (one on each side in the rotation dolley thing they have there in that side volume) = 6 "internal"

The extra 2 in side are IIRC shorter range AAM.

But there is talk that J-20 can stagger 6 in the main bay if they incorporate another mechanism for it. so 6 + 2, similar to F-22.

TF-X will definitely want to have 8 (similar 6 + 2) at its current volumetric concept.
6 seems feasible but 8 is hard to fit horizontally next to each other unless vertically stacked which will result in a bulkier undercarriage

AMCA's IWB is shown in the below picture


Last edited by a moderator:

Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,225
Reactions
138 16,109
Nation of residence
United Kingdom
Nation of origin
Turkey
TFX internal bays’ original size may have not allowed many missiles. In fact even SOM-J would not be accommodated. But Tubitak Sage MD has stated clearly that the SOM-J will be carried inside. That is a big missile. So the internal bays’ design must have changed. Until March 2023, we can only speculate.
Also you can’t really compare PL15 with Aim-120 amraam. PL15 is a 4m long 20cm diameter missile, where as amraam is 3.7m long and 18cm diameter.
Also if we are thinking of a meteor like ramjet missile, then Meteor is even very slightly smaller than amraam. So, it should fit in to the same bays.
What is most interesting is that , TUSAS’s site states that:
“Precise and accurate weapon firing from internal weapon bays at high/supersonic speed”
That is something F35 pilot has to think twice, as supersonic speeds damage the plane’s coating and the plane cannot open doors above 1.2 Mach at altitude. Plus at or below 25000ft it has to slow down drastically before opening bay doors due to over heating.
We also need to remember that all our dimensions and weapon platforms have to be in line with NATO standards for interoperability.

Last edited:

Lonewolf

Contributor
Messages
511
Reactions
297
Nation of residence
India
Nation of origin
India
TFX internal bays’ original size may have not allowed many missiles. In fact even SOM-J would not be accommodated. But Tubitak Sage MD has stated clearly that the SOM-J will be carried inside. That is a big missile. So the internal bays’ design must have changed. Until March 2023, we can only speculate.
Also you can’t really compare PL15 with Aim-120 amraam. PL15 is a 4m long 20cm diameter missile, where as amraam is 3.7m long and 18cm diameter.
Also if we are thinking of a meteor like ramjet missile, then Meteor is even very slightly smaller than amraam. So, it should fit in to the same bays.
What is most interesting is that , TUSAS’s site states that:
“Precise and accurate weapon firing from internal weapon bays at high/supersonic speed”
That is something F35 pilot has to think twice, as supersonic speeds damage the plane’s coating and the plane cannot open doors above 1.2 Mach at altitude. Plus at or below 25000ft it has to slow down drastically before opening bay doors due to over heating.
We also need to remember that all our dimensions and weapon platforms have to be in line with NATO standards for interoperability.
F 35 was designed to release missile at mach 1.5+ ,but all these restrictions arise during flight testing , but f 35 's coat is quite maintenance intensive so that can be a factor .

Any ground based firing of gokhan missile ? Any model ?


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,458
Solutions
2
Reactions
114 24,635
Nation of residence
Turkey
Nation of origin
Turkey
They still haven't told much or anything about MUMT capability of Hurjet or TF-X, it is expectable for TF-X (due to the wingman concept) but MUMT can also be useful for ground strikes or using UAVs as forward sensors for operational planning. That will for sure raise the chances of Hurjet in exports;

A light combat aircraft that can up-link with UAVs to monitor the ground with SAR / EO / IR payload, or use some IRST to scan and acquire a simple aerial image before arriving at the location.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,225
Reactions
138 16,109
Nation of residence
United Kingdom
Nation of origin
Turkey
F 35 was designed to release missile at mach 1.5+ ,but all these restrictions arise during flight testing , but f 35 's coat is quite maintenance intensive so that can be a factor .

Any ground based firing of gokhan missile ? Any model ?
Re: f35
As well as increasing the RCS of the plane while opening weapon bay doors (apparently for over 4 seconds) , when the plane is at 25000ft or lower there is significant overheating problem of the surfaces If the plane has flown for more than 10 minutes at that altitude, which hinders the operation of weapon bay doors.
Re: Gökhan
According to Tubitak MD there were well over 200 firing tests carried out last year. From little bit of news that trickles out to the media, we know that they are producing a liquid fuel powered ramjet. He has said that Ramjet is almost ready and they have turned their attention to the development of the scramjet. The missile is going to be a liquid fuel powered (most likely Gel Based) ramjet.
