maybe A-1 stands for Azerbaijan and it's first Azeri aerial platform.

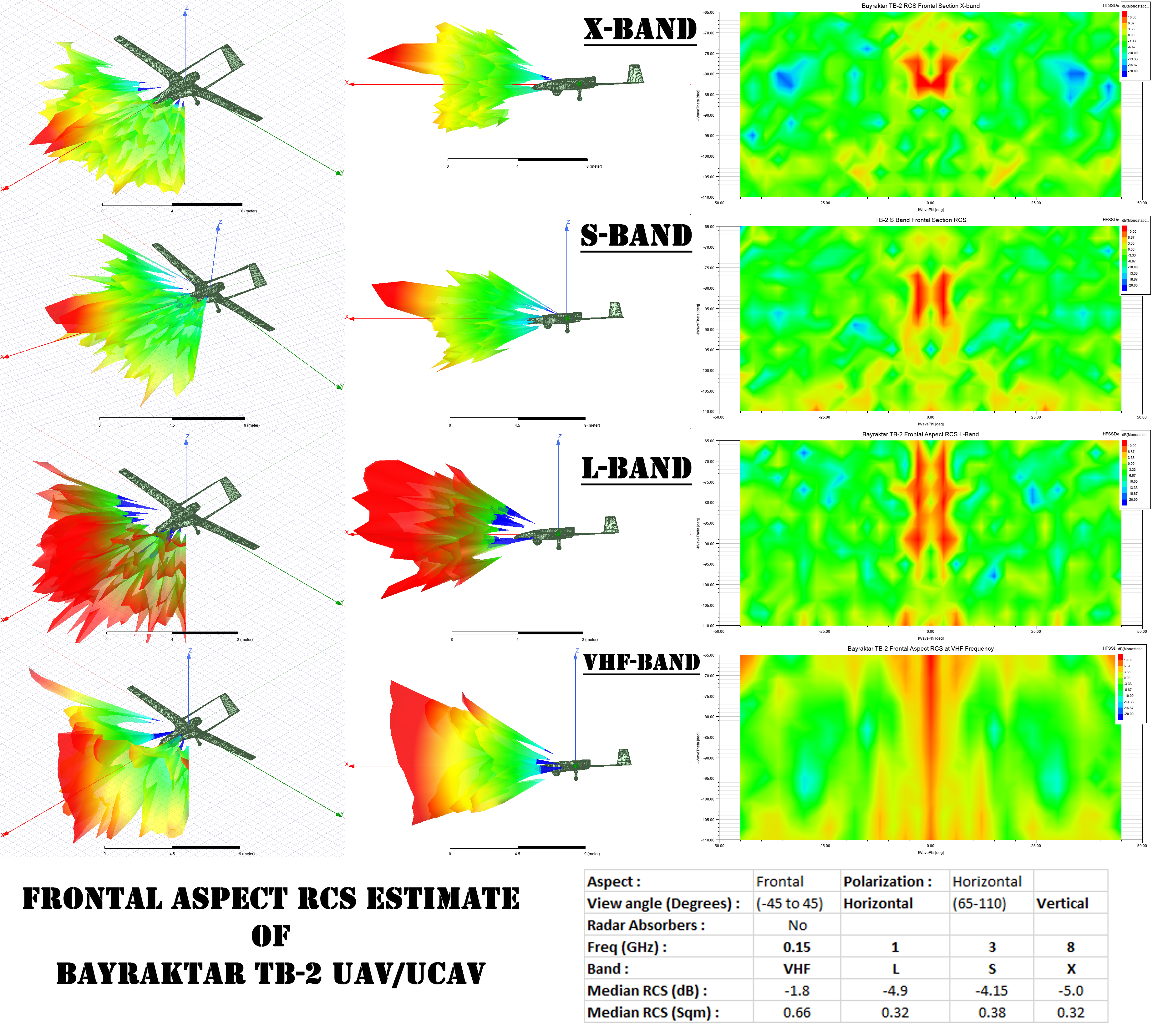

Interesting. In the twitter thread he told he used something called “perfect electric conductor” for the surface. I think it means something like a metal surface. With composite body it would be different though, worse or better…
It will of course be better.
Depends on the composite type. If it’s radar transparent the internal parts will reflect the energy.
A-1, a dedicated aerial platform for research purposes ? I see weapons payload on it, there's a ton of munitions they have to integrate onto the platform to which safe/max-min range/etc/etc engagement envelops would have to be established.
On the other hand
Lol, it is not. TB2 is not covered with a radome.
They would most certainly use additives to absorb or diffuse incoming radar. It is not too difficult as a lot of RF engineers use similar materials to reduce EMC.
Most logical and I agree. However just to play devil’s advocate imagine a flat perfect plate at some degree that reflects most of the energy away from the radiator versus a similar plate at the same angle with a different material that slightly leaks energy and has a big irregular reflector behind it. Most likely as you said the overall RCS could be lower with absorbent materials but this direction of the reflected energy may change.
I thought the same too but could not decide:
I thought the same too but could not decide:
- the camera movement and camera angles are a bit strange like the previous TB2 CATS video. (Servo response to user inputs, stabilization quality and target selection may affect this behavior)
- there is a periodic judder similar to TB2 CATS footage
- image is OK to pass as CATS, not very impressive with a bit of blur
The reason I can’t decide is:
- don’t know if the judder is from twitter etc.
- why they don’t show the CATS?
Maybe they want us to focus on TB2 or prevent criticism on image quality by not showing the type or symbology (which is OK to me but you know nitpicking people). If somebody complains about imported cameras reveal that it was CATS for internet likes
I really don’t care Russians.
Well the landing gear layout doesn't fit TB-3's purpose. Still looks like a TB-2 to me. The TB-3 is capable of landing on carriers, remember. If you look at the renders Baykar published, you can clearly see the difference. Looking at this pic again, the main landing gears don't seem to be retractable. That is again, as far as I know, not the case with the TB-3.
TB2 is older than the one you linked. Lots of companies have copied the TB2 design now.
