Due to their extremely high speeds until the very last moments, the HGVs are most difficult to be intercepted by anti missile systems. Ground radar stations are capable of detecting small projectiles at around 300 kilometres. Most likely, however, the course of the trajectory cannot be determined because “most” of today’s radar systems only ensure tracking of an object for speeds of less than 1,000 metres per second and a predetermined trajectory.

HGV has physical limitations on how much it can maneuver without sacrificing its range. Modern radars like LTMADS or GF300 can provide weapon quality tracks against hypersonic weapons.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,185
Reactions
136 15,806
Nation of residence
United Kingdom
Nation of origin
Turkey
How are the hypersonic glides guided?
Very good question.

One of the most challenging and demanding parts of the HGV flight is the application of reliable and effective guidance to the vehicle.

Due to high temperature environment a special care has to be taken to overcome problems especially during gliding and terminal stages.

As a good deal of the glide motion incorporates uneven wave-riding flight, it creates a challenge to use effective guidance. During wave-riding, the glide vehicle is subjected to a number of heating-up and cooling down cycles, as well as a bumpy and at times intermittent uncontrollable ride, that causes difficulties for effective guidance.

But with new digitally controlled surfaces and computer programmes, many tests have been performed whereby as an example in one case, after 6000km of flight, the HVG has hit its target with precision.



UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,564
Reactions
36 4,433
Nation of residence
Turkey
Nation of origin
Turkey

Screenshot-2023-12-20-at-3.53.29 PM-1024x583.png





For now I would prefer scramjet powered hypersonic missiles rather than gliders.

Last edited:

Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,185
Reactions
136 15,806
Nation of residence
United Kingdom
Nation of origin
Turkey
For now I would prefer scramjet powered hypersonic missiles rather than gliders.
A Scramjet engine powered hypersonic missile, if flying through dense atmospheric layers will be subjected to very acute temperature increases at boundary layers due to air molecules ahead of the hypersonic structure are decelerated across the bow shock, and the converted kinetic energy creates very high temperatures at the leading edges.

At lower altitudes, the ambient pressure and density are so much higher that the stagnation and viscous temperature effects are exacerbated.


Typically a re entry vehicle travelling at 6 Mach may generate tip temperatures of 1300Kelvin at 100Km altitude, could have tip temperatures of 2300Kelvln at 10Km altitude.




Scramjet powered missiles, to be effective, have to travel at comparatively lower altitudes and hence denser atmospheric layers. They have to achieve 5 to 10 Mach speeds at these altitudes. This brings with it, a lot of technical obstacles and difficulties to overcome. Materials Science plays a big part in solving these problems. Tungsten, reinforced carbon and carbon composites are used at the affected tips and edges to withstand these high temperatures.

Theoretically a scramjet engine can operate at a maximum altitude of 75km. But lower the flight altitude, lower the chances of detection. However lower the altitude, higher the temperature created limitations.

Most importantly, as Scramjet powered missiles have to travel through comparatively thick layers of atmosphere, they are limited by the fuel they carry. Hence much shorter ranges (less then 10th of) than a HGV.

Below is an interesting article on Zircon, the Russian so called hypersonic scramjet powered cruise missile, and the technical challenges it faces.


Sanchez

Experienced member
Moderator
Think Tank Analyst
DefenceHub Diplomat
Messages
2,137
Reactions
72 9,578
Nation of residence
Turkey
Nation of origin
Turkey
We hadn't heard from Kuzgun-SS in a while, probably since the Aksungur test in march.


UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,564
Reactions
36 4,433
Nation of residence
Turkey
Nation of origin
Turkey

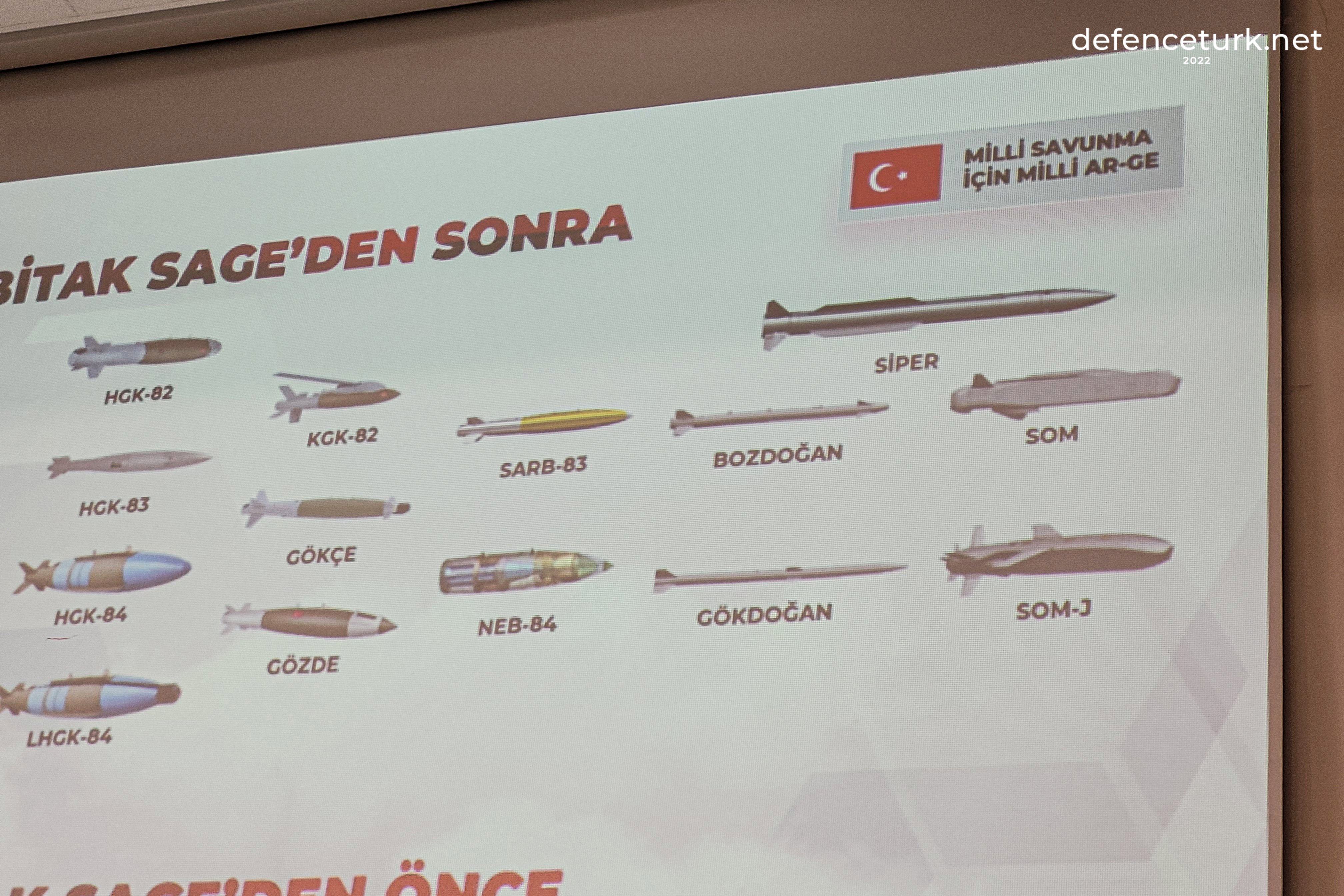

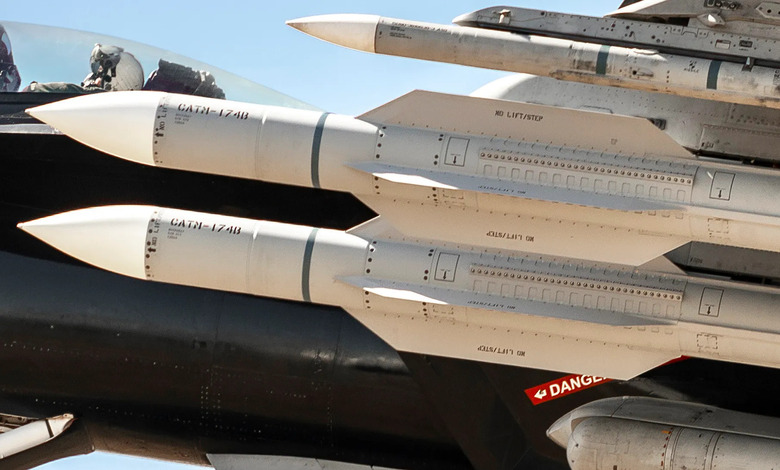

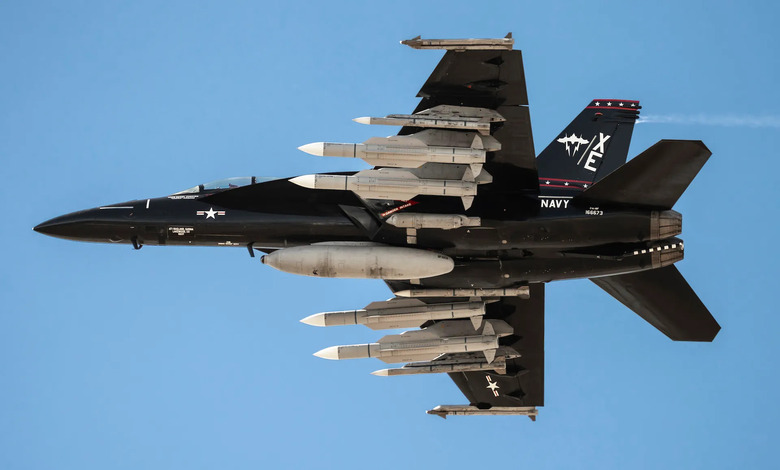

Could we see A 2A Variant of SIPER like Americans did with SM-6?



For comparison with Gökdoğan and Bozdoğan

Last edited:

uçuyorum

Contributor
Messages
888
Reactions
12 1,444
Nation of residence
Turkey
Nation of origin
Turkey

BaburKhan

Well-known member
Messages
430
Reactions
5 1,000
Website
strategicreviewturkey.blogspot.com
Nation of residence
Germany
Nation of origin
Germany

somegoodusername

Active member
Messages
116
Reactions
1 202
Nation of residence
Turkey
Nation of origin
Turkey
Well pakistan has a long range a2a missile and we merged our A2A programs, so like could it involve a new joint long range a2a missile rather than siper based system?
Mate, get your information from more, much more reliable sources. Where the hell it says we merged our A2A missile programs with Pakistan. Pakistan is no where that close defence partner of Turkey.


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,640
Reactions
90 8,771
Nation of residence
Bangladesh
Nation of origin
Bangladesh
Mate, get your information from more, much more reliable sources. Where the hell it says we merged our A2A missile programs with Pakistan. Pakistan is no where that close defence partner of Turkey.

It was actually reported here.

Official sources stating that,Turkey and Pak will collaborate on A2A missiles.


TR_123456

Experienced member
Staff member
Administrator
Messages
5,000
Reactions
12,351
Nation of residence
Nethelands
Nation of origin
Turkey
It was actually reported here.

Official sources stating that,Turkey and Pak will collaborate on A2A missiles.
Yes collaborate but where does it say Pakistan has a A2A missile?
They need our help not the other way around.


I_Love_F16

Contributor
France Correspondent
Messages
796
Reactions
10 1,645
Nation of residence
France
Nation of origin
France
The Question is, can the Range of Gökhan increased till to 400 km to use it against high Value Assests like Tanker, AWACS &MPA ?

Well, neutralizing an air target 400 km away is questionable to begin with. Is there any evidence that shows that it is possible ?


BaburKhan

Well-known member
Messages
430
Reactions
5 1,000
Website
strategicreviewturkey.blogspot.com
Nation of residence
Germany
Nation of origin
Germany
Well, neutralizing an air target 400 km away is questionable to begin with. Is there any evidence that shows that it is possible ?

It's possible with Network centric Warfare, the Navy use the AN/ASQ-228 ATFLIR POD. With a maximum Range of 800 km ALP-300G can aquire the Target.
