It all depends on how big a canister size MIDLAS can accommodate.

If MIDLAS is same size as MK41 VLS System, then even Siper Block-1 will not fit in dual packed; never mind quadpacked.

SM2 missile is 34.3 cm in diameter. And it only just manages to fit inside MK41 as a dual packed missile. (pls see below)
MK41 has 26 x 26 inch (66 x 66 cm) dimensions. But can only have available space of 21 x 21 inch (53.4 x 53.4 cm) for missiles.
In the SM2’s case, 34.3 x 34.3 cm in dual packed; In ESSM’s case 25.4 x 25.4 cm in quad packed .

Our Siper Block-1 is 37 cm in diameter. The canister size is given as 85 x 80 cm. 42cm diameter missile should, logically, fit in to that canister in dual packed form. But we do not know if the canisters they are quoting, are also to be used in our VLS.

May be @Anmdt can shed some light in to this dilemma.

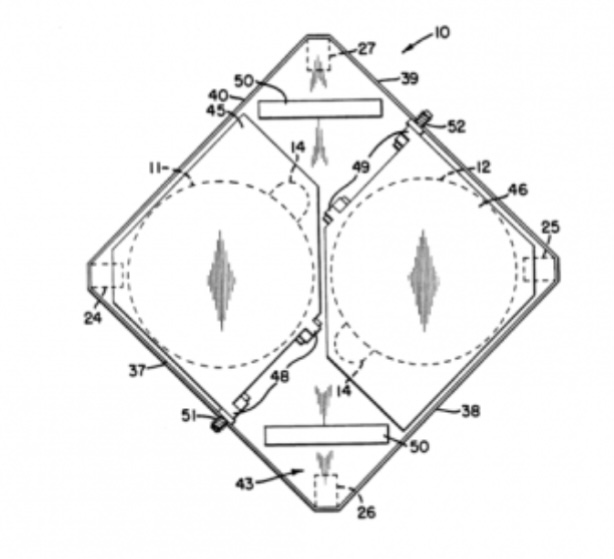

SM2 DUAL PACKED in MK41

View attachment 70881

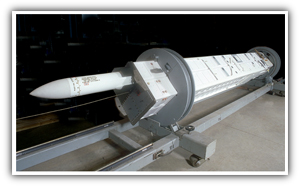

ESSM QUAD PACKED in MK41 VLS

View attachment 70882 View attachment 70883
For Siper B1 it is the booster adopted from Atmaca AShM that occupies the diameter, if we actually look at the actual missile dimensions in-flight, i think it has nearly the same dimensions as Hisar-D / Hisar-O RF, thus if modified could be quadpacked.

But since Hisar-D B1 and B2 inherits all the guidance mods that Siper B1 has, and actually holds more for illumination and data link, it is more logical to make an extended range Hisar-D B2 with an addition of booster, which also naturally will be quadpackable.

Navy has never demanded a dual or quad packable Siper B2, it was never meant to be (i have mentioned it here several times even when trusthworthy sources mentioned a quadpacked or dual packed Siper B2). Navy has never demanded that, Roketsan has never attempted that. I am wondering how we got to a point where we discuss dual/quadpacking a huge missile. At minimum it was going to be SM-1/2, but we have got a monster.

Not even dual packed...Siper B2 too big, much bigger than SM-2...most likely more than 1 tones

i think we will see much more than 150km, when tests end..
It is not the range but the altitude we will be discussing.


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,725
Reactions
91 9,007
Nation of residence
Bangladesh
Nation of origin
Bangladesh
It is not the range but the altitude we will be discussing.

Interesting. It is already 30km. SM-6 has 33km. How SIPER block-2 with conventional control surfaces goes above that? From what I read, at those altitude atmosphere become much thinner rendering conventional control surfaces ineffective.


Chocopie

Contributor
South Korea Correspondent
Messages
634
Reactions
35 2,272
Nation of residence
Germany
Nation of origin
South Korea
It all depends on how big a canister size MIDLAS can accommodate.

If MIDLAS is same size as MK41 VLS System, then even Siper Block-1 will not fit in dual packed; never mind quadpacked.

SM2 missile is 34.3 cm in diameter. And it only just manages to fit inside MK41 as a dual packed missile. (pls see below)
MK41 has 26 x 26 inch (66 x 66 cm) dimensions. But can only have available space of 21 x 21 inch (53.4 x 53.4 cm) for missiles.
In the SM2’s case, 34.3 x 34.3 cm in dual packed; In ESSM’s case 25.4 x 25.4 cm in quad packed .

Our Siper Block-1 is 37 cm in diameter. The canister size is given as 85 x 80 cm. 42cm diameter missile should, logically, fit in to that canister in dual packed form. But we do not know if the canisters they are quoting, are also to be used in our VLS.

May be @Anmdt can shed some light in to this dilemma.


SM2 DUAL PACKED in MK41

View attachment 70881

ESSM QUAD PACKED in MK41 VLS

View attachment 70882 View attachment 70883
I think you‘re mistaken. This dual-pack patent was never clearly meant for SM-2 dimensions afaik. Just a dual-pack canister concept afaik.

In practice a MK41 VLS (tactical or strike length) cell has a single SM-2, SM-3 or SM-6 installed. There’s no room for more than 1 missile of these sizes. Only slimmer ESSM are quad-packed in a MK41 cell.

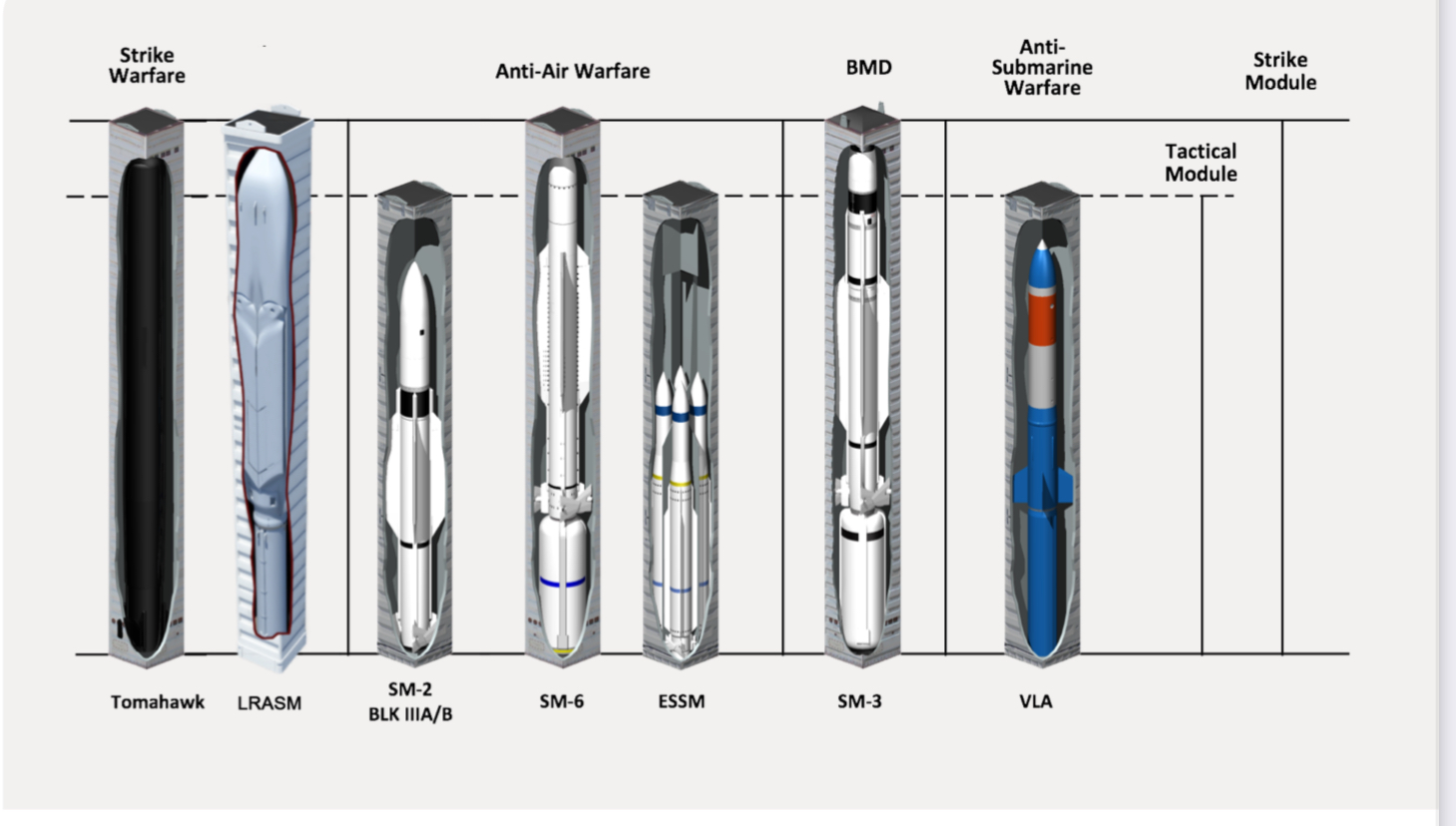

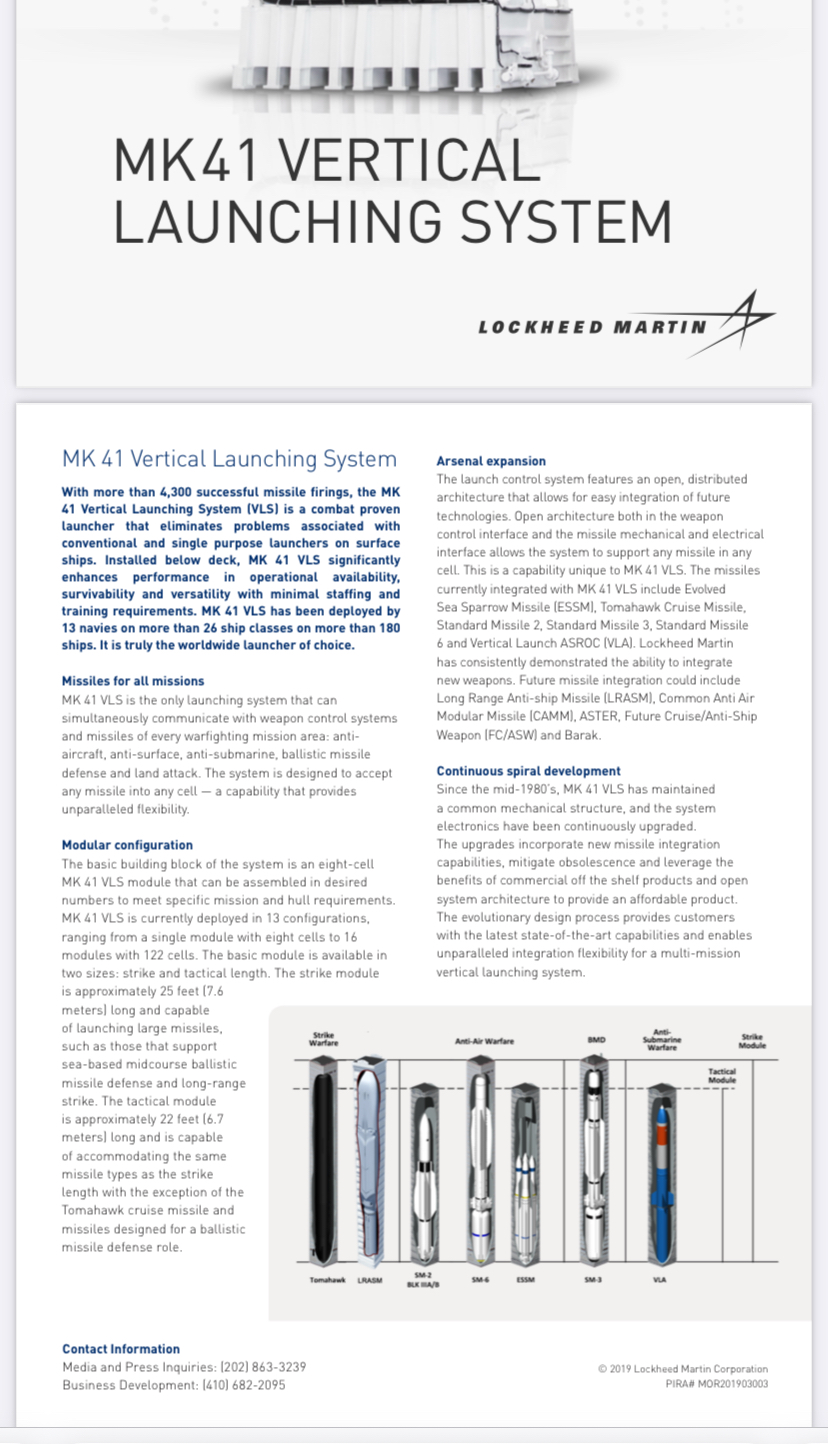

see LockMart brochure and the link as sources:






dBSPL

Experienced member
Think Tank Analyst
DefenceHub Ambassador
Messages
2,260
Reactions
92 11,652
Nation of residence
Turkey
Nation of origin
Turkey
Interesting. It is already 30km. SM-6 has 33km. How SIPER block-2 with conventional control surfaces goes above that? From what I read, at those altitude atmosphere become much thinner rendering conventional control surfaces ineffective.
Even more interesting is the Siper Product-3 missile, which we'll probably see its design in 2025. Press specs on the Product-2 suggest that it could almost be the equivalent of the SM-6. With the third batch of missiles, I wonder if efforts will expand to ICBM interception? I mean, you know, even more altitude!


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,480
Solutions
2
Reactions
118 24,753
Nation of residence
Turkey
Nation of origin
Turkey
I think you‘re mistaken. This dual-pack patent was never clearly meant for SM-2 dimensions afaik. Just a dual-pack canister concept afaik.

In practice a MK41 VLS (tactical or strike length) cell has a single SM-2, SM-3 or SM-6 installed. There’s no room for more than 1 missile of these sizes. Only slimmer ESSM are quad-packed in a MK41 cell.

see LockMart brochure and the link as sources:
View attachment 70891

View attachment 70893

This was obviously nothing more than a patent based on a wild idea. And the body seems fitting to the dimesions of an SM-2, but not sure how they thought of handling the fins.

Interesting. It is already 30km. SM-6 has 33km. How SIPER block-2 with conventional control surfaces goes above that? From what I read, at those altitude atmosphere become much thinner rendering conventional control surfaces ineffective.
Had better i say it in a proper way and call it an envelope. :) Well aware of current design being not quite practical at +30,000 km. Altought personally i would be in favor a smaller missile with a smaller warhead and hit to kill capability with a better sensor/guidance etc., they should be up to something for next block with the current size.


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,725
Reactions
91 9,007
Nation of residence
Bangladesh
Nation of origin
Bangladesh
I wonder if efforts will expand to ICBM interception? I mean, you know, even more altitude!

Technically after SIPER block 3 I don't see any reason why it couldn't be done.
ASAT+plus ICBM interceptor into one. But TSK has to analyze the strategic imperative first, then proceed.


UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,655
Reactions
52 4,724
Nation of residence
Turkey
Nation of origin
Turkey
Previous post deleted 😇

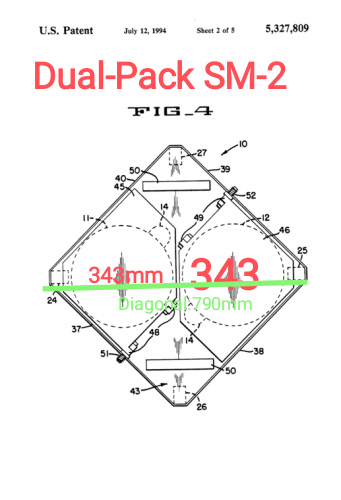

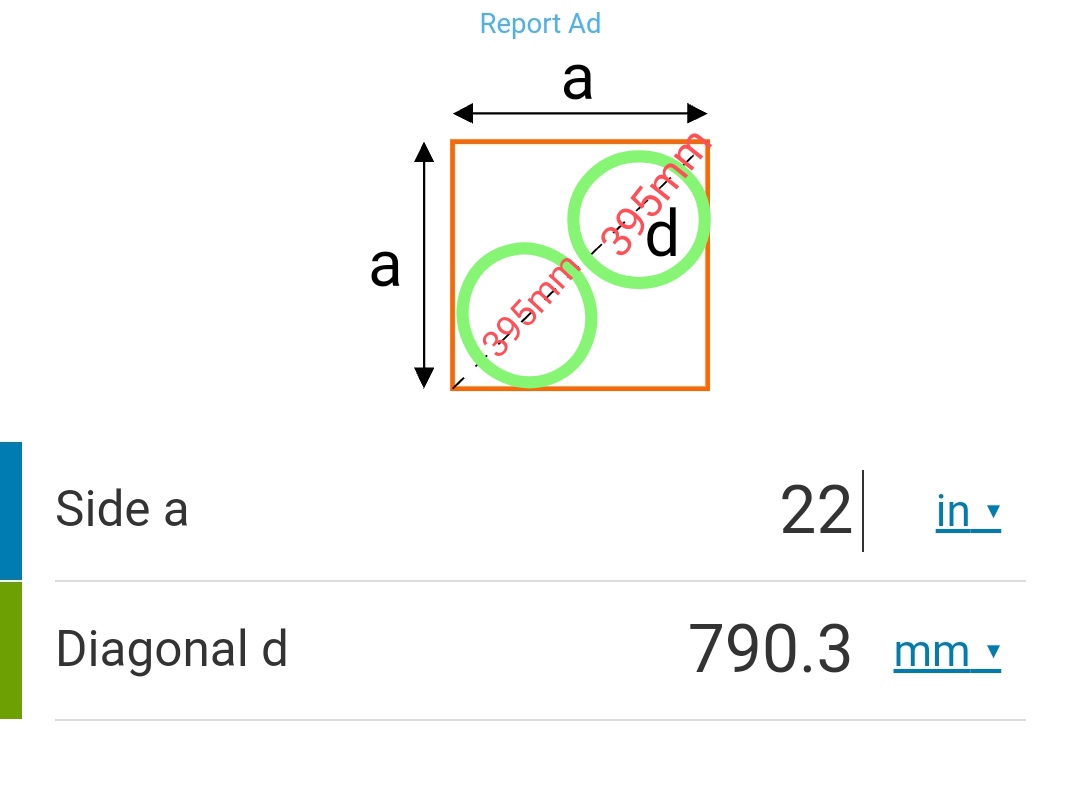

Mathematically You couldn't dualpack two missiles larger than 395mm in 22'x22' VLS cell.
