Time to seize ada classes made for Ukraine
There won't be a need to seize if Ukrainian Government Falls and Russian puppet is installed. The agreement will be rendered invalid upon such a development and then a new customer will be seeked.

Source?

Edit:
Yes correct. 40 to 50+Km ranges given for ESSM is more than what SSB gives for Hisar RF.
I misunderstood your above post. Sorry! I thought you were still on block 1 and block 2 issue; Because even Raytheon’s own site gives it as “around 40km” for both blocks.

Such "algorithm" based correction can be also introduced for Hisar-Deniz, at this stage i am sure Hisar-Deniz will reach to 40km with more kinetic abilities compared to the ESSM. They will need to work on the algorithms specifically for low-altitude sea-skimming engagements.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,458
Solutions
2
Reactions
114 24,635
Nation of residence
Turkey
Nation of origin
Turkey

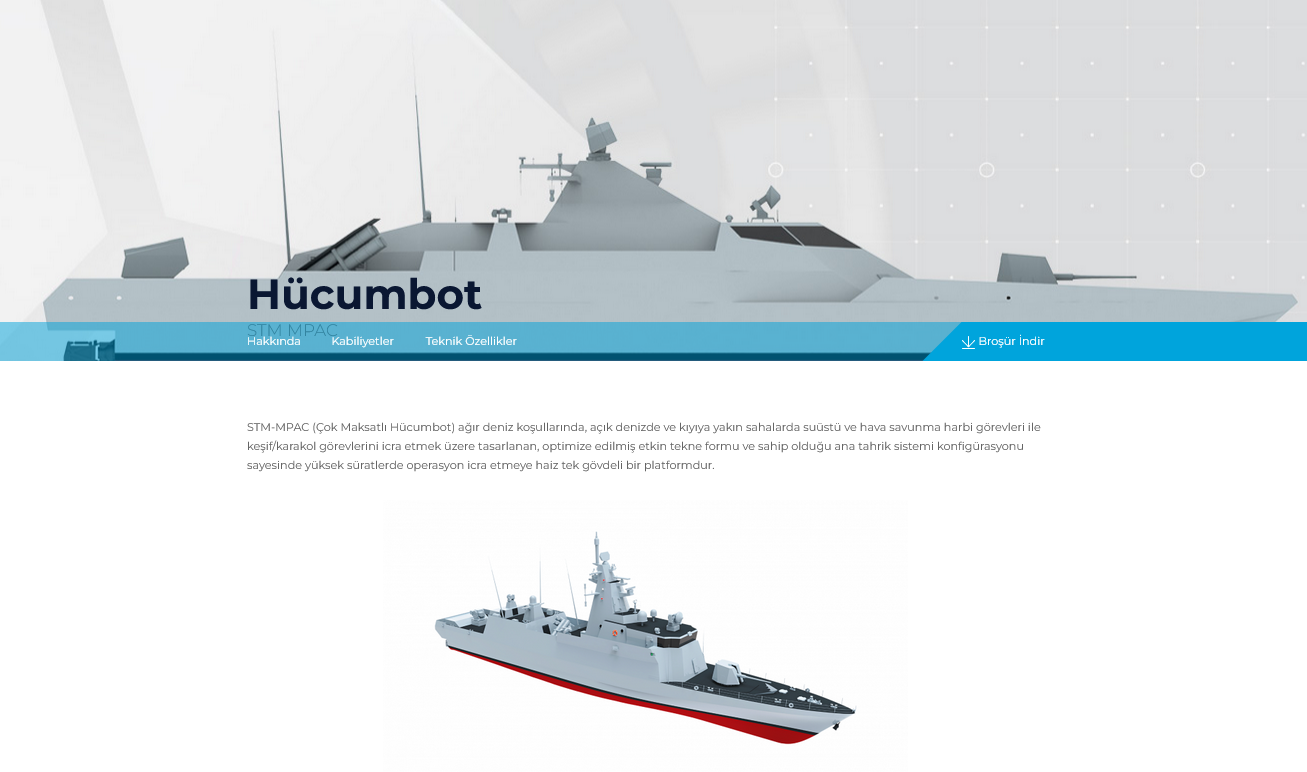

STM's FAC page has been update to MPAC, from FAC-55.

The update likely didn't take place fully yet, thus good old FAC-55 remains on the header image;

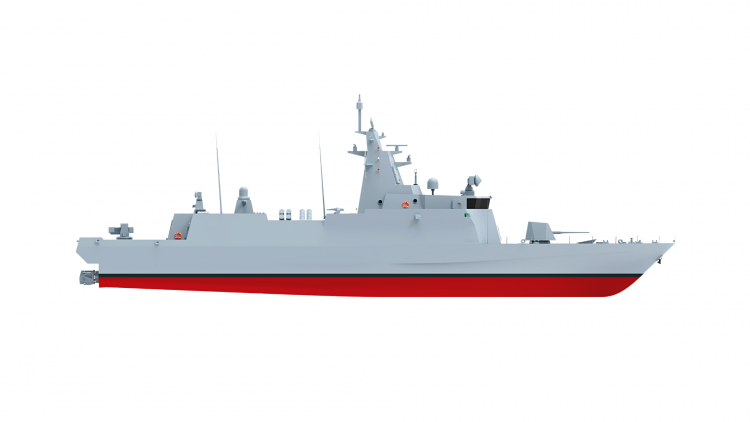

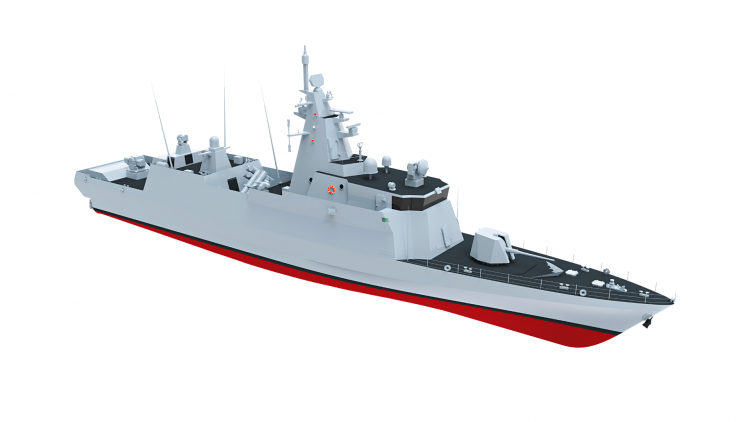

The CAD renders, gives a better look at the certain systems;
