TR Propulsion Systems

[Cabatli_TR]

Mr Akşit:"We used the 3rd generation of national single crystal turbine blades in the TS1400. We are now developing a more advanced single crystal blade technology"



[Afif]

As far as i know along with TEI GE, P&W, RR, SAFRAN, MTU, IHI all have the blisk technology in highest level!



[Cabatli_TR]

Mr Akşit: "We proudly say that we have produced turbine blades with additive manufacturing 95% (better ?) strength of forged blades. They provide better strength than forged blades and we've documented this. For the first time in our national engines, we used the additive manufacturing technology on the rotating blades and we could not explode the engine even once in the trials. The most special thing our engineers do is to optimize this technology and ensure that it is used most effectively in this field."



[Rodeo]

Mr Akşit:"We used the 3rd generation of national single crystal turbine blades in the TS1400. We are now developing a newer generation of single crystal blade technology"

Where do you get these from?
This info contradicts with the one shared by @TheInsider a few months ago.

This is from the post #3734 in TFX thread.

Turkiye won't be developing a third-generation single crystal technology for the TFX engine and will be switching to CMC composite blades in the (far) future. The studies are concentrated on cooling holes/canals, advanced thermal barriers, and advanced production processes like additive manufacturing.

I guess his intel was wrong.



[zio]

Scalp missiles needs 5.3 KN for around 800-1000 km range,but gezgin will go less than 4kN.It is only possible with reduced warhead and more composite usage on the missile body,so far our missiles families are more heavy than counterparts,with the exception of SOM J variant,the other way is not to use fuel as a oil for lubrication,but it also adds some weight,overall it depends the range of cruise missile,for example if 600 km is enough and warhead weight reduced thats ok,but this config disappont me.



[Trakya_forever]

On the other hand, TEI has TJ1600 (1600 lbf) turbo jet engine project. Nearly 7 KN



[Afif]

scalp missiles needs 5.3 KN for around 800-1000 km range,but gezgin will go less than 4kN.It is only possible with reduced warhead and more composite usage on the missile body,

What do you mean ?
Even heavy missile like Tomahawk can do just fine with 2.7/3.1kn engine!



[zio]

On the other hand, TEI has TJ1600 (1600 lbf) turbo jet engine project. Nearly 7 KN

Its 1600 newton means 1.6 kN,unfortunately



[Trakya_forever]

ıts 1600 newton means 1.6 kN,unfortunately

Tei doesnt use Newton for coding of TJ engines. They use lbf.



[zio]

What do you mean ?
Even heavy missile like Tomahawk can do just fine with 2.7/3.1kn engine!

tomahawk engine is turbofan its another league.Let us see when gezgin introduced we will learn the exact specs,other than that we can only guess about it,and I hope I was wrong,however long range cruise missiles are very stratejik wepons,so basily more important than the detailed specifications of its



[Yasar_TR]

Please do not mix apples and pears.
Tomahawk missile has a turbofan engine.
Kale and Safran engines that propel SOM and Scalp missiles are TurboJet engines.
Turbofan engines are more efficient. Use less fuel and have longer ranges. They are also ideal for flying through denser atmospheric layers. But they are expensive.
TurboJet engines, on the other hand, are cheaper but thirstier with higher fuel consumption and are really more suited to rarified atmospheric layers.
But when it comes to shorter ranges (less than 1000 km) , inspite of their deficiencies, TurboJet engines are chosen due to their lower price.



[Cabatli_TR]

scalp missiles needs 5.3 KN for around 800-1000 km range,but gezgin will go less than 4kN.It is only possible with reduced warhead and more composite usage on the missile body,so far our missiles families are more heavy than counterparts,with the exception of SOM J variant,the other way is not to use fuel as a oil for lubrication,but it also adds some weight,overall it depends the range of cruise missile,for example if 600 km is enough and warhead weight reduced thats ok,but this config disappont me.

High thrust does not guarantee range. The fuel consumption, weight, lubrication mechanism and operating life of the engine reveal the range of the missile. As far as I know The French MDCN missile uses the TR50 engine, which provides a maximum thrust of 3.4kN.



[Afif]

tomahawk engine is turbofan its another league

But jassm had turbojet with 2.7kn thrust only.

Please do not mix apples and pears.
Tomahawk missile has a turbofan engine.
Kale and Safran engines that propel SOM and Scalp missiles are TurboJet engines.
Turbofan engines are more efficient. Use less fuel and have longer ranges. They are also ideal for flying through denser atmospheric layers. But they are expensive.
TurboJet engines, on the other hand, are cheaper but thirstier with fuel consumption and are really more suited to rarified atmospheric layers.
But when it comes to shorter ranges (less than 1000-1200 km) , inspite of their deficiencies, TurboJet engines are chosen due to their lower price.

No I wasn't mixing up. I was just comparing the thrust to weight ratio of engine and the missile itself.

Meaning, with a lasser thrust it still possible for a heavy CM to fly comfortably.



[zio]

High thrust does not guarantee range. The fuel consumption, weight, lubrication mechanism and operating life of the engine reveal the range of the missile. As far as I know The French MDCN missile uses the TR50 engine, which provides a maximum thrust of 3.4kN.

I check it out the missiles that there are two type of scalp missiles both are the almost same weight the older one is uses more powerful turbojet and less operational range than the new one(MDCN),so I thought myself that”what the hell is going on“,but reailised that older one is 0.95 mach while the new one ls 0.65 mach,so its a question of preference more range or less time to heat target,if you do not want to sacriface weight of warhead.In my opinion for our country 560 km range with more fast cruise is superior than the 1000 km range with slower missile,because our most important enemy targets are within the 600 km range so fast missile would be the more effective,in terms of first strike to catch up fighter jets on the ground,so we need more powerful turbojet and this approach with the supportive of typhoon SRBM will be irresistable to every anti missile defence systems.
Additionally with more powerful or better thrust weight ratio of turbojet engines will give opportunity to (without sacrifice of weight of warhead ) our missiles move from highsubsonic to transonic ones,but this needs more time.I wanna see atmaca missile with reduced warhead but as a supersonic missile,but there will be more work on increased heat problems.Roketsan engineers are working on more clever missiles like çakır missile family,that is another strategy.If you produce yourself you can play with new strategies,you can not do this with shopping of arms.



[TR_123456]

Scalp missiles needs 5.3 KN for around 800-1000 km range,but gezgin will go less than 4kN.It is only possible with reduced warhead and more composite usage on the missile body,so far our missiles families are more heavy than counterparts,with the exception of SOM J variant,the other way is not to use fuel as a oil for lubrication,but it also adds some weight,overall it depends the range of cruise missile,for example if 600 km is enough and warhead weight reduced thats ok,but this config disappont me.

Start with capital letters please.



[Boz]

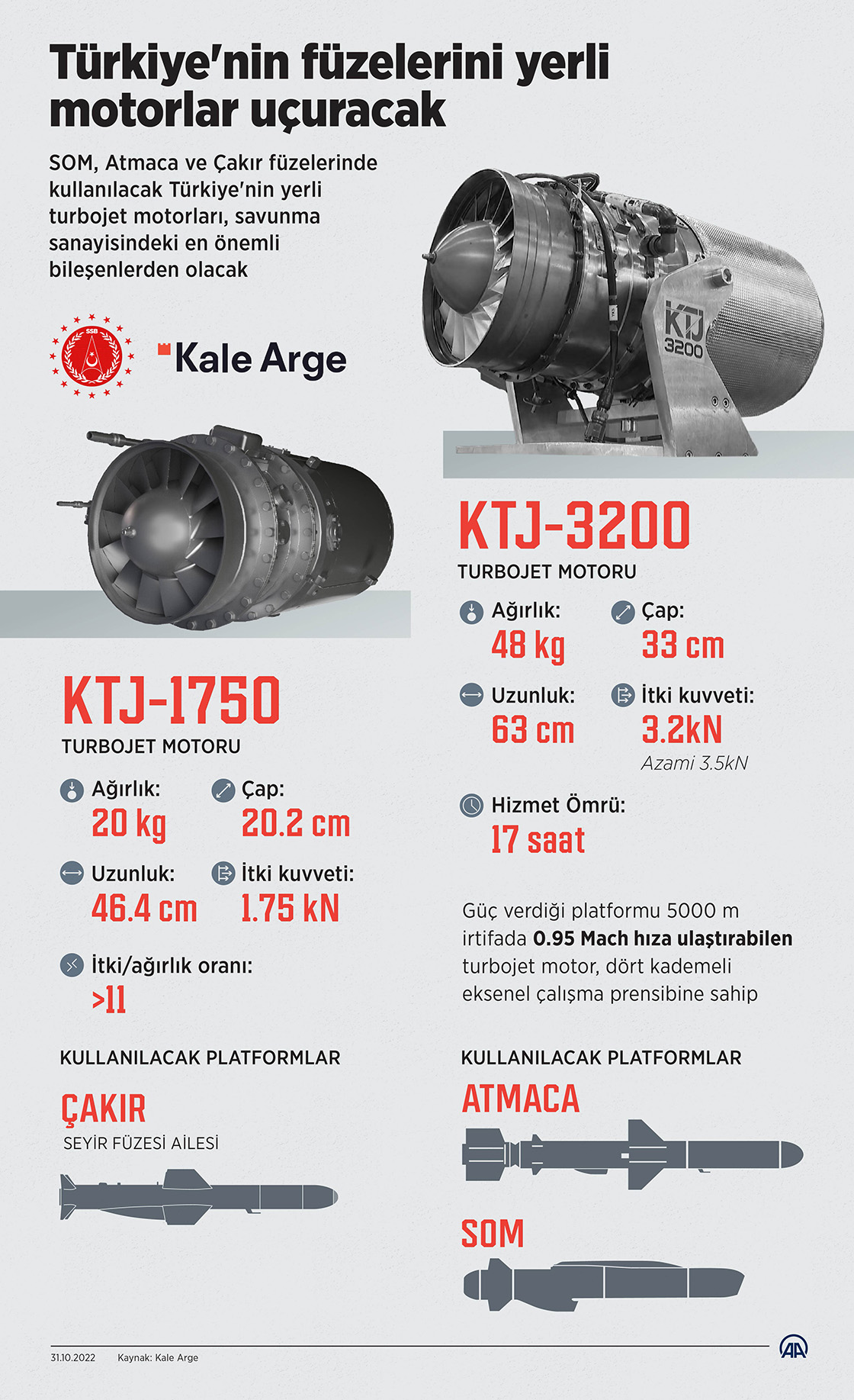

Nice infographic about KTJ-3200 & KTJ-1750.



[AzeriTank]

Nice infographic about KTJ-3200 & KTJ-1750.
View attachment 49770

does it mean it can fly up to 17 hours?



[Afif]

does it mean it can fly up to 17 hours?

Yep.



[Boz]

does it mean it can fly up to 17 hours?

Yes, KTJ-3200 can fly up to 17 hours.



[Zafer]

Yes, KTJ-3200 can fly up to 17 hours.

No it can not. But it can operate for 17 hours without breaking. An air vehicle that is powered by one of these engines can not possibly carry enough fuel to fuel it for more than a couple hours let alone 17.
