TR Air-Force TF-X KAAN Fighter Jet

[Combat-Master]

It seems to me that more than one thing could be added. Nowadays, everything can be scaled down.

Yeah, that makes sense



[MADDOG]

TAAC has been awarded the Project of the Year Award thanks to their work on Hurjet's iron bird facilities.



[Baryshx]

Yeah, that makes sense

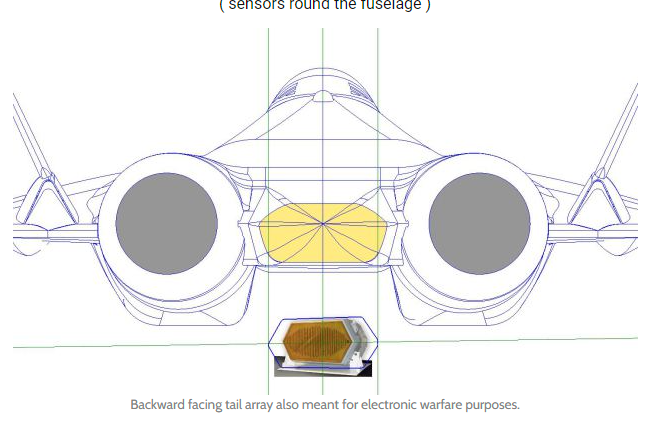

View attachment 51441

TF-X and Aselsan ECM?



[zio]

On board ECM jamming of incoming missiles is useless,it should be a dispensible one( little buddy) or towed one,new modern missiles,including gökdoğan,can lock on jamming itself,however it will be wonderful for jamming of enemy aircrafts nose radar.Most of the low observable aircrafts is more RCS from back,so jamming of enemy aircrafts nose radar gives you more stealth.



[Heartbang]

On board ECM jamming of incoming missiles is useless,it should be a dispensible one( little buddy) or towed one,new modern missiles,including gökdoğan,can lock on jamming itself,however it will be wonderful for jamming of enemy aircrafts nose radar.Most of the low observable aircrafts is more RCS from back,so jamming of enemy aircrafts nose radar gives you more stealth.

Maybe that hump between the engines is where the towed decoy/jammer's supposed to go.
Can't do wing tip pods in a 5th gen design since it'll increase the RCS.



[CAN_TR]

TF-X and Aselsan ECM?

Su-57.



[MADDOG]

Nice big radome



[Radonsider]

Nice big radome



View attachment 51583

Sorry can't see



[Rodeo]

Nice big radome



View attachment 51583

Some of your posts are very cryptic.

You really have elvish eyes



[MADDOG]



[Radonsider]

View attachment 51584

i will try to find a better angle



[MADDOG]

Some of your posts are very cryptic.

You really have elvish eyes

Lmao I'm a design geek. Whenever I see a different angle of the aircraft I jump right in!



[MADDOG]

i will try to find a better angle

Feel free! Out of all the vids I saw, couldn't get an angle that was superior to this. I also failed to outline the canopy. But it's quite visible I think.



[Radonsider]

Feel free! Out of all the vids I saw, couldn't get an angle that was superior to this. I also failed to outline the canopy. But it's quite visible I think.

My concern is not the canopy but intake, it looks like a DSI with your outlines



[MADDOG]

My concern is not the canopy but intake, it looks like a DSI with your outlines

Hahah bit of a stretch.



[Afif]

probably L band antenna!



[moz68k]

Nice big radome



View attachment 51583

I thought you were talking about (almost) everyone in the pic having glorious shiny balding domes (a Turkish trademark). So it works as a joke too!



[Radonsider]

The sensors of TFX MMU on wings and nose

View attachment 51594

probably L band antenna!

Probably, maybe RWR or Datalink emitters just like F-35/Su-57



[Siper>MMU]

L band is not suitable for target tracking. They are probably IFF antennas.



[Radonsider]

L band is not suitable for target tracking. They are probably IFF antennas.

Yes, or just VERY crude "let's see where the target is"
