TR TF-X KAAN Fighter Jet

MADDOG

Contributor
Türkiye Correspondent
Professional
Messages
1,218
Reactions
31 7,989
Nation of residence
Turkey
Nation of origin
Cyprus
Screen Shot 2023-04-30 at 09.04.24.png


Screen Shot 2023-04-30 at 09.04.48.png

Screen Shot 2023-04-30 at 09.05.09.png


Screen Shot 2023-04-30 at 09.07.53.png


Internal weapon bays?


Screen Shot 2023-04-30 at 09.05.28.png


Rodeo

Contributor
Moderator
DefenceHub Diplomat
Messages
1,330
Reactions
31 5,067
Nation of residence
Turkey
Nation of origin
Turkey
Combat Master over at Secret Projects decided to take a peak into ASELSAN's webpage.

View attachment 56845

To quote him:

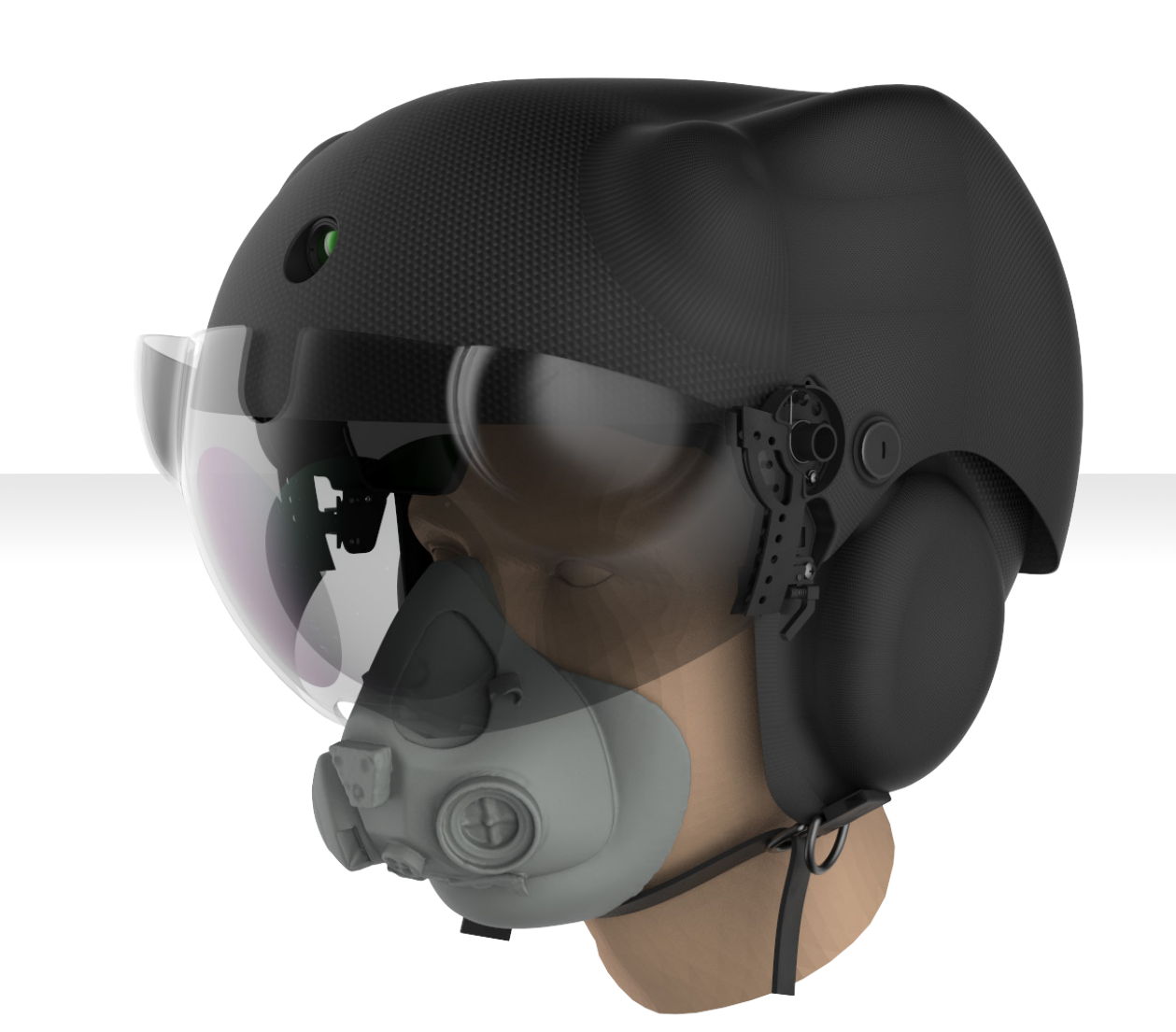

TULGAR System is a helmet-mounted display system designed by ASELSAN for fixed-wing platforms. It incorporates digital night vision, color display, and precise head tracking technologies to enhance the pilot's awareness of the aircraft's capabilities and the mission area.

System Subunits:
• Helmet Unit
• Electronic Unit
• Head Tracking Module

Thanks to its advanced optical design, the TULGAR system provides a wide field of view and high-resolution images reflected onto the visor to support pilots during the mission. The helmet unit is made of lightweight composite materials and an inner shell customized for the user to provide an ergonomic solution to pilots. Active and passive noise-canceling capabilities prevent noise from the platform and other sources from reaching the pilot.

The integrated digital night vision capability of the system enables it to be used without requiring any changes to the helmet unit during both day and night missions.

The TULGAR System is suitable for fixed-wing platforms and is ready for use in challenging environmental conditions due to its durable design.


General Specifications:
• Lightweight helmet unit
• Color display
• Interior helmet structure shaped according to pilot's head
• Digital night vision
• Hybrid head tracking system
• Active noise cancellation
• Compatibility with wearing glasses
• 3D sound compatibility
• 40°(Y)-32°(D) field of view

Interfaces:
• ARINC-818-2 Video Interface
• Display Port Digital Video I/O Interface
• Serial Interfaces (RS-232/RS-485/RS-422)
• Discrete I/O Interface
• MIL-STD-1553 Interface

Physical Specifications:
• Helmet Unit Weight: < 2.1 kg (including oxygen mask)
• Electronic Unit (EU) Weight: < 5 kg

Technical Specifications:
• Power Input: 28 VDC (Nominal)
• Power Consumption: 140 W (Nominal)/190W (Maximum)

Environmental Conditions:
• Operating Temperature (EU): -40°C/+70°C (Fan Cooled)
: -55°C/+95°C (Climate Controlled Air Cooled)
• Storage Temperature (EU): -55°C / +95°C

Qualifications:
• MIL-STD-810G W/Change 1
• MIL-STD-461G
• MIL-STD-1472G
• DO-254
• DO-178C

3D Audio Technology is a technology that enables communication channels and voice warnings to be transmitted to stereo headphones with spatial cues in avionics intercom systems.
ASELSAN's 3D Audio Technology is based on HRTF (Human Related Transfer Function). 3D Audio is created spatially based on the location information of the warning and the head movements of the pilot. So the sound is transmitted as if it is coming from above, below, right or left.
Thanks to 3D Audio technology, the pilot's environmental awareness increases, response time and workload decrease.
Radio separation is created using 3D Audio. Communication channels are transmitted to the pilot from different angles so that the pilot can easily distinguish between channels.

3D Audio Features
• Real-Time Operation
• Radio Separation
• Directional Warning
• Global Positioning
• Reduced Response Time
• Reduced Workload
• Increased Environmental Awareness



Via Combat-Master

Special thanks to him for taking his time
I couldn't find it on the website. Do you have the link?


Rodeo

Contributor
Moderator
DefenceHub Diplomat
Messages
1,330
Reactions
31 5,067
Nation of residence
Turkey
Nation of origin
Turkey
"The requested URL was rejected. Please consult with your administrator."

I will investigate this. There's probably a malfunctioning config.


Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
Mr Kotil: "Normally, if Hürjet can fly, it means that MMU can also fly. Many systems are common. In fact, we can fly it even today but additional safety measures and some parts need to be integrated. MMU will fly in December"


Rooxbar

Contributor
Think Tank Analyst
Messages
714
Reactions
57 2,120
Nation of residence
Nethelands
Nation of origin
Turkey
It's a good name; short, simple, Turkic and doesn't sound like anything bad in English. It actually sounds like Khan in English, which is badass.
