TR TF-X KAAN Fighter Jet

MADDOG

Contributor
Türkiye Correspondent
Professional
Messages
1,218
Reactions
31 7,989
Nation of residence
Turkey
Nation of origin
Cyprus
TAAC

Screen Shot 2023-06-17 at 00.54.43.png


-Iron Bird
-IWB actuators
-FLCS
-Landing Gears

Pavelsis


-Power Distribution System


MADDOG

Contributor
Türkiye Correspondent
Professional
Messages
1,218
Reactions
31 7,989
Nation of residence
Turkey
Nation of origin
Cyprus
Are the locations of those vertical stabilizers final? Apparently the location of those vertical stabilizers have an adverse effect on the stealth of the aircraft. (or so i heard)
No, it was done to manage RCS in fact. Currently, the plan is to keep them as they are. We will see what TAI comes up with in the not too distant future.


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,722
Reactions
91 9,003
Nation of residence
Bangladesh
Nation of origin
Bangladesh
@Heartbang
You probably meant IIR signature exposure?


uçuyorum

Contributor
Messages
918
Reactions
12 1,509
Nation of residence
Turkey
Nation of origin
Turkey
I have no idea but If someone knows, do the vertical stabilizers need to align with diverter plate/ inlets angle to reduce RCS? I always imagined that was the reason


Heartbang

Experienced member
Messages
2,549
Reactions
8 3,966
Nation of residence
Turkey
Nation of origin
Turkey
No, it was done to manage RCS in fact. Currently, the plan is to keep them as they are. We will see what TAI comes up with in the not too distant future.
I was refering to the fact of vertical stabilizers being directly on the engine humps.

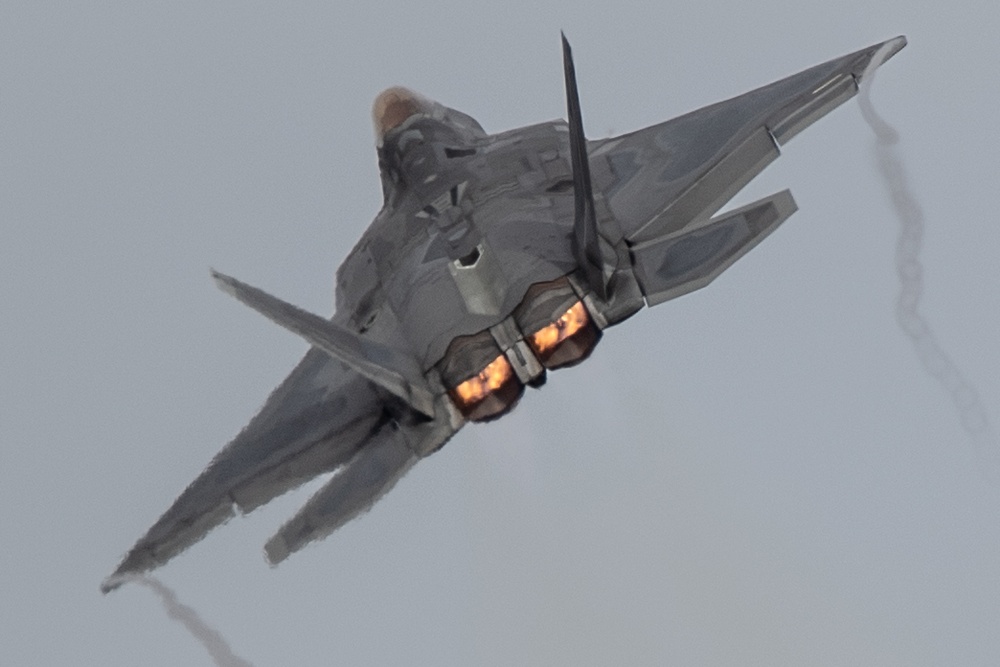

Notice the F-22's vertical stabilizers' position. They are not mounted on the engine humps, just right next to it.

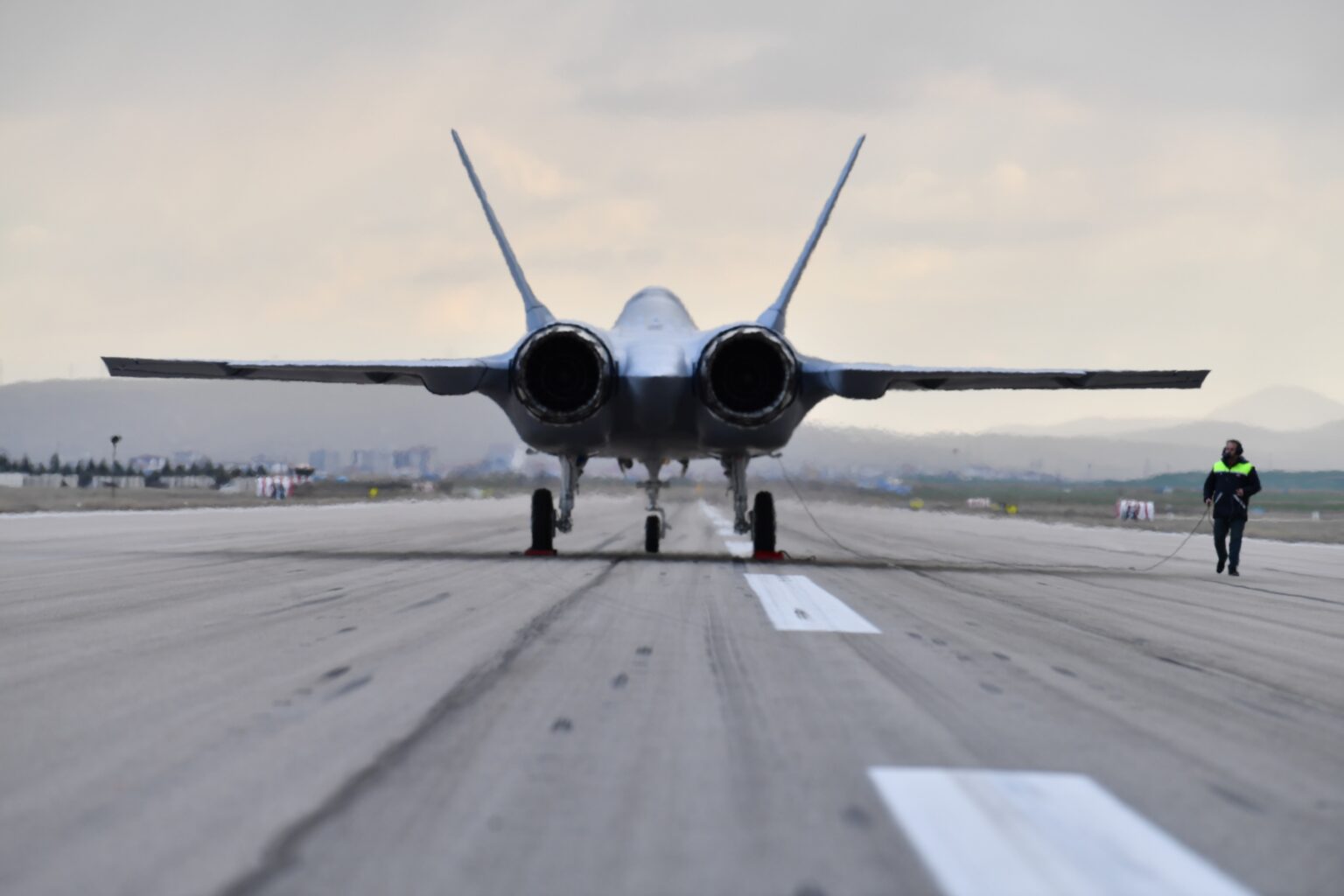

And this is KAAN for comparison:


MADDOG

Contributor
Türkiye Correspondent
Professional
Messages
1,218
Reactions
31 7,989
Nation of residence
Turkey
Nation of origin
Cyprus
I was refering to the fact of vertical stabilizers being directly on the engine humps.

Notice the F-22's vertical stabilizers' position. They are not mounted on the engine humps, just right next to it.

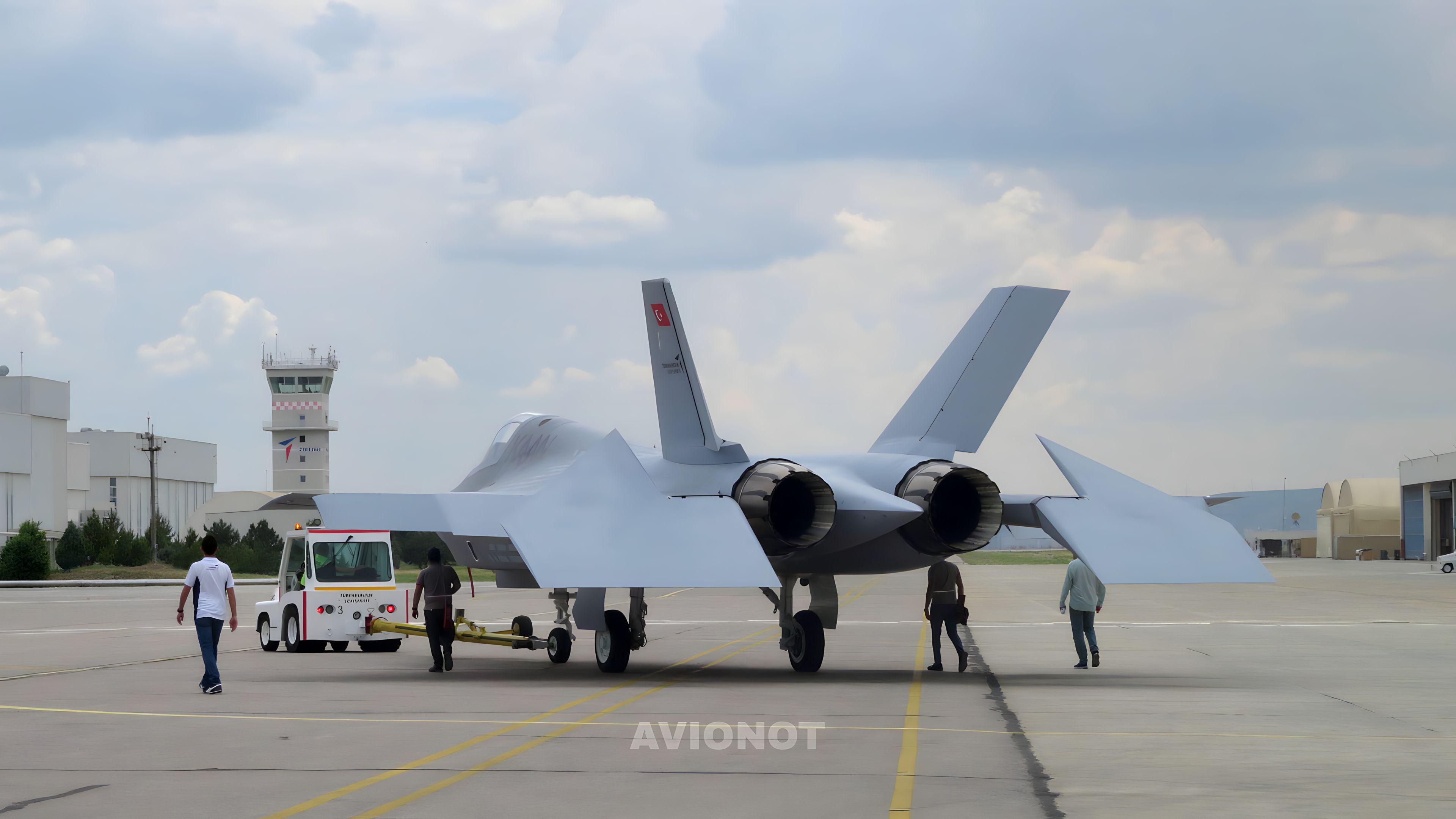

And this is KAAN for comparison:
I know what you are referring to. But like I said... There currently are, in the short term at least, no plans to move the vertical stabilizers to the side booms.

E

Era_shield

Guest
I was refering to the fact of vertical stabilizers being directly on the engine humps.

Notice the F-22's vertical stabilizers' position. They are not mounted on the engine humps, just right next to it.

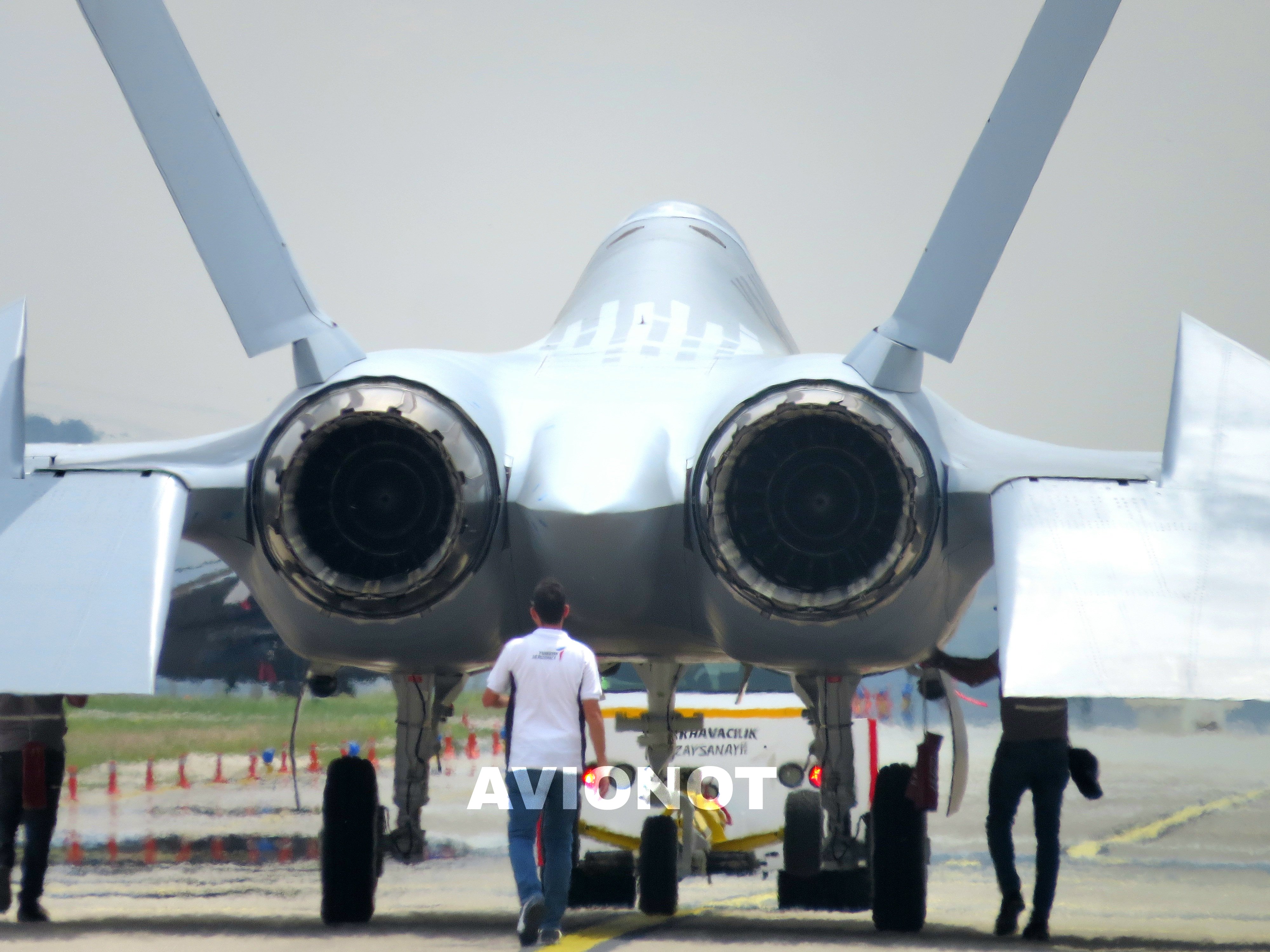

And this is KAAN for comparison:
Where did you hear that the vertical stabilisers' location will adversely affect RCS?


Ahlatshah

Active member
Messages
59
Reactions
9 266
Nation of residence
Turkey
Nation of origin
Turkey
Are the locations of those vertical stabilizers final? Apparently the location of those vertical stabilizers have an adverse effect on the stealth of the aircraft. (or so i heard)
The placement of vertical stabilizers are nothing to do with RCS. They must be angled for low visibility, not 90 degree like we see on f15 or MIGs. I think the placements are more related with flight performance

E

Era_shield

Guest
Had a discussion about it on Discord
As far as I'm aware, there's no reason the location of those stabilisers should adversely affect RCS. Their location has little to do with the engines or RCS, they are placed where they are due to aerodynamic factors like vortex flow from the nose-inlet junctions. Because Kaan's engines are further apart than the F-22's to make space for the rear facing radar/electronics complex, the stabilisers end up being on top of them.
