The placement of vertical stabilizers are nothing to do with RCS. They must be angled for low visibility, not 90 degree like we see on f15 or MIGs. I think the placements are more related with flight performance

As far as I'm aware, there's no reason the location of those stabilisers should adversely affect RCS. Their location has little to do with the engines or RCS, they are placed where they are due to aerodynamic factors like vortex flow from the nose-inlet junctions. Because Kaan's engines are further apart than the F-22's to make space for the rear facing radar/electronics complex, the stabilisers end up being on top of them.
AFAIK When designing stealth platforms one must avoid 90 degree angles in the geometry whenever possible, wherever it can. And those stabilizers do look like they mounted with an angle of 90 degrees on top of those engine humps.

Ill wait for the 2nd prototype to appear, and comment accordingly


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,722
Reactions
91 9,003
Nation of residence
Bangladesh
Nation of origin
Bangladesh
And those stabilizers do look like they mounted with an angle of 90 degrees on top of those engine humps.


How so? It looks to me they are at 75 degrees angle w.r.t wings and horizontal stabilizers.


Xenon54

Experienced member
Switzerland Correspondent
Messages
2,181
Reactions
5 6,703
Nation of residence
Switzerland
Nation of origin
Turkey
AFAIK When designing stealth platforms one must avoid 90 degree angles in the geometry whenever possible, wherever it can. And those stabilizers do look like they mounted with an angle of 90 degrees on top of those engine humps.

Ill wait for the 2nd prototype to appear, and comment accordingly
Can you show on this picture where you see 90°?


E

Era_shield

Guest
AFAIK When designing stealth platforms one must avoid 90 degree angles in the geometry whenever possible, wherever it can. And those stabilizers do look like they mounted with an angle of 90 degrees on top of those engine humps.

Ill wait for the 2nd prototype to appear, and comment accordingly
Due to the fact that the base surface is circular, not flat, a 90 degree reflector could only form near the very base of the stabilisers - which, if you look closely, aren't at a 90 degree angle, and are no doubt designed to avoid being radar reflective.

Generally speaking these types of amateurish mistakes are not evident in the TFX. If you look closely, all over the plane there are examples of the TFX being carefully analysed and designed for minimum RCS. For example, these notches on the sides of the engine nacelles:



Fx-gun

Active member
Messages
25
Reactions
2 113
Nation of residence
Turkey
Nation of origin
Turkey
I was refering to the fact of vertical stabilizers being directly on the engine humps.

Notice the F-22's vertical stabilizers' position. They are not mounted on the engine humps, just right next to it.


And this is KAAN for comparison:
The reason for the location difference is the engines' location. At F22, between engines there is no gap, but at TFX there is a serious dimension between engines. Because of that stabilizers are on engines


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey

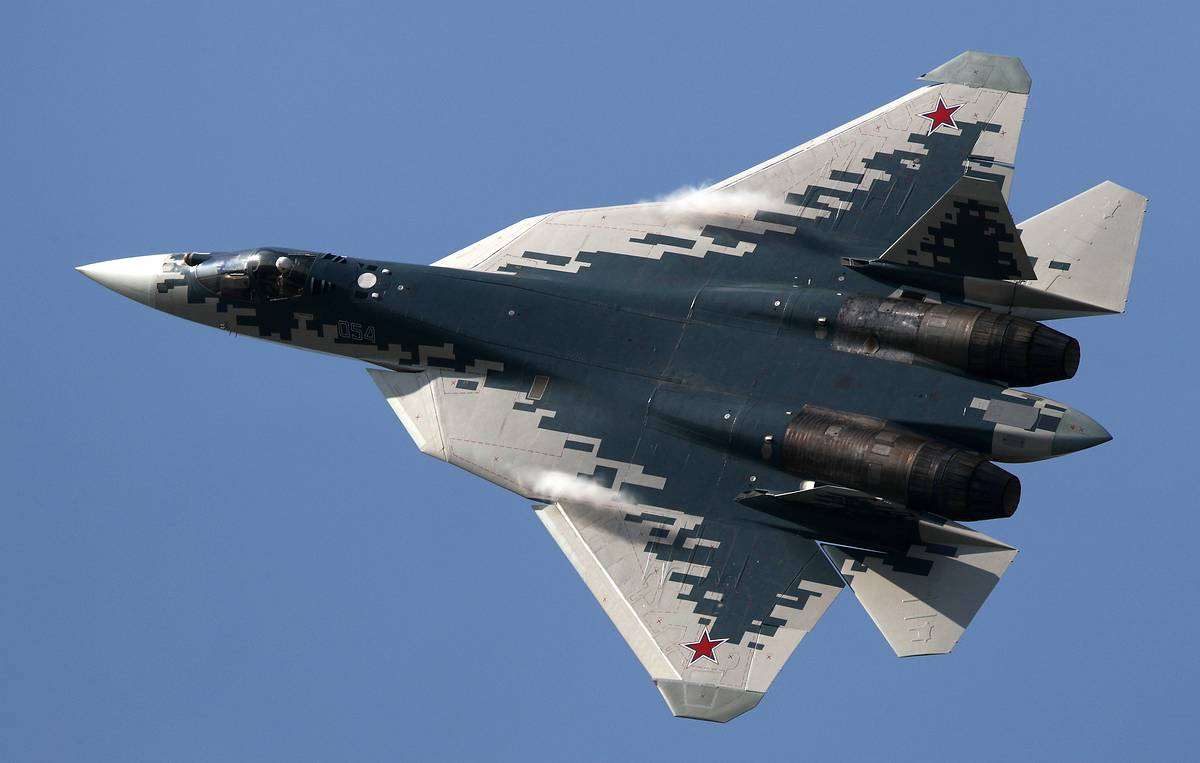

There is even more distance between engines on SU57 but still the rudders are far outside the engines. Kaan must be keeping the rudders in to minimize rudder visibility among other reasons and achieve engine heat shielding by other means.

Last edited:

Nilgiri

Experienced member
Moderator
Aviation Specialist
Messages
9,740
Reactions
118 19,735
Nation of residence
Canada
Nation of origin
India
We already talked about all this stuff before:



E

Era_shield

Guest
There is even more distance between engines on SU57 but still the rudders are far outside the engines. Kaan must be keeping the rudders in to minimize rudder visibility and achieve engine heat shielding by other means.
The Su-57 is a different shape, the vortices generated by its wings are spaced further apart, and the stabilisers are placed according to that (and other aerodynamic factors). It has nothing to do with stealth.


Next time someone thinks they found a flaw in the TFX's design, I'm just going to ask them to post their aerospace engineering degree.

Last edited by a moderator:

Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
The Su-57 is a different shape, the vortexes generated by its wings are spaced further apart, and the stabilisers are placed according to that (and other aerodynamic factors). It has nothing to do with stealth.
View attachment 58554

Next time someone thinks they found a flaw in the TFX's design, I'm just going to ask them to post their aerospace engineering degree.
Would they place the rudders inside the engines if the wortexes fell inside the engines then, are you saying this. Would they then not take care of engines being exposed to side views at all ? What are you saying.

Last edited:
E

Era_shield

Guest

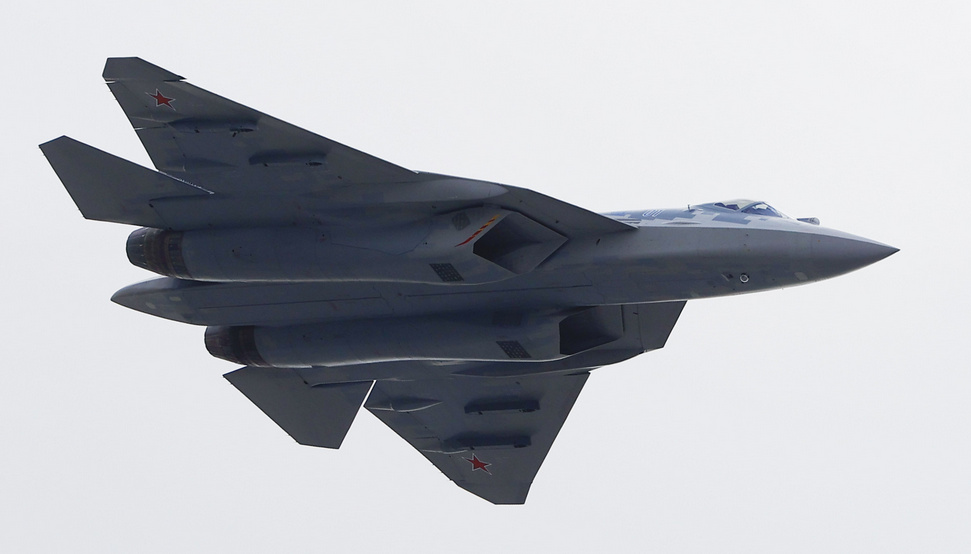

Apparently the galaxy brains who think vertical stabilisers are there to conceal the engine's heat have never seen a jet from below:


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
Apparently the galaxy brains who think vertical stabilisers are there to conceal the engine's heat have never seen a jet from below:
View attachment 58556
Sensors look at a plane from different angles and the underside is usually not one of them if you are not already dead. Rudders provide additional shielding when looked from the sides at 2 o'clock position.

Last edited:

MADDOG

Contributor
Türkiye Correspondent
Professional
Messages
1,218
Reactions
31 7,989
Nation of residence
Turkey
Nation of origin
Cyprus
As per Temel Kotil, there are currently two KAAN prototypes in production. I'm guessing one of them being P1 (flying prototype), and the other one being the P2 (static prototype). Or vice-versa. We should soon learn more about them in due course.


fushkee

Committed member
Messages
170
Reactions
4 250
Nation of residence
Qatar
Nation of origin
Turkey
They will be 3 in total. I guess, one of them will be the flying proto and remains will stay for ground tests.


Avionot

New member
Think Tank Analyst
Messages
2
Reactions
2 34
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey
I am happy to see people's interest on TF-X KAAN. I would like to introduce another image.

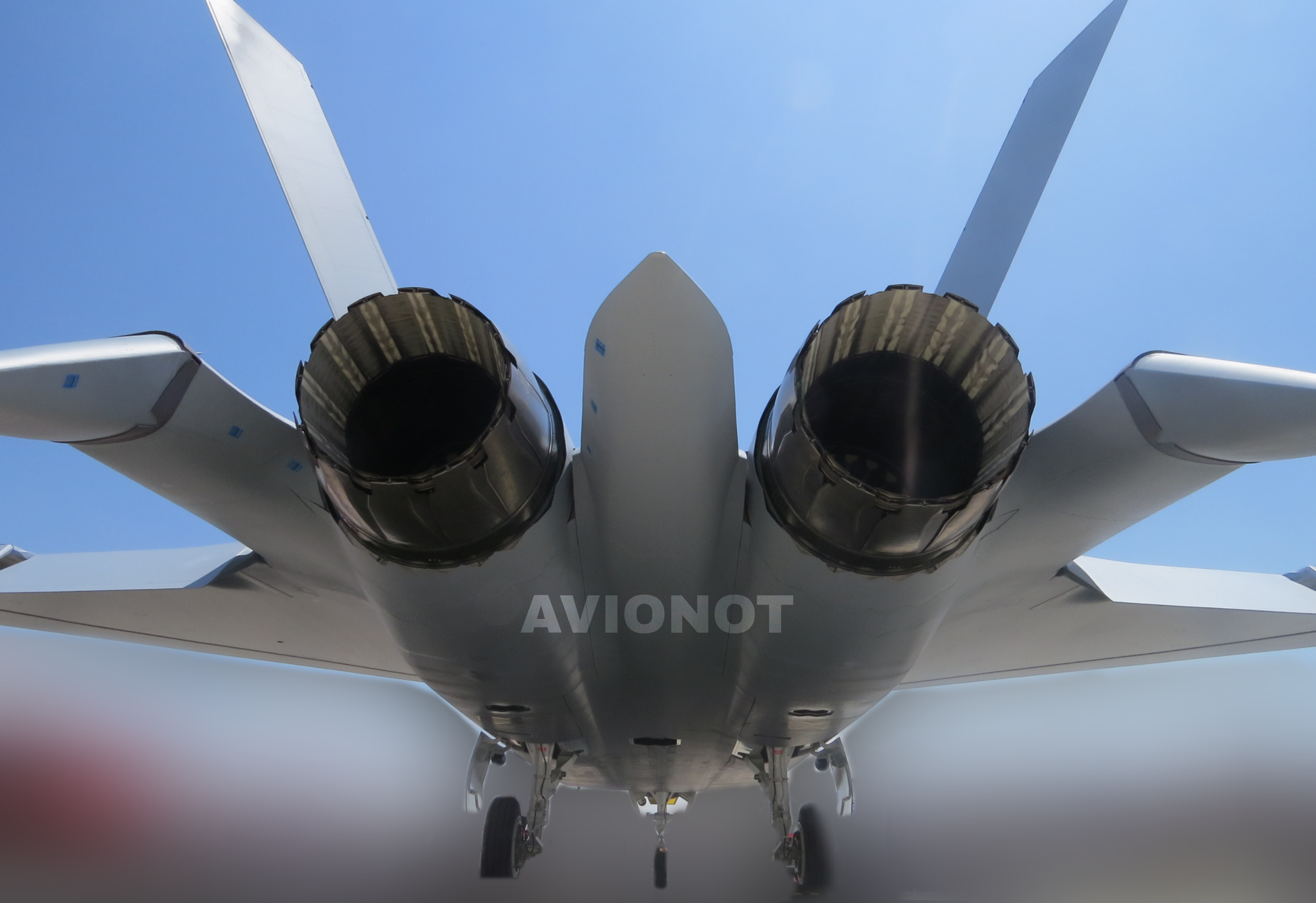

First of all, don't forget that it is a prototype. The KAAN crew is working hard. But here is an image from the bottom for those who needs.


MADDOG

Contributor
Türkiye Correspondent
Professional
Messages
1,218
Reactions
31 7,989
Nation of residence
Turkey
Nation of origin
Cyprus
Seems to be a good interview. An hour long video covering projects from ATAK-II to KAAN. Worth watching perhaps. Grab some popcorn.



Fighter_35

Contributor
Messages
543
Reactions
1 739
Nation of residence
Turkey
Nation of origin
Turkey
As per Temel Kotil, there are currently two KAAN prototypes in production. I'm guessing one of them being P1 (flying prototype), and the other one being the P2 (static prototype). Or vice-versa. We should soon learn more about them in due course.
CDR has not been completed as o know why they started building these prototypes?


MADDOG

Contributor
Türkiye Correspondent
Professional
Messages
1,218
Reactions
31 7,989
Nation of residence
Turkey
Nation of origin
Cyprus
CDR has not been completed as o know why they started building these prototypes?
CDR is a formal process. There isn't a golden rule that dictates that you should absolutely, under all circumstances, complete design activities beforehand. It is also worth mentioning that TAI took an experimental approach with this aircraft (which isn't surprising). An identical developmental approach to Hürjet is not the case.


Aqerdf

Active member
Messages
106
Reactions
5 256
Nation of residence
Turkey
Nation of origin
Turkey
If i remember correctly, CDR of "this" plane was done. But CDR of Block 10 plane, i.e. 2025 config. plane, was not done yet.

I couldn't remember the source. But it was not a bogus source afaik, that's what i could remember...
