As per my info .

Aesa can listen some designated frequency , and receive such .

It's pre decided what it's going to listen to , any random frequency is considered noise and thus removed , that's why radar are optimised for high gains so that the required frequency don't get removed in noise .

When received it goes through converter and further interpretation take place
Well, that is what "vanilla" AESA does. Our AESA is a little different. It has ESM and ECM capability which means it can be used to analyze the radar signals in the radar's frequency range and can be used as a jammer.


Lonewolf

Contributor
Messages
511
Reactions
297
Nation of residence
India
Nation of origin
India
Well, that is what "vanilla" AESA does. Our AESA is a little different. It has ESM and ECM capability which means it can be used to analyze the radar signals in the radar's frequency range and can be used as a jammer.
That's due to passive array are installed on aircraft which then uses shared aperture of radar to produce radar frequency


Nilgiri

Experienced member
Moderator
Aviation Specialist
Messages
9,732
Reactions
118 19,721
Nation of residence
Canada
Nation of origin
India
Could we say "radar warning systems are also passive radars"
Or passive radars can identify further frequencies than usual radar signals which fighters' radars emit?

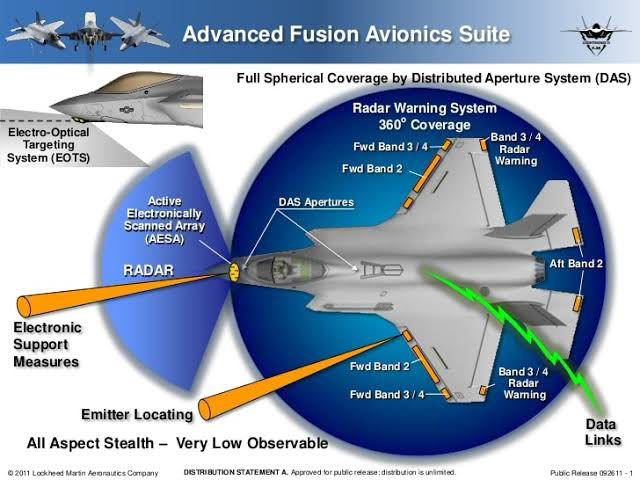

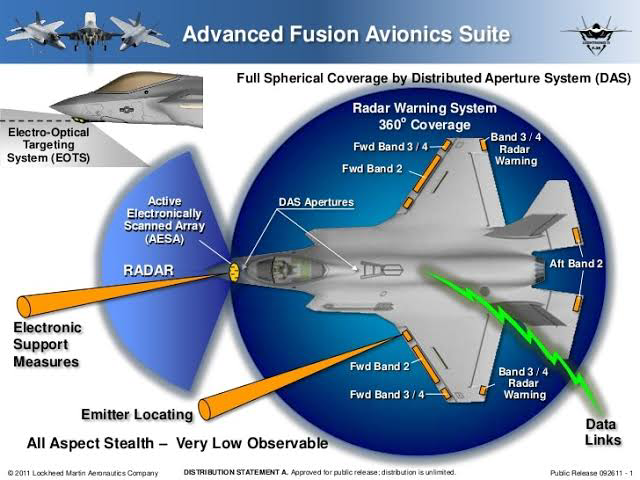

View attachment 30970

Yes RWRs are passive (receive only).

Their antenna can be phased array these days....but their channelized receiver and related architecture tends to be optimized to dealing with missile threats and pulse-doppler signals given thats all there generally is room for (on say fighters) and these continue to cover a large bulk of threats found today.

They generally wont be as capable as a larger AESA (with far more advanced channelized receivers and algorithms) on listen only mode....but the important thing regarding them and DAS is you can orient them to cover different approaches to the platform (unlike the AESA radar which is quite narrow field of operation).

Its not really a case of further frequencies (since the sweeps are all pretty much the same), but the frequency analysis regimen (w.r.t background noise), capacity and sensitivity itself that is lot more robust (esp. given computational power backing it) in dedicated ESA radar than an RWR.

There are some exceptions, as you do get large + advanced RWRs on larger/specialised aircraft (ELINT, SEAD etc)...that do end up being something like a listen-only but very capable ESA one can say.

But you need to commit mass budget for that (i.e the aircraft is specialised role...rather than multi-role fighter).

Generally if you have AESA on board (say a fighter), there is less need for traditional RWR....the AESA will have a mode to commit some TRMs to what an RWR does....and would do it better and you end up saving room + power (and use DAS like in your pic)....room+power you can use for (IR/UV) MAWS instead and cover more bases there. This ends up actually being an extra advantage of having an AESA + DAS.

RWR domain is undergoing lot of RnD lately (given size available on a fighter and given the growing threat of ESA seekers).

They are evolving into even more integrated systems ("sensor fusion") by better multiplex processing with MAWS and LWR on the platform. Conceptually very much like DAS distributing the AESA aperture effectively.

Last edited:

Oublious

Experienced member
The Netherlands Correspondent
Messages
2,151
Reactions
8 4,643
Nation of residence
Nethelands
Nation of origin
Turkey
How will you order that much and in that compressed timeframe and that too in a tine when many 5th gen will be in offering . A bit hard for me to guess

LoL...


What are you trying to proof? A simple video about F35, we don't now why the member have shared. We only now he have shared the video, nobdoy claimed we will make that amount of fighters.


Lonewolf

Contributor
Messages
511
Reactions
297
Nation of residence
India
Nation of origin
India
LoL...


What are you trying to proof? A simple video about F35, we don't now why the member have shared. We only now he have shared the video, nobdoy claimed we will make that amount of fighters.
He said one day ,i said that it's impossible to reach production level of f 35 by any other country due to it being a multinational cooperation project . F 35 makers use that production techniques so that production is faster as more order are awaited .

It isn't a mocking if you see it carefully


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,224
Reactions
138 16,103
Nation of residence
United Kingdom
Nation of origin
Turkey
How will you order that much and in that compressed timeframe and that too in a tine when many 5th gen will be in offering . A bit hard for me to guess
That is just a wishful thinking post of a member.
There will however, be an automated production line for TFX. Tusas has already built a new factory to produce TFX. TurAF will need 250-300 planes before 2040. Some of the close allies and local countries may want to purchase this plane. So there should be a sizeable export market too.
But a production line that will produce 3000+ planes is not realistic. A much smaller scale however is not too much to ask for. MD of Tusas has already said that they are gearing up for minimum 2 planes per month production speed. He also mentioned that if push comes to shove they could produce 10 or even 20 per month. Turkey is not a rich country. With limited resources, 2 per month covers well the needs.


Lonewolf

Contributor
Messages
511
Reactions
297
Nation of residence
India
Nation of origin
India
That is just a wishful thinking post of a member.
There will however, be an automated production line for TFX. Tusas has already built a new factory to produce TFX. TurAF will need 250-300 planes before 2040. Some of the close allies and local countries may want to purchase this plane. So there should be a sizeable export market too.
But a production line that will produce 3000+ planes is not realistic. A much smaller scale however is not too much to ask for. MD of Tusas has already said that they are gearing up for minimum 2 planes per month production speed. He also mentioned that if push comes to shove they could produce 10 or even 20 per month. Turkey is not a rich country. With limited resources, 2 per month covers well the needs.
Automated line ?? , Isn't it a bit unrealistic , cause you can manufacture lru in automated machine but making a assembly line will be complicated


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,224
Reactions
138 16,103
Nation of residence
United Kingdom
Nation of origin
Turkey
Automated line ?? , Isn't it a bit unrealistic , cause you can manufacture lru in automated machine but making a assembly line will be complicated
Have you seen Turkish production lines? Yes, automation in almost all parts of the industry is valid. Albeit In different degrees. But it is there. Labour costs are not cheap in Turkey. Qualified production line workers may cost over 1000-1500 Euros per month to the employers. This could be higher in engineering side. I remember my company’s cost per worker being 800-1100 euros per month 15-20 years ago. So automation is relevant.
Below is a company that is setting up robotic painting line for Tusas.

Last edited:

Lonewolf

Contributor
Messages
511
Reactions
297
Nation of residence
India
Nation of origin
India
Have you seen Turkish production lines? Yes, automation in almost all parts of the industry is valid. Albeit In different degrees. But it is there. Labour costs are not cheap in Turkey. Qualified production line workers may cost over 1000-1500 Euros per month to the employers. This could be higher in engineering side. I remember my company’s cost per worker being 800-1100 euros per month 15-20 years ago. So automation is relevant.
Below is a company that is setting up robotic painting line for Tusas.

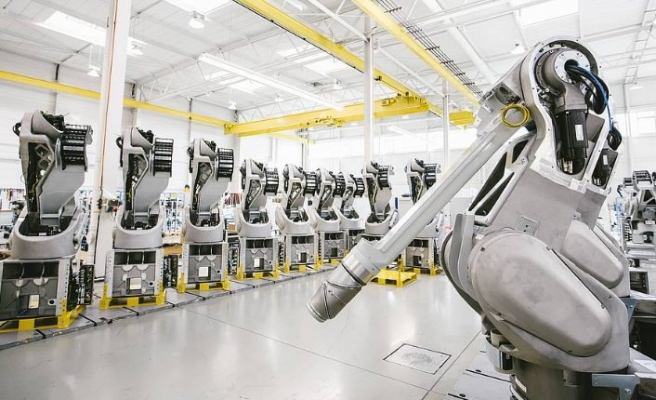

View attachment 31160
Painting a fourth gen jet is quite different from 5 the gen , but I would not comment on its feasibility till I see it real life


Huelague

Experienced member
Messages
3,865
Reactions
5 4,086
Nation of residence
Germany
Nation of origin
Turkey
Have you seen Turkish production lines? Yes, automation in almost all parts of the industry is valid. Albeit In different degrees. But it is there. Labour costs are not cheap in Turkey. Qualified production line workers may cost over 1000-1500 Euros per month to the employers. This could be higher in engineering side. I remember my company’s cost per worker being 800-1100 euros per month 15-20 years ago. So automation is relevant.
Below is a company that is setting up robotic painting line for Tusas.

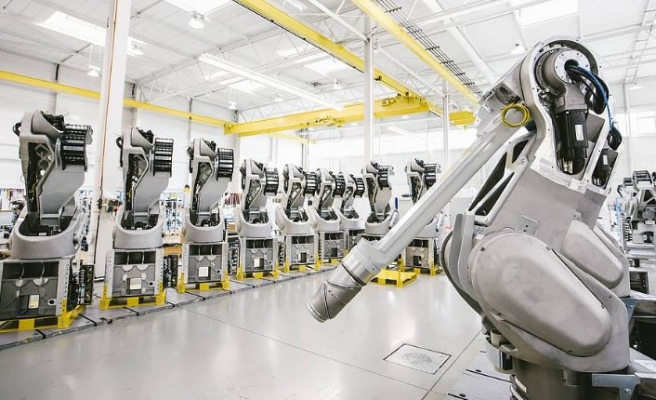

View attachment 31160
Not to mention our co-operation with Germany on industry 4.0 and upcoming 5.G. Will make things faster.
