Bayraktar TB-3 is behind KIZILELMA. It looks fantastic after the last design change.



[Boz]



[Manomed The Second]

Bayraktar TB-3 is behind KIZILELMA. It looks fantastic after the last design change.

Looks much bigger Is it using the TEI engine?



[Bogeyman]

Looks much bigger Is it using the TEI engine?

Yes. It will be using the PD-170.



[boredaf]

Looks much bigger Is it using the TEI engine?

Iirc, it'll have twice the mtow as TB-2, and is taller and longer with bigger wingspan and payload.



[MADDOG]



[Kaan Azman]

https://twitter.com/i/web/status/1640031640004046853



[Knowledgeseeker]

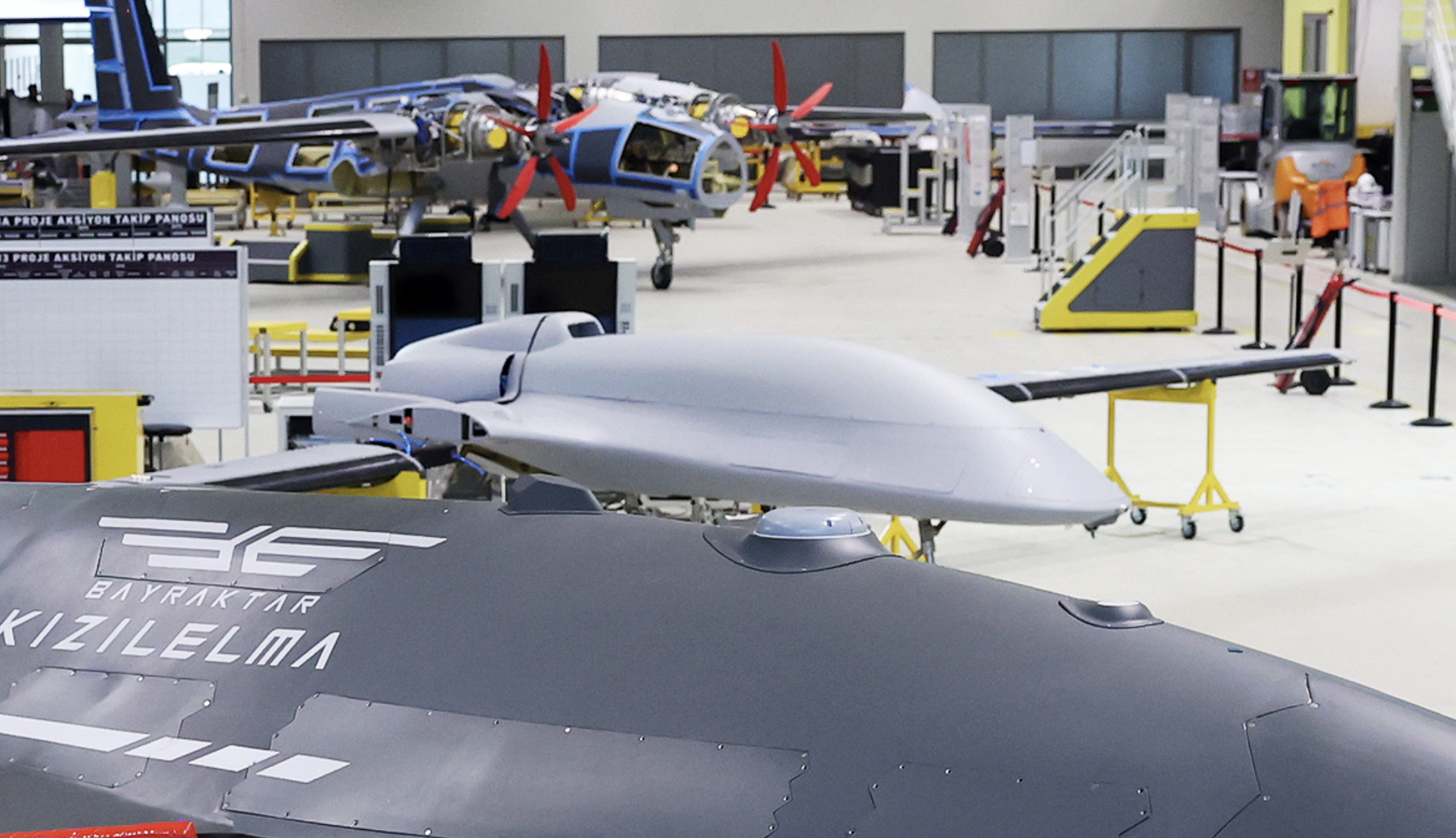

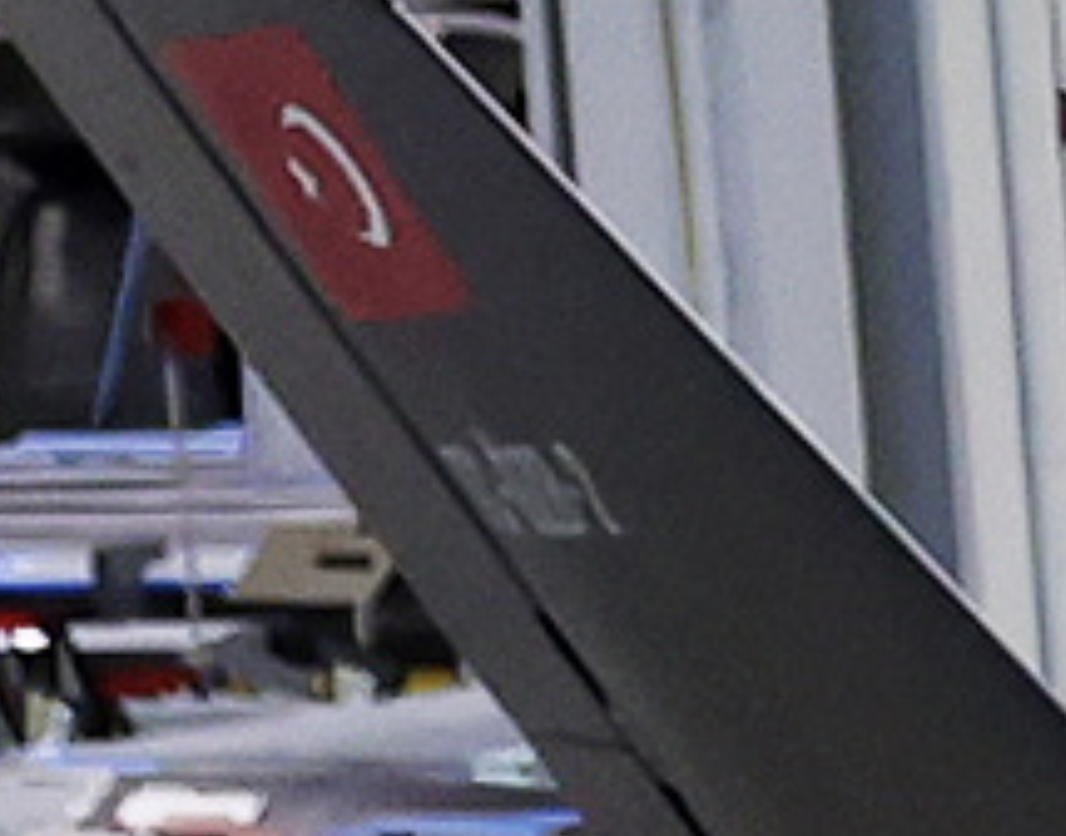

View attachment 55416 View attachment 55415 View attachment 55417

Akinci



[Boz]

LETS GOOOOOOOOO



[Oublious]

Turkish defence industry, March 2023 a history not to be forgotten....



[dBSPL]

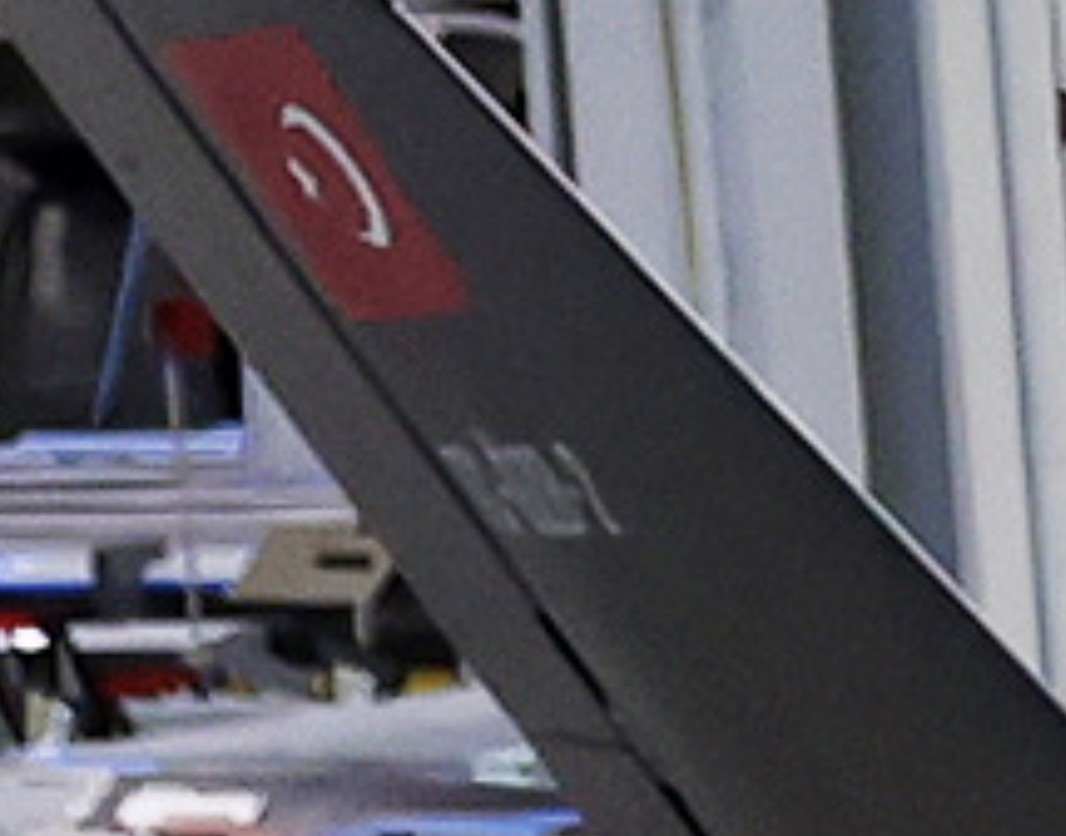

I think the hinge-like apparatus seen in the part I bought in the red circle is related to the folding mechanism of the wings. By eye judgment, 4 of the heavy duty pylons fit between this part and the root wing. The optional 5th and 6th pylons, which can carry lighter ammunition, also somewhere near the exact folding point.

The folding point is vaguely visible in the front section photo.



[manifesto]

Let's see, How will be options gimbal camera. Maybe Aselflir F500C catch up this bird?



[Merzifonlu]

Hello beauty!



[Angry Turk !!!]

LETS GOOOOOOOOO

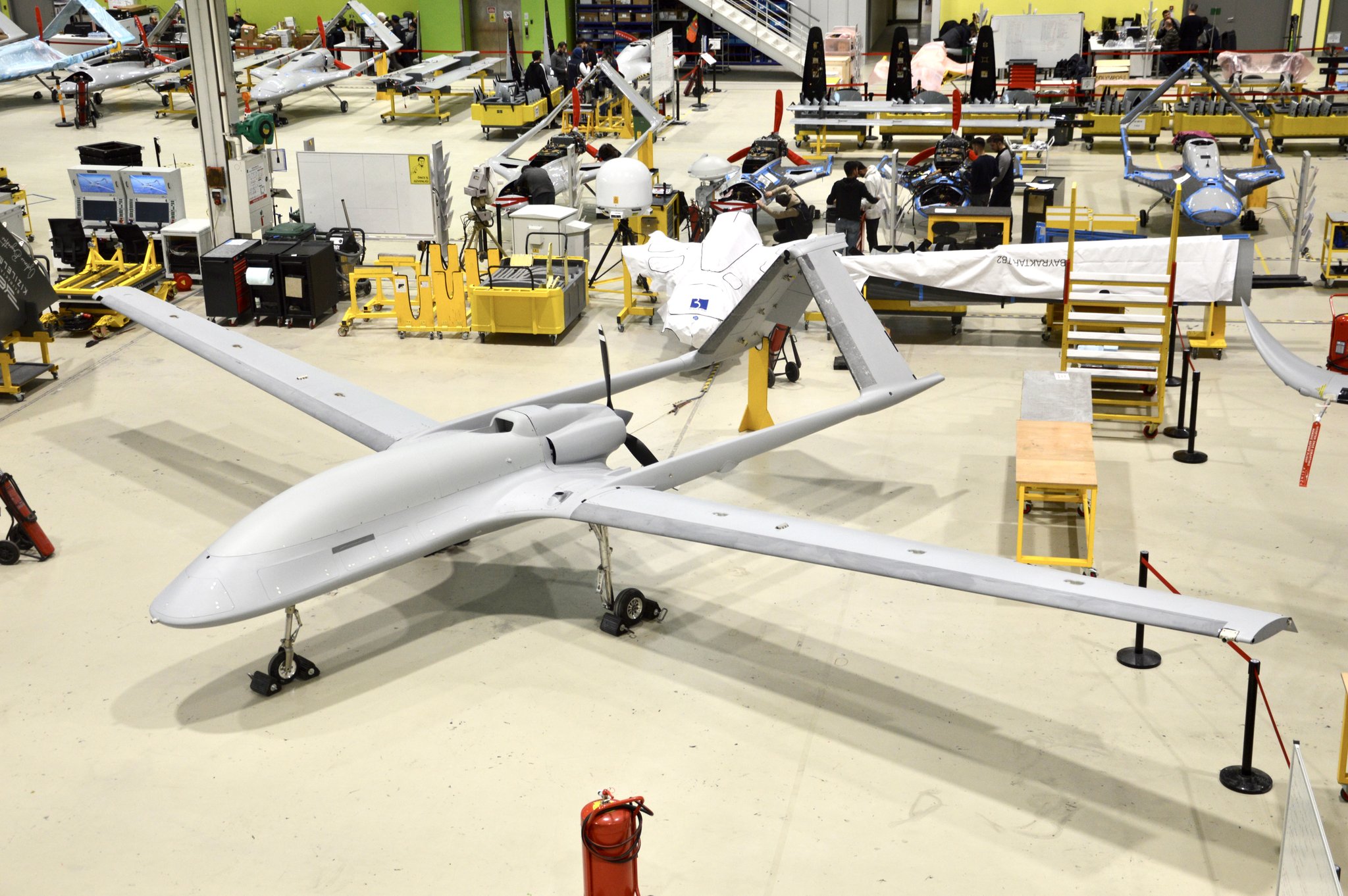

View attachment 55421
View attachment 55422

View attachment 55423
View attachment 55424

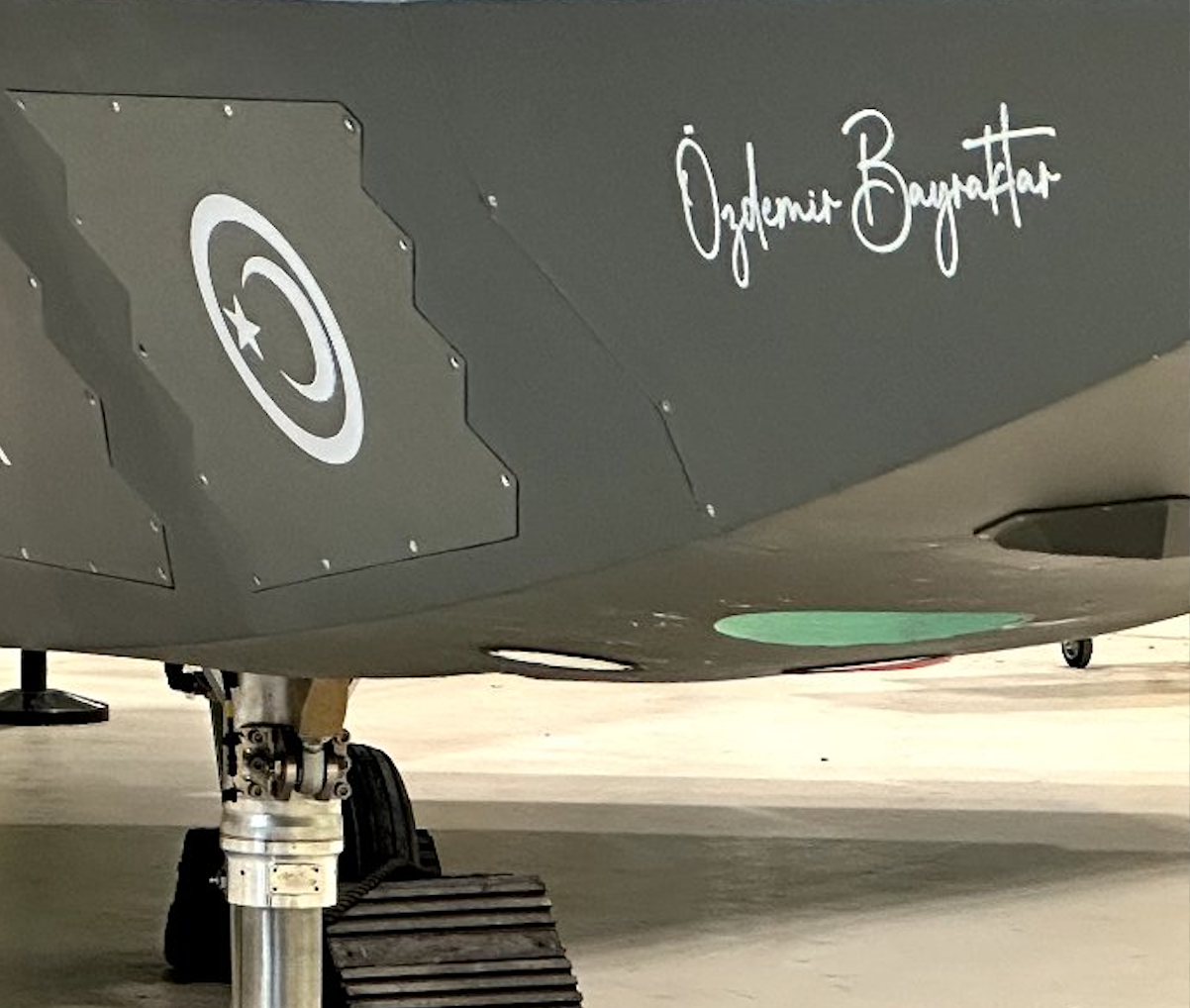

Finally with landing gear retraction.



[TheInsider]

Holy shit it has a beautiful design. TB3 probably has a lower RCS than TB2. Landing gears are retractable, the engine and air inlets are well-hidden, and the body has a sleek design.



[dBSPL]

The distance between the folding points is 0.45 times the total wingspan. This corresponds to a folded wing position width of approximately 6.3 meters. In addition, the main wing area, where there will be three ammunition racks, will be approximately 2 meters. Of course, this is only a rough calculation, but it gives an idea.

With a very rough calculation, this means that each TB-3 will occupy an area of 50-55 square meters in the TCG Anadolu hangars and deck sides.



[Kedikesenfare]

The design is extraordinarily! Well done!



[Boz]



[Agha Sher]

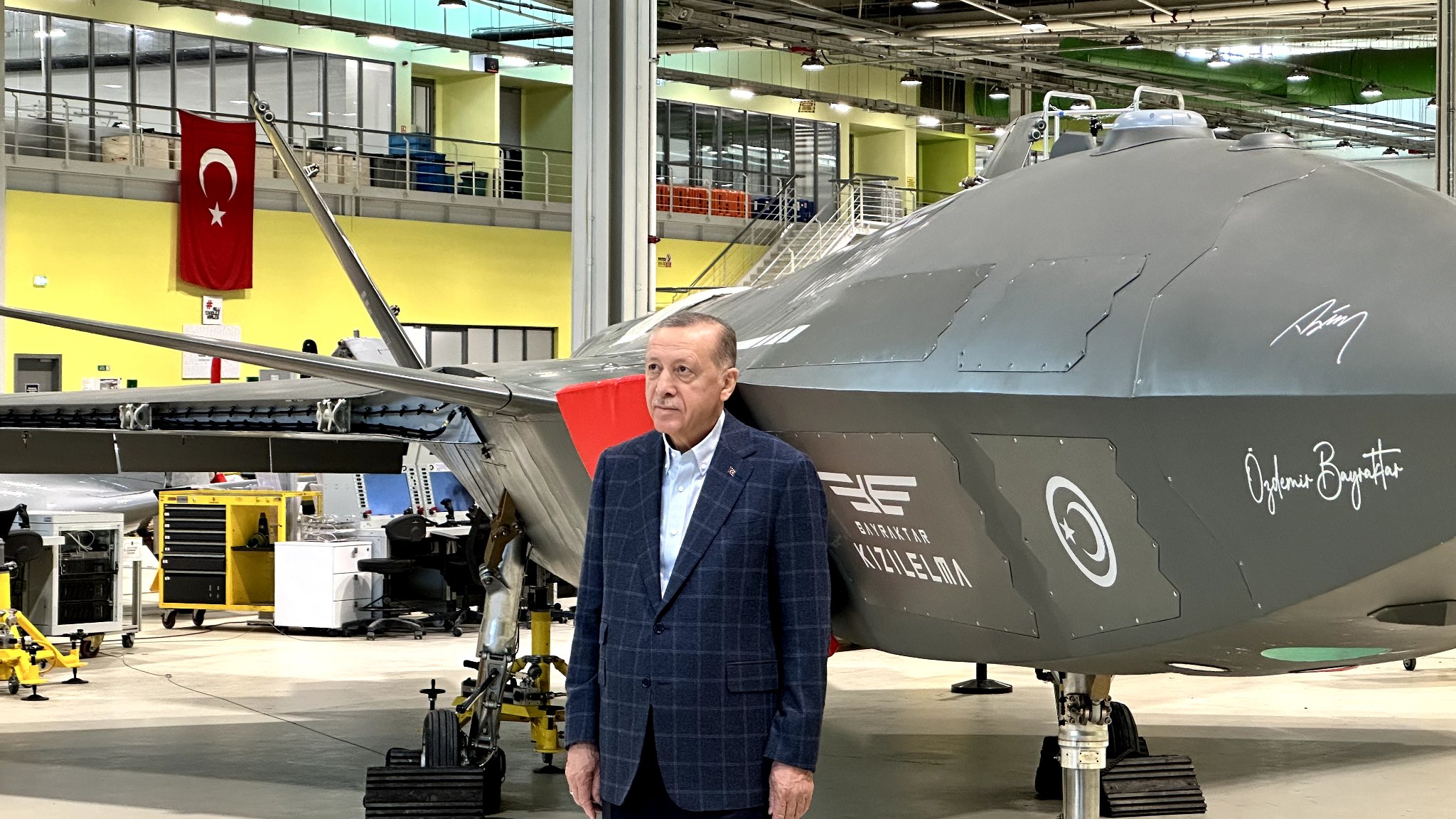

View attachment 55428

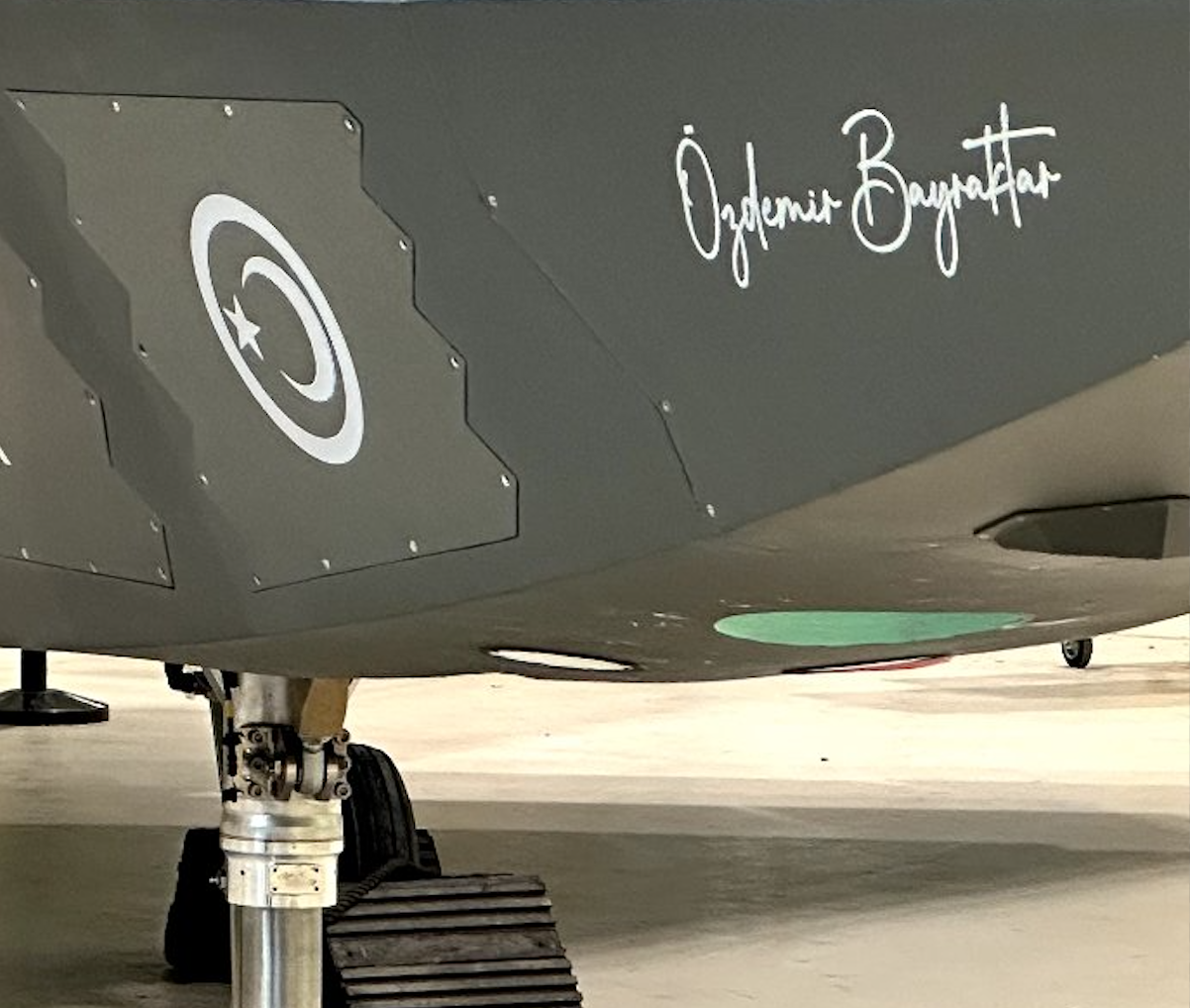

View attachment 55429

Built quality has improved compared to the 1st prototype. However, still room for improvements
