Nobody would attack a 20-30m swarm USVs with a torpedo. Even if they are attacked, the USV has enough speed to de-energize the torpedo so the acoustic signature and underwater threat for USVs can be ignored. On the surface, the low silhouette and the sloping surface designed to reflect radar echoes to other points than enemy radars' receiver modules will cause them to be difficult to detect on enemy radars. Under these conditions, aluminum body USVs can maintain their effectiveness in terms of duty profile without being affected by the body material and can provide high efficiency at low cost.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey
Alumi

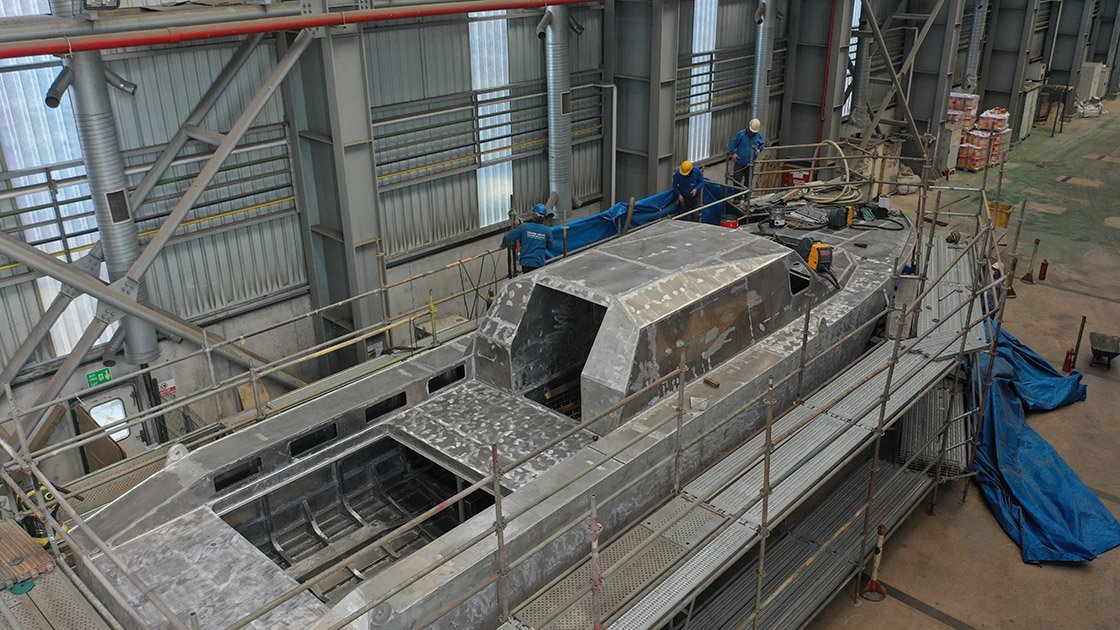

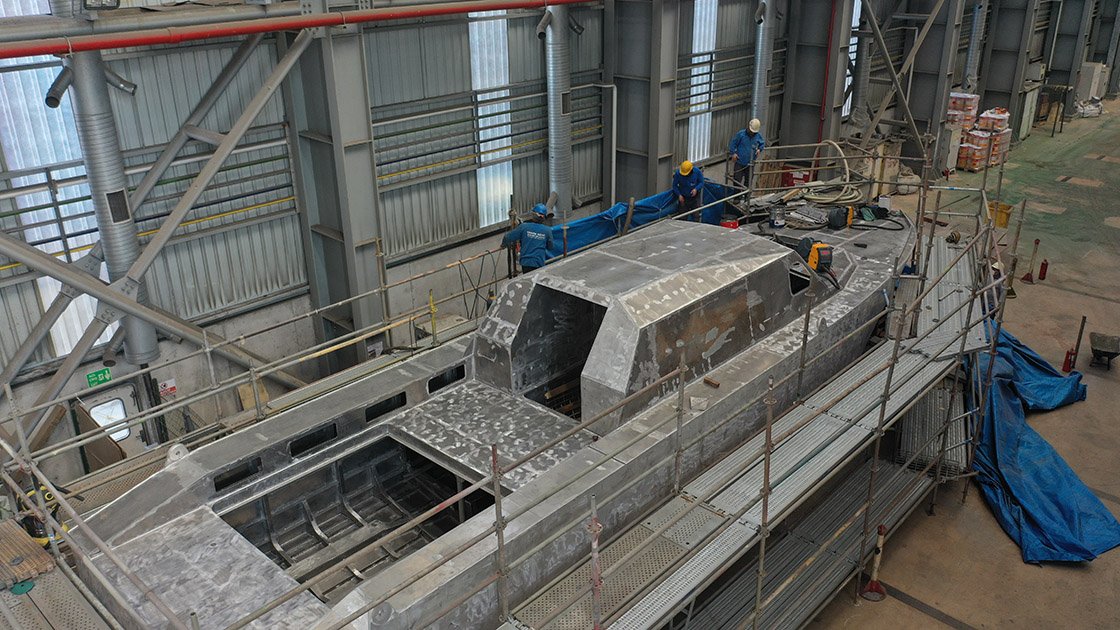

Aluminium hull for ASW/minehunting missions? I guess that increases magnetic and acoustic signature A LOT! @Anmdt can you enlighten us ?
Aluminum has much more less magnetic signature compared to the conventional shipbuilding steel, not nearly zero as the composites.
For example the typical aliminum alloy for marine applications, 5083/6061, has <1% iron.
What is the use of an Aluminium hull in an unmanned vehicle?
If it is not composite at that size, the only way out is either to use wood or aliminum.
Steel is not the perfect material for small boats, you either use it in excess due to the minimum weldable thickness restriction,or go below it to save from weight and face with weld distortion.
Switching to the aliminum yields to thicker plates, still lighter than steel and manages the weld distortion issue well, on the other hand aliminum is hard-to-weld material that requires TIG/MIG, that makes it only applicable for small sized hulls.
Aliminum also has other perks, it is told to have less magnetic and IR signature, some says low- RCS as well without beind coated.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey
A strange issue going on within the Navy:
The navy aims to have a unified communications for unmanned operations for WVR applications, and aims to control unmanned systems through common satellite terminals that are also used for numerous duties, and a commonized console - fully integrated to the operations room and CMS application for the unmanned systems.

However, one particular company disobeys and enforces their own consoles (' developed by them' ), not even running on the same OS core as the ships' CMS runs on, moreover not really compatible to the ships communications systems thus the satellite terminals.
That particular company also introduces their own (through a solution partner of them) satellite terminals and communication terminals.
Neither their consoles or terminals are qualified for naval applications and environment, or is not compliant with rules that govern electronic systems application on the ships. They also neglect a request on qualification and certification of the naval application.
They use some burecracy and high rank middle man to get their demands pass through by ignoring Navy's rulebook on integration fo unmanned systems on naval platforms.

Navy's demands are clear:

The system should be fully compatible with CMS and the core OS it runs on.

The system should be fully compatible with satellite terminals inherited by the ship, and should be compatible with communication systems installed on the dedicated mast, here optionally the company may use already available communication systems, or install theirs with the requirement of being compatible and being able to be controlled-integrated by the CMS

The operator consoles should be compatible with the operations room of the ship ( standard console size of the navy), or preferrably, already available multi-purpose consoles should be used for this purpose. Navy prefers to use multi-purpose consoles on several duties and eventually commonalize all USV operations through them, but for sake of the limited time, the unmanned systems suppliers are allowed to integrare their own consoles with the necessity of being qualified and certified.

Lastly, all data that can be transmitted to operations center of the unmanned system should be also able to be transferred and controlled through the CMS.

These should be satisfied by the following years so that the Turkish navy will be ready for the future of network enabled warfare.


TheInsider

Experienced member
Professional
Messages
4,052
Solutions
1
Reactions
34 14,433
Nation of residence
Turkey
Nation of origin
Turkey
IT is also very hard for radars to distinguish small USVs from the background/sea surface noise.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey


Bogeyman

Experienced member
Professional
Messages
9,192
Reactions
67 31,253
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey

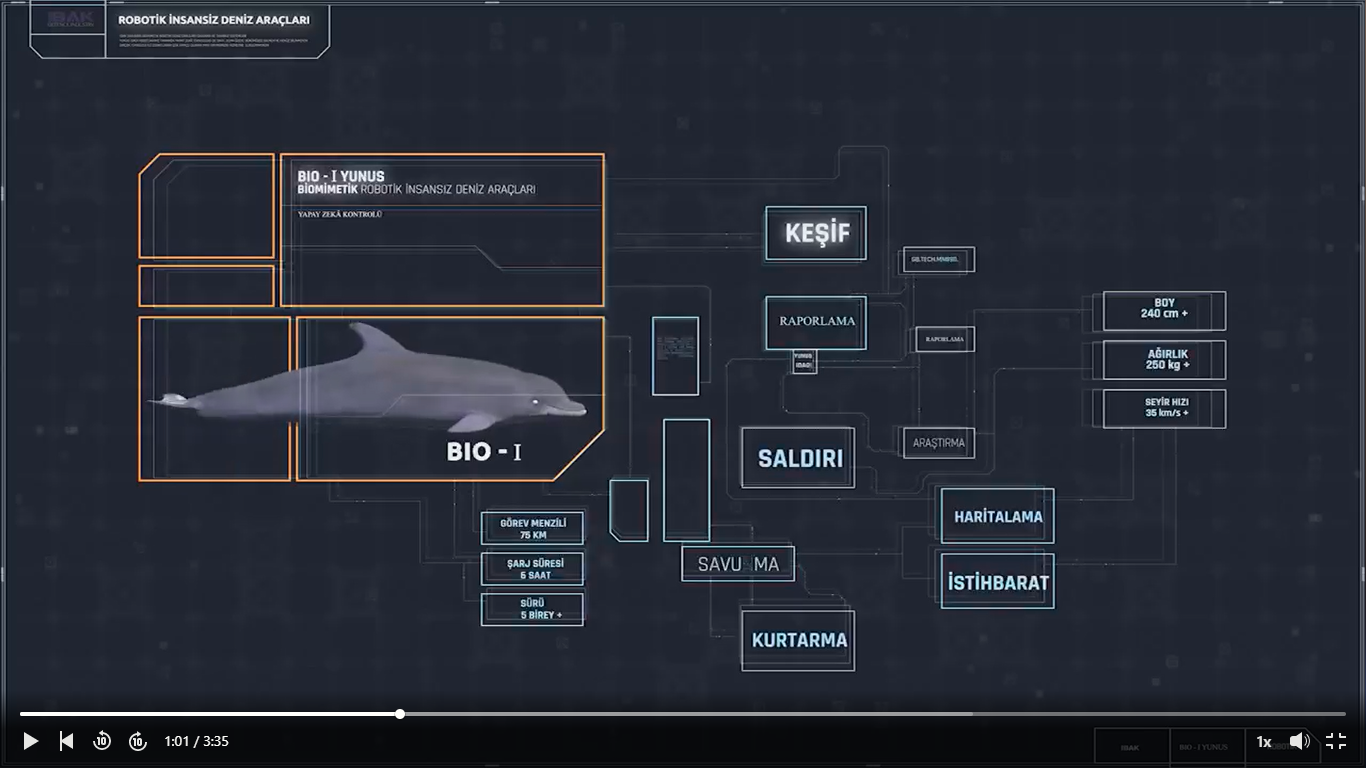

Robot Dolphins Will Protect Our Land Waters

Soldier Robot Dolphins, which are produced by İbak Savunma Sanayi Anonim Şirketi, a subsidiary of IBAK Holding, with domestic and national means and can carry explosive and useful loads, will have the appearance, speed and agility of real dolphins, thanks to biomimetic technology, inspired by the Afalina dolphin species that is frequently seen in Turkish territorial waters. they were designed that way.

The Biomimetic Unmanned Marine Vehicle, which will perform the tasks of Reconnaissance, Observation, Search and Rescue, Intelligence, Attack and Defense, singly or in a swarm, communicates in encrypted form with the sounds of the Afalina herd in the natural life. Thanks to the special outer coating used in its design, autonomous Military Robotic Dolphins, which are a miracle of artificial intelligence, can withstand high pressure and can provide full-time information flow among themselves and with the Command Center.
It is not possible to detect robots, which cannot be distinguished from real dolphins, by underwater and surface systems, since they are produced without using propellers or similar propulsion units while preserving their natural appearance.




FEBQWiZWQAQXLIZ

FEBQ-9kWYAURetZ



Features

Height - 240 cm
Weight - 250 kg
Speed - 19 Knots
Range - 75 km
Charging time - 6 hours
Maximum Mission Depth - 1000 m
Mission Types - Attack/Defense/ISR
5 Ability to create a herd with SİDA
With its tail and fins, it does not need propellers or unnatural propulsion systems.

Last edited:

Bogeyman

Experienced member
Professional
Messages
9,192
Reactions
67 31,253
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey

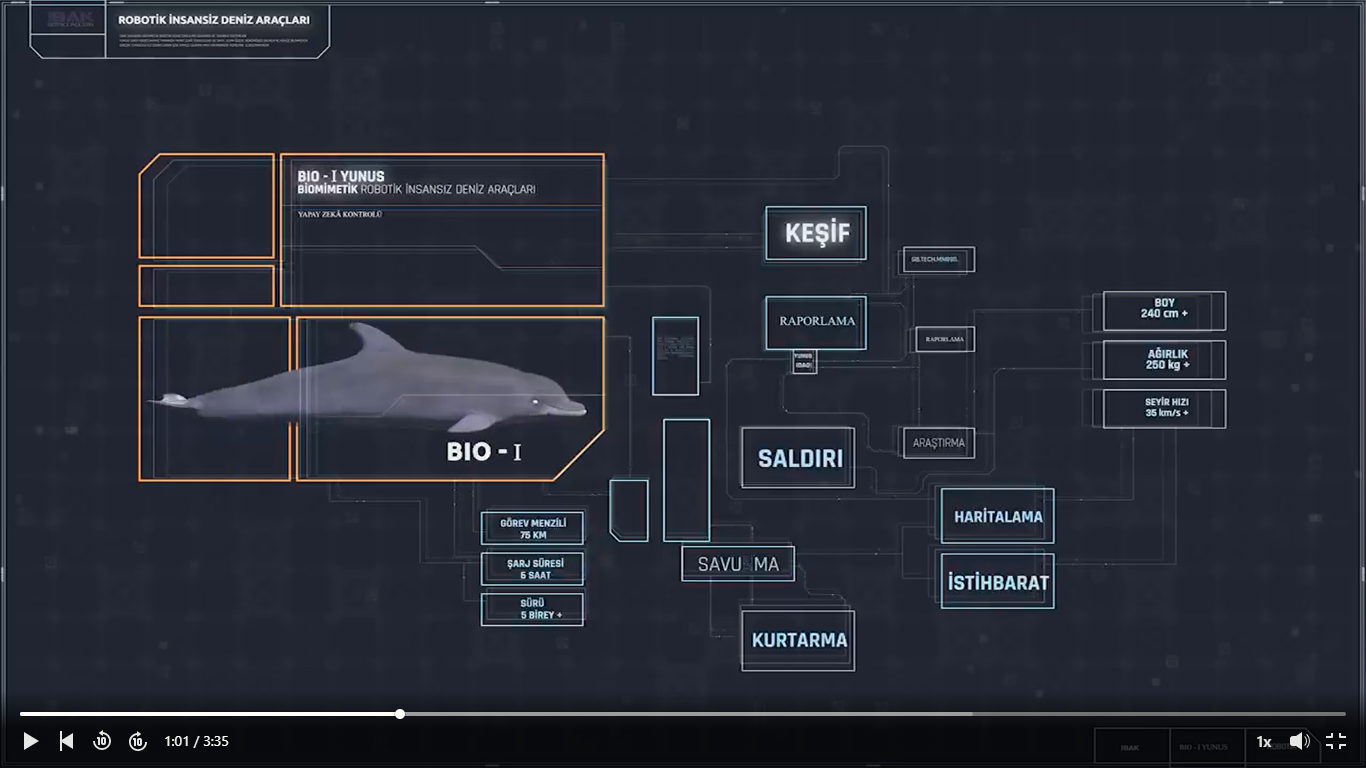

Robot Dolphins Will Protect Our Land Waters

Soldier Robot Dolphins, which are produced by İbak Savunma Sanayi Anonim Şirketi, a subsidiary of IBAK Holding, with domestic and national means and can carry explosive and useful loads, will have the appearance, speed and agility of real dolphins, thanks to biomimetic technology, inspired by the Afalina dolphin species that is frequently seen in Turkish territorial waters. they were designed that way.

The Biomimetic Unmanned Marine Vehicle, which will perform the tasks of Reconnaissance, Observation, Search and Rescue, Intelligence, Attack and Defense, singly or in a swarm, communicates in encrypted form with the sounds of the Afalina herd in the natural life. Thanks to the special outer coating used in its design, autonomous Military Robotic Dolphins, which are a miracle of artificial intelligence, can withstand high pressure and can provide full-time information flow among themselves and with the Command Center.
It is not possible to detect robots, which cannot be distinguished from real dolphins, by underwater and surface systems, since they are produced without using propellers or similar propulsion units while preserving their natural appearance.



View attachment 35505
FEBQWiZWQAQXLIZ

FEBQ-9kWYAURetZ



Features

Height - 240 cm
Weight - 250 kg
Speed - 19 Knots
Range - 75 km
Charging time - 6 hours
Maximum Mission Depth - 1000 m
Mission Types - Attack/Defense/ISR
5 Ability to create a herd with SİDA
With its tail and fins, it does not need propellers or unnatural propulsion systems.
@Anmdt @Cabatli_53 @Combat-Master @Zafer @Kartal1 @Saithan @Yasar @Nilgiri @neosinan @Nein2.0(Nomad) @Test7 @T-123456


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey

Told about this before, probably moved to the politics thread, some unmanned systems producers are dragging their feet to not integrate their systems into the CMS.
For Turkish Navy it is top priority to integrate UAVs, USVs and UUVs into the CMS and operating through common consoles, as Network Centric Warfare requires. They will have to do that for the good.

This post:
A strange issue going on within the Navy:
The navy aims to have a unified communications for unmanned operations for WVR applications, and aims to control unmanned systems through common satellite terminals that are also used for numerous duties, and a commonized console - fully integrated to the operations room and CMS application for the unmanned systems.

However, one particular company disobeys and enforces their own consoles (' developed by them' ), not even running on the same OS core as the ships' CMS runs on, moreover not really compatible to the ships communications systems thus the satellite terminals.
That particular company also introduces their own (through a solution partner of them) satellite terminals and communication terminals.
Neither their consoles or terminals are qualified for naval applications and environment, or is not compliant with rules that govern electronic systems application on the ships. They also neglect a request on qualification and certification of the naval application.
They use some burecracy and high rank middle man to get their demands pass through by ignoring Navy's rulebook on integration for unmanned systems on naval platforms.

Navy's demands are clear:

The system should be fully compatible with CMS and the core OS it runs on.

The system should be fully compatible with satellite terminals inherited by the ship, and should be compatible with communication systems installed on the dedicated mast, here optionally the company may use already available communication systems, or install theirs with the requirement of being compatible and being able to be controlled-integrated by the CMS

The operator consoles should be compatible with the operations room of the ship ( standard console size of the navy), or preferrably, already available multi-purpose consoles should be used for this purpose. Navy prefers to use multi-purpose consoles on several duties and eventually commonalize all USV operations through them, but for sake of the limited time, the unmanned systems suppliers are allowed to integrare their own consoles with the necessity of being qualified and certified.

Lastly, all data that can be transmitted to operations center of the unmanned system should be also able to be transferred and controlled through the CMS.

These should be satisfied by the following years so that the Turkish navy will be ready for the future of network enabled warfare.

Last edited:

Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey


Dearsan's C92 MUMT concept. Dearsan's USV is launched from sides of the multi-purpose bay beneath the Helo-deck and can be recovered.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,460
Solutions
2
Reactions
114 24,640
Nation of residence
Turkey
Nation of origin
Turkey
ADVENT and Unmanned Vehicles
Originally developed for reconnaissance and intelligence, UAVs are now deployed for many missions including assaults. With a wide array of capabilities, UAVs have become more adaptable and effective to execute main missions such as intelligence, surveillance, reconnaissance, and maritime security, as well as others including prevention of human trafficking by sea, search and rescue activities, and relay for communications.

UAVs entail a constant flow of accurate data to contribute to a mission success and boost its efficacy. This may include a wide range of data sets such as area, meteorological, and track data, and positional data of allies and adversaries, and the range of their radar and weapons. This also serves the purpose of making operational plans for UAVs, assigning targets and missions in the most effective way possible, establishing coordination among a swarm of UAVs, and updating mission priorities and operational limitations depending on changing situations.ADVENT CMS is currently capable of collecting, processing, and transferring any data required by UAVs. In the similar vein, ADVENT CMS offers a great deal of planning and control capabilities to assist UAV operations. The integration of UAV Ground Control Stations into ADVENT CMS will make the operational gains much more effective.
Safe to claim that ADVENT integration is coming to the UAVs and USVs that is already delivered or going to be delivered to Turkish Naval Forces.
