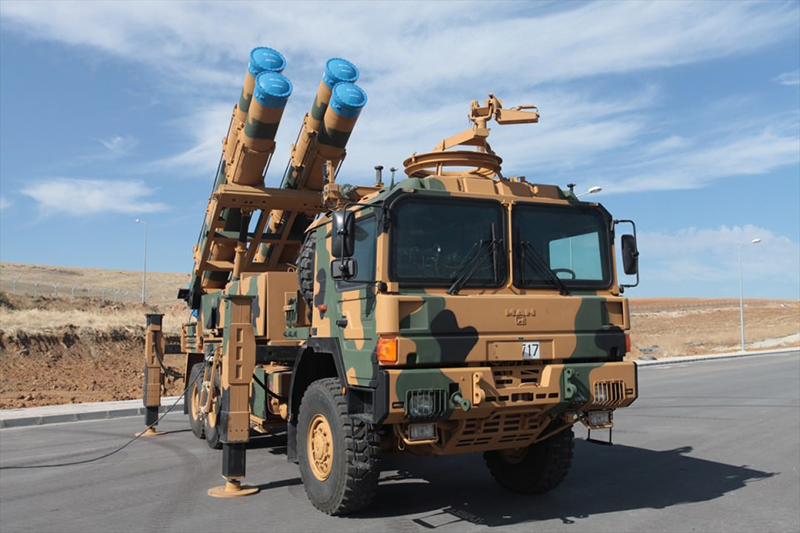

Video shows Russian Pantsir engaging GMLRS rockets. Pantsir fires some missiles and changes location. This is effective against GPS/INS guided artillery rockets and this is where TRLG-230 comes in with the capability to hit moving targets.
At the end screaming
" Все У нас ракет нет! У нас осталось не хуя"


"That's All. We don't have any missiles! There's no dick left, abondon the position, move from here." :)))

TRG-230 could have almost destroyed the Pantsir.
Every artillery rocket a big burden on Russian economy:) Soon they will throw their slippers against artillery rockets.

Last edited:

Bogeyman

Experienced member
Professional
Messages
9,192
Reactions
67 31,253
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey
Underwater Guided Projectile Firing Ability Gain

İbrahim SUNNETCI


Today, it is launched from a submarine using two different launch platforms, the G/M Vertical Launcher (VLS) and the Torpedo Sleeve. While the VLS concept is a cost and somewhat weight-increasing option in submarine design, it offers the user the ability to carry/fire a greater quantity and variety of guided missiles or cruise missiles. From the 1970s to the present, two basic concepts have been implemented for Firing from the Torpedo Sleeve: a capsule with a propulsion system or a floating capsule without a propulsion system.
The SM-39 Exocet G/M is loaded into the submarine in a waterproof, shockproof, homing underwater vehicle (VSM, capsule) with a rocket engine on the back and thrust through a 533mm (21 pus) diameter torpedo tube at a depth of 50-60m (which For this, there must be a positive discharge type equipment in the hive) is thrown.


Surface exit of the SM-39 Exocet Guided Missile with the VSM capsule and leaving the capsule...

After leaving the hive, the VSM, which moves towards the water surface with a certain speed and angle, starts the rocket engine when it approaches the water surface. After taking off about 15-20m from the sea surface, the forward cover is removed and the SM39 Exocet G/M, which starts the rocket engine, leaves the capsule at an altitude of about 30m and heads towards its target. According to open sources, VSM reduces the risk of detecting the location of the submarine since it is launched from a depth of approximately 50-60m from the submarine below the periscope depth and travels in the water for a while after the launch.


MdCN exits underwater with capsule and then leaves capsule

The same concept is used in the submarine-launched version of the Naval Cruise Missile/NCM/MdCN, which is also a MBDA product.

The moment when the MdCN/NCM Missile emerges from underwater with the capsule

The Encapsulated Harpoon (UGM-84) Guided Missile, which is also in the inventory of the Turkish Naval Forces, is launched from a 533mm diameter torpedo tube in a floating capsule without any propulsion system (electric or rocket engine) at periscope depth. After exiting the hive, the two folded balance flaps (fins) on the back of the capsule are released/open, and the capsule, which travels through the water at a certain angle with the effect of completely static hydrodynamic forces, starts a stable static pitching maneuver after a while with the breakage of the control surfaces. As a result, the nose part of the capsule rises to the water surface at a certain angle, while the tail part is separated and the nose part of the capsule is launched by a small rocket.



UGM-84 Encapsulated Harpoon capsule interior section and exterior view..



The UGM-84 Harpoon leaves the capsule, starting the G/M turbojet engine. According to open sources, after leaving the capsule, the Harpoon G/M first climbs to 600m and then descends to its target. In this concept, the launch point of G/M is limited to the place where the submarine is located. It is also claimed that in this concept, the risk of detecting the location of the submarine is higher after the launch (due to both the capsule coming to the surface near the launch point and the 600m altitude of the G/M).

In Turkey, Roketsan and TÜBİTAK SAGE are working on underwater guided missile firing capability. Unlike the SM-39 VSM and UGM-84 capsules, on the New Generation Long Range G/M Capsule, for which Roketsan still continues its concept/development studies using its own resources, the control propulsion system, battery, mission computer, inertial measurement unit and propulsion system [electrical engine]. In fact, the New Generation G/M Capsule, which will be a long-range torpedo capsule, will advance to the target very slowly and silently after leaving the hive, and will suddenly come to the surface at the desired point.



Carrying out the Roketsan AKYA National Heavy Torpedo and ORKA Light Torpedo Projects, ROKETSAN made a presentation titled 'Next Generation Torpedo Systems' at the 'Emerging Technologies in the Naval Defense Industry Workshop' held at the Rahmi Koç Museum Conference Hall on March 8, 2017. They shared striking information about the capabilities and usage concept of the [G/M] Capsule.

In the presentation, attention was drawn to the fact that the New Generation G/M Capsule is actually a torpedo capsule, and it was underlined that Roketsan's experience in the torpedo field is being carried to the capsule level. The purpose is; It was summarized as "to move the capsule away from the submarine like a torpedo so that it stays safely at a distance without having to get too close to the target." In order to avoid the risk of capturing the submarine, it was aimed that the capsule would be able to move away from the submarine like a torpedo, approach the target, and then come to the surface at the desired point and launch a G/M. This capability was expected to lead to changes in G/M related requirements as well. In this way, the difficulties required by a very long-range G/M, both in terms of project and technique, could be eliminated to some extent. Because in this way, the need for exceeding the long range would have been met through the capsule to a large extent.

The advantages of the New Generation G/M Capsule were listed as follows:

• Protecting the secrecy of the submarine (which would also contribute to the protection of the secrecy of the submarine as it could be launched from deeper than the capsules still in use and would surface far from the launch point).
• Optimal use of the theater.
• Sudden Strike ability (the pod would move very slowly and silently to the target and appear out of nowhere).
• Limited reaction time (for the other party).
• Underwater/overwater trajectory/concept optimization.
At that time, Roketsan also launched Torpedo Payload Concepts (in the first stage, studies were being carried out on an optical system integrated into the torpedo), RamJet engine technologies (works were underway to switch from subsonic speed to hypersonic speed), and Super Cavity Torpedo (Conceptual Design Phase), which was also initiated as an equity project. was working on)

In the presentation made during the 10th Naval Systems Seminar held by Roketsan in November 2021, it was noted that the capsule system can be preferred both for the use of air defense missiles from submarines and when using missiles against land targets from submarines.



TÜBİTAK SAGE, another player in our country working on underwater guided missile firing capability, implemented Turkey's first submarine test infrastructure, DATA, in June 2022 and started firing tests with a test capsule (Encapsulated Harpoon capsule). As a test platform, DATA can test and simulate submarine munitions without the need for a submarine.

View attachment 1671528659463.jfif

DATA, which will enable the testing of submarine munitions without being connected to a submarine, has been developed in the same way as the launch system from the shell in GÜR and PREVEZE Class Submarines. DATA, which offers the opportunity to shoot up to a depth of 60 meters under water, can also be controlled from the land. An infrastructure where all guided missile systems fired from submarine to air, land or sea surface can be easily tested without the need for a submarine, including the versions of DATA, ATMACA and GEZGİN Guided Missiles to be used from submarines. The system, which has a 21-inch standard submarine shell, ensures that test firings are carried out under the same conditions as submarines, but in a safer, faster and lower cost manner.

View attachment 1671528687673.jfif
View attachment 1671528713296.jfif
View attachment 1671528799722.jfif


Encapsulated Harpoon was written on the floating test capsule used in the short video shared about the shooting test with DATA.

Frames from the submarine firing test of the BGM-109 Tomahawk Cruise Missile;

View attachment 1671529151194.jfif
View attachment 1671529181567.jfif



Enderun

Active member
Messages
149
Reactions
5 894
Nation of residence
Turkey
Nation of origin
Turkey

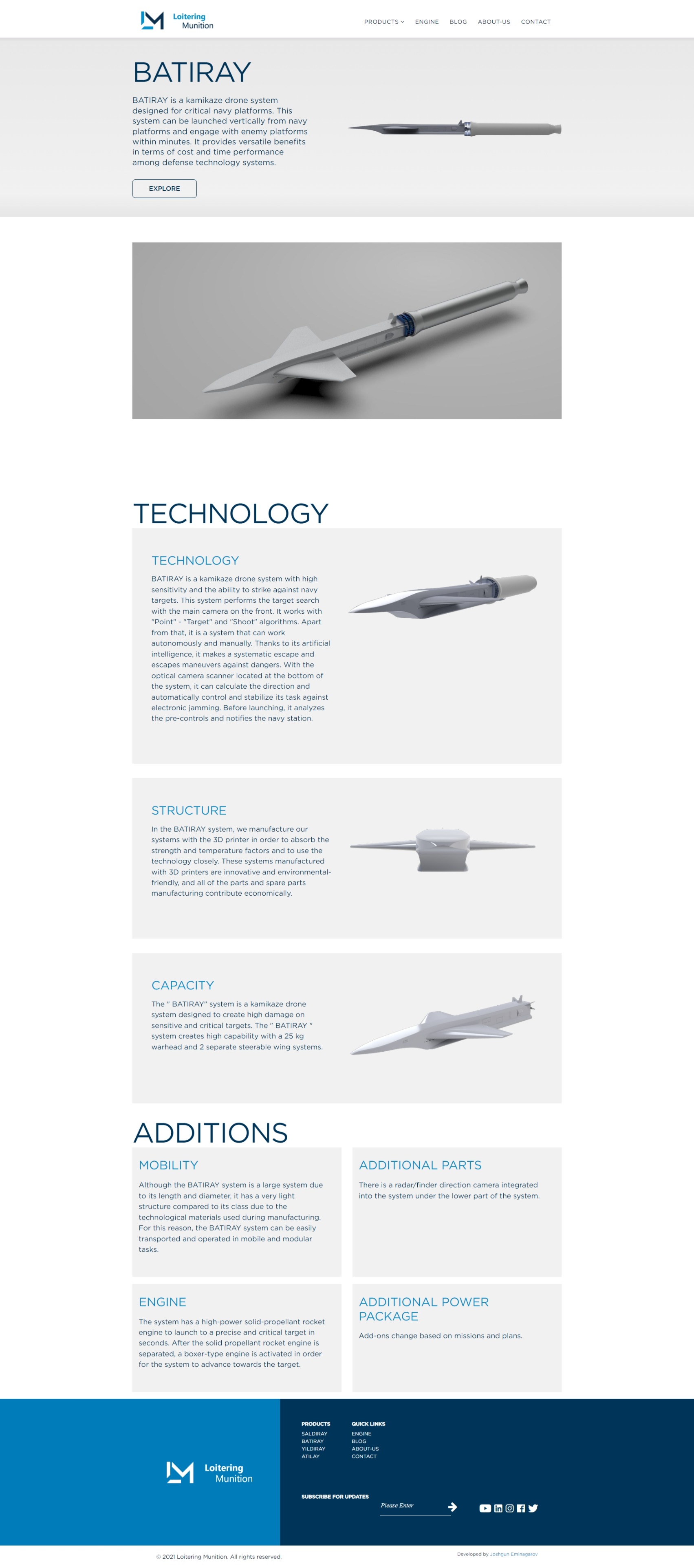

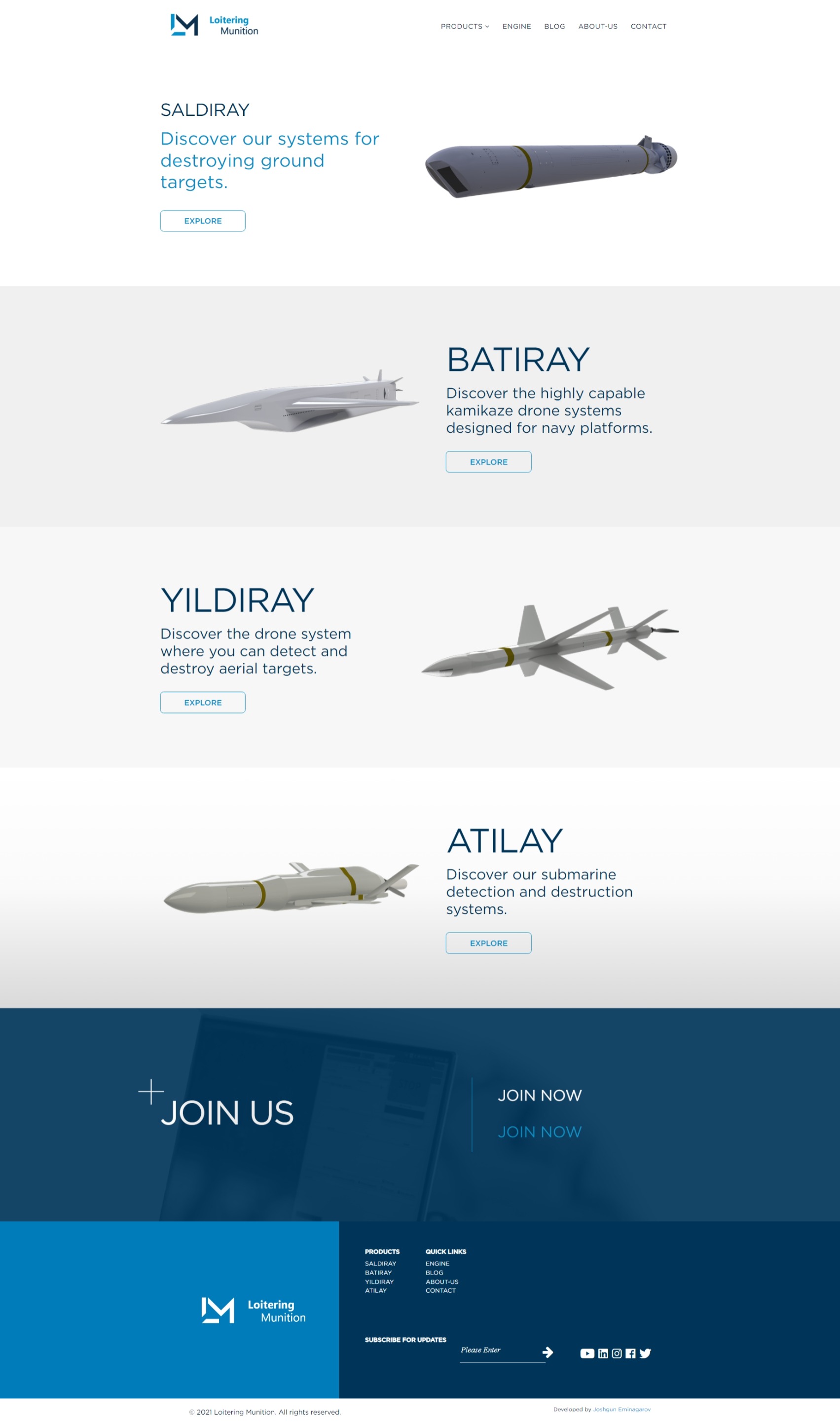

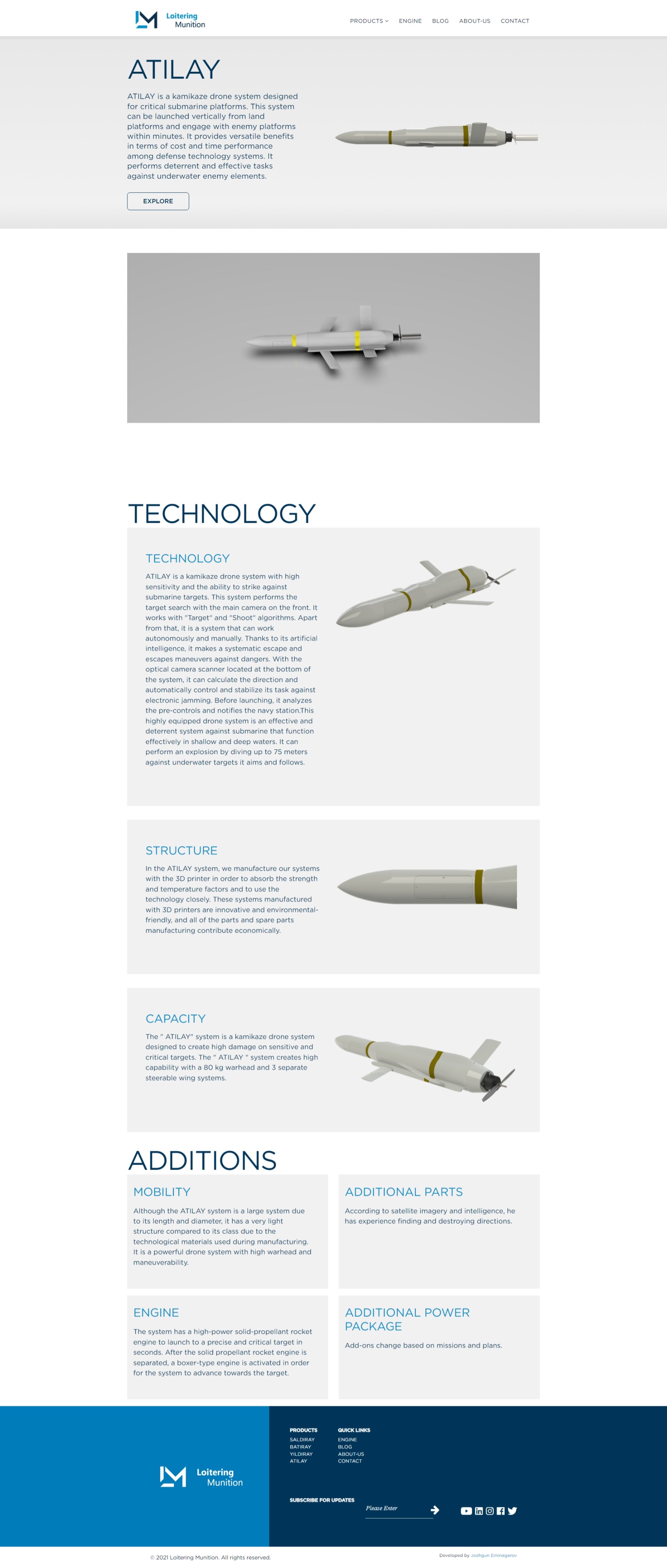

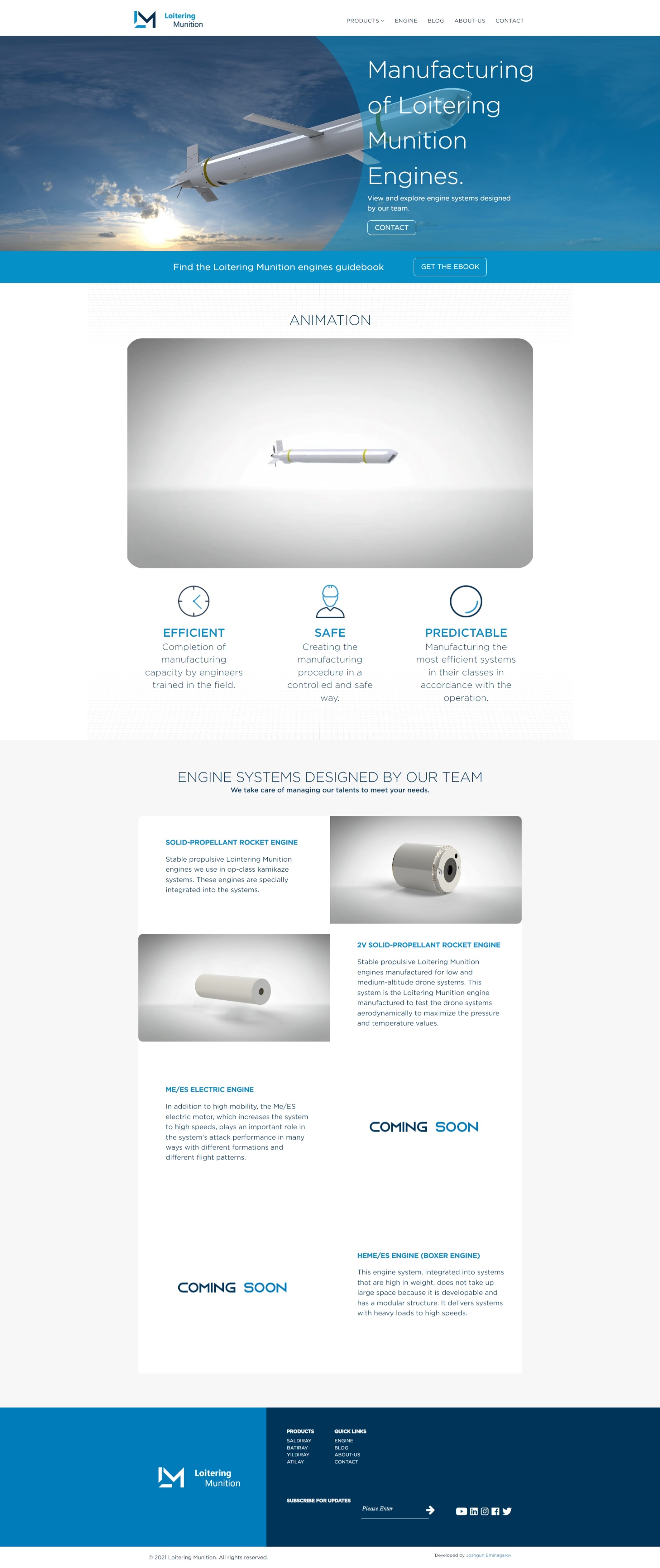

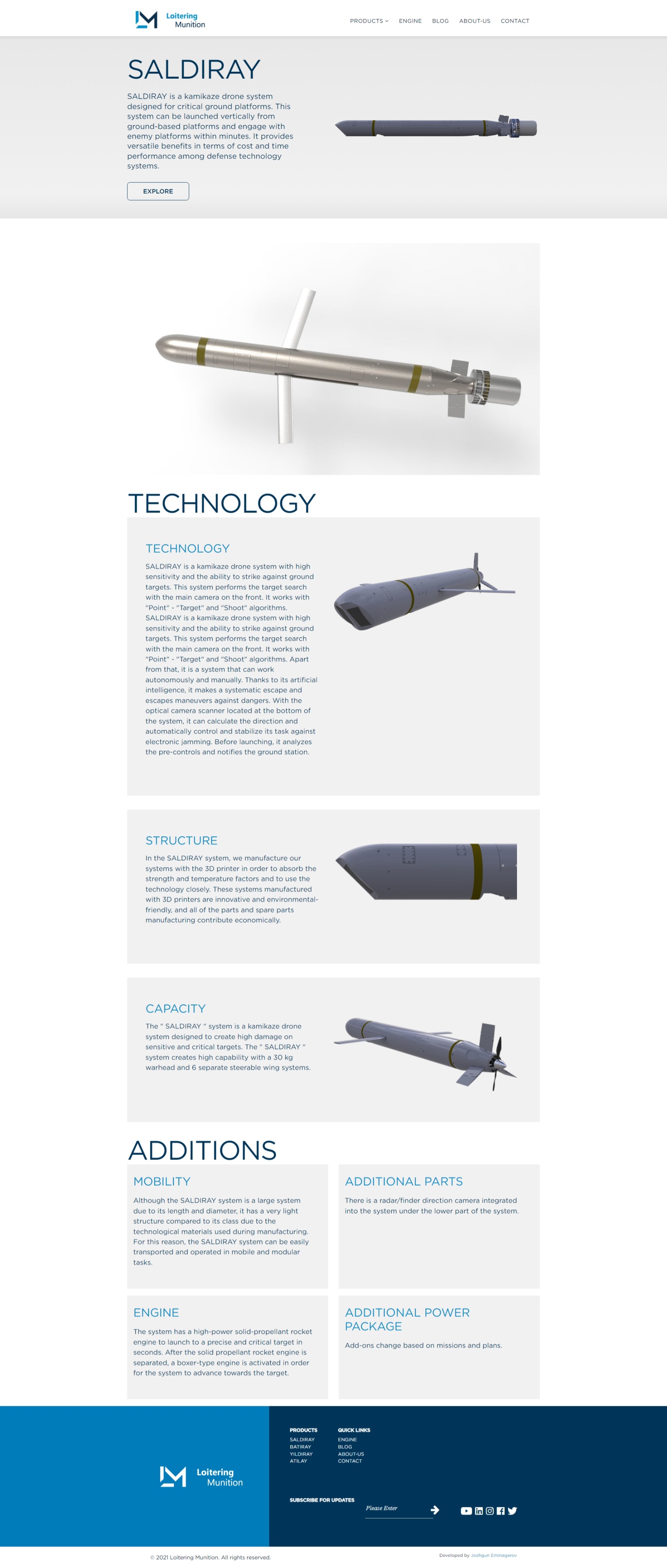

Researching our defense industry companies on the Internet, I came across an interesting company that was newly formed in 2017, but since 2020 has been Loitering Munition, which has gradually gathered its peers, and an interesting company that is designing a related engine and wants to produce. The company is smaller, but its goals are good. Based in Istanbul.

Loitering Munition is a team established in 2020 by college students to make a revolution in drone technology. This team, which includes 12 engineers, continues its work systematically in many fields and carries out R&D studies of innovative systems in the field of drone. The systems are primarily designed and created by engineering teams, and then work on the system continues until it is brought to the manufacturing phase by other engineering teams. All of the systems are created by the student, graduated, and employed engineers. These organized plans bring along the natural infrastructure.

Our team works in the field of engines as well as drone manufacturing and design, has been working with the same discipline and dedication in an exciting way since 2017.We design and name all of our drone systems inspired by the natural world. In addition to the fact that the design and functionality are a priority for us, we try to improve the mobility of our systems as far as we can imagine without limiting the altitude difference. We know that the future is in skies, we always feel that "our future is in the skies".We continue to work for drone technologies and defence adventure. We are looking towards the future.





Heartbang

Experienced member
Messages
2,553
Reactions
8 3,969
Nation of residence
Turkey
Nation of origin
Turkey
Researching our defense industry companies on the Internet, I came across an interesting company that was newly formed in 2017, but since 2020 has been Loitering Munition, which has gradually gathered its peers, and an interesting company that is designing a related engine and wants to produce. The company is smaller, but its goals are good. Based in Istanbul.

Loitering Munition is a team established in 2020 by college students to make a revolution in drone technology. This team, which includes 12 engineers, continues its work systematically in many fields and carries out R&D studies of innovative systems in the field of drone. The systems are primarily designed and created by engineering teams, and then work on the system continues until it is brought to the manufacturing phase by other engineering teams. All of the systems are created by the student, graduated, and employed engineers. These organized plans bring along the natural infrastructure.

Our team works in the field of engines as well as drone manufacturing and design, has been working with the same discipline and dedication in an exciting way since 2017.We design and name all of our drone systems inspired by the natural world. In addition to the fact that the design and functionality are a priority for us, we try to improve the mobility of our systems as far as we can imagine without limiting the altitude difference. We know that the future is in skies, we always feel that "our future is in the skies".We continue to work for drone technologies and defence adventure. We are looking towards the future.
View attachment 51765
View attachment 51766 View attachment 51767

View attachment 51768 View attachment 51769
They got some sleek products.

I deadass expect them to make a nuclear loitering munition and call it Yardıray.


Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,483
Solutions
2
Reactions
118 24,759
Nation of residence
Turkey
Nation of origin
Turkey
Researching our defense industry companies on the Internet, I came across an interesting company that was newly formed in 2017, but since 2020 has been Loitering Munition, which has gradually gathered its peers, and an interesting company that is designing a related engine and wants to produce. The company is smaller, but its goals are good. Based in Istanbul.

Loitering Munition is a team established in 2020 by college students to make a revolution in drone technology. This team, which includes 12 engineers, continues its work systematically in many fields and carries out R&D studies of innovative systems in the field of drone. The systems are primarily designed and created by engineering teams, and then work on the system continues until it is brought to the manufacturing phase by other engineering teams. All of the systems are created by the student, graduated, and employed engineers. These organized plans bring along the natural infrastructure.

Our team works in the field of engines as well as drone manufacturing and design, has been working with the same discipline and dedication in an exciting way since 2017.We design and name all of our drone systems inspired by the natural world. In addition to the fact that the design and functionality are a priority for us, we try to improve the mobility of our systems as far as we can imagine without limiting the altitude difference. We know that the future is in skies, we always feel that "our future is in the skies".We continue to work for drone technologies and defence adventure. We are looking towards the future.
View attachment 51765
View attachment 51766 View attachment 51767

View attachment 51768 View attachment 51769
It is a little sketchy.

Designs are resembling (unfairly inspiration from existing systems) high speed cruise missiles, but are powered wither by electric motor or boxer-rotax gasoline motor and propeller.

Could those propellers truly power the munitions at their cruising speed where the lifting surfaces actually lifting the weight of the missile? I very doubt this.

One of them is literally a copy of (and scaled down version) of Chinese HGV of but with a propeller.

So they followed a typical path: Google a kind of munition (ASW, ASuW, Cruise missile etc), scale it down, add a propeller and voila.

Students come up with these great ideas but they should also be mentored both in technical and management terms. Usually they are drunk with confidence abd lack the technical background to miss the major factor; does the design match to mission profile? Fancy renders indeed and unnnecessary amount of details on the munitions for a newly established firm.


Ripley

Contributor
USA Correspondent
Messages
632
Reactions
15 1,786
Nation of residence
United States of America
Nation of origin
Turkey
It is a little sketchy.

Designs are resembling (unfairly inspiration from existing systems) high speed cruise missiles, but are powered wither by electric motor or boxer-rotax gasoline motor and propeller.

Could those propellers truly power the munitions at their cruising speed where the lifting surfaces actually lifting the weight of the missile? I very doubt this.

One of them is literally a copy of (and scaled down version) of Chinese HGV of but with a propeller.

So they followed a typical path: Google a kind of munition (ASW, ASuW, Cruise missile etc), scale it down, add a propeller and voila.

Students come up with these great ideas but they should also be mentored both in technical and management terms. Usually they are drunk with confidence abd lack the technical background to miss the major factor; does the design match to mission profile? Fancy renders indeed and unnnecessary amount of details on the munitions for a newly established firm.
Thank you
I was just gonna tell it looked quite far fetched


RaptorF22

Member
Messages
23
Reactions
37
Nation of residence
Morocco
Nation of origin
Tunisia
The target is not the mark in the middle but the entire white area. It hit the target.
But I think that the bomb is designed to hit moving targets, which means it does not have the luxury of missing the target by two or three meters, like fixed targets.


Baryshx

Contributor
Messages
969
Reactions
8 2,070
Website
www.twitter.com
Nation of residence
Turkey
Nation of origin
Turkey
But I think that the bomb is designed to hit moving targets, which means it does not have the luxury of missing the target by two or three meters, like fixed targets.
If it was like you said, they probably wouldn't display it proudly, so it's a shot within tolerance.

Btw, why are new ammunition tests always made from Akıncı?

Public institutions always promote through a private company? They have similar/close drones.

Is it forbidden to be made from Anka and Aksungur?


Agha Sher

Experienced member
DefenceHub Diplomat
Messages
2,751
Reactions
11 9,295
Nation of residence
Denmark
Nation of origin
Afghanistan
But I think that the bomb is designed to hit moving targets, which means it does not have the luxury of missing the target by two or three meters, like fixed targets.

Brother, this bomb has more than 200kg of explosives. It has an armour destruction radius of 11 meters and a fragment radius of 145 meters. It destroys everything within dozens of meters.


Agha Sher

Experienced member
DefenceHub Diplomat
Messages
2,751
Reactions
11 9,295
Nation of residence
Denmark
Nation of origin
Afghanistan
If it was like you said, they probably wouldn't display it proudly, so it's a shot within tolerance.

Btw, why are new ammunition tests always made from Akıncı?

Public institutions always promote through a private company? They have similar/close drones.

Is it forbidden to be made from Anka and Aksungur?

Some tests are also done with Aksungur etc.

I just think that Akinci is a more flexible platform and Baykar being a private company without a lot of beaurcracy allows for shorter time between planning and execution.
