Gogdeniz looks big but aslo only 1 is not enough so i hope Turkish Phalax will aslo mouted on this frigate .
1 Turk Phalax
1 Gogdeniz
16 Anti-ship/ land Cruise missile
16/32 SAMs
2x Mediun torpedos
For 3000 ton 114 meter frigate looks good


Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,368
Reactions
79 45,455
Nation of residence
Turkey
Nation of origin
Turkey


TheInsider

Experienced member
Professional
Messages
3,698
Solutions
1
Reactions
26 13,301
Nation of residence
Turkey
Nation of origin
Turkey
FzExEV2aQAYaoly


According to İbrahim Sünnetçi MAN engines will be used for the last 3 ships. This engine will probably be used for the last 3 frigates.



Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
3,800
Reactions
64 6,726
Nation of residence
Bangladesh
Nation of origin
Bangladesh
Are these VLS more square than mark 41?


UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,129
Reactions
26 3,788
Nation of residence
Turkey
Nation of origin
Turkey
1 Turk Phalax
We already discussed about Phalanx. Phalanx and something less than 35mm cal wouldn't be effective. İ would prefer two-sided 2xgöker35mm.

Are these VLS more square than mark 41?
No idea but neither Hisar-N not Siper could be quadpacked in it.

CAMM/SeaCeptor shaped more thinner missiles could be fit as quadpacked.

MIDLAS looks like the french Silver VLS.


Last edited:

Oublious

Experienced member
The Netherlands Correspondent
Messages
1,943
Reactions
7 4,134
Nation of residence
Nethelands
Nation of origin
Turkey
We already discussed about Phalanx. Phalanx and something less than 35mm cal wouldn't be effective. İ would prefer two-sided 2xgöker35mm.


No idea but neither Hisar-N not Siper could be quadpacked in it.

CAMM/SeaCeptor shaped more thinner missiles could be fit as quadpacked.

MIDLAS looks like the french Silver VLS.

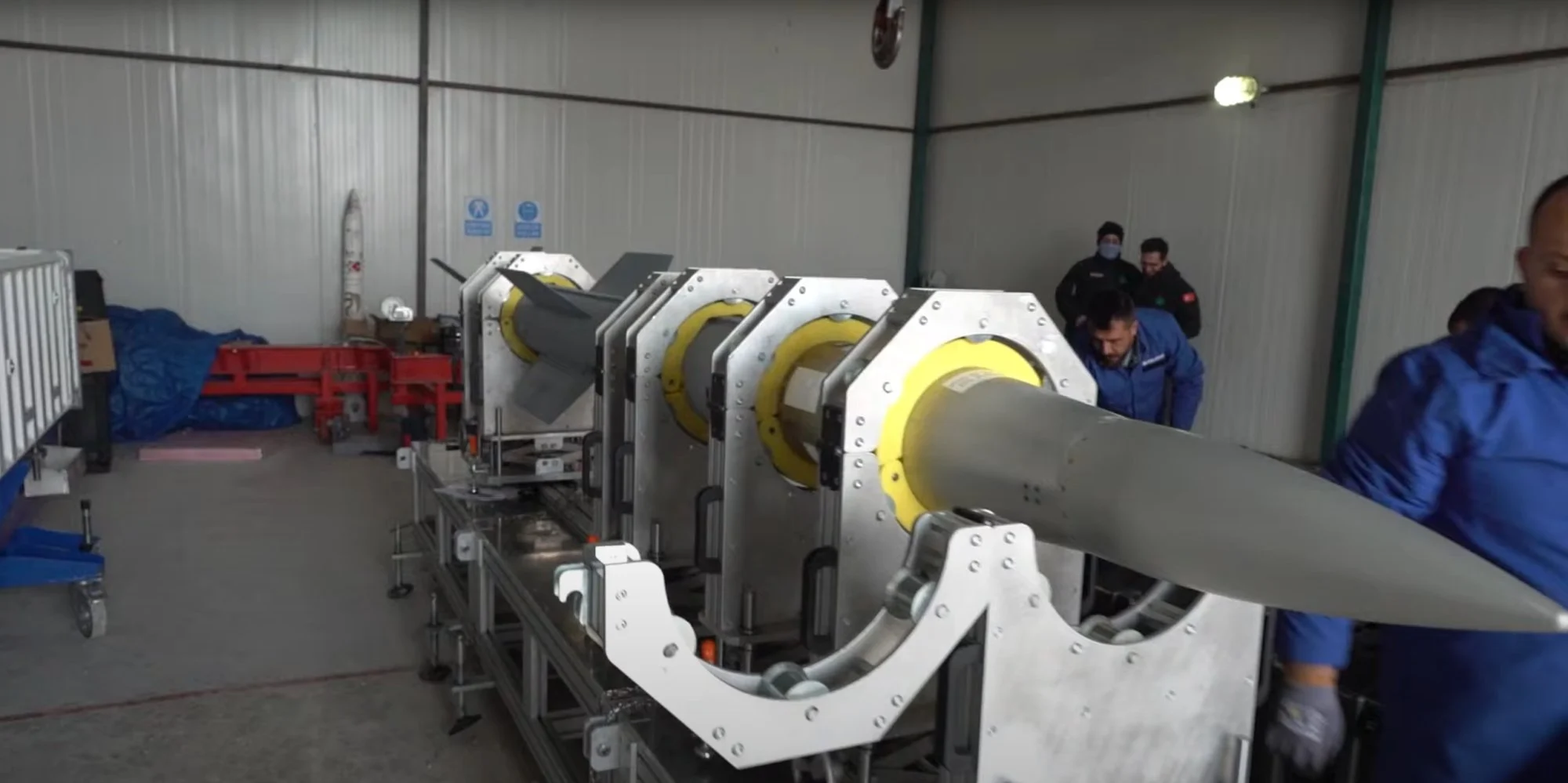

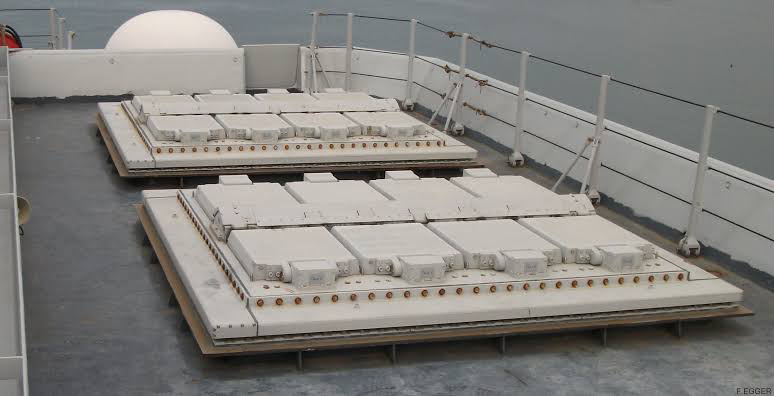

View attachment 58575

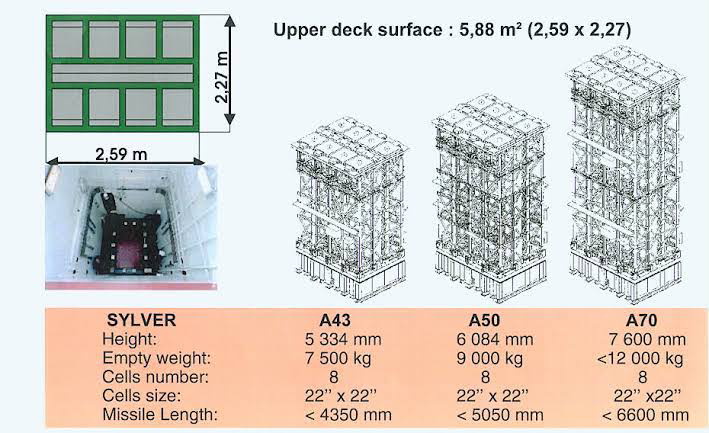

View attachment 58576


This is hisar, with booster it is SIPER. Now look to MIDLAS, quad packed is no problem..



TheInsider

Experienced member
Professional
Messages
3,698
Solutions
1
Reactions
26 13,301
Nation of residence
Turkey
Nation of origin
Turkey
25" = 63.5cm. 63.5/2= 31.75cm The Hisar-N and Siper-1 missiles shouldn't have more than ~300mm diameter when the wings are folded. This looks possible to me.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
2,992
Reactions
104 14,424
Nation of residence
United Kingdom
Nation of origin
Turkey
I really hope that the Hisar-RF or even Siper can be quad packed in to our MIDLAS. But one has to take in to consideration the exhaust return chutes and their space requirements? You don’t just fit the bare missiles in to those canisters. All those gasses and flames have to be exhausted from the sides of the missile containers. They need certain amount of space.
ESSM missiles are 25.4cm in diameter. And they just about manage to be fitted in to MK41 VLS in quad packed format.
If our MIDLAS is same as MK41 in size, then any missile with a diameter larger than 25.4cm may be beyond quad packability.
May be @Anmdt could shed some light in to this conundrum?

EDIT:

this is a representation of a MK41 VLS



Last edited:

UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,129
Reactions
26 3,788
Nation of residence
Turkey
Nation of origin
Turkey

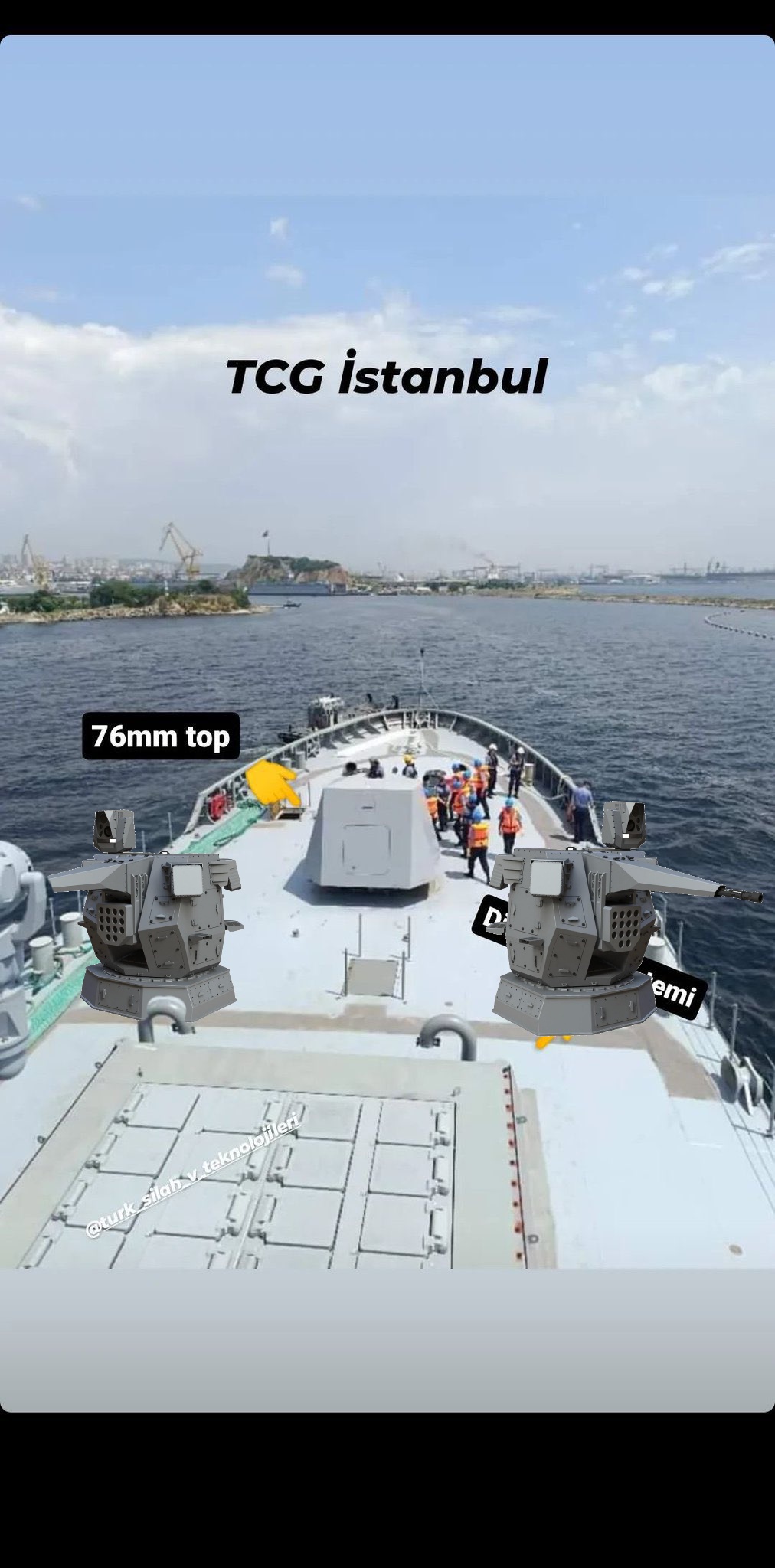

Ok it is the last one. No more photos.


-16 cell VLS
-4x14: 56 SHORAD missiles

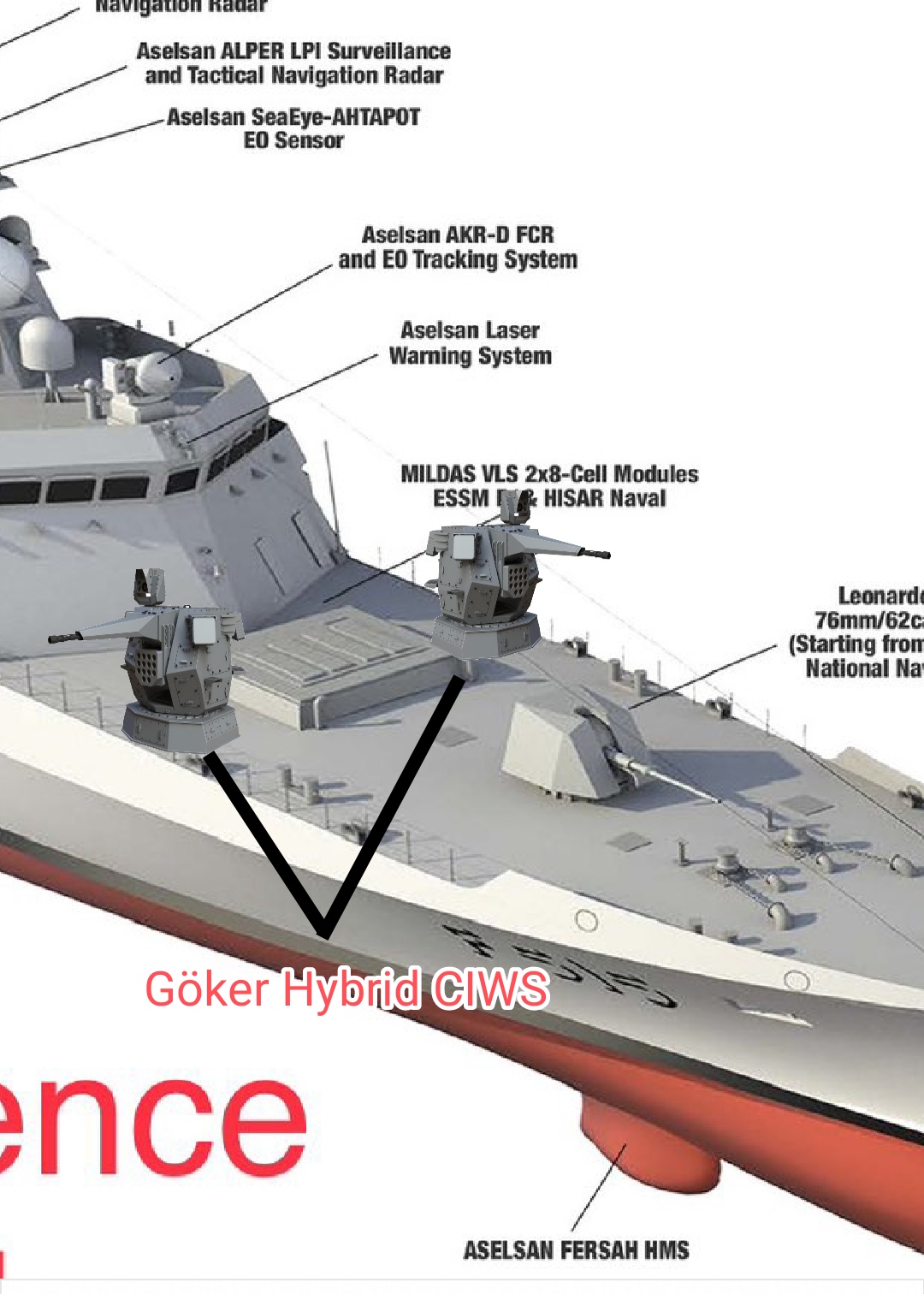

- 4 X 35mm CIWS would be effective for all you?

Last edited:

godel44

Active member
Messages
112
Reactions
8 393
Nation of residence
Turkey
Nation of origin
Turkey
I would rather put Roketsan's Levent and Nazar on the ship. I was expecting to see Nazar at some capacity by now.
