REKOM Optoelektronik

LASIR 270 - LIDAR
We develop domestic products that use laser detection and ranging (LIDAR) technology for autonomous vehicles, especially for UAV platforms. With this critical technology we have developed, it is aimed to provide environmental awareness and 3D mapping in 360° (panoramic) field of view, at high speed.


REV30 - Miniature Ruggedized Daylight Camera with 30x Magnification
Miniature continuous lossless zoom cameras with auto-focus and auto-iris capability that are suitable for military specs, resistant to collision which can work night time with illuminators, easy to procure, cost-effective and easy maintenance, especially for use in UAV’s.



Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey
RST METRAD

METRAD is the novel X-Band weather radar with high sensitivity and large dynamic range, which enable the detection of even the weakest hydro-meteorological targets, such as drizzles or light snow. The compact size and transportability of this complete X-Band system will make it the perfect choice for fixed installation and mobile operations, including rapid deployment for regional campaigns.



Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey

RST - KuMETAS: Ku-Band Hybrid Scanned Antenna System​


Ku-Band Hybrid Scanned Phased Array Antenna System is for Satcom-On-The-Move Applications. It mechanically scans in azimuth and scans electronically in elevation. With this scan pattern solution, it provides 360º coverage in azimuth while provides 90º coverage in elevation. KuMETAS provides wide band receiving and transmitting capability.

Technical Specifications:​

TargetUnit
Frequency BandDual-Band
KuTx: 13.5-14.5GHz
KuRx: 10.95-12.75GHz
Polarization
Ku(1)Tx: V or H
Ku(1)Rx: H or V
Antenna GainTx: 34, Rx: 32dBi
G/T7dBi/K
EIRP85dBm
VSWRTx-Rx: 2:1
Data RateTx: 10, Rx: 1Mb/s
3dB Beamwidth<2Deg
Power Supply<1000Watts
Elevation Scan+20 to +90Deg
Azimuth Scan360Deg
Weight50kg
Dimensions800/800/250(w/l/h)mm


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
REKOM Optoelektronik

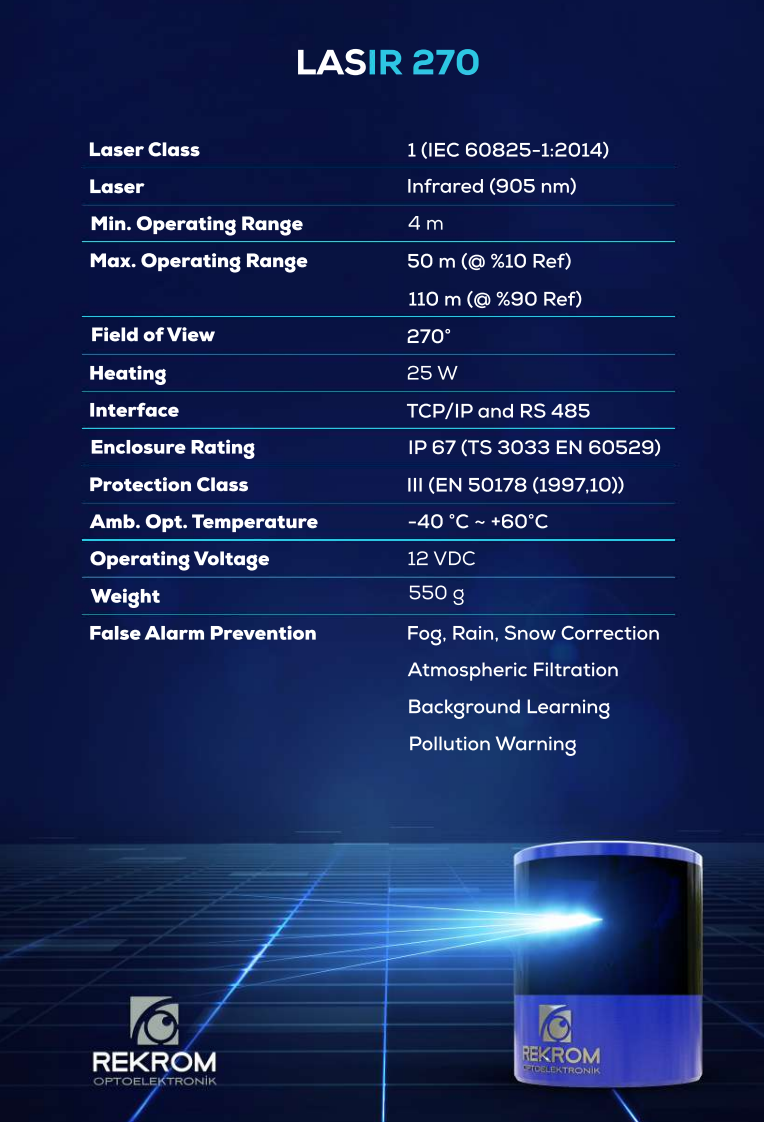

LASIR 270 - LIDAR
We develop domestic products that use laser detection and ranging (LIDAR) technology for autonomous vehicles, especially for UAV platforms. With this critical technology we have developed, it is aimed to provide environmental awareness and 3D mapping in 360° (panoramic) field of view, at high speed.
View attachment 18650

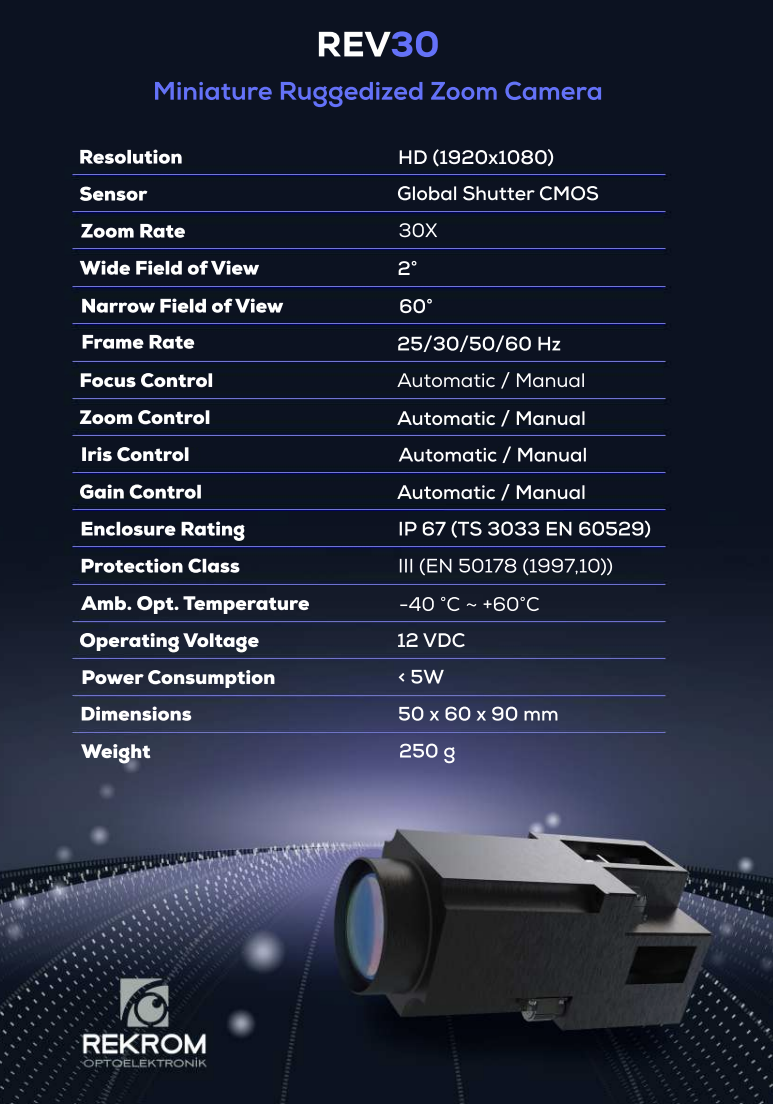

REV30 - Miniature Ruggedized Daylight Camera with 30x Magnification
Miniature continuous lossless zoom cameras with auto-focus and auto-iris capability that are suitable for military specs, resistant to collision which can work night time with illuminators, easy to procure, cost-effective and easy maintenance, especially for use in UAV’s.

View attachment 18651

Bullshit, 2° is narrow field of view not wide-field.


Bogeyman

Experienced member
Professional
Messages
9,192
Reactions
67 31,255
Website
twitter.com
Nation of residence
Turkey
Nation of origin
Turkey
Surface wave high frequency radar core system preparation (YDYFR-ÖH)

It is aimed to develop at the request of the Naval Forces Command and to create the field-oriented infrastructure necessary for high frequency radar, which will be able to monitor, detect, diagnose and monitor sea platforms with trans-horizon ranges and partially from behind the island, to increase the experience for data collection and to analyze the data obtained.

The Naval Forces Command had ordered a special radar for the Aegean islands along with the Serdar Coastal Surveillance Radar. So they wanted to prevent the islands from creating a blind spot.


It was already known that Greece wanted to disadvantage us by using blind spots on the Aegean islands.

Correction: I think it was said that the Serdar Coast surveillance radar could see the back of the islands
I forgot to add the news in 2011.

Last edited:

dustdevil

Committed member
Think Tank Analyst
Messages
271
Reactions
669
Nation of residence
Turkey
Nation of origin
Turkey
Surface wave high frequency radar core system preparation (YDYFR-ÖH)

It is aimed to develop at the request of the Naval Forces Command and to create the field-oriented infrastructure necessary for high frequency radar, which will be able to monitor, detect, diagnose and monitor sea platforms with trans-horizon ranges and partially from behind the island, to increase the experience for data collection and to analyze the data obtained.

The Naval Forces Command had ordered a special radar for the Aegean islands along with the Serdar Coastal Surveillance Radar. So they wanted to prevent the islands from creating a blind spot. According to a news in 2011, the radar is expected to have a range of 27 to 30 km. Since the Serdar Coast surveillance radar is in the inventory, this radar must have entered the inventory by now.


It was already a well-known fact that Greece wanted to disadvantage us by using blind spots on the Aegean islands.
What is described here could be a HF surface wave over-the-horizon radar so much more range, up to 400 km is possible. It probably won’t distinguish a ship next to a cliff like this but the network can keep track of the ship before it arrives to this position & keep it in memory,


Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
Mr Kotil: Canada applied embargo. (Bombardier aircrafts) Aircrafts have already been delivered. We have developed different solutions. We are proceeding modification for HavaSoj program.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,269
Nation of residence
United Kingdom
Nation of origin
Turkey
View attachment 16686
Siper R/F seeker ? :)

Akinci - 2021 AESA Radar
F-16 - 2022 AESA Radar
TFX/MMU - 2026 AESA Radar
These are the most important projects for us. Akinci Aesa radar is feasible. But according to the article written by Ibrahim Sunnetci and shared here by @cabatli53 (#151) , the 29block 50+ and 71block 50M planes need permission from Lockheed Martin, for them to be equipped with indigenous Aesa radars.
Yet without these radars, our f16 fleet and our Air Force will be in a very disadvantaged position against Greek and Egyptian airforces. We will have to bite the bullet and go ahead with the aesa modernisation no matter what!


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
These are the most important projects for us. Akinci Aesa radar is feasible. But according to the article written by Ibrahim Sunnetci and shared here by @cabatli53 (#151) , the 29block 50+ and 71block 50M planes need permission from Lockheed Martin, for them to be equipped with indigenous Aesa radars.
Yet without these radars, our f16 fleet and our Air Force will be in a very disadvantaged position against Greek and Egyptian airforces. We will have to bite the bullet and go ahead with the aesa modernisation no matter what!

This modernization can be reconsidered in conjunction with the now off F35 deal.
Both F16 and F35 are LM products.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,269
Nation of residence
United Kingdom
Nation of origin
Turkey
This modernization can be reconsidered in conjunction with the now off F35 deal.
Both F16 and F35 are LM products.
Can you explain a little more please? Too cryptic for me!


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
Can you explain a little more please? Too cryptic for me!
F35 money is not returned. An equal amount of money or goods is due to be paid back. It would be easier for them to give permission to us to upgrade as part of a return package.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,247
Reactions
141 16,269
Nation of residence
United Kingdom
Nation of origin
Turkey
F35 money is not returned. An equal amount of money or goods is due to be paid back. It would be easier for them to give permission to us to upgrade as part of a return package.
I was thinking of this too!😀👍


kimov

Committed member
Messages
164
Reactions
1 408
Nation of residence
Sweden
Nation of origin
Turkey

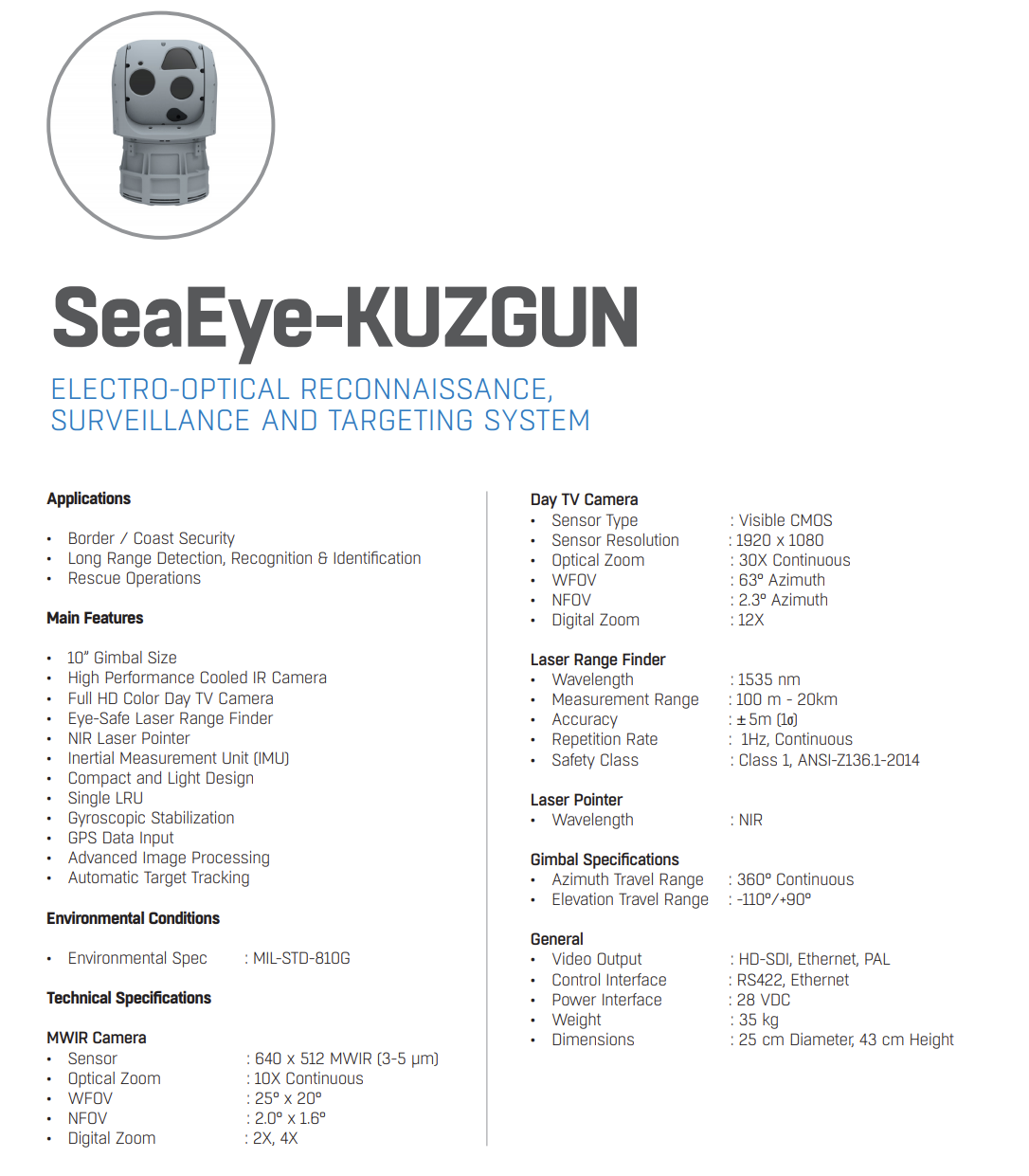

Do anyone know why they selected a very low resolution optical (TV) sensor?
A full size 20-50 Mpx sensor would beat the FHD sensor on any parameters like clarity, low noise, low light, flexibility, optical zoom or even cost since these are used in every single DLSR.
(The bandwidth can't be a problem since that can be resolved with simple adoptive zoom software.)

Also, the accuracy of the range finder is given to 5m. Is this not 5mm?
If they really have 5m then they are missing some really basic design issues such as sample the out going signal.
(I help develop range finders with 2mm accuracy based on 10 year old tech. I still have some of the prototypes.)


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey
Ortana Savunma

Initial Velocity Measurement Radar for Missiles


RADOR 501 - Radar Altimeter

RADOR 510 - Radar Altimeter


RADOR 551 - Radar Altimeter developed for T-625 Gokbey



METEOS 101 - Integrated meteorology sensor - Naval and Land Stations





METEOS 110 - Integrated meteorology sensor for land platforms



ENCODOR 75 and 125 - Inductive Precision Angle Encoder


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,474
Nation of residence
United Kingdom
Nation of origin
Turkey
Canovate PanTher - Panoramic Thermal Radar

The panoramic thermal radar consists of the software and hardware of a radar system that can display the environment by scanning 360° day / night with the thermal camera. This radar; can alarm when it detects any moving target or when there is an increase in temperature in the scanning area.
The Thermal Radar Hydra provides the unparalleled 360° detection of Thermal Radar combined with targeted surveillance from a colour and laser illuminated PTZ.



Test7

Experienced member
Staff member
Administrator
Messages
4,785
Reactions
19 19,937
Nation of residence
United States of America
Nation of origin
Turkey
It is currently deployed the Mar-D instead of Smart-S.

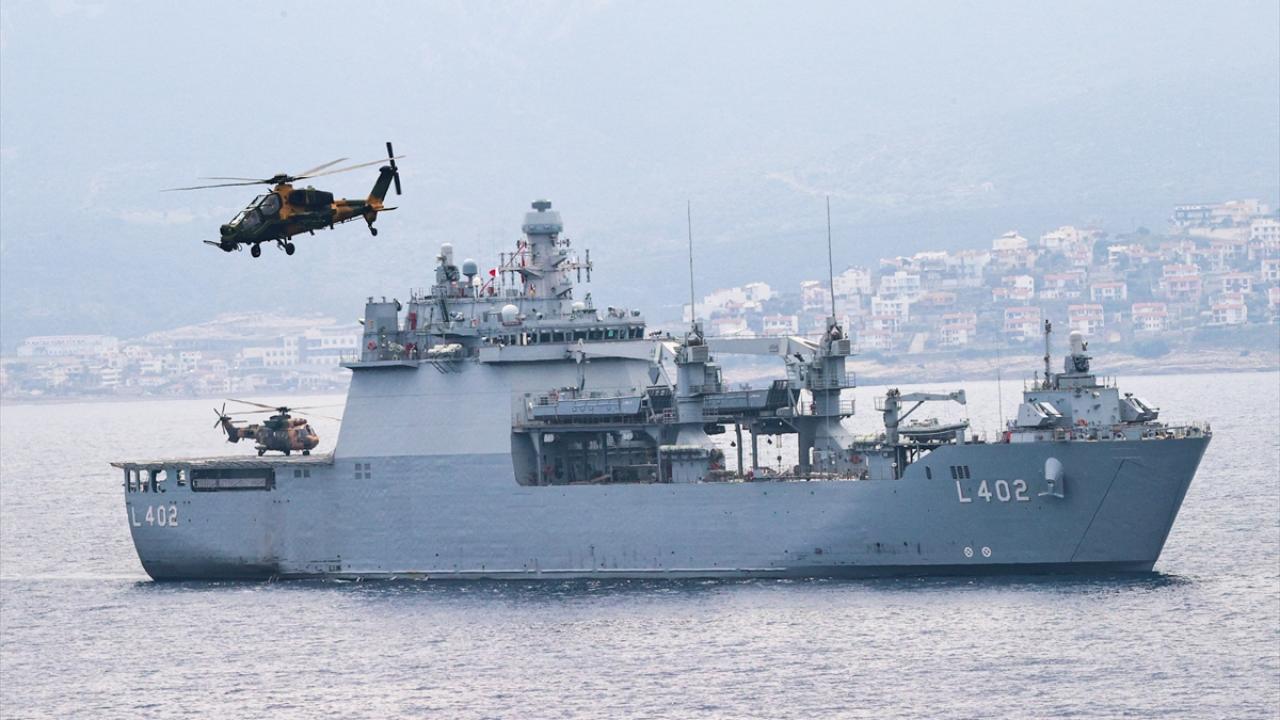

Current photo(TCG Bayraktar (L-402)
