Aselsan has improved in making single CdZnTe Bulk Crystal and is making headway in developing LWIR MCT type detectors.






Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
Low frequency and active sonar (Tf-2000 destroyer) system is being developed by Aselsan.

ekran-alintisivvs-jpg.613922


Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
Thanks to GaN HEMT (high electron mobility transistor) jammer program and new MMIC circuit, Turkish jammer systems are being evolved into more dangerous platforms to meet requirements of very high output energy/heat resistance and larger frequency band coverage.

19409cb8-d644-41ed-a696-36572ee13158-jpeg.613339


Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,455
Nation of residence
Turkey
Nation of origin
Turkey
EIRS early warning radar studies
eee7fd9f-b061-4012-ac65-195233128dcb-jpeg.617359

834cc3d3-7b61-404d-a103-b725e3f9bf0b-jpeg.617361
84687797-39e4-43d8-80e7-63376c9a7ea3-jpeg.617360

Source: ODTU thesis study “Design and construction of folding mechanism for a radar system”


Saithan

Experienced member
Denmark Correspondent
Messages
8,778
Reactions
37 20,052
Nation of residence
Denmark
Nation of origin
Turkey

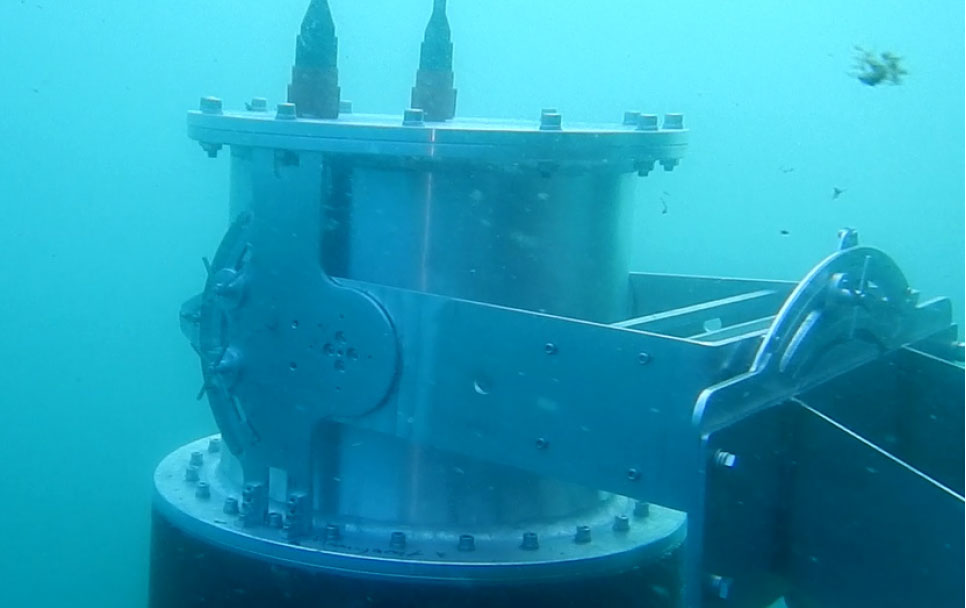

Underwater Security of Strategic Coastal Facilities is Provided by Echorium Diver Detection Sonar!

Issue 100

June 18, 2020. The Echorium Diver Detection Sonar, developed indigenously by Koç Bilgi ve Savunma Teknolojileri, was introduced for use by strategically important civil and military facilities.

The Echorium Diver Detection Sonar enables the automatic detection of possible underwater threats remotely without the need for an operator. With 24/7 operation capability, it consists of a Central Imaging and Control Station and a High-Power Underwater Sound Signaling System.

The High-Power Underwater Sound Signaling System principally makes a sound signaling that an intruder, such as a diver is approaching the prohibited zone. If the diver does not leave the prohibited zone, it forces the diver to come to the surface by disturbing him with high-power sound signals at an audible frequency.

One of the main features of the system is its easy use by security teams without requiring computer skills through its map-based user screens. Thanks to this feature, short user/operator training enables the efficient use of the system. In addition, sonar screens can be selectively displayed when the system is used by the domain expert.

The system’s field integration and acceptance activities were completed and has started to be used on a 24-hour basis. Furthermore, the performance of the system has started to be demonstrated with live demos to other companies in the sector.

Main features of the system are given below:

High Threat Detection Range and Long Reaction Time

Automated Threat Detection, Tracking and Classification Capability

Low False Alarm Rate

User Friendly, Graphical Software Interface not requiring Sonar Expertise

Operator Friendly with Automatic Alarm Capability

Real-Time Mobile Tracking Capability for Field Support for Security Teams

Remote Tracking Capability

Fast Production and Installation (less than 12 months)

Remote Maintenance / Repair / Technical Support

Onsite Maintenance / Repair / Technical Support

Low Error Recovery Time

24/7 Working Ability

Over 70% local content rate

Ship Protection with Portable Version

Diver Countermeasure Capability with High Power Sound Source



__________________________________________





Test7

Experienced member
Staff member
Administrator
Messages
4,785
Reactions
19 19,938
Nation of residence
United States of America
Nation of origin
Turkey
Production of ARES series Radar Electronic Support Systems(ESM) continues by Aselsan. The system will be integrated into IMSS( Long Horizon Integrated Maritime Surveillance System)


________________
The ARES-2NCL, which used in electronic support measure missions, has been designed specifially for attack boat (IPV) type light surface platforms. Offering the capabilities of detection, interception, classification and tracking of the radar signals, ARES-2NCL also has automatic identification capability.





GNCTRK

New member
Messages
4
Reactions
19

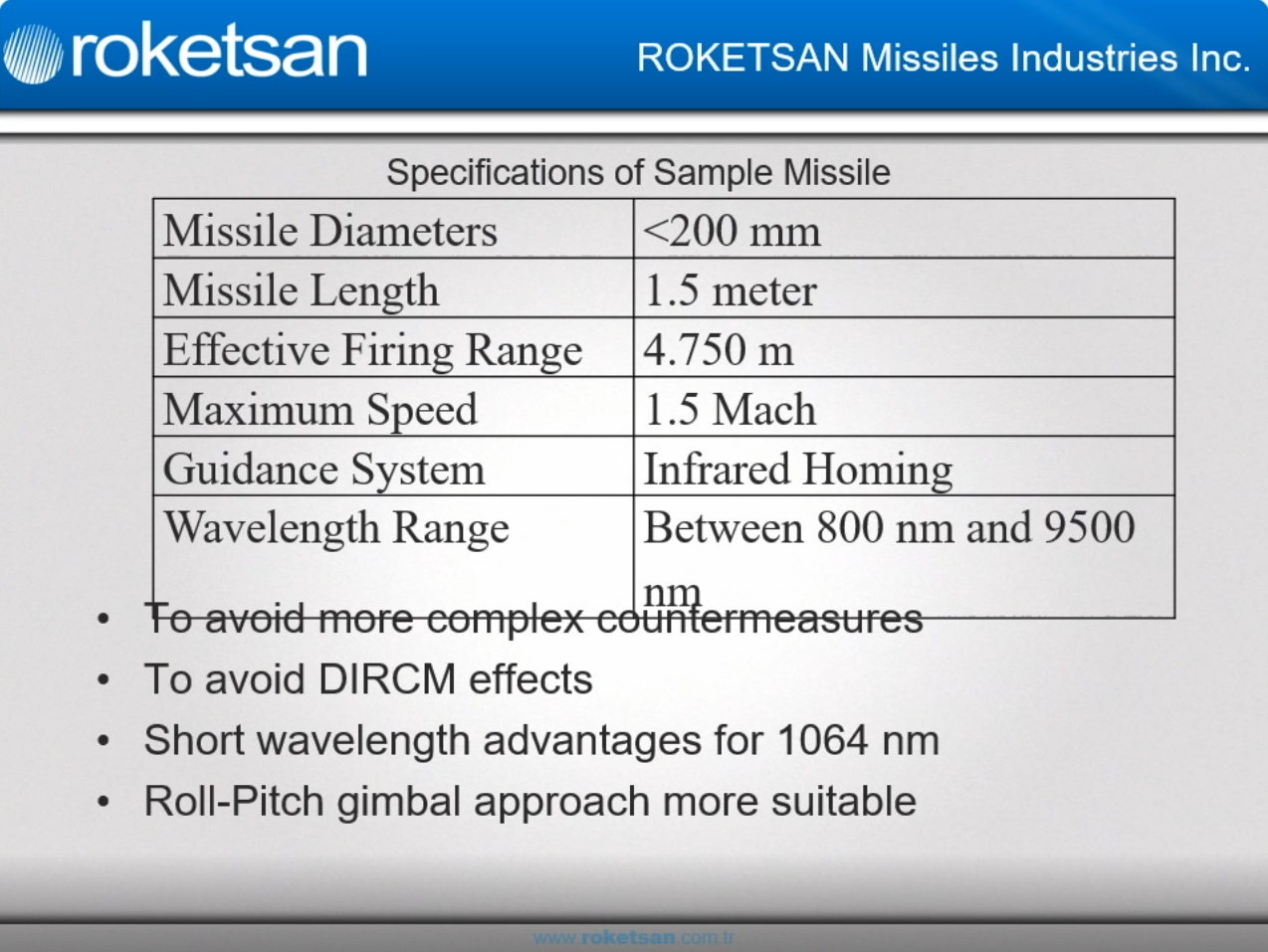

Given the "sample missile" spec, could this be sungur? couldnt find any technical specs of sungur but 200mm diameter and 1,5 m length looks fairly close.

I just saw the effective range doesnt come close to sungur, maybe it is just a sample missile 🤔

T

triangle

Guest
I just saw the effective range doesnt come close to sungur, maybe it is just a sample missile 🤔

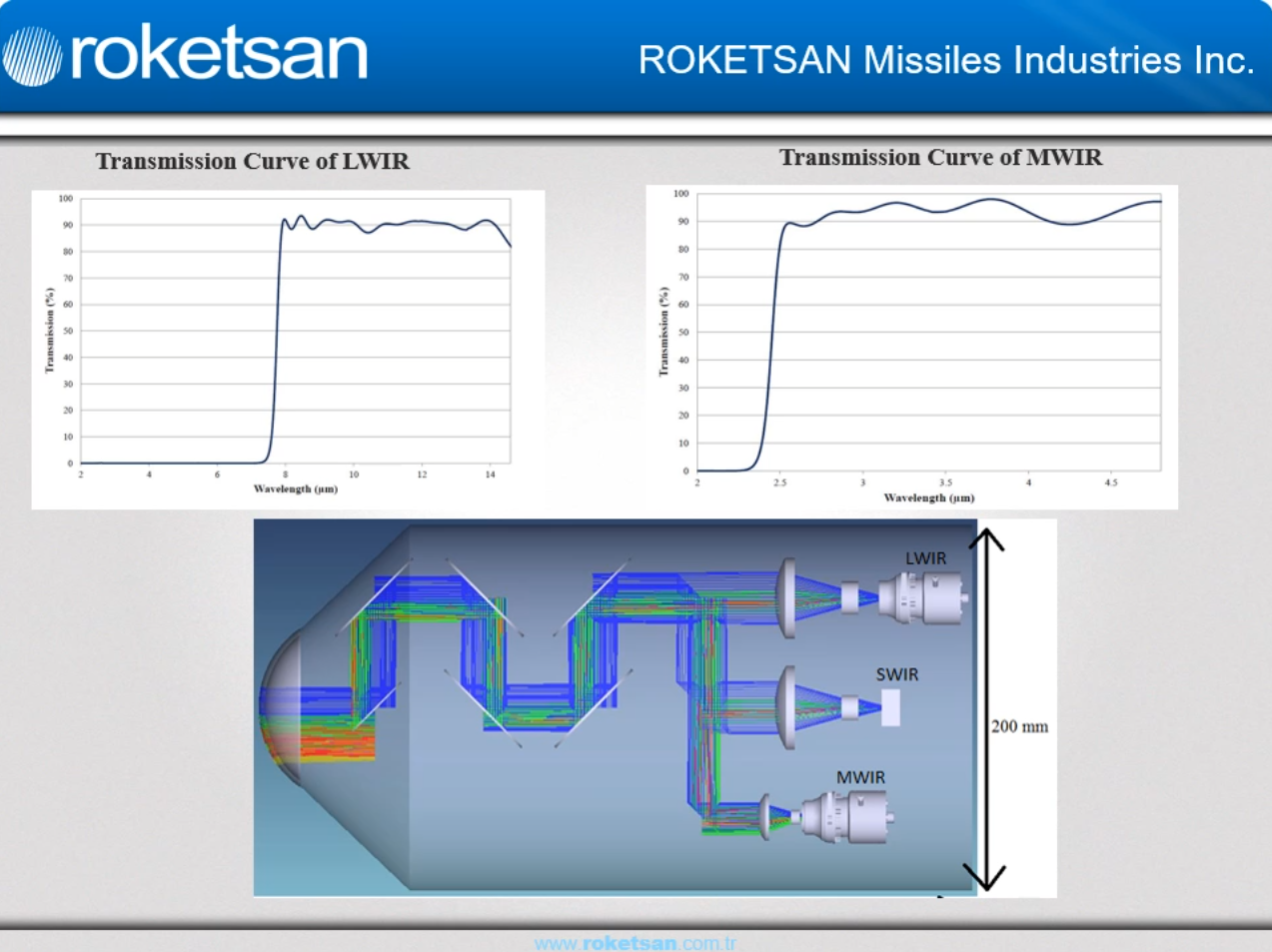

I also think it is, but the application could be for an AIM-120 sized missile with IIR homing, seeing as the AIM-120 has a diameter of 180 mm. Or it could be used on the rather stubby Bozdogan, and of course the HISAR systems.


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,475
Nation of residence
United Kingdom
Nation of origin
Turkey
UHTES
Standoff Through The Wall Radar


The Standoff Through The Wall Radar (UHTES) is a radar system used to obtain location information of the target elements, which are located in enclosed areas where there is no visual access, from a secure distance and without approaching the target area, through ultra-wideband (UWB) radar signals.

UHTES has been designed to be integrated onto Tactical Wheeled Armored Vehicles, Armored Personnel Carriers and Mine-Protected Armored Vehicle systems. Thanks to its long-range penetration capability, the system can transmit to the friendly elements the location information of living beings from a safe distance in cases where it is risky to approach the targeted structure.

Apart from various military operations, such as hostage rescue, counter-terrorism and internal security operations, UHTES can also be used for various civilian purposes, including firefighting and post-disaster rescue operations. The system can detect stationary and moving targets hidden in enclosed environments or behind obstacles.



Main Features
  • Long range target detection
  • Ability to integrate with TTZA, ZMA and MRAP type vehicles
  • Vertical and horizontal two-axis movable antenna system
  • High distance resolution
  • Effective penetration capacity against different types of obstacles
  • Sensitivity to macro and micro movements
  • Working with built-in rechargeable battery or feeding from the vehicle's power unit
  • Two-dimensional location estimation
  • In-device test (idt) capability
  • Jamming-resistant
  • Metal coated wall warning capability
  • Wall distance identification capability
  • Battery operation time (full use mode)
  • MIL- STD -810 compatibility
  • MIL- STD -461 compatibility
  • Save and replay the task
  • Wall detection
  • Built-in test (BIT) feature
  • Foreign language support


Technical Features
Size: Antenna Unit: 150 cm x 40 cm x 40 cm
Detection Distance: 35 m (in free field)
Motion Detection: Macro and micro movements
Wall Types: Brick, plasterboard, wood, plastic, concrete, etc.
Mechanically Controlled Antenna System
Moving Vertical and Horizontal
: Available
Angle of View: 90°
Display Type: 2 Dimensional
Screen Size: 19"
Power Type: Rechargable battery or feeding from the vehicle’s powerunit
Lifespan of Battery (Including Standby Time): 2.5 Hours (50% RF on, 50% standby mode)
Lifespan of Battery (100% Operational): 1,5 Hours


Attachments

  • 1581089412_uhtes-en.pdf
    1.5 MB · Views: 260

Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,475
Nation of residence
United Kingdom
Nation of origin
Turkey
m-Dar
Mini Through The Wall Radar

The Mini Through The Wall Radar (m-DAR) is a mini radar system used to obtain distance information of the target elements, which are located in enclosed areas where there is no visual access, through ultra-wideband (UWB) radar signals.

m-DAR has been designed to be used by the operator with one hand, allowing the operator to use other devices at the same time. Featuring a light and ergonomic design, m-DAR stands out as a user-friendly solution especially in cases where size and weight limitations are critical.

Apart from various military operations, such as hostage rescue, counter-terrorism and internal security operations, m-DAR can also be used for various civilian purposes, such as firefighting and post-disaster rescue operations.

The m-DAR system can provide distance information regarding stationary and moving live targets located behind walls or various obstacles.



Main Features
  • Lightweight and ergonomic design
  • Capability to be deployed by one hand
  • Higher distance resolution
  • High penetration rates through various types of obstacles
  • Sensitivity to macro and micro movements
  • Low power consumption and use with internal battery
  • Distance estimation of stable or moving targets

Technical Features
Technology: Ultra Wide Band (UWB) Radar
Penetrable Wall and Material Types: Brick, plasterboard, wood, plastic, concrete, etc.
Detection Capability: Moving or stable human movements
Operation Time with Battery: At least 1 hour
Dimensions: 26 cm x 10,5 cm x 10,5 cm (with handle)
Weight: 1.5 kg
Power Supply: Battery


Attachments

  • 1581089519_mdar-en.pdf
    1.1 MB · Views: 262

Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,475
Nation of residence
United Kingdom
Nation of origin
Turkey
DAR®
Through The Wall Radar


The Through The Wall Radar (DAR) is a radar system used to obtain 2D position information of the target stationary and moving elements, which are located in enclosed areas where there is no visual access, through ultra-wideband (UWB) signals.

Apart from various military operations, such as hostage rescue, counter-terrorism and internal security operations, DAR can also be used for various civilian purposes, such as firefighting and post-disaster rescue operations.




Main Features
  • Lightweight and ergonomic design
  • Remote control capability
  • High range resolution
  • Effective penetration ability
  • Macro and micro motion detection capability
  • Low power consumption and use with internal battery
  • Location and distance estimation of stable or moving or static targets
  • Dust protection
  • Save and replay the task
  • Wall detection
  • Remote viewing and control with tablet
  • Foreign language support

Technical Features
Size: 48cm x 26cm x 16cm
Weight: 6,5 kg
Detection Distance: 22 m (in free field)
Motion Detection: Macro and micro movements
Wall Types: Brick, plasterboard, wood, plastic, concrete, etc.
Cross-range Field of View: 112°
Display Modes: 1D, 2D
Screen Size: 7"
Power Type: Built-in rechargable battery and mains
Battery Operating Life (h)
: 4 hours
Ingress Protection: IP66


Attachments

  • 1581320133_dar-en.pdf
    1.9 MB · Views: 251
