Era_shield

Guest
Current Gökdeniz even Göker systems are heavy and bulky. They engage too much space on the ship.


Imagine as if Göker used 30x173cal smart ammunition, the gun system would be lighter and more compact.
View attachment 58435

Again imagine as if Istif Class Frigates had:

Port and starboard: 2 X 30mm Göker
FORE and AFT : 2 X LEVENT


And 8 cell VLS
35mm ATOM/AHEAD type munitions are already too small to be effective against some threats, which is why we are still putting Phalanx on new ships. If anything we should move to 40mm ATOM or larger.


TheInsider

Experienced member
Professional
Messages
4,061
Solutions
1
Reactions
34 14,465
Nation of residence
Turkey
Nation of origin
Turkey

AzeriTank

Contributor
Messages
711
Reactions
3 1,795
Nation of residence
Azerbaijan
Nation of origin
Azerbaijan
So what? Do you think i didn't know?

@Yasar instead of 35mm , 30mm Göker wouldn't be more compact as well as effective?
If 30mm hits the target from 3km away, 35mm hits from 4km and with supersonic antiship missiles(even hypersonic) thats very important.
Also, i believe Goker has higher(around 90 degree) elevation that Gokdeniz doesnt have because of design differences. That 90 degree is important for cruise missiles that goes to top attack mode at the end.


AzeriTank

Contributor
Messages
711
Reactions
3 1,795
Nation of residence
Azerbaijan
Nation of origin
Azerbaijan
He says its bulky, of course its bulky, you store more than 35mm ammunition inside, the more you have, longer you are safe as reloading it means you are defenseless. Thats the only advantage of 30mm, but we talk about a ship that has enough space


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,236
Reactions
139 16,184
Nation of residence
United Kingdom
Nation of origin
Turkey
So what? Do you think i didn't know?

@Yasar instead of 35mm , 30mm Göker wouldn't be more compact as well as effective?
Compact? Yes.
Effective? No.
Anything less than 35mm for air burst is not going to cut it. I would rather go for a 40mm air burst round for a ship’s CIWS.
With supersonic and even hypersonic missiles becoming more widespread, it is important to intercept these missiles as far away from the ship as possible. A CIWS like Phalanx that has electronics that engages a missile at 2500m, can actually effectively hit that missile under 1500m. If there is a second target to engage as well, then even if it hits it, most of the debris carrying enough kinetic energy will damage the ship extensively. A Brahmos travelling at around 2.4mach at terminal stage has under 2 seconds to hit the ship at 1500 metres. This is a 3 ton missile. OK it will be lighter at terminal stage having expended most of its fuel. But will still have a lot of mass travelling at that speed.
Gokdeniz will form a steel wall at a distance of 4000m from the ship. Theoretically it should stop multiple targets coming in with no danger of fallout or collateral damage.


boredaf

Contributor
Messages
1,388
Solutions
1
Reactions
16 3,836
Nation of residence
United Kingdom
Nation of origin
Turkey
I would rather go for a 40mm air burst round for a ship’s CIWS.
We do have Atom 40mm airburst round and Şahin (Hawk) system to use them with, but their range is extremely limited. I hope Aselsan is working on a longer range versions not just naval air defense but as an overall option.


Tornadoss

Contributor
Messages
1,375
Reactions
4 2,619
Nation of residence
Czechia
Nation of origin
Turkey
We do have Atom 40mm airburst round and Şahin (Hawk) system to use them with, but their range is extremely limited. I hope Aselsan is working on a longer range versions not just naval air defense but as an overall option.
But it's based on 40 mm grenade. Different type of munition.


UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,663
Reactions
54 4,748
Nation of residence
Turkey
Nation of origin
Turkey
Indeed it shouldn't be a problem. With a gun similar to 40 mm Oto Melara Twin compact gun it can be turned into good CIWS system.
They used it as multipurpose gun against ships and helicopters. İf you use it with airburst ammunition, the gun will be just CIWS. You couldn't damage a warship with airburst ammunitions.

Need to analyze your enemy's capabilities and weapons then need to create defense systems.

UMTAS + SUNGURs will be more effective than twinforty .


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,732
Reactions
94 9,026
Nation of residence
Bangladesh
Nation of origin
Bangladesh
To shoot down incoming threats (subsonic/supersonic cruise missiles, loitering ammunitions, drones and helicopters) I believe there could a reliable middle option in between CIWS and quick reaction missiles, using the main gun of the ship. Adding unprecedented operational flexibility to ship's both defensive and offensive capability.

To get an idea what we are talking about here, let's disscuse a system that is already in active service, the STRALES system. Successfully developed by Leonardo.



Which includes three main components: a 76/62 naval gun, DART guided ammunition and a Radio Frequency Guidance System with associated electronic.



1. The DART projectile is similar in many aspects to other hyper-velocity systems, for example the Starstreak SAM missile's multi-dart warhead, but is a guided gun projectile with radio controls and a proximity fuze for low level engagement (up to 2 meters over the sea). DART is fired at 1,200 m/s (3,900 ft/s), can reach 5 km range in only 5 seconds, and can perform up to 40G maneuver. The DART projectile is made of two parts: the forward is free to rotate and has two small canard wings for flight control. The aft part has the 2.5 kg warhead (with tungsten cubes and the 3A millimetric wave new fuse), six fixed wings and the radio receivers.






2. The guidance system is Command Line of Sight (CLOS). It uses a TX antenna installed on gun. The radio-command for them is provided on a broadcast data-link (Ka Band).




The DART projectiles are guided by a radio beam that follows the target by means of homing system. The projectile is fitted with a proximity fuze, but there were many hits during the firing trials.





The Strales 76mm system with DART guided ammunition is the only weapon system in the world which can ensure high level performance (at a lower cost than dedicated anti-missile systems) in the engagement of manouevring supersonic missiles with high lateral g force. The system is very effective also in the engagement of fast manouevring little boats.


The first lot of DART 76mm guided ammunition, produced by OTO Melara, was successfully tested at the end of March, 2014. The firing trials were conducted on board one of the Italian Navy's ships equipped with Strales 76mm SR and Selex NA25 fire control system.



Conclusion- I believe Aselsan and MKE has the technical know-how and necessary infrastructure to develop similar system for Turkish and friendly countries Navies based on MKE 76mm Naval gun.

Last edited:

UkroTurk

Experienced member
Land Warfare Specialist
Professional
Messages
2,663
Reactions
54 4,748
Nation of residence
Turkey
Nation of origin
Turkey
Gokdeniz will form a steel wall at a distance of 4000m from t
I have an another question: how self defense systems -that combined with ESSM( Hisar-N) plus Gökdeniz 35mm - could manage not to engage own SAMs.
The scenario:
1)Your radar detected very fast Cruise missiles flying toward your ship.
2) You send 2 ESSM/Hisar N at 10-5km distance
3) anti-ship missiles start maneuvering and managed to come close .
4) at 4 km distance ESSMs chase Antiship missiles.
5 ) Then your Gökdeniz 35m start bursting.
6) Finally Gökdeniz kills ESSMs instead of Antiships.

So combination of 4km ranged CIWS with SAMs is too much complicated.

İ can't imagine how could RAM/Levent/SUNGUR with Millenium gun/Gökdeniz CIWS combination manage to identify the enemy missiles.

Maybe it is the reason Germans don't use Millenium gun with RAM.

Last edited:

Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,732
Reactions
94 9,026
Nation of residence
Bangladesh
Nation of origin
Bangladesh
If ESSM or HISAR-D misses its target on first attempt there is no way they can take a 180 degrees turn to chase the target again. (Even with a second pulse motor)

Only time a missile can take a 180 degrees turn when its primary motor is running. (Even that is going to greatly reduce its effective range)
Like how some WVR missile do it.

However, at 10km Hisar-D or ESSM motor would be almost burned out.

Then again, chances of ESSM and HISAR-D missing the target is quite slim as they both can perform up to 40G maneuver or more, while subsonic as well as brahmos type missiles can only perform up to 12G maneuver.

In a nutshell, interceptors can comfortably follow the targets even when they do sharp maneuvers. (Also, to maximize the chances of interception, usually 2x ESSM is assigned to each incoming high value target)

Last edited:

BalkanTurk90

Contributor
Messages
655
Reactions
5 1,025
Nation of residence
Albania
Nation of origin
Turkey
I have an another question: how self defense systems -that combined with ESSM( Hisar-N) plus Gökdeniz 35mm - could manage not to engage own SAMs.
The scenario:
1)Your radar detected very fast Cruise missiles flying toward your ship.
2) You send 2 ESSM/Hisar N at 10-5km distance
3) anti-ship missiles start maneuvering and managed to come close .
4) at 4 km distance ESSMs chase Antiship missiles.
5 ) Then your Gökdeniz 35m start bursting.
6) Finally Gökdeniz kills ESSMs instead of Antiships.

So combination of 4km ranged CIWS with SAMs is too much complicated.

İ can't imagine how could RAM/Levent/SUNGUR with Millenium gun/Gökdeniz CIWS combination manage to identify the enemy missiles.

Maybe it is the reason Germans don't use Millenium gun with RAM.
Hisar N will be longer range and will destroy ASM far away (20-50km) from reach of Gögdeniz . If Hisar N fails and AntiShip missile gets too closee 5-10km than closse air defence can fire and destroy it .


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,236
Reactions
139 16,184
Nation of residence
United Kingdom
Nation of origin
Turkey
Conclusion- I believe Aselsan and MKE has the technical know-how and necessary infrastructure to develop similar system for Turkish and friendly countries Navies based on MKE 76mm Naval gun.
Aselsan, since 2006 has been developing a Fire Control System called TAKS. This has been upgraded further during the course of the last 3 years in to newer and more accurate versions.
Both 127mm and 76 mm guns have been fired with great success, controlled by this system. It has full control over the entire specified range of the guns against surface and aerial threats including fast aircrafts and missiles.
Altay tank has a version of this TAKS as well.
This system enables non guided and relatively inexpensive rounds to be effective against threats with precision. On surface ships it complements and becomes an integral part of the AD system.

For the future, when the guided rounds become available it will only add to the effectiveness and high precision of the system.



Quasar

Contributor
The Post Deleter
Messages
734
Reactions
51 3,277
Nation of residence
Turkey
Nation of origin
Turkey
There is no way they are quadpacking current SIPER interceptor. (Did you see how fat its booster?)

However, even when they quadpack the later block of SIPER, G40 will still have its relevance.

New block of SIPER are expensive and meant for long range and high altitude.

They are not (economically) feasible for quick reaction point defence.

That's where G40 comes in.
It would be similar to ESSM (expect ESSM has TVC while G40 will have orientation control system. Probbaly something like CAMM has)

On the other hand, SIPER will have similar role to SM-2 interceptor.


Agreed that current ATMACA booster for SİPER understandably seems to use a readly available booster for the sake of having an operational long range SAM as soon as possible, however like in the case of BARAK, SİPER booster is open to eveluation which may be focusing on VLS use I belive


uçuyorum

Contributor
Messages
925
Reactions
13 1,519
Nation of residence
Turkey
Nation of origin
Turkey

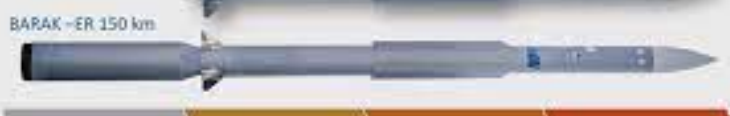

View attachment 58491

Agreed that current ATMACA booster for SİPER understandably seems to use a readly available booster for the sake of having an operational long range SAM as soon as possible, however like in the case of BARAK, SİPER booster is open to eveluation which may be focusing on VLS use I belive
Original Siper missile is meant to be longer without booster isn’t it


Afif

Experienced member
Moderator
Bangladesh Correspondent
DefenceHub Diplomat
Bangladesh Moderator
Messages
4,732
Reactions
94 9,026
Nation of residence
Bangladesh
Nation of origin
Bangladesh
Original Siper missile is meant to be longer without booster isn’t it

@Anmdt previously Said, even the new interceptor will get booster eventually. Like SM-2 series.

Last edited:

TheInsider

Experienced member
Professional
Messages
4,061
Solutions
1
Reactions
34 14,465
Nation of residence
Turkey
Nation of origin
Turkey
Aselsan, since 2006 has been developing a Fire Control System called TAKS. This has been upgraded further during the course of the last 3 years in to newer and more accurate versions.
Both 127mm and 76 mm guns have been fired with great success, controlled by this system. It has full control over the entire specified range of the guns against surface and aerial threats including fast aircrafts and missiles.
Altay tank has a version of this TAKS as well.
This system enables non guided and relatively inexpensive rounds to be effective against threats with precision. On surface ships it complements and becomes an integral part of the AD system.

For the future, when the guided rounds become available it will only add to the effectiveness and high precision of the system.

Wrong FCS of Altay develop with the experience gained from Leopard 1T Volkan modernization project.

Later Aselsan further improved FCS of Altay after the project is vastly delayed.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,236
Reactions
139 16,184
Nation of residence
United Kingdom
Nation of origin
Turkey
Wrong FCS of Altay develop with the experience gained from Leopard 1T Volkan modernization project.

Later Aselsan further improved FCS of Altay after the project is vastly delayed.
“Altay tank has a version of this TAKS as well.”

TAKS means Top Atış Kontrol Sistemi/Tank Atış Kontrol Sistemi
(In English, Gun or Tank Fire Control System)

What is wrong with that first statement?

A version of TAKS was started to be developed by Aselsan for 76mm naval gun in 2006 after Volkan 1 was successfully qualified for Leopard1 in 2006. Also a much improved version of this TAKS was introduced in 2022 for the 127mm naval gun.

TAKS was first started in 2002 for Leopard1; then qualified on tanks in 2006 (and the last tank was delivered in 2010). Then it was improved as Volkan 2 for Altay and Leopard 2 tanks when it was supposed to be qualified in to tanks in 2022. Also in 2022 a version of this FCS called VolkanM was introduced specifically developed for the M60TM tanks.

Just by reading that first sentence , in your head, you have decided it is “wrong” with no real substance. Interesting!!
