TR TF-X KAAN Fighter Jet

Khagan1923

Contributor
Messages
968
Reactions
14 4,139
Nation of residence
Germany
Nation of origin
Turkey
TF-X isn't an deep strike vehicle. So don't expect it to carry Cruise Missiles in its bay.


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,224
Reactions
138 16,103
Nation of residence
United Kingdom
Nation of origin
Turkey
Don't think it will, SOM-J was specifically desgined for internal carriage on F-35 which has large weapons bays that can fit 2000lb bombs.

TFX is an air superiority fighter first and foremost, although it will have multi-role capabilities it was not designed to be a stealthy bomb truck like F-35 is.
som j will be used in TFX


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,473
Nation of residence
United Kingdom
Nation of origin
Turkey

Anmdt

Experienced member
Naval Specialist
Professional
Messages
5,458
Solutions
2
Reactions
114 24,633
Nation of residence
Turkey
Nation of origin
Turkey

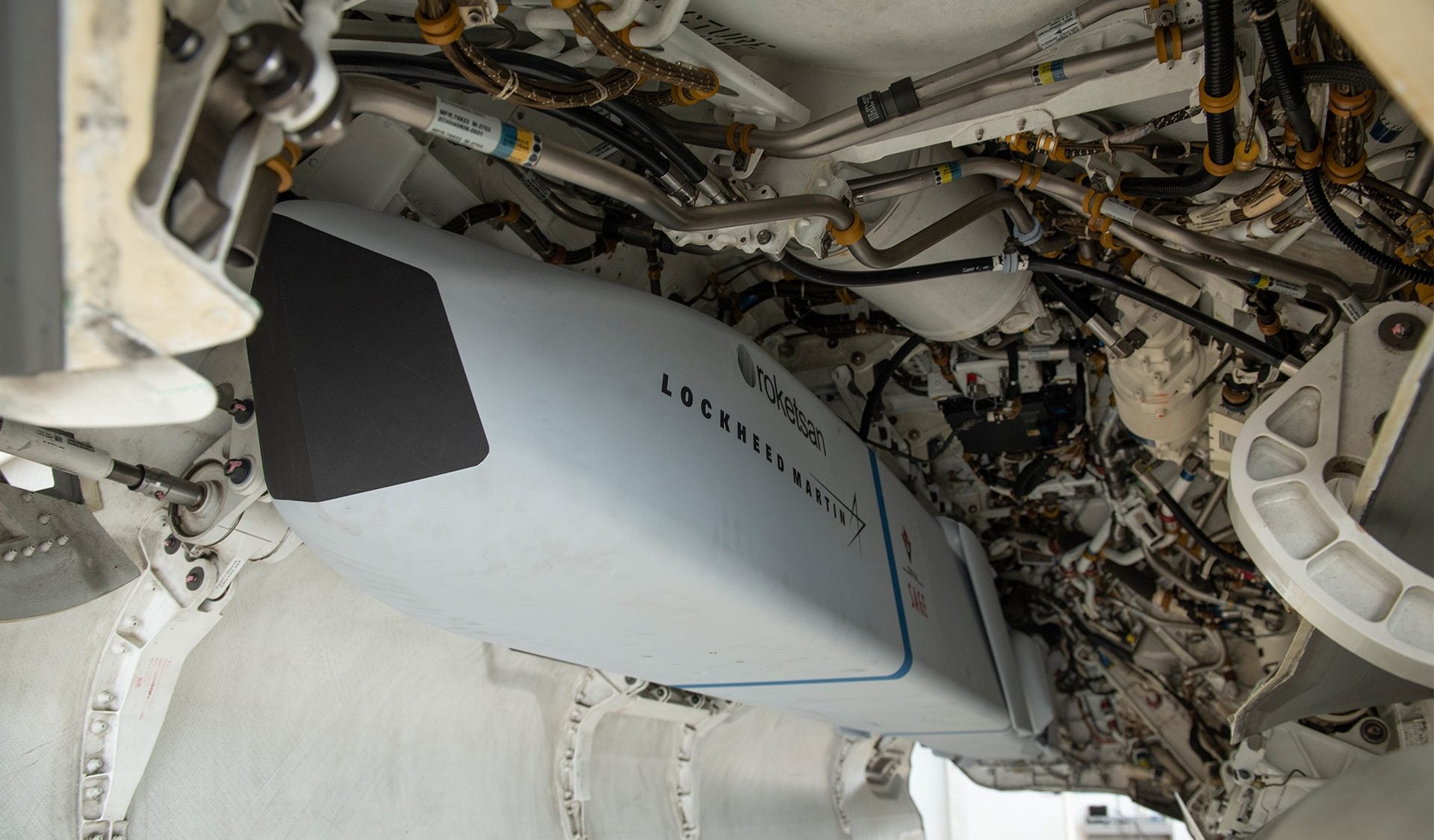

Akbaba confirmed officially for the first time
Missiles - Copy.jpg

And what is this?


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,224
Reactions
138 16,103
Nation of residence
United Kingdom
Nation of origin
Turkey

Philips

Well-known member
Messages
359
Reactions
991
Nation of residence
Nethelands
Nation of origin
Netherlands
"Whether the aircraft will be able to store SOM-J internally is unknown. In contrast to F-35, TF-X seems to have begun life with a greater focus on air superiority over strike missions. The layout of TF-X appears more inspired by F-22 than F-35, notably being twin-engined and lacking an EOTS turret under the nose (at least on the model). F-22’s weapon bays aren’t optimized for larger ordnance and are incapable of stowing SOM-J or JSM."

So just because the author of the article thinks the TF-X resembles the F-22 and therefore cannot carry the SOM internally, is such a bad argument.

Just because the F-22 has poor air-to-ground capability that means the TF-X is bad at it too?


Combat-Master

Baklava Consumer
Moderator
Messages
3,667
Reactions
15 25,473
Nation of residence
United Kingdom
Nation of origin
Turkey
"Whether the aircraft will be able to store SOM-J internally is unknown. In contrast to F-35, TF-X seems to have begun life with a greater focus on air superiority over strike missions. The layout of TF-X appears more inspired by F-22 than F-35, notably being twin-engined and lacking an EOTS turret under the nose (at least on the model). F-22’s weapon bays aren’t optimized for larger ordnance and are incapable of stowing SOM-J or JSM."

So just because the author of the article thinks the TF-X resembles the F-22 and therefore cannot carry the SOM internally, is such a bad argument.

Just because the F-22 has poor air-to-ground capability that means the TF-X is bad at it too?

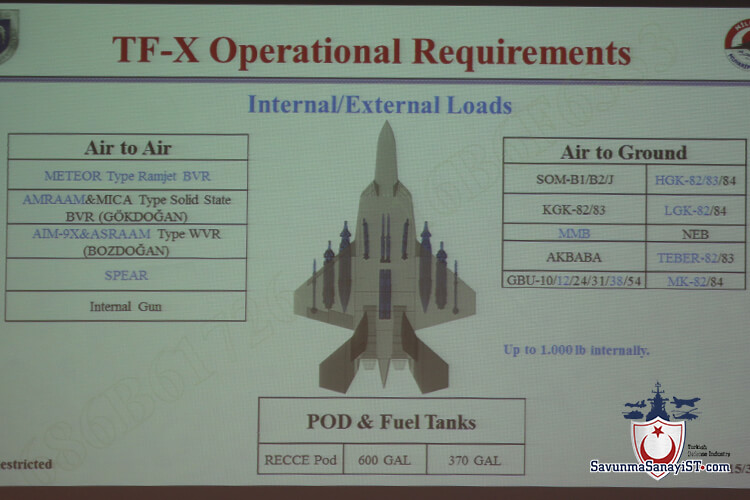

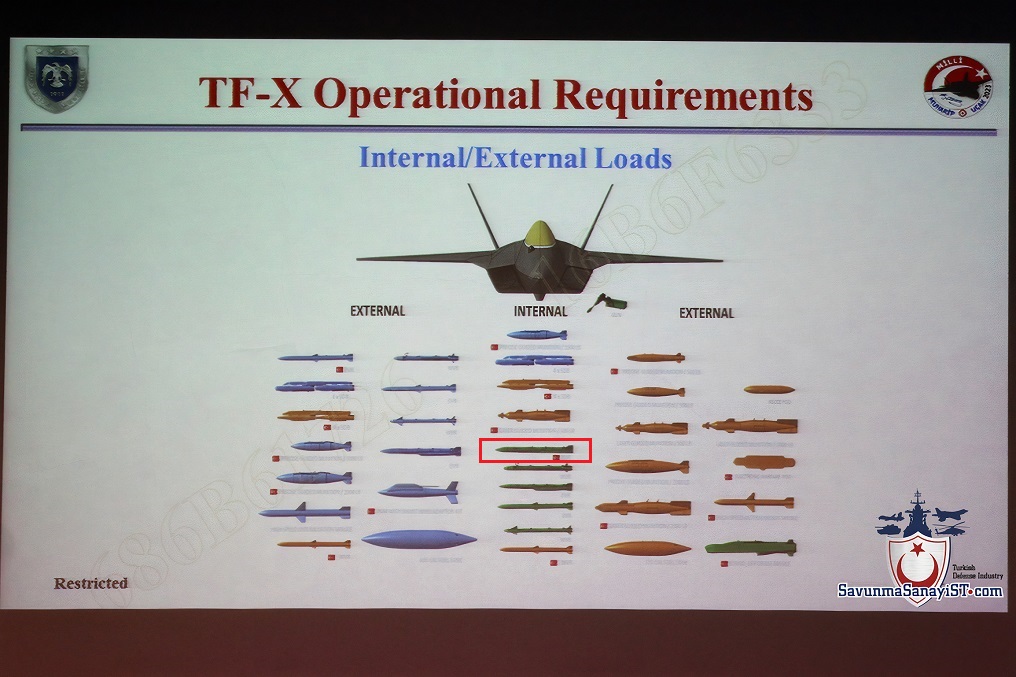

Official image of the internal/external weapons load-out supports authors article.

S

Sinan

Guest
Interview from SavunmaSanayiIST.

Within the scope of the F-16 Block 30 Structural Improvement Project initiated by the Presidency of Defense Industries in 2015, TAI continues its work successfully. With the project, the flight life of F-16 Block 30 warplanes, which reached 7000 flight hours as of 2016, is increased from 8,000 hours to 12,000 hours.

Bahadır SANALAN, who served as the F-16 Structural Modernization Program Manager at TAI, made the following statement on the subject:
“The Block 30 aircraft we currently have are the oldest F-16 aircraft in the Air Force's inventory. Therefore, they are in need of structural renovation at the moment. Within the scope of this project, we only carry out the structural modernization of Blok 30 aircraft, and we do not carry out any avionic modernization.
In these aircraft, we check the parts that need to be checked, replace the parts that need to be replaced, and repair or strengthen the parts that need to be repaired.
Lockheed Martin produces the structural parts, namely the kits, for this project. We are currently producing some parts such as wing upper panel, wing lower panel and front spar. We attach these parts to the planes and the structural modernization is done.

Under the program, we will modernize 35 aircraft. We have now completed and delivered 6 of them. One is currently awaiting delivery and we currently have 8 planes. Repairs continue on them as well.”
According to the information obtained; Activities within the scope of the F-16 Structural Improvement Project are planned to be completed by 2023.




Can i do a pop-quiz for everyone?

Why do they use rivets in aircraft instead of welding?


Yasar_TR

Experienced member
Staff member
Administrator
Messages
3,224
Reactions
138 16,103
Nation of residence
United Kingdom
Nation of origin
Turkey
3 Main reasons, one of the reason have something to do with Al. But not those reason exactly.
Last one is , ease of inspection of rivets.

This is what I found with google search:
Pros
  • Rivets are cheap
  • Riveting can be done regardless of the position/location. (vertical, etc.)
  • Very high shear strength and resistance from fatigue
  • Removing a rivet causes less damage than a welded joint
  • Some rivets can tolerate atmospheric and chemical corrosion
  • No considerable damage to the protective coatings of the parts involved
  • Can be used to join ferrous, non-ferrous metals, and even non-metals
Cons
  • Need to pre-drill holes
  • Noisy process
  • Time-consuming
  • Not a leakproof joint
  • Rivets add weight while the holes reduce stability
  • Riveted joints are significantly bulkier than welded joints
  • Not always aesthetically appealing

Last edited:
S

Sinan

Guest
Last one is , ease of inspection of rivets.
Okay, let me answer the questions since everyvody is reading, nobody is answering.

1-) As you said Aluminum; it's really hard to weld Aluminum. It's not impossible but it's really very very hard when you compare it to welding steel.

In Example;

2-) For maintenance; it's really easy to remove rivets when you compare it breaking apart the welding.

3-) The most important part is for calculation; you can easily calculate how many rivets you need to hold a part. But in welding it's not that simple. Humans are not perfect, and even in steel welding is not that easy. It takes years to became an expert welder. Even if you use machines for welding they are also not doing a perfect job. In other stuff (like ships, ground vehicles) they just increase the safety the factor because weight is not a big issue. But in Aerial vehicles where weight is a huge issue, you can't just double the safety factors.

So, they go with rivets for decades and it's not changing much on Al bodied aircraft.


Philips

Well-known member
Messages
359
Reactions
991
Nation of residence
Nethelands
Nation of origin
Netherlands
'Up to 1000lb internally'. That means that 4x BVR like AMRAAM are too heavy to be carried internally 🤔. Luckily a whole plethora of UCAV's will entire service for ground-attack operations.


TheInsider

Experienced member
Professional
Messages
4,052
Solutions
1
Reactions
34 14,433
Nation of residence
Turkey
Nation of origin
Turkey
'Up to 1000lb internally'. That means that 4x BVR like AMRAAM are too heavy to be carried internally 🤔. Luckily a whole plethora of UCAV's will entire service for ground-attack operations.

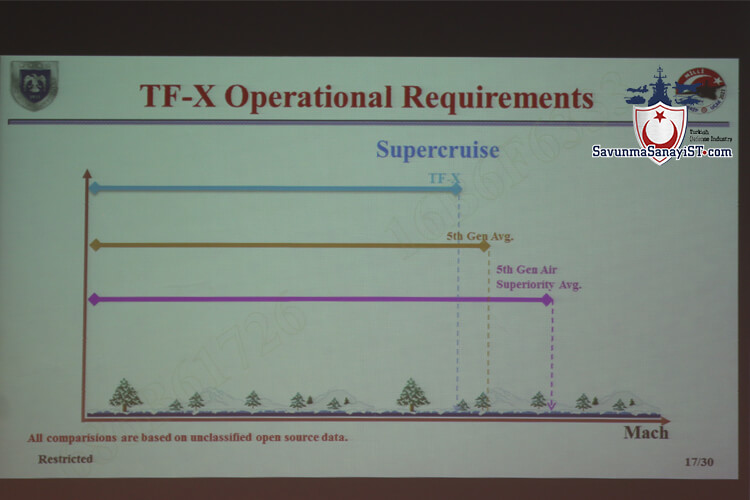

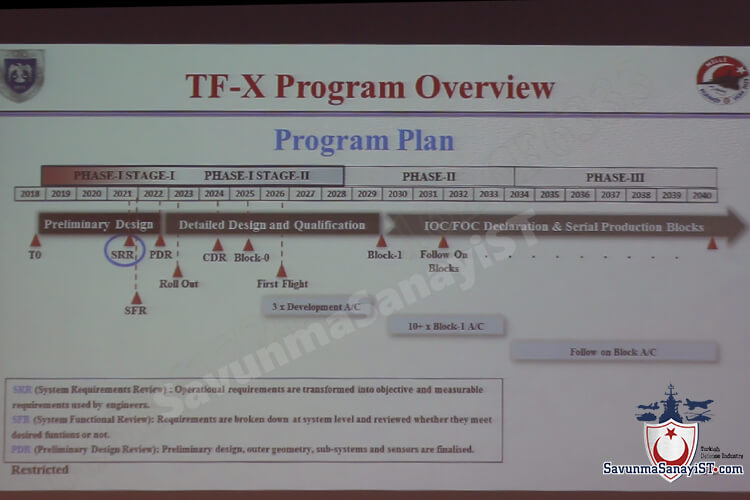

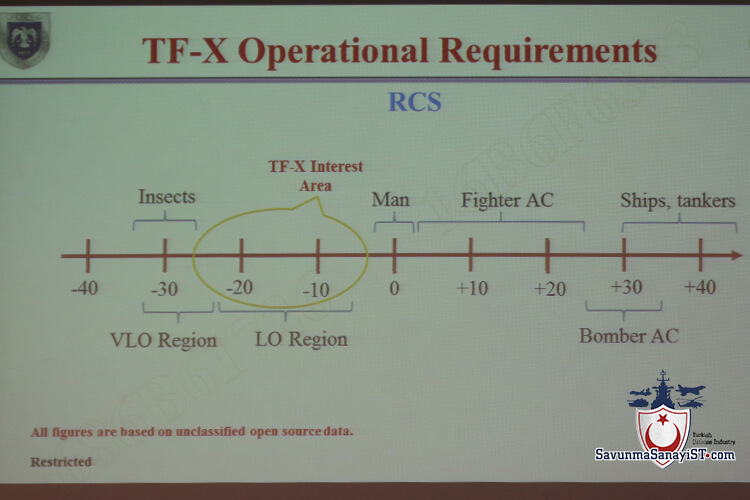

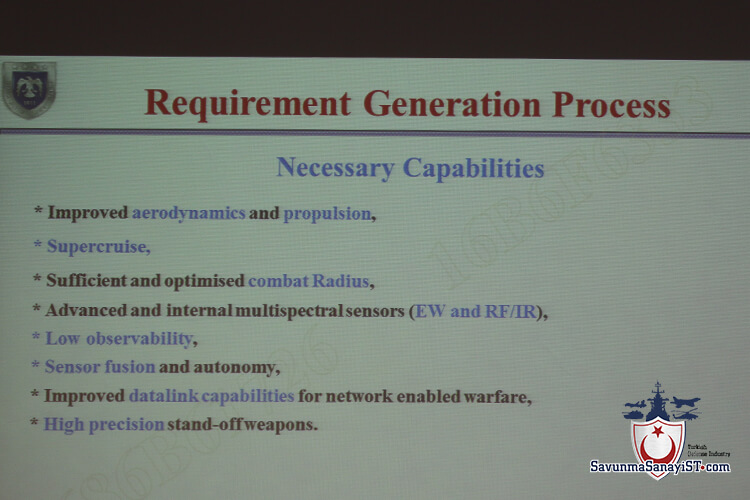

This is not necessarily the final capability of the aircraft. This is the minimum requirement the airforce will accept. Everything that is shown in those slide shows are the minimum requirements.


Philips

Well-known member
Messages
359
Reactions
991
Nation of residence
Nethelands
Nation of origin
Netherlands
This is the minimum requirement the airforce will accept
Their requirements can be met by a single engine light/medium weight 5th gen design. Why then even bother with a twin engine heavy weight design?


Zafer

Experienced member
Messages
4,683
Reactions
7 7,389
Nation of residence
Turkey
Nation of origin
Turkey
Their requirements can be met by a single engine light/medium weight 5th gen design. Why then even bother with a twin engine heavy weight design?
Perhaps it is because it is a mult-irole fighter that has to meet many other requirements like speed, range, non-stealth carrying capacity and such.
