@Test7 , Bro we should resize these images




Cabatli_TR

Experienced member
Staff member
Administrator
Messages
5,360
Reactions
81 45,454
Nation of residence
Turkey
Nation of origin
Turkey
"SPEAR/MIZRAK isimli bir füzeden oluşacak. SPEAR ismi ilk aşamada akıllara MBDA ürünü hava-yer akıllı mühimmatını getirmekte ancak Hava-Hava Silah Yükü bölümünde yer aldığından bu füzenin mili imkanlarla geliştirilmekte olan bir füze modeli olduğu düşünülebilir."

Maybe something that can be carried in large numbers internally?


TfX air to air engagements section, 5 different items were listed in presentation.

  • Internal gun
  • Bozdoğan WVR
  • Gökdoğan BVR
  • Gökhan Ramjet (Meteor type missile)
  • Mızrak (Spear) missile (?)


Philips

Well-known member
Messages
359
Reactions
991
Nation of residence
Nethelands
Nation of origin
Netherlands

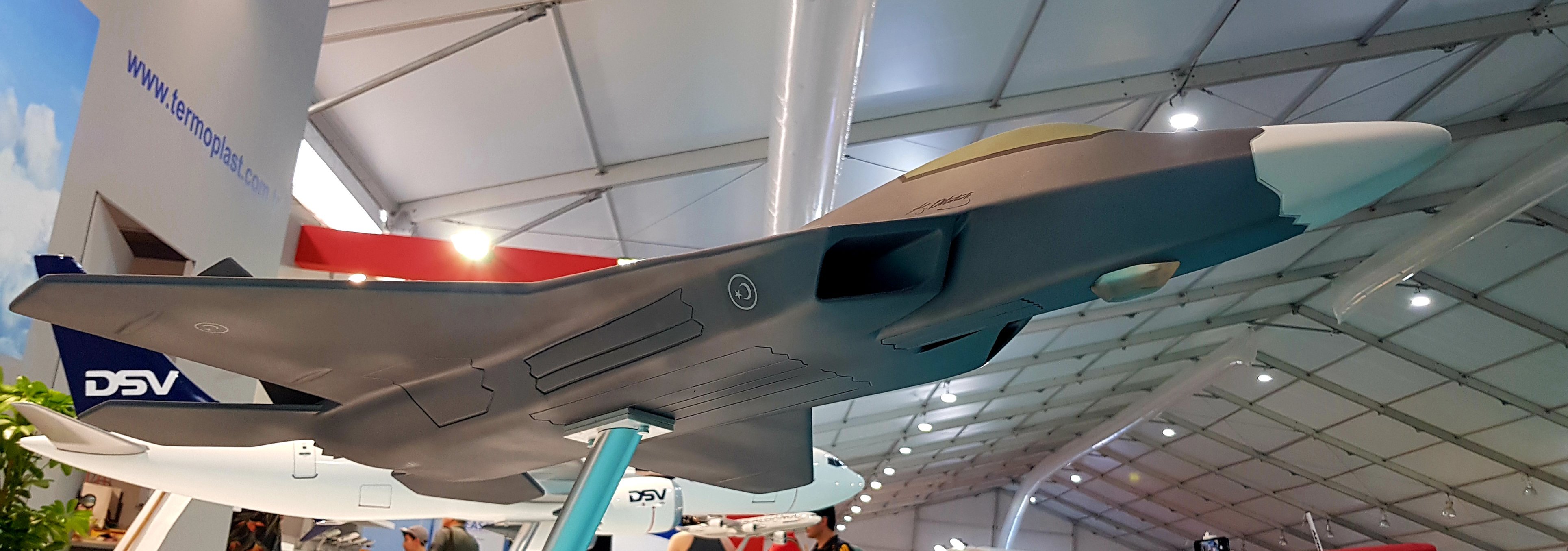

Compared to previous design images, the distance between two turbofan has increased.

View attachment 24751
They went from F-22 style abreast main weapons bay to Su-57, 2 in a row layout. This makes it easier to strengthen and stiffen the airframe, creates a more lifting body design but is more prone to CoG (center of gravity) issues when weapons are not deployed in a certain sequence.


Spook

Contributor
Messages
607
Reactions
2,106
Nation of residence
Albania
Nation of origin
Turkey
Compared to previous design images, the distance between two turbofan has increased.

View attachment 24751

I don't know aircraft design but they maybe forecasted TRMOTOR engines size and try to leave some room for Block 2?

First TRMOTOR firing test said to be 2026-27. Integration, flight test to be 2029. TEI said around 15 years to develop fighter engine which goes along with Phase 3 (Block 2, next blocks) starting 2034-35.

Last edited:

Raptor

Contributor
Messages
534
Reactions
646
Nation of residence
India
Nation of origin
India
So much updates coming for Tfx,can anyone tell me whether it would have conformal eots?

Last edited:

TheInsider

Experienced member
Professional
Messages
4,052
Solutions
1
Reactions
34 14,433
Nation of residence
Turkey
Nation of origin
Turkey
It was reported that KFX will have 0,5m2 RCS and PakFa has (1-0,1)m2 RCS.

0,1-0,003 m2 TfX RCS figure is not bad when it is compared with other new aircrafts. In addition, the given figures for TFX are the targeted RCS values. The aircraft may have better stealthiness figures than initially planned one thanks to coating and paint materials

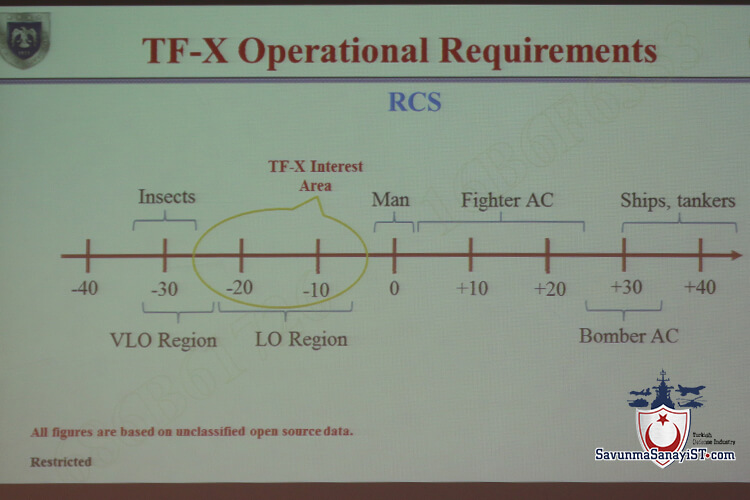

View attachment 24725

-10 dbcm: 0,1m2 RCS (TfX interest area)
-20 dbcm: 0,01m2 RCS (TfX interest area)
-25 dbcn: 0,003m2 RCS (TfX interest area)
-30 dbcm: 0001m2 RCS
Low observability and RCS is not a constant number. At some angles, the RCS of TF-X will approach to 0,001m2 mark at some other angles it will approach 0.1m2 but it will stay inside those boundaries. RCS figure of F-35 is larger by a magnitude when measured from the backside compared to the front side.


Test7

Experienced member
Staff member
Administrator
Messages
4,785
Reactions
19 19,937
Nation of residence
United States of America
Nation of origin
Turkey
So much updates coming for Tfx,can anyone tell me whether it would have conformal eots?

Integrated Electro Optic System(called BEOS in Turkish) development project was signed by aselsan in 2018
