In persuit of improvements, there might be some good news.

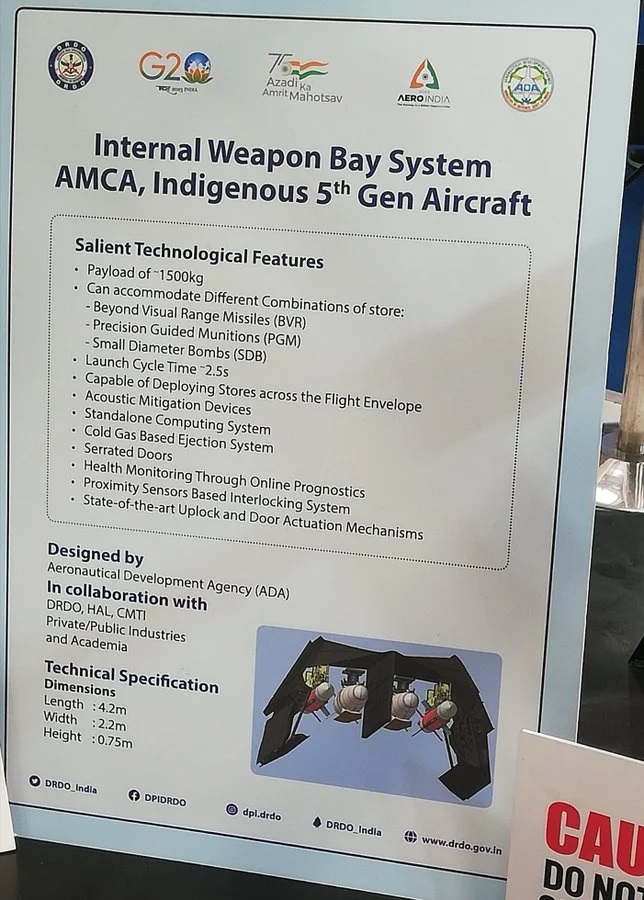

The unofficial tweet might be true. I lately got an infographic showing AMCA's IWB dimensions to be 4.2m long, 2.2m wide, 0.75m height. The dimension is not mentioned in many other posters.

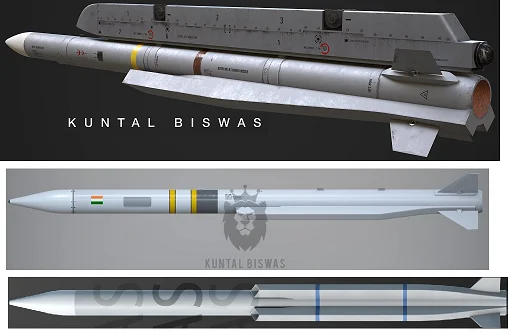

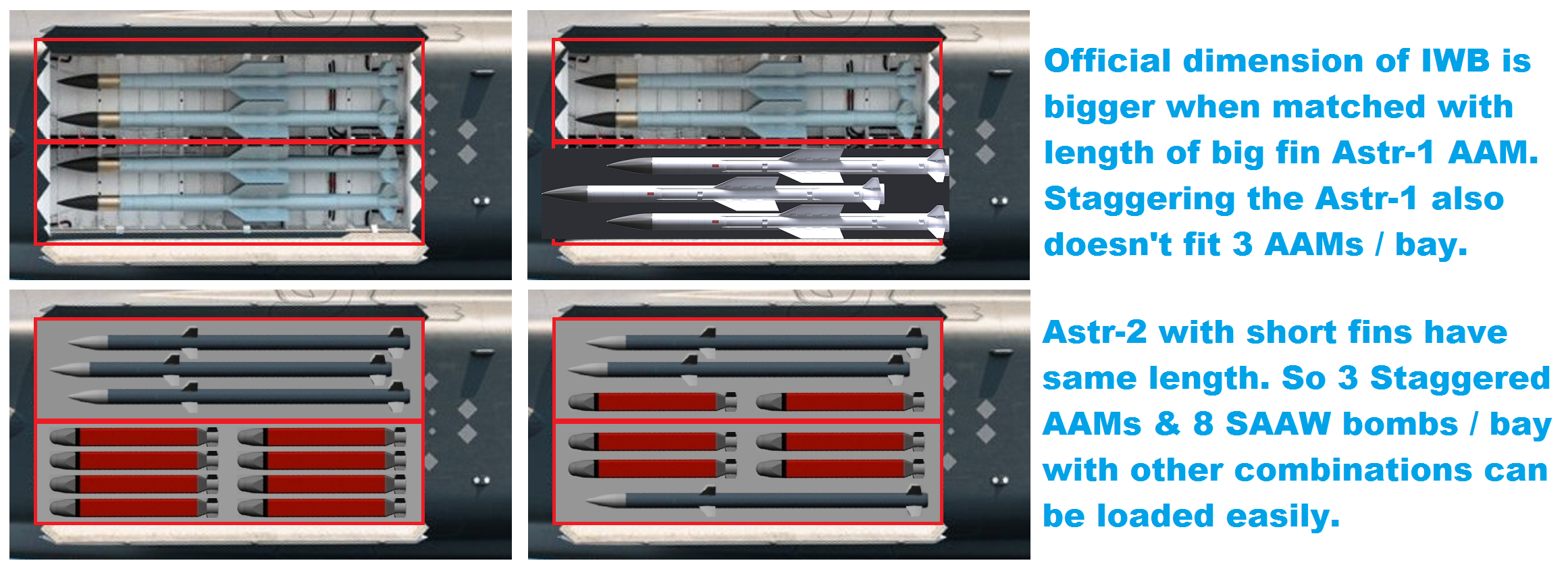

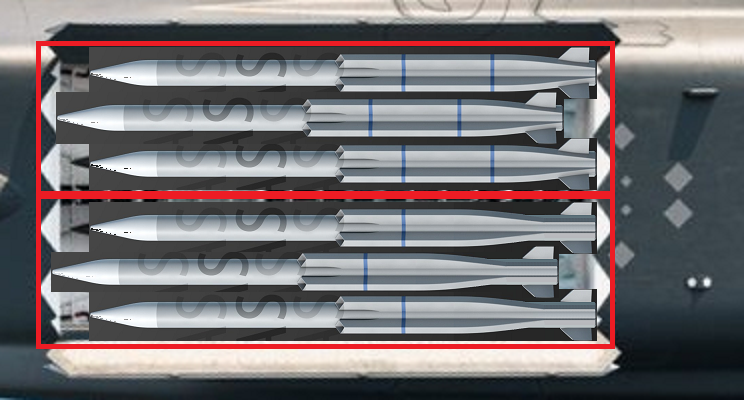

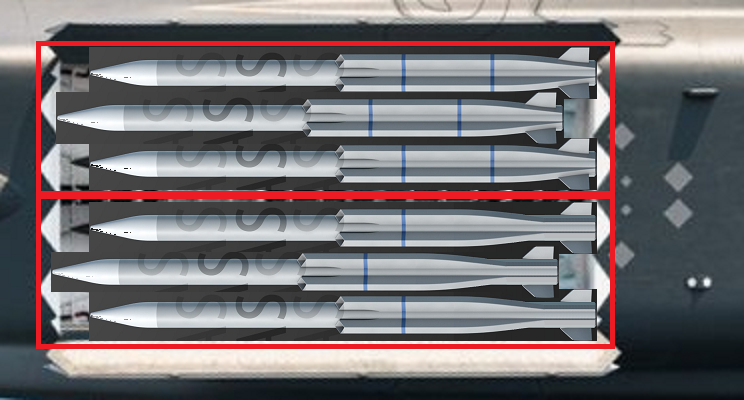

The Astr-1,2,3 AAMs have same length 3.84m. But unfortunately due to big fins of Astr-1, even staggering doesn't help to fit 3 AAMs/bay, total of 6.
But the Astr-2 with shorter fins can easily fit with staggering.

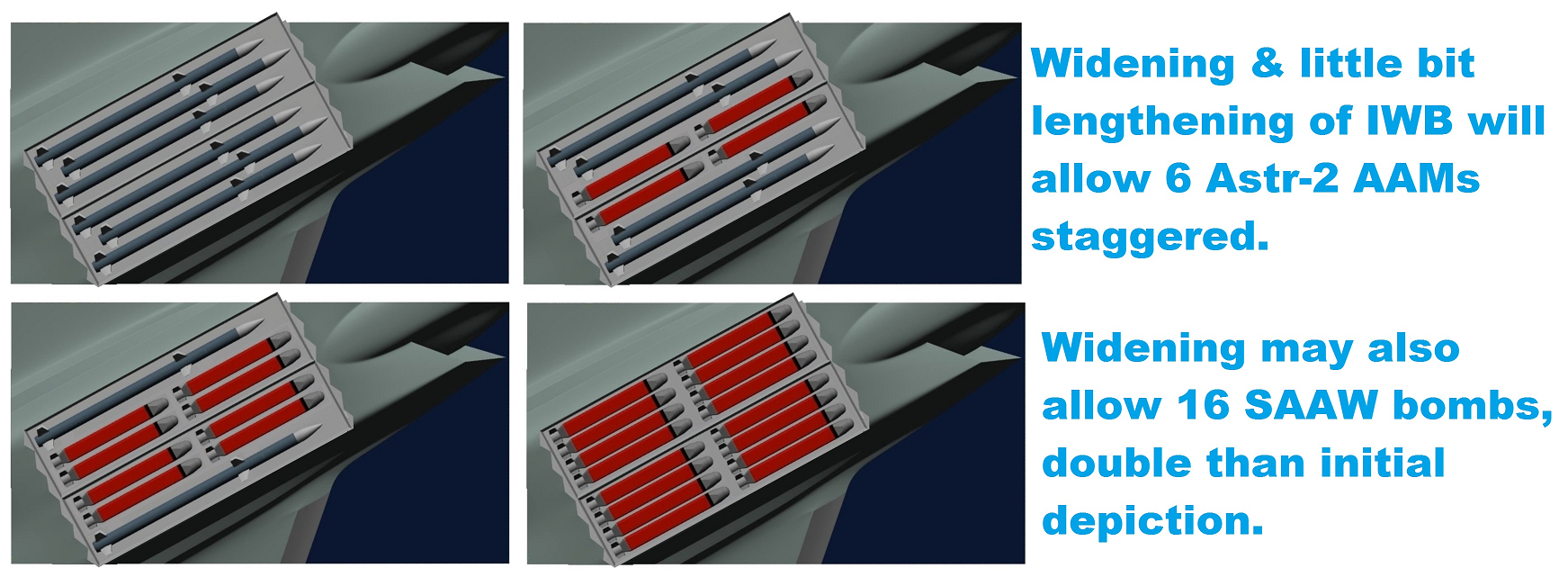

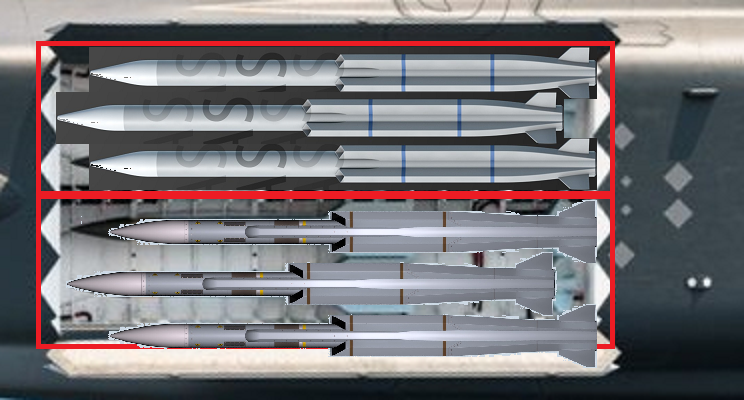

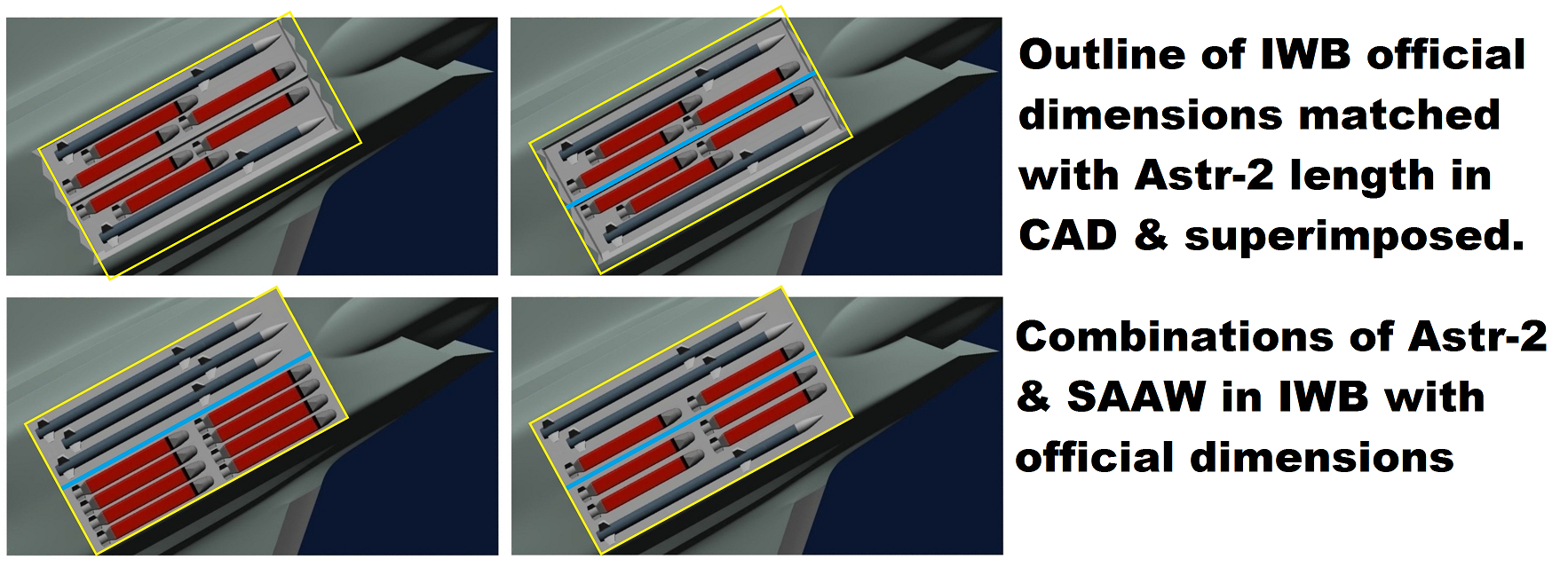

Bcoz of limited info coming out gradually, the older CADs couldn't show the actual weapons capacity. If we superimpose the actual IWB dimensions to match with Astr-1,2 AAMs then we can see the difference.
In latest CAD by artist Kuntal Biswas who sticks to official specs, the IWB seems to have been widened, although a bottom view with exact dimensions & capacity is not available yet. The below pic is 2.5 months old now but nobody posted.
More good news to come gradually.
